Summary of Contents for Cotell IH2500B

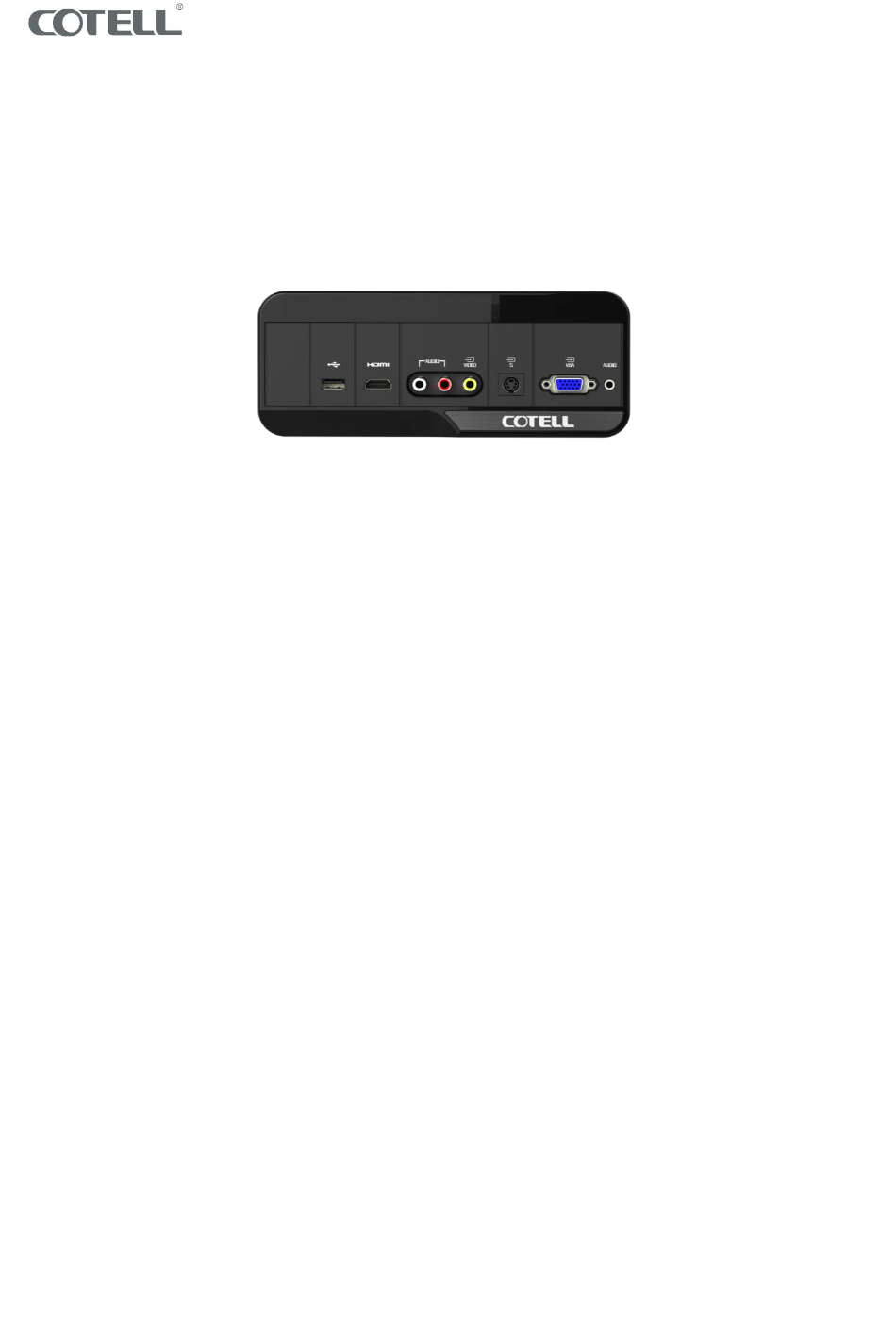

- Page 1 IH2500B-A-WM IH2500B (Wall-Mount Installation Guide...
- Page 2 IH2500B-A-WM IH2500E-A-WM Infotainment Connectivity Panel Accessories HDMI Cable User guide Screws Bracket Faceplate IH2500E-M-WM FEATURES Wall-mount Ergonomic design with stylish outlook High quality casing Customizable logo +5V universal charger AV + S-interface ...
- Page 3 IH2500B-A-WM IH2500B-A-WM DIAGRAM ITEM FEATURE DESCRIPTION +5V USB USB Charger input HDMI HDMI input Audio & Video Audio & Video input S-Video Supper Video input VGA input Audio 3.5mm Audio input IH2500B-A-WM MEASUREMENT...
-
Page 4: Installation Procedure
IH2500B-A-WM BRACKET DIAGRAM (in mm) INSTALLATION PROCEDURE Remove the bracket; Create depression in the wall according to the size of the junction box (in mm). - Page 5 IH2500B-A-WM 1. Fasten the bottom of the junction box to the wall 2. Place the universal power cord through the junction box 3. Insert all the cables through the Junction box and ensure that they are securely fastened. Connect the other end of the cables to the relevant connections (Power, Internet & TV outlets)
-
Page 6: Operation
IH2500B-A-WM 4. Place the IH2500B-A-WM core into the junction box and fasten the 4 screws provided. Clip in the upper faceplate. 5. Test all function to ensure they are workable. OPERATION General 1. Turn the TV to Appropriate HDMI channel using the TV remote control 2. - Page 7 IH2500B-A-WM Note: Input Selection The IH2500B Infotainment connectivity panel will not instruct the TV to switch its input port. If the connectivity panel is connected on port “HDMI2”, then the user will have to manually select the “HDMI2” input via the TV remote control.
-
Page 8: Important Safety Instructions
IH2500B-A-WM IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR INFOTAINMENT CONNECTIVITY PANEL, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS. INCLUDING THE FOLLOWINGS: 1. READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL. -
Page 9: Warranty Exclusions
8. Damages in transit. 9. Any damage resulting from unauthorized modification or repair of the Infotainment connectivity panel. COTELL PRODUCT SUPPORT If you need technical assistance with this product, please contact COTELL INTERNATIONAL LIMITED : Telephone : 86-755-2583 1520 : 86-755-8885 9899 Email Sales@cotell.cn...
