ThermoForma 370 Series Operating And Maintenance Manual

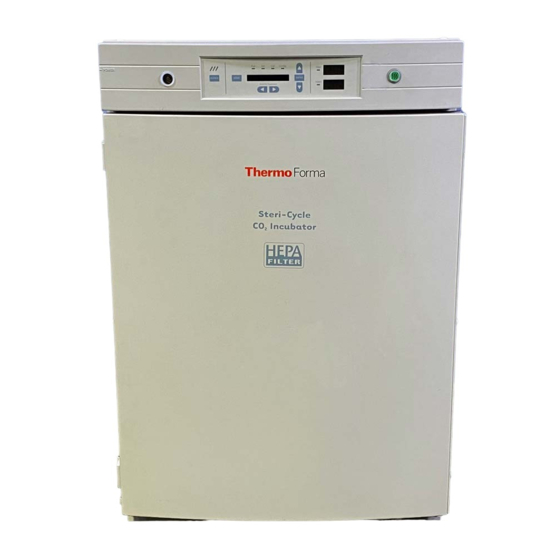

Steri-cycle incubator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Models:
370/371 and 380/381
Steri-Cycle Incubator
Direct Heat with Sterilization Cycle
Operating and Maintenance Manual
Manual No: 7000370 Rev. 2
