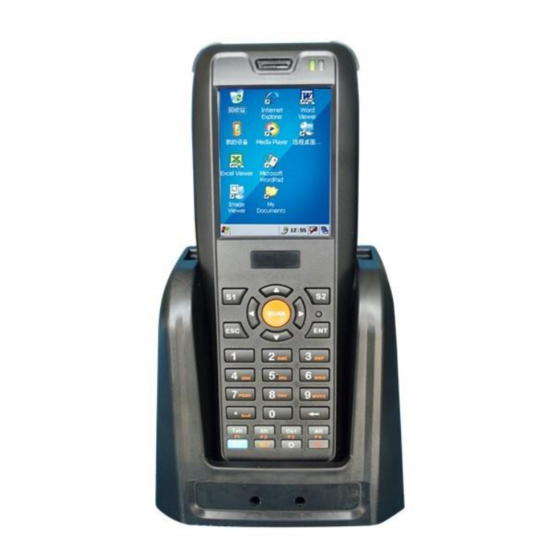

User Manual for UROVO i3000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UROVO i3000

Summary of Contents for UROVO i3000

  • Page 1 User Manual for UROVO i3000...
  • Page 2 Urovo Technology Co., Ltd. (hereinafter referred to as the Company) reserves the right to change the features, specifications, warranty information and document contents of related products at any time without prior notice.

  • Page 3: Table Of Contents

    Content CONTENT..................3 CHAPTER 1 PACKING CONFIRMATION..........5 CheckingArticlesContained inthePackage CHAPTER 2 INTRODUCTION............6 ProductIntroduction MainFunctionsandFeatures DetailedParameters FunctionIntroduction: FrontViewandSideView MasterKeyboardIntroduction . 14 FunctionIntroduction: BackView CHAPTER 3 USING THE DEVICE............18 Insta lingtheSIMCard, MemoryCard andBattery PoweringOn/Off theDevice ChangingDateand Time UsingtheStylus EnteringText ManagingDeviceFunctions .
  • Page 4 CHAPTER 4 ADVANCED SETTINGS..........32 SettingthePowerButtonFunction . 32 SettingtheGPRSNetwork SettingtheWi-FiNetwork . 40 SettingtheOptionsforBarcodeScanning . 45 CHAPTER 5 AFTER-SALES SERVICE..........48 SupportandService WarrantyPeriod WarrantyScope WarrantyDeclaration Contact...

  • Page 5: Chapter 1 Packing Confirmation

    Chapter 1 Packing Confirmation Checking Articles Contained in the Package Before using the product, please check whether the package contains the following articles: Power adapter Battery Connector adapter Data line...

  • Page 6: Chapter 2 Introduction

    Technology Co., Ltd. (hereinafter referred to as the Company). The i3000 adopt ergonomic design and is compact and flexible, shock-proof, and drop-proof. The i3000 can work in the standby mode for a long time. In addition, the i3000 adopt the dual power supply mode and support the conversation function.

  • Page 7: Mainfunctionsandfeatures

    802.11b/g/n Wi-Fi WLAN, communication by using the RS232 serial port, and Bluetooth communication. The i3000 comply with the CISCO CCX2, 3 security standards and support the CISCO AP and security regulations. The i3000 can be used to update data remotely. Windows CE Operating System...
  • Page 8 Dual power supply mode: When the master battery is used up and the slave battery is fully charged, the product can work in the standby mode for six hours to prevent data loss caused by unexpected power failure. Extensible hardware module A camera with 5 million pixels GPS positioning High frequency/ultrahigh frequency RFID read/write...

  • Page 9: Detailedparameters

    Detailed Parameters Model I3000 SAMSUNG S3C2451 (533 MHz) Operating Microsoft Windows CE 5.0 OS System (Multi-lingual) 128 MB Flash-ROM 128/256/512 MB (standard Memory configuration: 128 MB) Extension Micro SD/TF slot (a maximum of 32 GB) Scanning engine One-dimension laser scanner...
  • Page 10 CISCO CCX2, 3 security standards and supports CISCO AP and security regulations. Bluetooth Bluetooth V2.1+EDR (standard configuration) Communication The i3000 product provides a Wide-area GSM/GPRS wireless wireless network communication module and supports GSM/GPRS Class10 and (extension) GSM0710 multiplexing. Camera...
  • Page 11 Operating Relative humidity: 5–95% Working humidity (no condensation) Environment Relative humidity: 5–95% Storage humidity (no condensation) The i3000 product can endure multiple drops to a smooth Endurable height concrete floor from a height of for dropping 4 inches (1.2 m).

  • Page 12: Functionintroduction: Frontviewandsideview

    The i3000 have successfully passed the CCC compulsory CCC and CE Certification product certification, CE certification, and obtained the type approval certificate for radio transmission equipment issued by the Ministry of Industry and Information Technology. *The preceding parameters are for reference only. Parameters of a specific model are subject to specific configurations.
  • Page 13 Charging Dock Interface Widow scanning barcodes 7. Camera 8. Loudspeaker...
  • Page 14 Charging and system indicator The indicator is displayed in red during charging and green when the charging is complete and the system runs properly. The indicator blinks in green when the power is insufficient. Scanning indicator The indicator is displayed in red when a barcode is scanned successfully. Power button The power button can be used to power on/off the device or switch the device into sleep or wake-up mode.

  • Page 15: Masterkeyboardintroduction

    Master Keyboard Introduction Arrow Keys S1 key 7. Bar code scanning key Esc key 8. S2 key Alphanumeric 9. Enter Key 10. Backspace 11. Alphanumeric switching key 4. Function key 12. Power Button 5.Keyboard backlight key S1 key: It represents the left softkey and is equivalent to the F11 key on a computer keyboard.
  • Page 16 Arrow keys: The four arrow keys represent four directions (left/up/right/down). Barcode scanning key: You can scan barcodes by pressing this key. S2 key: It represents the right softkey and is equivalent to the F12 key on a computer keyboard. Enter key: You can press the Enter key for confirmation or to switch to next line.

  • Page 17: Functionintroduction: Backview

    Function Introduction: Back View 1. Widow for scanning barcodes 2. Loudspeaker 6. Camera 3. Master battery cover buckles 4. TF Card Slot 5. SIM Card Slot Widow for scanning barcodes Laser comes out from this window. Do not look into the window with naked eyes.

  • Page 18: Chapter 3 Using The Device

    12 hours. Powering On/Off the Device The i3000 product is powered off when you obtain it for the first time. After you press and hold down the power button, the indicator is turned on and the Windows CE screen is displayed. Then you can release the button to power on the device.

  • Page 19: Changingdateand Time

    If you press and hold down the power button for more than three seconds when the device is powered-on, the following dialog box is displayed: Select Yes to power off the device. During power-off, the power supply is cut off and data in the memory is lost.
  • Page 20 Click the Time Zone drop-down list to choose the required time zone. Click Apply on the lower right corner of the dialog box to save the configuration. Click the number indicating the year to enter a year directly or change the year by clicking the up and down arrows.
  • Page 21 Click the characters indicating a month to change it in the displayed menu or click the up and down arrows to change the month. Click the mapping number in the date area to change the date. After the configuration is complete, click OK on the upper right corner of the dialog box to save the...

  • Page 22: Usingthestylus

    Using the Stylus Clicking objects on the device screen is the basic operation and is similar to using the mouse to click objects on a computer screen. When the device is powered on, you can use the stylus to perform multiple operations, such as starting an application, choosing a menu, or selecting items in a dialog box.
  • Page 23 Use the stylus to click the keyboard icon on the taskbar. The list of available soft keyboards is displayed on the screen. You can choose the required soft keyboard from the list. Click Keyboard to display the keyboard input panel.
  • Page 24 Use the stylus to click the soft keyboard to enter letters, numbers or symbols. Choose Hide Input Panel to hide the current soft keyboard.

  • Page 25: Managingdevicefunctions

    Control Panel > Keyboard. Managing Device Functions Certain functions of the i3000 product are turned off when you use it for the first time. You can start the required functions by using the device function manager ModuleMgr.

  • Page 26: Scanningbarcodes

    Click Enable or Disable to enable or disable the related functions. When you enable/disable a certain function, the system retains the configuration and enables/disables the function automatically after next power-on. Scanning Barcodes You can use the ModuleMgr or ScannerSetting program to start the scanner, and then press the orange barcode scanning key on the master keyboard to scan barcodes.

  • Page 27: Connectingtoapc

    The bar code is displayed in this area. The bar code type is displayed in this area. Connecting to a PC You can connect the device to a PC by using a data line if Microsoft ActiveSync 4.5 (Window 2000/XP/2003) or Windows Mobile Device Center 6.1 (windows Vista/2008/7) is installed on the PC.

  • Page 28: Restartingthedevice

    Restarting the Device You may need to restart the device to recover normal running occasionally (when more applications are running than in normal cases or when certain software runs abnormally). The device can be restarted in the following two modes: Warm boot If you restart the device in warm boot mode, ongoing items are stopped before the device restarts.

  • Page 29: Calibratingthescreen

    Double-click the RestoreFactoryDefault icon. Calibrating the Screen After a period, the clicking point of the stylus may shift and you must re-calibrate the screen. Click the stylus icon in the control panel to display the Stylus Properties dialog box. Click the Calibrate tab in the dialog box, and then click Re-calibrate.

  • Page 30: Checkingtheremaining Electricity

    Use the stylus to click the cross center on the screen. After each click, the cross is displayed in another position. After you click the cross center correctly for a consecutive five times, the cross disappears. At this point, you can press the Enter key to save the calibration.

  • Page 31: Precautionsforusingthebattery

    Precautions for Using the Battery Certain files and information may be stored in the memory. If the battery runs out, these files and information are lost. Therefore, providing power to the device constantly is very important. In general cases, the device can work for more than eight hours after it is fully charged.

  • Page 32: Settingthepowerbuttonfunction

    Setting the Power Button Function You can click PowerButton icon on the control panel to set the power button function. Enable: You can press and hold down the power button to turn off the device. Disable: No function is provided when you press and hold down the power button.
  • Page 33 You can create the GPRS connection in the following two ways: Creating the connection manually. Double-click the Network and Dial-UP Connection icon on the control panel to enable the network and the dial-up connection manager. Click New Connections connection.
  • Page 34 Enter the connection name, such as GPRS. Select Dial-up connection and click Next. Choose COM2: or COM3: and then click Configure.
  • Page 35 On the Port Settings tab page, set Bits per second to 115200. On the Call Options tab page, enter the following command to initialize the modem: +CGDCONT=1,"IP","cmnet" Cmnet specifies the point to connect to the GPRS network of China Mobile. Click OK to switch back to the Modem dialog box.
  • Page 36 Click Next. In the Phone Number area, enter the dial-up number such as *99***1#. You must query the mobile carrier to obtain this number. Click Finish. Double-click the created GPRS connection to display the Dial-Up Connection dialog box.
  • Page 37 Click Dialing Properties to set the dialing location. Click Create to enter the new location name such as GPRS.
  • Page 38 Click Edit to change the dialing mode. Change the texts in the three text boxes to G and then click OK to save the settings and exit.
  • Page 39 Click OK to save the settings and exit. At this point, the GPRS connection is created successfully. Creating the connection automatically. To simplify the setting of GPRS connection, the device provides the GPRSSetting tool to set the connection quickly. Choose My Device > Windows and click the GPRSsetting icon to enable the GPRSsetting tool.

  • Page 40: Settingthewi-Finetwork

    Setting the Wi-Fi Network Before using the Wi-Fi, you must ensure that the Wi-Fi function is enabled. You can start the Wi-Fi function by using the device function manager ModuleMgr. You can query the network administrator for the wireless network information, such as SSID, encryption type, authentication mode, and cipher key.
  • Page 41 On the Wireless Information tab page, available networks are displayed. You can view the SSIDs of APs for which the broadcast function is enabled. Double-click the SSID to be connected. If the broadcast function is not enabled for the AP to be connected, double-click the Add New Network icon.
  • Page 42 When you add a new network, you must specify the network information. Enter the network name. Select this check box to directly connect to another device or PC. The encryption type varies with the authentication mode. Select the correct authentication mode first. Click Advanced to display the interface for advanced settings.
  • Page 43 This icon is displayed only when the Wi-Fi function is enabled. Use the stylus to click and hold down the icon and choose Properties in the displayed context menu. Enter the IP address, subnet mask, and default gateway.

  • Page 44: Settingtheoptionsforbarcodescanning

    Setting the Options for Barcode Scanning You can modify the advanced settings of the scanner by using the ScannerSetting program. Click Advanced Options to display the interface for advanced setting. To enhance the decoding speed, the decoding function is disabled for certain types of barcodes by default.
  • Page 45 At this point, the scanned barcodes are converted into keyboard messages. You can scan barcodes by using programs not supporting barcode scanning, including the Wordpad and remote desktop programs. On the Output tab page, you can select the displayed options to send messages after bar code scanning, such as Enter event, Beep, and vibration.

  • Page 46: Chapter 5 After-Sales Service

    Chapter 5 After-Sales Service Support and Service Website: You can connect your PC to the Internet and visit www.urovo.com to obtain the product specifications, optional equipment, and related information. Customer support: If you have questions about this manual or you cannot solve any problem through the website, please contact our customer service staff.

  • Page 47: Warrantyperiod

    Get your device ready. Our customer service staff may ask you to operate the device. Prepare your questions. Detailed problem description can help the customer service staff to solve your problem quickly. Warranty Period A customer will enjoy a warranty of 12 months for the handheld terminal (subject to the sales contract) and a warranty of 3 months for accessories from the date of purchase.

  • Page 48: Warrantyscope

    (including lost profits) regardless of the warranty statement, contract, negligence, or any other legal theory. Contact Urovo Technology Co., Ltd. Address: Area A, 7/F, Zondy Cyber Building, Keyuan South Road, High-tech Industrial Park, Nanshan District, Shenzhen, P.R.China...
