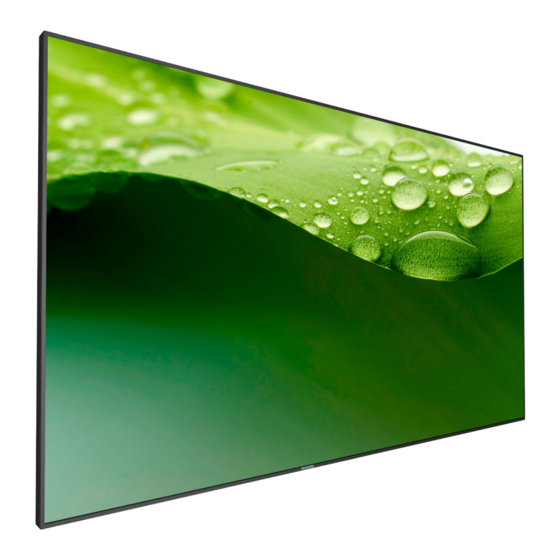

Philips SignageSolutions 49BDL5055P User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

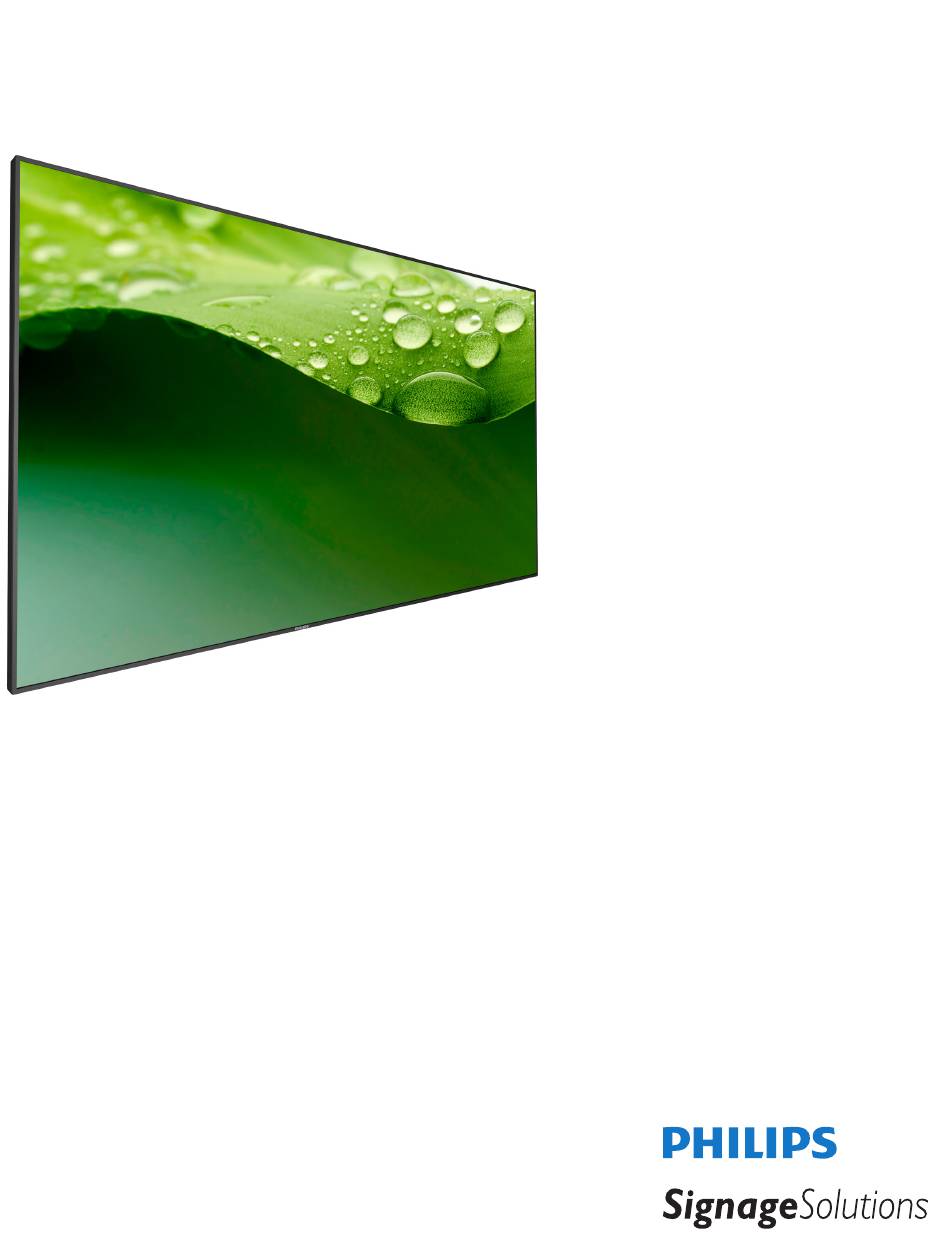

49BDL5055P
V1.01
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SignageSolutions 49BDL5055P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips SignageSolutions 49BDL5055P

Summary of Contents for Philips SignageSolutions 49BDL5055P

  • Page 1 49BDL5055P V1.01 www.philips.com/welcome User Manual (English)
  • Page 2 Read and follow these instructions when connecting and using your display: Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • For doors or covers intended to be removed by operator for installation of accessory devices,instructions shall be provided for the correct removal and reinstallation of the door. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
  • Page 3 49BDL5055P Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation.
  • Page 4 49BDL5055P Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251.
  • Page 5 49BDL5055P Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A. NOTE: T he severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.
  • Page 6 49BDL5055P China RoHS 电子电气产品有害物质限制使用标识要求 (中国RoHS法规标识要求) 产品中有害物质的名称及含量。 有害物质 零部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 塑料外框 后壳 CCFL panel 电路板组件* 底座 电源线 其他线材 遥控器 *：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 本表格依据SJ/T 11364的规定编制。 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下. 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求. 上表中打...
  • Page 7 49BDL5055P 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○...
  • Page 8 49BDL5055P End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 9 49BDL5055P Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
  • Page 10 49BDL5055P NOTICE SOFTWARE END USER LICENSE AGREEMENT THIS SOFTWARE END USER LICENSE AGREEMENT (THIS “AGREEMENT”) IS A LEGAL AND BINDING AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY) AND MMD MONITORS & DISPLAYS NEDERLAND B.V., A DUTCH LIMITED LIABILITY COMPANY, WITH ITS PRINCIPAL OFFICE AT PRINS BERNHARDPLEIN 200, 1097 JB AMSTERDAM, THE NETHERLANDS AND ITS SUBSIDIARY COMPANIES (INDIVIDUALLY AND COLLECTIVELY “MMD”).
  • Page 11 49BDL5055P 8. Support Services. MMD is not obligated to provide technical or other support (“Support Services”) for the Software. If MMD does provide you with Support Services, these will be governed by separate terms to be agreed between you and MMD. 9. Limited Software Warranty. MMD provides the Software ‘as is’ and without any warranty except that the Software will perform substantially in accordance with the documentation accompanying the Software for a period of one year after your first download, installation or use of the Software, whichever occurs first. MMD’s entire liability and your exclusive remedy for breach of this warranty shall be, at MMD’s option, either (i) return of the price paid by you for the Software (if any); or (ii) repair or replacement of the Software that does not meet the warranty set forth herein and that is returned to MMD with a copy of your receipt. This limited warranty shall be void if failure of the Software has resulted from any accident, abuse, misuse or wrongful application. Any replacement Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer.
  • Page 12 49BDL5055P Open source licenses statement Disclaimer regarding services and/or software offered by third parties Services and/or software offered by third parties may be changed, suspended, or terminated without prior notice. MMD does not bear any responsibility in these sorts of situations. Third Party (Open) Source Software This product may make use of third party (open) source software and the use of this third party (open) source software may be subject to terms and conditions of such third party. In case open source software is used, MMD provides source attribution, where applicable. When required by the terms of the open source license, MMD published the relevant parts of the source code for the product on http://licenses.cmnd.io. MMD hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source packages used in this product for which such offer is requested by the respective license.
  • Page 13 49BDL5055P Step 3: xiii...

  • Page 14: Table Of Contents

    49BDL5055P Table Of Contents 5.13. Date & time .................40 5.14. Developer options ..............40 5.15. About ....................40 Unpacking and Installation ............1 5.16. Supplementary ................41 1.1. Unpacking ..................1 OSD Menu ................44 1.2. Package Contents ................1 6.1. Navigating the OSD Menu ..........44 1.3.

  • Page 15: Unpacking And Installation

    49BDL5055P Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Quick start guide • Remote control with AAA batteries NORMAL SOURCE FORMAT • Power cord LIST INFO ADJUST OPTIONS • RS232 cable • RS232 daisy chain cable ID SET ENTER • Logo guider & logo...

  • Page 16: Installing And Removing Table Stands (Optional)

    49BDL5055P 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Ensure your display is powered off.. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet.. 4. After inserting the stand in the guide block, tighten the screws on both sides of the display.. NOTE: The longer side of the stand should face the front of the display. To remove table stands: 1. Power off the display. 2. Spread a protective sheet on a flat surface. 3. Place the display face-down on the protective sheet. 4.

  • Page 17: Mounting On A Wall

    49BDL5055P 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. Protective Sheet VESA Grid Table Tabletop stand 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer.

  • Page 18: Mounting In Portrait Position

    49BDL5055P 1.6. Mounting in Portrait Position This display can be installed in portrait position. 1. Remove the table stand, if attached. 2. Rotate 90 degrees counter-clockwise . The “ ” logo should be on the LEFT side when facing the display. 1.6.1. How to use the logo guider for portrait position 1. Put the guider on the lower-left corner of the front bezel of the display. Fold down both of its edges. 2. Peel off the protective film at the back of the “ ” logo sticker. Hold and press the guider with your left hand. Put the “ ” logo sticker with its adhesive side down into the logo hole with your right hand, and press to make it stick tightly onto the front bezel.

  • Page 19: Operating Instructions Of Edge Alignment Kit

    49BDL5055P 1.7. Operating Instructions of Edge Alignment Kit 1.7.1. Installing Edge Alignment Kit • Using “Edge Alignment Kit-1” on adjacent two displays. • Install the “Edge Alignment Kit-1” with 2 PCS of M3 screw. • Using “Edge Alignment Kit-2” on adjacent four displays. NOTE: W hen installing the edge alignment kit, please consult a professional technician for proper installation. We accept no liability for installations not performed by a professional technician.

  • Page 20: Parts And Functions

    49BDL5055P Parts and Functions 2.1. Control Panel [ ] button Use this button to turn the display on or put the display to standby. - Lights green when the display is turned on [MUTE] button - Lights red when the display is in standby mode Switch the audio mute ON/OFF. - Lights amber when the display enters APM mode [INPUT] button - When {SCHEDULE} is enabled, the light blinks green and red Choose the input source. - If the light blinks red, it indicates that a failure has been detected • Used as [ ] button in the On-Screen-Display menu. - Lights off when the main power of the display is turned off [ ] button * Using IR sensor cable for better remote control performance. Increase the adjustment while OSD menu is on, or increase the audio (Please refer to the instructions of 3.5) output level while OSD menu is off.

  • Page 21: Input/Output Terminals

    49BDL5055P 2.2. Input/Output Terminals 11 12 13 14 AC IN DVI OUT / VGA OUT AC power input from the wall outlet. DVI or VGA video output. MAIN POWER SWITCH DisplayPort IN / DisplayPort OUT Switch the main power on/off. DisplayPort video input / output. AC OUT RJ-45 AC power supply to the AC IN jack of a media player. LAN control function for the use of remote control signal from control center. IR IN / IR OUT USB PORT IR signal input / output for the loop-through function.

  • Page 22: Remote Control

    49BDL5055P 2.3. Remote Control No function. NAVIGATION buttons 2.3.1. Root Menu: Go to Smart picture OSD. Main Menu: Move the highlight bar up to adjust the selected item. IR Daisy Chain Menu: Increase controlled Group ID number. Root Menu: Go to Audio source OSD. Main Menu: Move the highlight bar down to adjust the selected item. IR Daisy Chain Menu: Decrease controlled Group ID number. Main Menu: go to previous level menu. Source Menu: Exit source menu.
  • Page 23 49BDL5055P 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID Mode. You can set the remote control ID when you want to use this remote The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again. 4. Press [ENTER] button to confirm. The red LED blinks twice and then lights off.
  • Page 24 Then if pressing again, playing will be started from the beginning of the file. 4. When playing PDF, video or music, press button to pause playing. 5. All media or pdf files should be put at the folder, which is named “philips” with sub-folder, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/music/ pdf) are named by media types and shouldn’t be changed. videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ pdfs : {root dir of storage}/philips/pdf/ Note that the root directories of three storages are...
  • Page 25 49BDL5055P ] button 2. For PDF file, enter the page number by pressing number buttons and then press button to jump to the specific page. Confirm an entry or selection. [ ] ADJUST button ] FORMAT button 1. In the content of the web page, move the focus down to the next Change picture format. The button is only controlled by Scalar. clickable items. ] BACK button 2. Move the focus down to the next control or widget such as buttons. Return to the previous page or exit from the previous function. ] MUTE button ] INFO button Press to turn the mute function on/off.
  • Page 26 49BDL5055P 2.3.6. Operating range of the remote control Point the top of the remote control toward the display’s remote control sensor when pressing a button. Use the remote control within a distance of less than 8m/26ft from the display’s sensor, and a horizontal and vertical angle of less than 30 degrees. NOTE: The remote control may not function properly when the remote control sensor on the display is under direct sunlight or strong illumination, or when there is an obstacle in the path of signal transmission..

  • Page 27: Connecting External Equipment

    49BDL5055P Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] 3.2. Connecting a PC 3.2.1. Using DVI input DVI Out [DVI IN]...

  • Page 28: Connecting Audio Equipment

    49BDL5055P 3.2.2. Using Video Source input Audio Out [VGA AUDIO IN] 3.2.3. Using DisplayPort input DisplayPort Out [DisplayPort IN] 3.3. Connecting Audio Equipment 3.3.1. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT]...

  • Page 29: Connecting Multiple Displays In A Daisy-Chain Configuration

    49BDL5055P 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: Maximum 25 displays (5x5) can be used in a DVI daisy-chain configuration. For VGA daisy-chain, Maximum 9 displays can be used. 3.4.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] DISPLAY 1 DISPLAY 2 [RJ-45] [RJ-45] [RS-232C OUT] [RS-232C IN]...
  • Page 30 49BDL5055P DISPLAY 1 DISPLAY 2 [DP] [DP IN] [DP OUT] [DP IN] Connect the [DVI OUT ] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2. DVD / VCR / VCD DISPLAY 1 DISPLAY 2 [HDMI] [DVI IN] [DVI OUT] [DVI IN] 3.4.3. Analog video connection Connect the [DVI-I OUT] connector of DISPLAY 1 to the [DVI-I IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [VGA] [DVI-I IN] [DVI-I OUT] [DVI-I IN] 3.4.4.

  • Page 31: Ir Connection

    49BDL5055P 3.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR IN] [IR OUT] NOTE: 1. This display’s remote control sensor will stop working if the [IR IN] is connected. 2. IR loop through connection can support up to 9 displays. 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control...

  • Page 32: Operation

    49BDL5055P Operation • Admin mode will show four icons: “Settings”, “Apps”, “Network” and “Help”. NOTE: T he control button described in this section is mainly on the • When you leave admin mode, system will return to last source. remote control unless specified otherwise. 1)Home page of admin mode, this page has four items: “Settings”, “Apps”, “Network” and “Help”. 4.1. Watch the Connected Video Source Settings : go to settings app. See page 13 for external equipments connection. Applications : show all apps. 1.

  • Page 33: Media Player Introduction

    The pencil icon means the playlist is non-empty. 5) Cellular Network (Optional, if device has GSM/LTE module) 3. Select “Compose” on home page, first you should choose one playlist to edit between FILE 1 and FILE 7. The pencil icon means the playlist is non-empty. 6) Help page: Display QRcode page. 4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, - videos in /root/philips/video/ - photos in /root/philips/photo/ - music in /root/philips/music/ 4.4. Media Player introduction: 1. Home page of Media Player, this page has three items: “Play”, “Compose” and “Settings”. Play : select playlist to play.
  • Page 34 49BDL5055P 9. Press play key after you choose desired file, you will play the media 6. Once you start to edit a playlist, you will see below screen. file directly. Source - files in storage. Playlist – files in playlist. There are 4 icons which map to the keys of remote controller. Option key – launch slide bar Play key – play media file. Info key – show media info. Ok key – select/unselect file. 6-1 In the slide bar, it helps you to do the following: - select all : select all storage files. - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. 10. If you make a playlist with all images files, before saving, the app - back : return.

  • Page 35: Browser Manual

    Content : 3. Enter url and press OK then data will save on List Note : i f playlist file contains video and music, when the pd plays music file, the screen will be black. Step 2. Copy mpplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this. File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/mpplaylist1.txt Step 3. Prepare media files to “photo”, “video” and “music” folder under “philips” folder, internal storage only. Ex. / storage/emulated/legacy/philips/photo/xxx.jpg /storage/emulated/legacy/philips/video/yyy.mp4 /storage/emulated/legacy/philips/photo/zzz.mp3...
  • Page 36 49BDL5055P 4.1 Import • File format for import Format should be like below with file extension “txt” • Click import • Choose storage 4.2 Export: • Click export • Choose file contains urls • Choose storage • Import file and url will show on list • Dialog shows path file will be saved and file’s name. Press “save” button then urls on list will be saved.
  • Page 37 press this button can clear Url 1 address home page data in local storage. 9. Import text file Step 1. Create browser text file. File name : bookmarklist.txt. Content : Step 2. Copy bookmarklist.txt to “philips” folder of internal storage. You may use FTP to do this. File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/bookmarklist.txt Step 3. Start browser app, it will auto import browser text file. Note : Once the playlist file (text) is imported, if an user change playlist by remote controller, this change will not be written to playlist text file.

  • Page 38: Pdf Reader Play

    6-1. In the slide bar, it helps you to do the following: playlist to edit between FILE 1 and FILE 7. - select all : select all storage files. The pencil icon means the playlist is non-empty. - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. - back : return. 4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, - pdfs in /root/philips/pdf/ 7. If you choose “Sort” in the slide bar, you can change the order of files one by one.

  • Page 39: Cmnd & Play

    Content : 8. Select “Settings” on home page, this page has two parts, “Repeat Mode” and “Effect Duration”. Step 2. Copy pdfplaylistX.txt to “philips” folder of internal storage. Repeat Mode : play mode. You may use FTP to do this. Effect Duration : photo effect duration. File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt Step 3. Prepare pdf files to “pdf ” folder under “philips” folder, internal storage only. Ex. / storage/emulated/legacy/philips/pdf/xxx.pdf /storage/emulated/legacy/philips/pdf/yyy.pdf /storage/emulated/legacy/philips/pdf/zzz.pdf Step 4. Start pdf player app, it will auto import pdf player text file.

  • Page 40: Custom App

    49BDL5055P Cancel When Ver.3, Server/Account/PIN code is available. Don’t do any change, directly closed Windows. If no customer installed apk, the list will be blank. The list will be blank and “Save””Forget” will be gray and useless. 4.8. Custom App User can set up the application for Customer Source Note: If customer installed apk,user can select customer installed apk in list (1) Only display User Installed app. • Case 1: Not set up Custom App case. (2) Will not show up system pre-install app. Customer app will show up and focus on first item automatically. 4.8.1. OSD Menu operation: RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source to Customer mode. If no set up customer APK, PD will show Black screen when switch source to Customer mode. After set up, the setting screen display the app name.

  • Page 41: Signage Display

    49BDL5055P Signage display 5.2.1. DHCP DHCP mode: (1) Cannot modify IP Address, Netmask, DNS Address and Gateway. 5.1. Setting (2) If connect successfully, it will display current network Main items: configuration. (1) Ethernet (2) Proxy (3) Data usage (Show up when 4G module connected) (4) More (Show up when 4G module connected) (5) Signage Display (6) System Tools (7) Display (8) Storage (9) Apps (10) Security (Show up when 4G module connected) (11) Date & time (12) Developer options 5.2.2. Static IP (13) About In Static IP mode, user can input IP Address, Netmask, DNS address and Gateway Note: IP address, netmask, DNS address and gateway address input limitation...

  • Page 42: Data Usage

    49BDL5055P Tethering & portable hotspot Proxy Main Switch Disable Enable Proxy settings Proxy hostname Proxy port Type HTTP Authentication Authentication Username Password Note: • Proxy type in HTTP, HTTPS, SOCKS4, SOCKS5 are support. Cellular networks • Only support the connection through the proxy server with TCP port 80 & 443 & 5228. • Proxy server with authentication on Windows Sever Series is not support. 5.4. Data usage Only show up when 4G module connected. Preferred network type 5.5.

  • Page 43: Signage Display

    49BDL5055P Network operators 5.6.1. General Settings Mobile plan 1. Signage Display Name Set up PD name “PD_” + Ethernet Mac Address. Note: Input limitation: (1) length: Max 36 characters (2) format: no limit 5.6. Signage Display Divide into 4 groups: General Settings / Server Settings / Source Settings / Security (1) General Settings A. Signage Display Name B. Boot Logo 2. Boot Logo C. Screenshot 1) Scalar OSD menu to control Android boot logo enable/disable (2) Server Settings A.
  • Page 44 49BDL5055P Function introduction: Case 3 The user settle customized boot logo, the screen will show /data/ a. Option description local/bootanimzation.zip. /data/local Use customized boot animation file which is copied from SD card or /mnt/external_sd Use boot animations file under SD card /mnt/usb_storage Use boot animations file under USB b. Save Press save key to save SD card or USB bootanimzation.zip to /data/ local and set it as boot logo. c. Forget Press Forget key to delete /data/local/bootanimzation.zip and not show boot logo. 3) If OSD menu Logo item is On or Off, the users cannot choose d. Cancel boot animation in Android settings. Close dialogue w/o changes. Scenario introduction: Case 1 The user don’t settle customized boot logo. PD does not find any bootanimzation.zip file under SD and USB. The list will be blank. Save and Forget button will be gray and useless.
  • Page 45 Set up screenshot save path. Internal storage, SD card or USB Note: storage.) (1) If no start time, the screen will show current time automatically Note: (2) Just press Back key to exit dialog for Set up picture storage path (3) Start time cannot be newer than End time. It will show Error (1) In root of internal storage/usb storage/sd card, PD will create toast. folder automatically. (2) The picture will save to philips/Screenshot/. 3) End Time Set up screenshot End time 6)Purge Screenshots Set up purge timeframe. One day or One week. Note： (1) If no End time, the screen will show current time automatically (2) Start time cannot be newer than End time. It will show error toast.
  • Page 46 49BDL5055P (7) Send screenshots via email After check this item, it will send screenshot to email of administrator Please refer to 6.2.1 Email notification Note: Please confirm Email setting is done. Each screenshot will be sent immediately 5.6.2. Server Settings 1. Email Notification Via Enable/Disable to control Email On/Off) After Enable, user can set up Email notification configuration. Gmail safety setting 1) SMTP If Gmail is not working when setting is complete, please test Gmail Set SMTP configuration) account via PC and link below URL User can set Gmail account or other mail account. https://www.google.com/settings/security/lesssecureapps User can select other mail account and set up SMTP server, Security And confirm “Access for less secure apps” item is Turn On type and port item Note Password input limitation (1) Length: 6-20 characters (2) Format: no limit (3) unavailable port: 5000 Yahoo Email Security Setting If Yahoo Email is not working when setting complete, please confirm...
  • Page 47 49BDL5055P 2)Manager Email 2) Password Email Set up FTP password. Set up Receiver mail account Note: Input limitation (1) Length: 6-20 characters (2) Format: I. English a-z and A-Z II. Number 0-9 FTP password display (1) Will show “*” symbol to instead password if set up password via remote control. (2) After set up, the password text will show as “*” symbol. Before password input: 3)Test Send Test Mail To test Gmail account receive/send function. Note (1) When Email is Disable, “Send Test Mail Button” button will gray 2. FTP Via Enable/Disable to control FTP On/Off. After set up, PD can share FTP files.
  • Page 48 49BDL5055P Set up completed screen: User can input Server address. If server does not registered, it will ask user for PIN code. Bind status: (1) Will show network is disconnected if not yet connects to network. 3)Storage Path Show default path: Internal storage Note: (2) Will show Server is disconnected if network connected but Can only display Internal storage, cannot be modified.(Only show remote control server disconnected. path) (3) Will show Server is unbinded if Remote control server feedback 4) Will show Server is unbinded if Remote control server feedback unbinded status. unbinded status. 5) Port Set up FTP port number. Default: 2121 Note: Input limitation (1) Length: Max 5 characters (2) Range: 1024 ~ 65535 (3) Format: Number 0-9 (4) Unavailable port: 5000 (5) The port number must more than 1024 (4) Will show Server is binded if Sever binded successfully.
  • Page 49 49BDL5055P (5)Will show Error PIN code if input incorrect PIN code. (2) Open Media Player slideshow effect edit page. 4. SICP Network Port 2. Browser Change SICP Network Port. Can edit Bookmark configuration. Port range is 1025~65535. (1) Open Browser setting page. 5.6.3. Source Settings 1. Media Player Can Edit Media Player play list and effect settings. 3. CMND & Play 1) Server Setup CMND & Play server address 2) Account (1) Open Media Player Player List edit page. Setup CMND & Play account 3) PIN Code Setup CMND & Play PIN code (4) Version There are two options, Ver.2 and Ver.3 Ver. 2 Use 2.0/2.2 agreement Ver. 3 Use 3.0/3.1 agreement (5) Content There are internal storage/SD card/USB storage 3 options for...
  • Page 50 49BDL5055P When Ver.2, Server/Account/PIN code will be gray and unavailable . (1) Only display User Installed app. (2) Will not show up system pre-install app. Scalar OSD menu operation RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source to Customer mode. If no set up customer APK, PD will show Black screen when switch source to Customer mode. When Ver.3, Server/Account/PIN code is available. Function introduction 4. PDF Player (1) Open PDF Player Player List edit page. (1) Save Select App and press Save key to save it. (2) Forget Press Forget key to clean previous stored data (3) Cancel No change, close window directly (2) Open PDF Player effect edit page. If no customer installed apk, the list will be blank. No option for choose. Save and Forget key will be gray and unavailable.
  • Page 51 49BDL5055P 5.6.5. Security User can select customer installed apk in list Case1. No setup Custom App 1. External Storage Screen will show available apps and focus on first app item automatically. Lock/Unlock external storage. After setup, it will show App name 5.6.6. Others 1. TeamViewer Support Enable / Disable TeamViewer support. Case2. Setup Custom App. (there is a checked circle on right) 2. Platform Web API Enable / Disable Platform Web API. 5.6.4. Additional Settings When the customer payment, can get activate code, after successful input, can enable the function of tiling tool.

  • Page 52: System Tools

    (1) Settings.db (Saved file name: settings.db) (2) Will save to Philips folder in storage 5.7.3.1 Export Signage Display Settings 5.7.1. Clear Storage Will export to Philips folder under USB or SD card The purpose is to clear all data in Philips folders. (1) Export settings.db Divided into 4 mode: (2) Export 3 party apk to Philips/app/ (1) Clear all Philips folders Note: (2) Only clear Philips folder under Internal storage. If no Philips folder exists in USB or SD card, it will be created automatically. (3) Only clear Philips folder under USB storage. List all available storage (internal/SD/USB) (4) Only clear Philips folder under SD card. Pop-up the window to display all folders which can be clear. 5.7.3.2 Import Signage Display Settings Import settings.db from Philips folder under USB or SD card. 5.7.2. Factory Reset (1) Import settings.db Factory Reset can recover to Factory default settings. (2) Auto install 3 party apk from Philips/app/ List all available storage (Internal/SD/USB) Press OK to execute Reset function automatically .

  • Page 53: Clone Media File

    49BDL5055P 5.9. Display Show notification dialog before database import User can modify the font size, can choose: Small/Normal/Large/Huge 5.8. Clone Media File 5.10. Storage Clone media file from Internal, SD or USB Philips folder. 1. The cloned folder name under Philips folder Display current PD Android storage information. (1) philips/photo Note (2) philips/music (1) User option key on RCU to show setting option (3) philips/video (4) philips/cms (5) philips/pdf (6) philips/browser 2. The cloned file extension name is “.cms” Clone Source (1) Internal storage (a) check FTP (b) check /Philips/ (2) SD / USB Files under root SD CARD and USB STORAGE :...

  • Page 54: Apps

    49BDL5055P 5.11. Apps 5.13. Date & time Display applications information. Via Scalar OSD menu to control Auto Time On/Off. Note Note: (1) User options key on RCU to show setting option. Add new NTP server to display current server IP . 5.12. Security 5.14. Developer options Android developer options. 1. SIM card lock Setup/Disable SIM PIN code. 5.15. About Note: Main info in About: (1) Only show up when 4G module connected (1) System updates (2) Legal information (3) Android version (4) Kernel version (5) Build number 2. Credential storage (1) Storage type (2) Trusted credentials (3) Install from SD card (4) Clear credentials 5.15.1.

  • Page 55: Supplementary

    49BDL5055P 5.16.2. How to custom an Android boot 2. After select update.zip file, PD will restart and start to update. animation? 3. If not found update.zip. The dialog is no content and the Ok button will be gray and useless. 1. Overview Note: The Android boot animation is used script to load PNG files when (1) Only support Android Full image. the device boots. It is contained within an uncompressed zip file called Bootanimzation.zip. (2) File name should be update.zip. 2. Inside the Bootanimzation.zip file (3) The file should be located in root of storage. The Bootanimzation.zip as follow: • The image folder (Contains PNG images named in incremental numbers) • The desc.txt file 5.15.2.
  • Page 56 1.2 Go to Admin Mode > Apps > File Manager 1.3 Using File Manager and find out your apk and then you can install. Just press “ok” on the selected apk. 2. Download apk by Chromium browser, and then go to <internal storage path>/Download/ by File Manager. 2.1 The rest of steps is the same as above. Please note, each model may have different <internal storage path>. (b) Via Adb Shell 1. Make sure that your PC can connect to Philips Android Signage Display using adb. If using WinRAR, set “Compression method” to “Store” 2. Prepare your apk in a folder(for example, C:\apkfolder) on PC. 3. Execute the following instruction by command line tool. C:\apkfolder> adb install -r apk_name.apk (c) Via Customized Intent 1. If you develop an apk which can download any android app, then your apk can issue a customized intent.
  • Page 57 49BDL5055P - JSON sample intent.setAction(“php.intent.action.UPDATE_APK”); intent.putExtra(“filePath”, “/sdcard/Download/apk_name.apk”); intent.putExtra(“keep”, true); status: "success", intent.putExtra(“packageName”, “com.example.apk_name”); code: 0, intent.putExtra(“activityName”, “com.example.apk_name.MainActivity”); decsription: "success", sendBroadcast(intent); result: { 5.16.4. How to connect with platform Web API? "version": "1.0", PD has a local web server to provide Web API for customer getting PD "currentip": "172.17.3.4", information in JSON format.

  • Page 58: Osd Menu

    49BDL5055P OSD Menu 6.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 6.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 6.1. Navigating the OSD Menu Brightness Picture Contrast Sharpness 6.1.1. Navigating the OSD menu using the Screen Black level remote control Tint Audio FORMAT SOURCE Color Noise reduction Medium Gamma selection...
  • Page 59 49BDL5055P Color control Press + button to move screen to right. The color levels of red, green, and blue are adjusted by the color bars. Press - button to move screen to left. R: Red gain, G: G een gain, B: Blue gain. V position Smart picture Control Vertical Image position within the display area of the LCD. PQ setting Press + button to move screen to up. PC mode: {Standard} / {Highbright} / {sRGB}. Press - button to move screen to down. Video mode: {Standard} / {Highbright} / {Cinema}. Clock Smart Contrast Press + button to expand the width of the image on the screen the right. Auto detect black data and white data on content and set suitable backlight.
  • Page 60 49BDL5055P Maximum volume Zoom Expands the horizontal and vertical sizes of the Adjust your own limitation for the maximum volume setting. This stops the image simultaneously. volume from being played too loudly. Minimum volume H zoom Adjust your own limitation for the minimum volume setting. Expands the horizontal size of the image only. Mute Turn the mute function on/off. V zoom Audio source Expands the vertical size of the image only. Select the audio input source. Analog: audio from audio input Digital : audio from HDMI/DVI audio. H position Displyport: audio from DP. Moves the horizontal position of the image left or right. Sync. Volume Enable/disable audio out (line out) volume adjustability to sync with V position internal speakers.
  • Page 61 Reader Choose to turn on or off the DDC/CI communication function. (*VGA Custom CardOPS support only) (O: PIP function available, X: PIP function unavailable) Select {On} for normal use. • The availability of the PIP function will also depend on the resolution Light sensor (require Philips accessory CRD41 External Sensor of the input signal being used. Box) Note: Touch function is only for single full screen. Multiple screen touch Choose to turn on or off backlight adjustment according to environment event will be incorrect corresponding. brightness. Choose from : {Off} / { On} 6.2.5. Configuration1 menu...
  • Page 62 49BDL5055P Factory reset • {On} (Default) Reset all settings in the OSD menus of {Picture}, {Screen}, {Audio}, {PIP}, • {User} {Configuration1}, {Configuration2}, and {Advanced option} to the factory 1. If Logo set to ON, both scalar Philips logo and android animation preset values. Philips logo will show. Android settings will also reset when factory reset. 2. If Log set to OFF, neither scalar Philips logo nor android animation logo Press [ ] or [ ] button to select {Reset}, and press [OK] button to do will not show.
  • Page 63 49BDL5055P Monitor information 6.2.7. Advanced option menu Shows information about your display, including model number, serial number, operating hours and software version. Input resolution Auto Con guration 2 IR control Action   Keyboard control Action Advanced option Tiling Action O timer      ...
  • Page 64 49BDL5055P and 15-sets on the horizontal sides). This function requires a daisy-chain put forward 1 hour at 2 o’clock. At daylight stop date the clock should be connection. put back 1 hour at 2 o’clock. • Switch on delay: Set the power-on delaying time (in seconds). The The existing daylight on/off menu item should be replaced with the default option {Auto} allows a sequential powering-on for each display following menu structure: by their ID number when multiple displays are connected. • Menu item <Daylight saving setup> opens submenu containing the The options are: {Off (0) / Auto(1) / 2-255} following items: • Brightness: {Normal}/{ACS} • Menu item <Daylight-saving start date> Selection item <1st, 2nd, 3rd, 4th, last> Sunday of selection item <1-12 month>...
  • Page 65 49BDL5055P Power Save Power-off schedule: Press [ ] or [ ] button to set the hour and minute for the display to turn off. Mode 1 [TCP off, WOL on, auto off] Select or leave an empty “__” for both the hour and minute slot if you Mode 2 [TCP off, WOL on, auto on/off] do not want to use this power-on or power-off schedule. Mode 3 [TCP on, WOL off, auto on/off] Input-source selection: Press [ ] or [ ] button to select an input source. If no input source is selected, the input source will remain Mode 4 [TCP on, WOL off, no auto on/off] the same as last selected.
  • Page 66 49BDL5055P OPS setting Set OPS status. • {Always off} - Disable OPS • {Always on} - Enable OPS (Default) * OPS model only Advanced option reset Reset all settings except {Date and Time} in the Advanced option menu to factory preset values. 1. Press [OK] or [ ] button to enter the submenu. 2. Press [ ] or [ ] button to select {Reset} and press the [OK] button to restore settings to factory preset values. 3. Press the [ ] button or select {Cancel} and press the [OK] button to cancel and then return to the previous menu.

  • Page 67: Usb Device Compatibility

    49BDL5055P USB device compatibility USB Multimedia Codec Formats Video Decode Type Video Codec Container Decode Encode Channel Remark Supported Image Size:48x48pixels to 1920x1088pixels Maximum Frame Rate:30fps MPEG1/2 MPEG1/2 File Format: DAT, MPG, VOB, TS Maximum Bit Rate:80Mbps Audio Codec: MP2, MP3 Supported Image Size:48x48pixels to 1920x1088pixels Maximum Frame Rate:30fps File Format: AVI, MKV, MP4, MOV, Maximum Bit Rate:38.4Mbps MPEG-4 MPEG4...
  • Page 68 49BDL5055P JPEG JFIF file format 1.02 File Format: JPG, JPEG Decode: Resolution 48X48 to 8176X8176 (1) Not Support Non-interleaved Scan (2) Software support SRGB JPEG (3) Software support Adobe RGB JPEG File Format: BMP MaximumSupported Image Size:4096x4096 pixels File Format: GIF Resolution No Restriction File Format: PNG Resolution No Restriction NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

  • Page 69: Input Mode

    49BDL5055P Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 480 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array 60 Hz 40 MHz SVGA 600 Super VGA 75 Hz 49.5 MHz 60 Hz 65 MHz 1024 768 Extended Graphic Array 75 Hz 78.75 MHz WXGA...

  • Page 70: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 9.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 71: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 9.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 9.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 72: Cleaning And Troubleshooting

    49BDL5055P Cleaning and Troubleshooting 10.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.
  • Page 73 49BDL5055P Can hear sound, but no picture Improperly connected source signal cable. Make sure that both video inputs and sound inputs are correctly connected. Can see picture but no sound is heard 1. Improperly connected source signal cable. 1. Make sure that both video inputs and sound inputs are correctly connected. 2. Volume is turned all the way down. ] or [ ] button to hear sound. 2. Press [ 3. {Mute} is turned on. ] button. 3. Switch MUTE off by using the [ 4.

  • Page 74: Technical Specifications

    49BDL5055P Technical Specifications Display: Item Specifications Screen Size (Active Area) 1232.00 mm (48.5’’ diagonal) Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.55926 (H) x 0.55926 (V) [mm] Displayable colors 10 bits(D), 1.07 Billion colors Brightness (typical) 500 cd/m Contrast ratio (typical) 1300:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω 1 Way 1 Speaker System 82 dB/W/M/160 Hz ~ 13 KHz Audio Output 3.5mm phone jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input 3.5mm phone jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) RS232C 2.5mm Phone jack x 2...
  • Page 75 49BDL5055P General: Item Specifications Power Input 100 - 240V~, 50 - 60Hz, 5.5A Power Output 100 - 240V~, 50 - 60Hz, 2.5A Power Consumption (Max) 220 W Power Consumption (typ.) 95 W Power Consumption (Standby & Off) <0.5 W (RS232 in active) Dimensions (Without Stand) [W x H x D] 1092.8 x 623.0 x 71.1 mm Weight (Without Stand) 19.0 Kg Gross Weight (Without Stand) 24.9 Kg Product Fiche : Item Specifications Energy Efficiency Class Visible Screen Size 123.2 cm / 48.50 inch On Mode Power Consumption (W) 110 W Annual Energy Consumption (kWh) 160 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W)
  • Page 76 2017 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
