Samsung UE32C4000PW User Manual

4 series.
Hide thumbs

Advertisement

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Country
Customer Care Centre
EIRE
0818 717100
U.K
0845 SAMSUNG (7267864)
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
Web Site
www.samsung.com/ie
www.samsung.com/uk
BN68-02722E-00
LED TV

user manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register

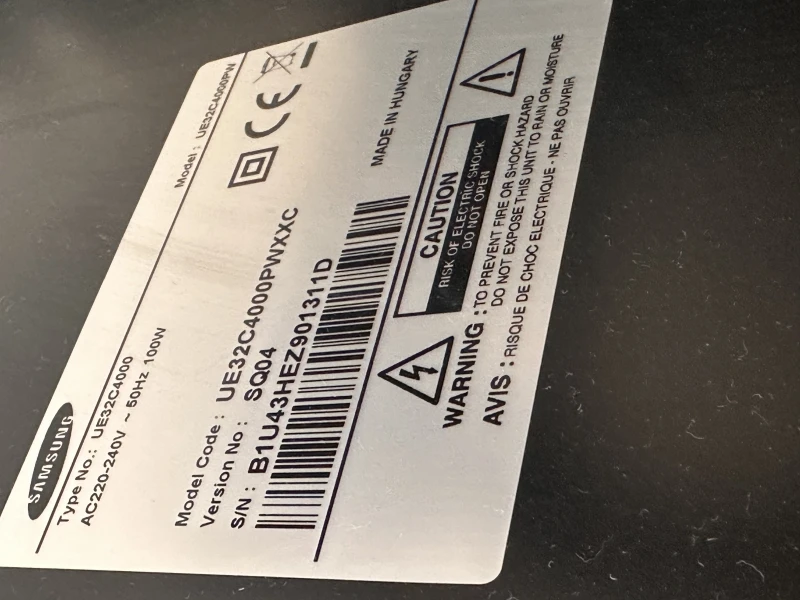

Model _____________ Serial No. _____________

Advertisement

Table of Contents

   Also See for Samsung UE32C4000PW

   Summary of Contents for Samsung UE32C4000PW

  • Page 1: User Manual

    Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre EIRE 0818 717100 0845 SAMSUNG (7267864) © 2010 Samsung Electronics Co., Ltd. All rights reserved.
  • Page 2 The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.
  • Page 3: Table Of Contents

    Getting Started Connections Basic Features Advanced Features Other Information TOOLS This function can be used by pressing the TOOLS button on the remote control. Accessories Viewing the Control Panel Viewing the Remote Control Connecting to an Antenna Plug & Play (Initial Setup) Connecting to an AV Device 10 Connecting to an Audio Device 11 Changing the Input Source...
  • Page 4: Getting Started

    ✎ Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer. ✎ The items’ colours and shapes may vary depending on the models. ✎ Cables not included in the package contents can be purchased separately y Remote Control &...
  • Page 5: Viewing The Control Panel

    ✎ The product colour and shape may vary depending on the model. Speakers Remote control sensor Aim the remote control towards this spot on the TV. SOURCEE Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.
  • Page 6: Viewing The Remote Control

    Returns to the previous menu. These buttons are for the Channel Manager, Media Play (USB) menu, etc. Use these buttons in Media Play (USB) and Anynet+ (HDMI-CEC) modes (p. 25, 31). (�: Controls recording for Samsung recorders that have the Anynet+ feature) Installing batteries (Battery size: AAA) English Viewing the Remote Control POWER...
  • Page 7: Connecting To An Antenna

    When the TV is initially powered on, basic settings proceed automatically. ✎ Preset: Connecting the power cord and antenna. ✎ If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port properly. Power Input When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings.
  • Page 8: Connections

    Using an HDMI or HDMI/DVI cable: HD connection (up to 720p/1080i) Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver cable box, satellite receiver (STB) White ✎ HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN When using an HDMI/DVI cable connection, you must use the connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI AUDIO IN jacks for audio.
  • Page 9: Using Component Or Audio/video/scart Cable

    Using a Component (up to 720p/1080i) or Audio/Video (480i only) and Scart Cable Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver VCR / DVD ✎ In Ext. mode, DTV Out supports MPEG SD Video and Audio only. ✎ To obtain the best picture quality, the Component connection is recommended over the A/V connection. ✎...
  • Page 10: Connecting To An Audio Device

    Using an Optical (Digital) or Headphone Connection Available devices: Digital Audio System, Amplifier, Home Theatre ✎ DIGITAL AUDIO OUT (OPTICAL) When a Digital Audio System is connected to the of both the TV and the system. 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV’s optical jack.
  • Page 11: Changing The Input Source

    CONNECTIONS COMMON INTERFACE Slot To watch paid channels, the “CI or CI+ CARD” must be inserted. y If you don’t insert the “CI or CI+ CARD,” some channels will display the message “Scrambled Signal”. y The pairing information containing a telephone number, the “CI or CI+ CARD”...
  • Page 12: Basic Features

    TTX/MIX TTX/MIX How to Navigate Menus CHLIST CHLIST Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions. MENU CONTENT CONTENT TOOLS TOOLS RETURN MENU button: Displays the main on-screen menu. P.MODE P.MODE S.MODE...
  • Page 13 Using Channel View Guide DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... 800 five Channel View - All 18:00 - 19:00 Today American Chopper u 27 Discovery DiscoveryH&L Programmes resume at 06:00 800 five Home and...
  • Page 14: Channel Menu

    ¦ Using Favourite Channels My Channels (in Channel Manager) Shows all favourite channels. : You can set the selected ■ Edit My Channels channels to desired my channels group. ✎ The “*” symbol will be displayed and the channel will be set as a my channel. 1. Select a channel and press the 2. Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4.
  • Page 15 ✎ Channel mode P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode. C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.
  • Page 16: Picture Menu

    Picture Menu ¦ Changing the Preset Picture Mode Mode Select your preferred picture type. ■ Dynamic: Suitable for a bright room. ■ Standard: Suitable for a normal environment. ■ Movie: Suitable for watching movies in a dark room. ¦ Adjusting Picture Settings Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R) Your television has several setting options for picture quality control.
  • Page 17 Picture Options ✎ In PC mode, you can only make changes to the Colour Tone, Size and Auto Protection Time. Picture Options Colour Tone : Normal Size : Auto Wide Screen Mode : 16:9 Digital Noise Filter : Auto MPEG Noise Filter : Auto HDMI Black Level : Normal Film Mode...
  • Page 18: Sound Menu

    PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer) 1. Click on “Control Panel” on the Windows start menu.
  • Page 19 Audio Language (digital channels only) Change the default value for audio languages. ✎ The available language may differ depending on the broadcast. Audio Format (digital channels only) When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver.
  • Page 20: Setup Menu

    Sound Reset (OK / Cancel) Reset all sound settings to the factory defaults. ¦ Selecting the Sound Mode When you set to Dual f-g, the current sound mode is displayed on the screen. Audio Dual f-g Type Mono Mono Stereo Stereo  Mono Stereo Dual Dual f  Dual g Mono Mono NICAM...
  • Page 21 Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer. ✎ The c mark indicates the day is selected. ✎ Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.
  • Page 22: Support Menu

    Adjust your antenna to increase signal strength. ■ Troubleshooting: If the TV seems to have a problem, refer to this description. ✎ If none of these troubleshooting tips apply, contact the Samsung customer service centre. Sub picture MUTE button.
  • Page 23 Software Upgrade Software Upgrade can be performed via a broadcasting signal or downloading the latest firmware from “www. samsung.com,” to a USB memory device. Current Version the software already installed in the TV. ✎ Software is represented as “Year/Month/Day_Version”. Software Upgrade Current Version...
  • Page 24: Advanced Features

    Using an HDMI/DVI Cable or a D-sub Cable Display Modes (D-Sub and HDMI/DVI Input) Optimal resolution is 1360 x 768 @ 60 Hz. Mode Resolution 640 x 350 720 x 400 640 x 480 832 x 624 720 x 576 VESA CVT 1280 x 720 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 VESA DMT...
  • Page 25: Media Play

    Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Connect a USB HDD to the dedicated port, Do not disconnect the USB device while it is loading.
  • Page 26 ¦ Screen Display Move to the file you desired using the up/down/right/left buttons and then press the ENTERE or � (Play) button. The file is played. ✎ Supports the View Devices and Home in Media Play homepage. Information: You can ascertain the selected file name and the number of files and page.
  • Page 27 y Supported Video Formats File Extension Container Video Codec Divx 3.11 / 4.x / 5.1 / 6.0 *.avi *.mkv H.264 BP / MP / HP MPEG4 SP / ASP Divx 3.11 / 4.x / 5.1 / 6.0 *.asf H.264 BP / MP / HP MPEG4 SP / ASP *.wmv Window Media Video v9...
  • Page 28 Playing movie file continuously (Resume Play) If you exit the playing videos function, it can be played later from the point where it was stopped. 1. Select the movie file you want to play continuously by pressing the ◄ or ► button to select it from the file list section. 2. Press the �...
  • Page 29 ¦ Playing the Multiple Files Playing the selected video/music/photo files 1. Press the Yellow button in the file list to select the desired file. 2. Repeat the above operation to select multiple files. ✎ NOTE The c mark appears to the left of the selected files. To cancel a selection, press the Yellow button again. To deselect all selected files, press the and select Deselect All.
  • Page 30 Videos/Music/Photos Play Option menu During playing a file, press the TOOLS Category Title You can move the other file directly. You can play movie and music files repeatedly. Repeat Mode Picture Size You can adjust the picture size for preference. Picture Setting You can adjust the picture setting (p. 16, 17, 18). Sound Setting You can adjust the sound setting (p.
  • Page 31: Anynet

    Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
  • Page 32 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu Description View TV Changes Anynet+ mode to TV broadcast mode. Shows the Anynet+ device list. Device List (device_name) MENU Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.
  • Page 33 ¦ Recording You can make a recording of a TV Programme using a Samsung recorder. 1. Select Recording. ✎ When there are more than two recording devices When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List.
  • Page 34: Troubleshooting For Anynet+

    ¦ Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. • • • • • • • • • • I want to start Anynet+. • • I want to exit Anynet+. • • • The message “Connecting to • Anynet+ device...” appears on the •...
  • Page 35: Other Information

    Other Information The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed. ✎...
  • Page 36: Assembling The Cables

    Stand Type Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand. Wall-Mount Type ✎ Do not pull the cables too hard when arranging them. This may cause damage to the product’s connection terminals. English Assembling the Cables...
  • Page 37: Installing The Wall Mount

    For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.
  • Page 38: Anti-theft Kensington Lock

    Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 39: Securing The Tv To The Wall

    Caution : Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death.
  • Page 40: Troubleshooting

    If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.
  • Page 41 Try pointing the remote directly at the TV from 5~6 feet away. Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code. Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly.
  • Page 42 Issues Your settings are lost after 30 minutes or every time the TV is turned off. You have intermittent loss of audio or video. You see small particles when you look closely at the edge of the frame of the TV. The PIP menu is not available.
  • Page 43: Specifications

    Panel native Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity TV System Colour/Video System Sound System HDMI IN 1 ~ 4 Stand Swivel (Left / Right) Model Name Screen Size Sound (Output) Dimensions (WxDxH) Body With stand Weight Without Stand With Stand ✎...
  • Page 44: Index

    Amplify Antenna Anynet+ Auto Adjustment Auto Volume Background Music Balance L/R Basic View Batteries Black Tone Blanking Bracket Brightness Cable Tie 4, 36 Change PIN Channel Manager Channel Menu Clock Colour Tone Component Connecting to a PC Connecting to an Audio Device DIGITAL AUDIO OUT 10, 31 DivX®...
  • Page 45: Warning! Important Safety Instructions

    Warning! Important Safety Instructions Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. y The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation.To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.
  • Page 46: Wiring The Mains Power Supply Plug (uk Only)

    3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres. No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty.
  • Page 47 This page is intentionally left blank.
