Two handle widespread lavatory faucet

Advertisement

Quick Links

Dear Customer
Thank you for selecting our product. We are confident we can fully satisfy
your expectations by offering you a wide range of technologically advanced
products which directly result from our many years of experience in faucet
and fitting production.
For care, use soft towel with soap and water only! Under no
ATTENTION!
circumstances should you use any chemicals.
2-1/2"
64mm
1-1/8"
Ø(28mm)
3-3/4"
(96mm)
2-1/2"
64mm
IOG 2857.00

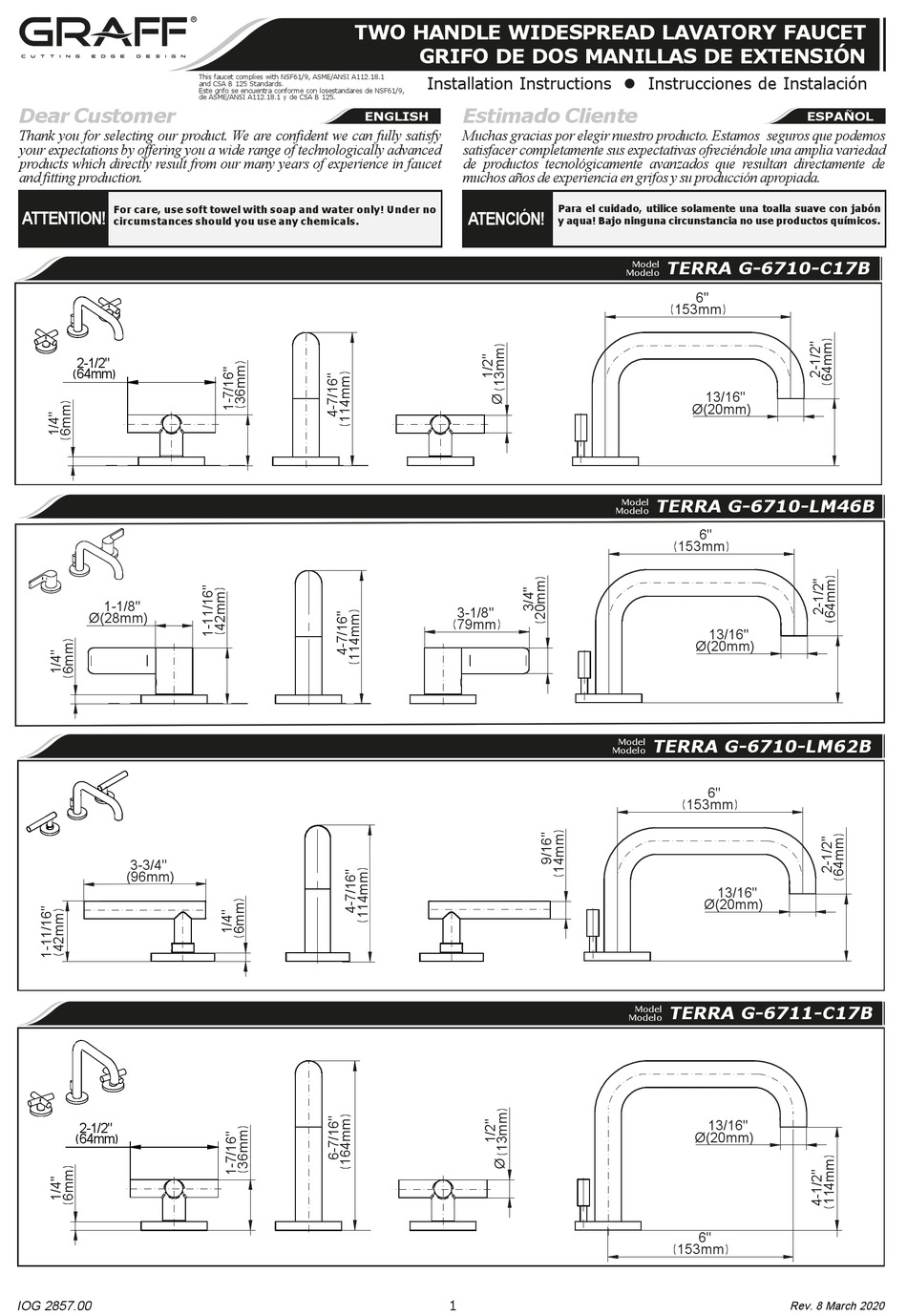

TWO HANDLE WIDESPREAD LAVATORY FAUCET
This faucet complies with NSF61/9, ASME/ANSI A112.18.1
and CSA B 125 Standards.
Este grifo se encuentra conforme con losestandares de NSF61/9,
de ASME/ANSI A112.18.1 y de CSA B 125.
ENGLISH
GRIFO DE DOS MANILLAS DE EXTENSIÓN
Installation Instructions  Instrucciones de Instalación
Estimado Cliente
Muchas gracias por elegir nuestro producto. Estamos seguros que podemos
satisfacer completamente sus expectativas ofreciéndole una amplia variedad
de productos tecnológicamente avanzados que resultan directamente de
muchos años de experiencia en grifos y su producción apropiada.
Para el cuidado, utilice solamente una toalla suave con jabón
ATENCIÓN!
y aqua! Bajo ninguna circunstancia no use productos químicos.
3-1/8"
79mm
1
TERRA G-6710-C17B
Model
Modelo
6"
153mm
13/16"
Ø(20mm)
TERRA G-6710-LM46B
Model
Modelo
6"
153mm
13/16"
Ø(20mm)
TERRA G-6710-LM62B
Model
Modelo
6"
153mm
13/16"
Ø(20mm)
TERRA G-6711-C17B
Model
Modelo
13/16"
Ø(20mm)
6"
153mm
~
ESPANOL
Rev. 8 March 2020
