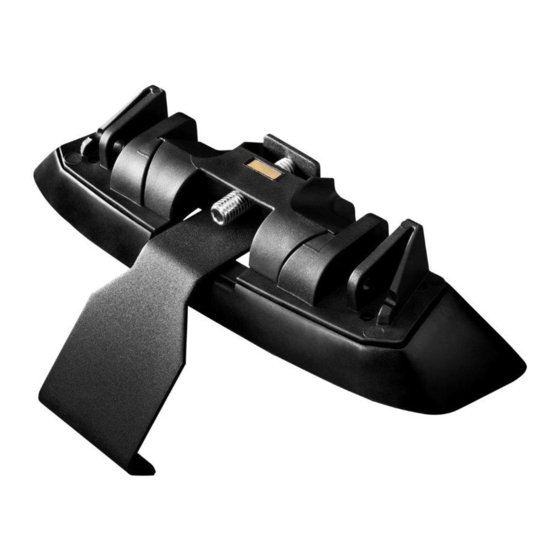

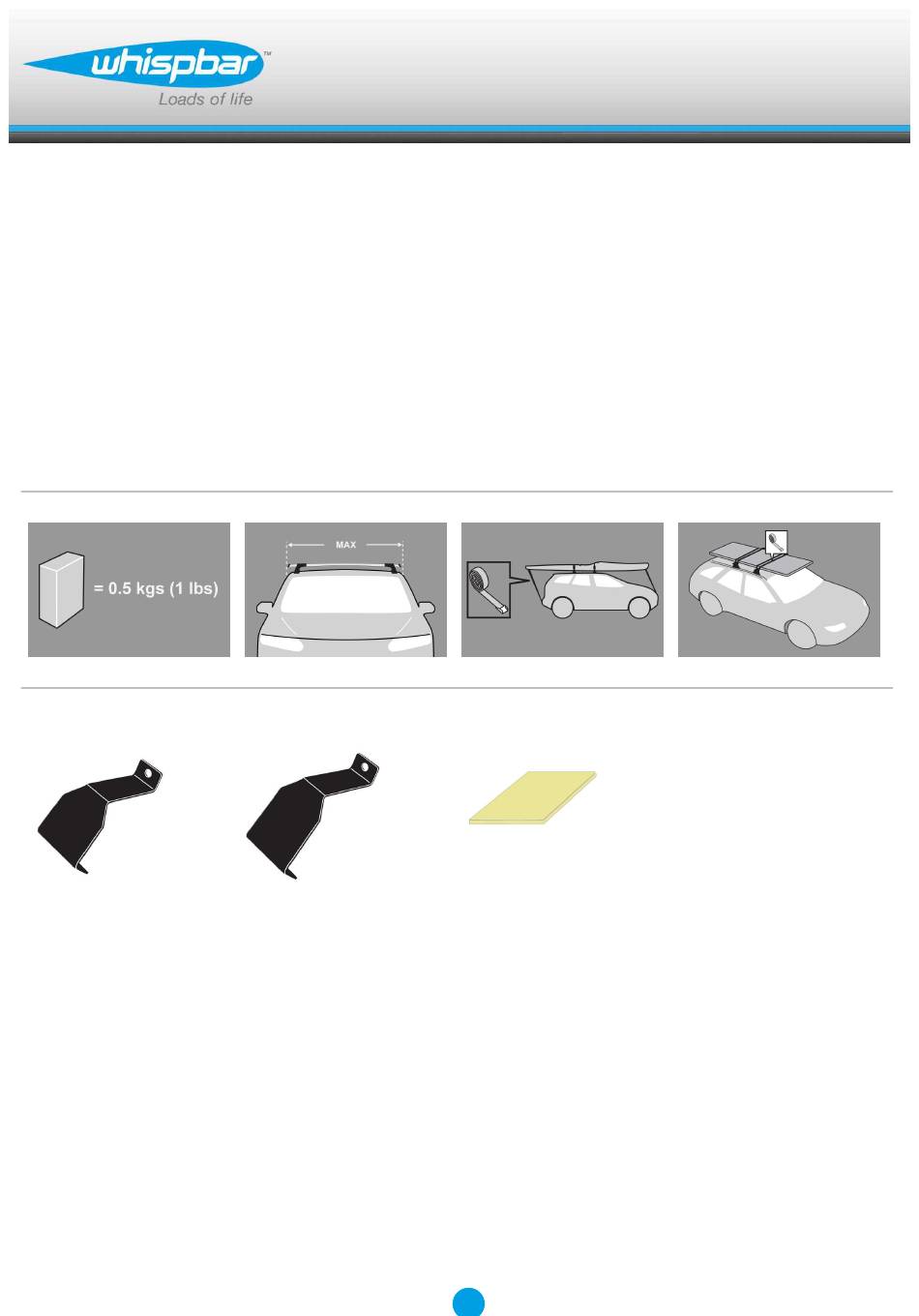

- Page 1 K312W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5E...
- Page 2 Fitting Kit K312W MAX kgs (lbs) Mazda 2, 5dr Hatch 02-06 50 kgs (110 lbs) 50 kgs (110 lbs) 2, 5dr Hatch 02-06 50 kgs (110 lbs) 50 kgs (110 lbs) 2, 5dr Hatch Dec 02-Aug 07 50 kgs (110 lbs)
- Page 3 Fitting Kit K312W 2, 5dr Hatch 02-06 (EU) -180mm 450mm 795mm 785mm -7 -1/16ths" 17 11/16ths" 31 5/16ths" 30 7/8ths" 2, 5dr Hatch 02-06 (CN) -180mm 450mm 795mm 785mm -7 -1/16ths" 17 11/16ths" 31 5/16ths" 30 7/8ths" 2, 5dr Hatch Dec 02-Aug 07 (AU)
-
Page 4: First Time Installation
Fitting Kit K312W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K312W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K312W Remove locking screw. Apply protective strip as shown. Trim if required. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 461A B = 462A...
- Page 7 Fitting Kit K312W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 8 Fitting Kit K312W Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the front of this manual for information relating specifically to your vehicle.
- Page 9 Fitting Kit K312W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K312W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K312W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K312W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
