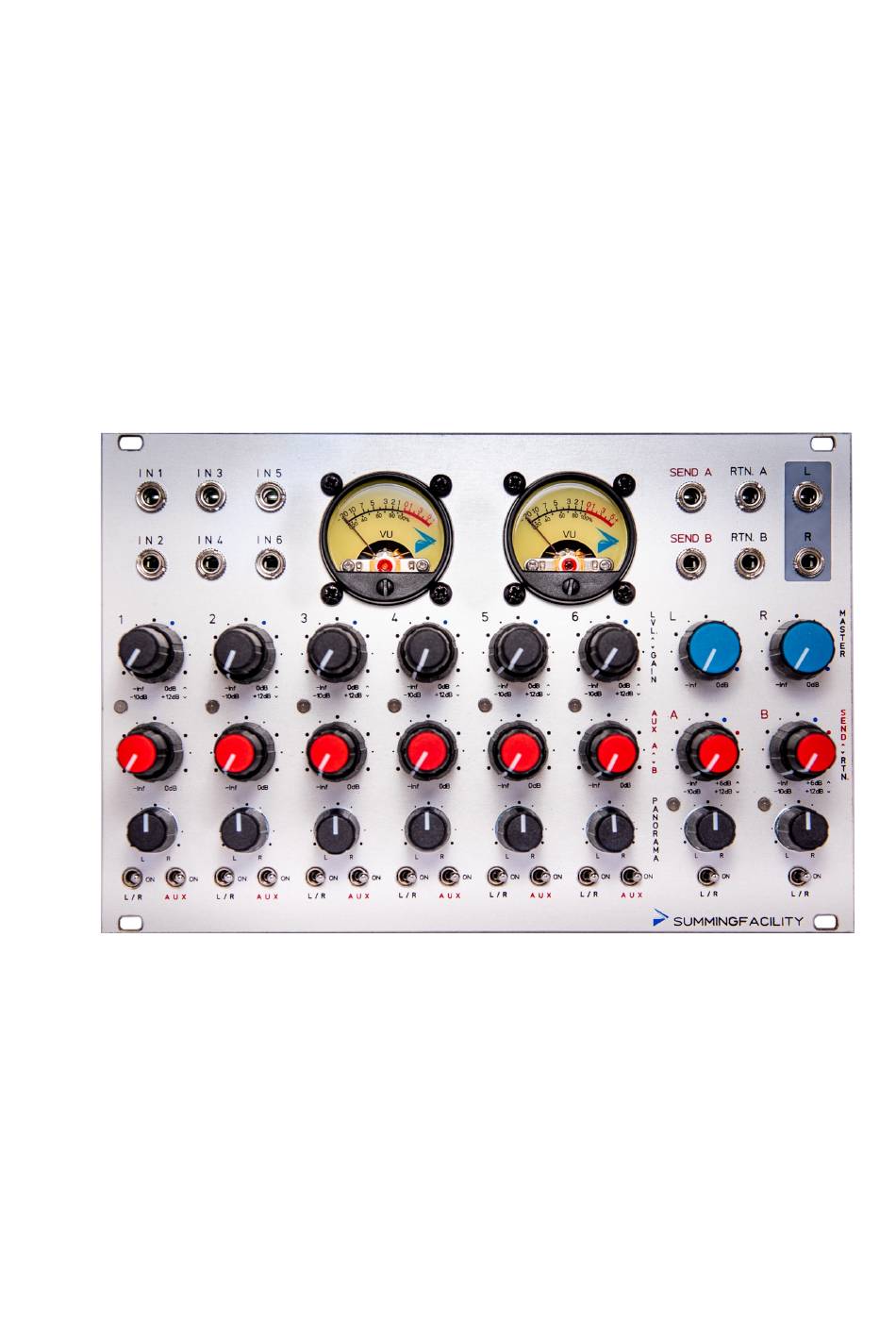

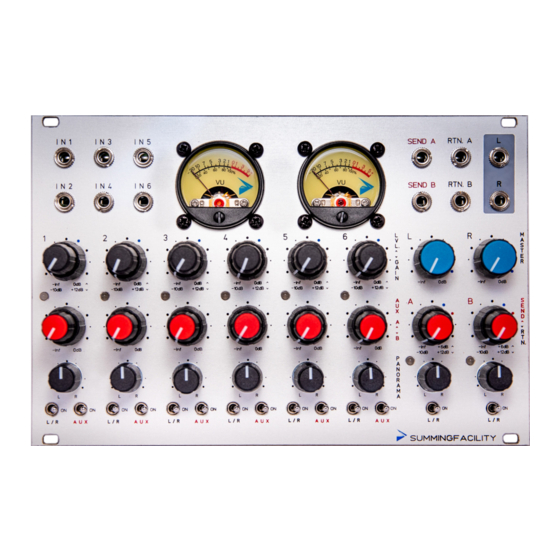

- Page 1 SUMMINGFACILITY User’s Manual Audio Gear Obsession...
-
Page 2: Table Of Contents
List of Figures SUMMINGFACILITY Block Scheme ....Input Jacks ...... -
Page 3: Warranty
1 Warranty Audio Gear Obsession warrants this product to be free of defects and malfunctions for a period of two years from the purchase date (i.e. the invoice date). Malfunctions caused by the improper use of this device such as: •... -
Page 4: Block Scheme
3 Block Scheme The figure below shows the functional block scheme of SUMMINGFACILITY. Input Signal Aux Return Aux A Send Aux B Send Master L Master R Output Output Output Output Input Stage Input Stage Stage Stage Stage Stage Direct... -
Page 5: Panel Control
The Input Jacks for the 6 audio channels are located to the top left side of the panel. Figure 2: Input Jacks SUMMINGFACILITY features six 3.5 mm balanced Inputs Jacks. The balanced inputs can be exploited to accomodate the interconnections between Eurorack and non-Eurorack gear (e.g. API500, Rack 19”, Desktop...). Standard 3.5 mm... -
Page 6: Channel Strip
4.1.2 Channel Strip Figure 3: Channel Strip The Channel Strip section features: 2 dual concentric potentiometers that control Level and Gain, 1 potentiometer to control the Panorama, 1 led to monitor signal level and 2 mute switches. In Figure 3 is represented only one of the six input channels of the mixer, yet the same settings refer to all six channels. -
Page 7: Master Section
Aux A&B buses. DESIGN NOTE (PAY ATTENTION): as the user can see from the Channel Strip de- scription, SUMMINGFACILITY uses the following convention for the stacked dual knobs: UPPER KNOB(inner shaft) –> UPPER CONTROL ON THE PANEL, LOWER KNOB(outer shaft)–>... -
Page 8: Stereo Master
approximately to the unity gain settings for the Aux Send A bus. The blue dot refers to the unity gain settings for the Aux Return A. • 7 Send B & Return B: The upper knob sets the Level of the Aux Send B ∞... -
Page 9: Aux Send Jacks, Master Output Jacks & Aux Return Jacks
• 15 Right Master Output:This control can be used to adjust the right Master ∞ dB to 0 dB. Output Level; it ranges 4.2.3 Aux Send Jacks, Master Output Jacks & Aux Return Jacks The Output Jacks of the Aux Send A&B and the Stereo Master Output are located on the top right of the panel alongside the Aux Return A&B Input Jacks. -
Page 10: Vu Meter
5 Vu Meter Figure 7: Vu Meter SUMMINGFACILITY features 2 analog VU meters. The mixer ships pre-calibrated. The VU meters monitor the stereo master bus activity. Depending on the envi- ronment and the setup, calibration over time might be required. The VU meters calibration steps will be enumerated in the following section. -
Page 11: Vu Meter Calibration
6 VU meter Calibration Figure 9: Vu Meter Trimmers To perfrorm the calibration grant access to the PCB side of the module. Take a look at Figure 9, (16) and (17) are, respectively, the Right VU meter (R_Trim on the PCB) and Left VU meter (L_Trim on the PCB). Then: 1. -
Page 12: Power Connection
PCB. 8 Direct Output SUMMINGFACILITY features a Direct Out on each of its six input channels. Refer to Figure 1 to further information about the Direct Out position in the signal path. -
Page 13: Specifications
9 Specifications In the following table, mechanical and electrical specifications will be provided. Parameter Value Width 38 HP Height Recommended PSU Positive Voltage +12 V Recommended PSU Negative Voltage -12 V +12 V consumption 170 mA / 225 mA with VU meters lamp -12 V consumption 170 mA / 225 mA with VU meters lamp Table 1: Specifications...
