Summary of Contents for Cyclops Lighting FR-200F

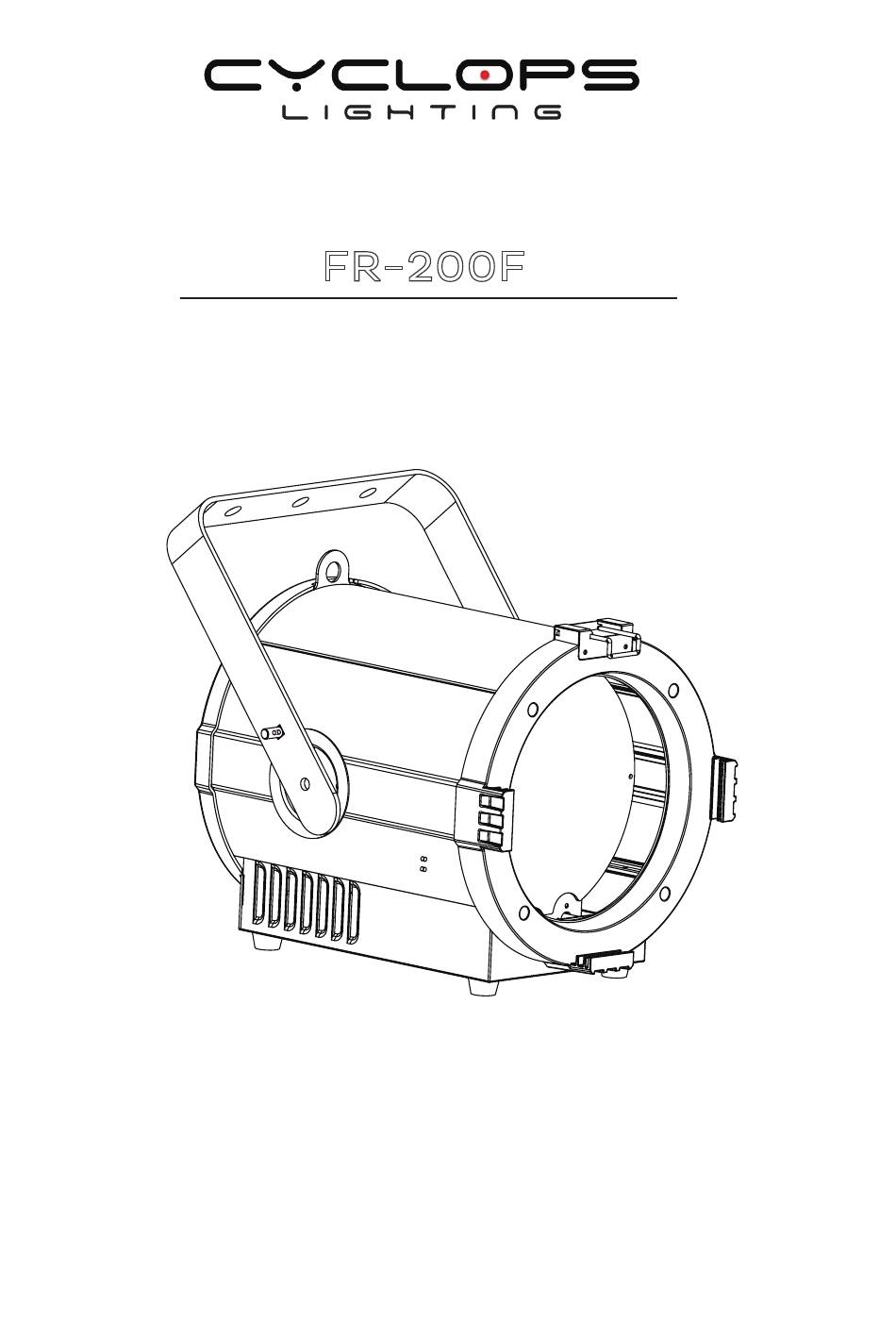

- Page 1 FR-200F 200 watts RGBW powered LED Fresnel USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! .........................3 Introduction ......................3 Safety instructions ....................3 Overview........................4 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ......................DMX-512 connection/connection between fixtures ................. -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-200F. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Mounting The Fixture On A Truss
Fasten the fixture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If you install the fixture in a location where it may cause injury or damage if it falls, secure it as directed below with a securely anchored safety cable that will hold the fixture if the primary fastening method fails. -
Page 6: Power Connection
Yellow/green Earth(Ground) Operation The FR-200F can operate in different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. Control Menu Map... -
Page 7: Addressing
In the case of the FR-200F, which is 3/4/5/6/12 channels fixture. If you set, for example, the address in the 3 channel mode to channel 4, the device will use the channel 4 to 7 for control. -
Page 8: Dmx Protocol
With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful when the device is installed in a remote area. Each FR-200F has a factory set RDM UID (unique identification number). DMX Protocol STAG... - Page 9 12 Channels Mode Function Function Control 091-100: Auto8 101-110: Auto9 111-120: Auto10 121-255: No function CH10 Auto program speed 000-255: Speed increasing 000-005: Menu setting 006-055: Dimmer speed 0 (no delay) 056-105: Dimmer speed 1 CH11 Dimmer mode 106-155: Dimmer speed 2 156-205: Dimmer speed 3 206-255: Dimmer speed 4 (slowest speed) 000-009: ID1-ID66...
-
Page 10: Id Address Selection(Stag-12 Channels Mode)
4 Channels Mode Function Function Control Green 000-255: 0-100% Green dimmer Blue 000-255: 0-100% Blue dimmer White 000-255: 0-100% White dimmer AR2.D 5 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-255: 0-100% Red dimmer Green 000-255: 0-100% Green dimmer Blue 000-255: 0-100% Blue dimmer White... -
Page 11: Fixture Cleaning
090-099 ID32 ID55 100-109 ID10 ID33 ID56 110-119 ID11 ID34 ID57 120-129 ID12 ID35 ID58 130-139 ID13 ID36 ID59 140-149 ID14 ID37 ID60 150-159 ID15 ID38 ID61 160-169 ID16 ID39 ID62 170-179 ID17 ID40 ID63 180-189 ID18 ID41 ID64 190-199 ID19 ID42 ID65... -
Page 12: Technical Specifications
Technical specifications Model FR-200F Light source: 200 watts RGBW COB LED LED life expectancy: 50,000 Hrs. CRI: 75 Ra Electronic zoom Zoom angle: 15° to 60° motorized Light output: 6,200 Lux @ 2m @ 15° 5 Dimmer curves Color mixing:...
