Cyclops Lighting CL 575S-E User Manual

Professional moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

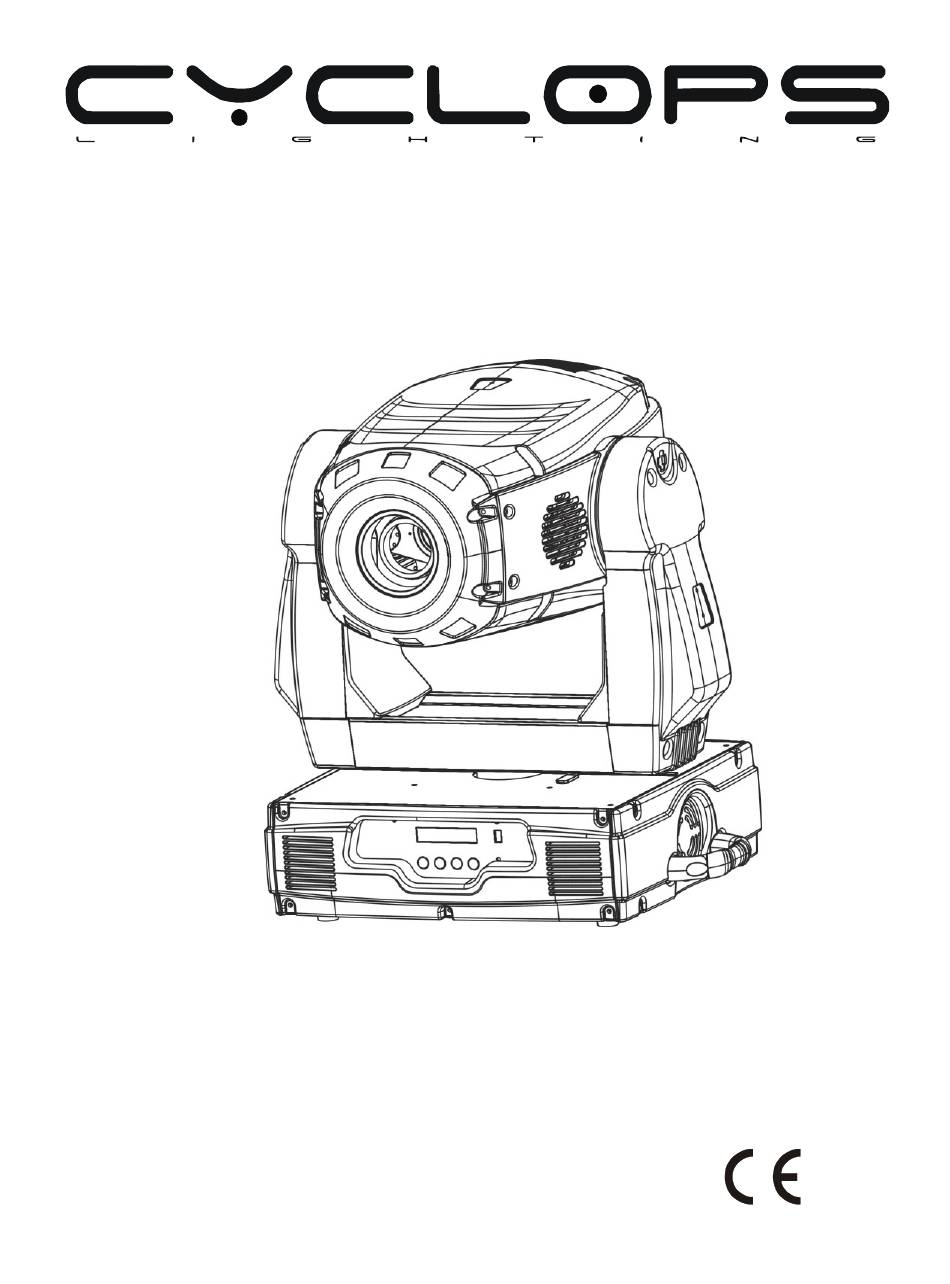

PROFESSIONAL MOVING HEAD USER MANUAL
CL 575S-E
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL 575S-E and is the answer not in the manual?

Questions and answers

Related Manuals for Cyclops Lighting CL 575S-E

Summary of Contents for Cyclops Lighting CL 575S-E

  • Page 1 PROFESSIONAL MOVING HEAD USER MANUAL CL 575S-E KEEP THIS MANUAL FOR FUTURE NEEDS...
  • Page 2 For your own safety, please read this user manual carefully before installing the device. K e e p  th i s  d e v i c e  a w a y  f r o m  r a i n  a n d  m o i s tu r e  ! U n p l u g  m a i n s  l e a d  b e f o r e  o p e n i n g  th e  h o u s i n g .

  • Page 3: Safety Instructions

    OVERVIEW (1) Projector head (2) Objective-lens (3) Yoke (4) Ventilation fan (5) Base (6) Control Board (7) Carrying handle (8) LCD-Display (9) Mode/Esc-button (10) Up-button (11) Down-button (12) Enter-button (13) Microphone (14) Update-socket (15) Ventilation grille (16) Housing screw (17) Lamp system (18) Fuse holder (19) 3-PIN DMX output socket (20) 3-PIN DMX input socket...

  • Page 4: General Guidelines

    If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person.

  • Page 5: Installation Instructions

    The device shall only be used complete with its protective shield. While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. The minimum distance between light-output from the projector and the illuminated surface must be more than 0.5 meter.

  • Page 6: Mounting The Device

    For the installation, you need one MSR GOLD 575 SA/2 DE Procedure: 1) Unscrew the 4 screws A, B，C and D on the bottom of the housing, holding the plate where the lamp is underneath. 2) Gently pull the socket holder using the knob in the middle. 3) Carefully insert the lamp into the socket.
  • Page 7 an expert before taking the device into operation for the first time. These installations have to be approved by a skilled person once a year. B efo re  tak i ng  i nto  op erati on  f or  the  fi rst  ti m e,   the  instal l ati on  has  to  be  approv ed  b y  an  ex pert.  ...

  • Page 8: Dmx-512 Control Connection

    Installation method via clamp Please refer to the picture below: Screw one clamp each via a M12 screw and nut onto the Omega holders. Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.

  • Page 9: Dmx-512 Connection With Dmx Terminator

    Starting address 37 starting address 19 starting address 1 DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

  • Page 10: Control Board

    Control Board The Control Board offers several features: you can simply set the starting address, switch on and off the lamp, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Mode/esc-button until the display starts flashing. Browse through the menu by pressing the Up-button or Down-button.

  • Page 11: Function Mode

    Display Setting Shutoff Time Display shutoff time Temperature switch Temperature C/F Celsius Fahrenheit between ℃/℉ Initial Effect Initial effect position PAN…… PAN =XXX Reset Default ON/OFF Restore factory set. Reset all motors Reset All Reset Pan/Tilt Reset Pan&Tilt Reset color wheel Reset Colors Reset gobos Reset Gobos...

  • Page 12: Auto Program

    Auto Program With this function, you can run the internal program. You can select the desired program under “Select program”. You can set the number of steps under “Edit program”. You can edit the individual scenes under “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. Music control With this function, you can run the internal program sound-controlled.

  • Page 13: Status Setting

    ·When the temperature unit after the temperature value come to lowercase letter “c” or “f”, it means menu Lamp is turned to ON, but the lamp is not full dimming up. ·When the temperature unit after the temperature value come to capital letter “C” or “F”, it menu Lamp is turned to ON, and the lamp is full intensity.

  • Page 14: Service Setting

    • On the controller, set the DMX-value of channel 1 to "7". • Set the DMX-value of channel 2 to "7"or "8". When set to "7" you can adjust the starting address between 1 and 255. When set to "8" you can adjust the starting address between 256 and 511. •...

  • Page 15: Reset Functions

    Initial effect With this function, Display initial effect position. Reset Default With this function, you can select restore factory set for ON or OFF, the default is OFF. Reset-functions With this function you can reset the device via the Control Board. You can select the different reset functions by turning the encoder.
  • Page 16 The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to. If e.g. a Slave unit is set to “Slave 1” in the menu “Set to Slave”, the Master unit sends “Auto Program Part 1” to the Slave unit. If set to “Slave 2”, the Slave unit receives “Auto Program Part 2”.

  • Page 17: Instructions On Use

    • Press the Enter button to confirm. • Press the Mode/Esc button in order to return to the main menu. Example: Program 2 includes scenes: 10, 11, 12, 13 Program 4 includes scenes: 8, 9, 10 Program 6 includes scenes: 12, 13, 14, 15, 16 Auto Pro Part 1 is Program 2;...
  • Page 18 188-193 No rotation 194-255 Backwards rainbow effect from slow to fast Channel 2 - Rotating gobos, cont. rotation : Open 10-19 Rot. gobo 1 (dichroic multicolor) 20-29 Rot. gobo 2 (glass) 30-39 Rot. gobo 3 (metal) 40-49 Rot. gobo 4 (metal) 50-59 Rot.
  • Page 19 208-223 Gobo 7 shake slow to fast 224-255 Gobo wheel rotation from slow to fast Channel 5 - PAN movement 8bit : Channel 6 - TILT movement 8bit : Channel 7 - Speed pan/tilt movement: 0-225 max to min speed 226-235 blackout by movement 236-245...
  • Page 20 Channel 11 - Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open) 64-95 Strobe effect slow to fast 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Channel 12-...
  • Page 21 0-19 colour & gobo change normal 20-29 colour change to any position 30-39 colour & gobo change to any position 40-59 Lamp on 60-79 Lamp switch off 80-84 All motor reset 85-87 Scan motor reset 88-90 Colors motor reset 91-93 Gobo motor reset 94-96 Shutter &...

  • Page 22: Cleaning And Maintenance

    Color wheel 1Er (Color wheel 1 error) This message will appear after the reset of the fixture and if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main PCB).

  • Page 23: Technical Specifications

    We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or solvents. There are no serviceable parts inside the device except for the lamp. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer.
