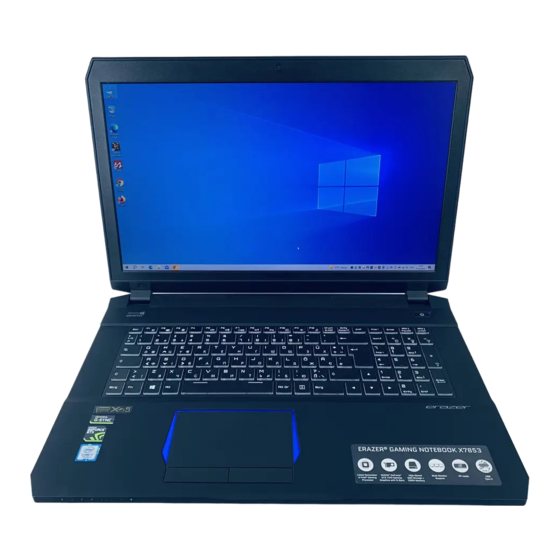

- Page 1 Instruction Manual 43.9 cm / 17.3“ Notebook...
-
Page 2: Table Of Contents
Table of Content About these Instructions ................4 1.1. Explanation of Symbols ..................4 1.2. Proper Use........................ 5 Declaration of Conformity ................6 2.1. Information on WLAN ..................7 Information on trademarks ................ 7 Safety Instructions ..................8 4.1. Dangers for children and people with reduced ability to operate electronics........................ - Page 3 14.2. Wi-Fi (Wireless Network) ...................30 14.3. Bluetooth .......................30 14.4. Airplane Mode ......................31 Multi Card Reader ..................31 15.1. Inserting a Memory Card ..................31 15.2. Removing Memory Cards .................31 USB Port ..................... 32 Securing Your Notebook ................32 17.1. Password Setting (Power-on) ................32 17.2.
-
Page 4: About These Instructions
1. About these Instructions Before using the device for the first time, please read these operating instructions carefully, paying special attention to the safety notices. This device should only be used as designated and as described in these instructions. Please keep these instructions in a safe place for future reference. Always include these instructions if selling or giving away the device. -
Page 5: Proper Use
Indoor use Devices with this symbol are only suitable for use indoors. Polarity symbols Fig. A On devices with barrel connectors, these symbols indicate the polarity of the plug. There are two variants for the polarity: Fig. B either the inner contact is positive and the outer contact is negative (Fig. -
Page 6: Declaration Of Conformity
Should your device work with a network connection in the 5 GHz frequency range of the inbuilt wireless LAN solution, use in EU countries (see table) is only permitted inside buildings. Medion AG hereby declares that this product conforms with the essential requirements and the remaining relevant regulations: •... -
Page 7: Information On Wlan
2.1. Information on WLAN Frequency range: 2.4 GHz/5 GHz Wi-Fi standard: 802.11 a/b/g/n/ac Encryption: WEP/WPA/WPA2 Frequency range/MHz Channel Max. transmission power/dBm 2400 - 2483,5 1 - 13 < 20 5150 - 5250 36 - 48 < 23 5250 - 5350 52 - 64 <... -
Page 8: Safety Instructions
4. Safety Instructions 4.1. Dangers for children and people with reduced ability to operate electronics This device may be used by children over the age of 8 and by persons with limited physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and understand the ensuing dangers. - Page 9 ` In order to avoid any damage to the device, ensure that the plug contacts do not come into contact with water under any circumstances. If this should occur, it is imperative that the plug contacts are dried thoroughly before the device is used again. In case of open housing / AC adapter / battery there is a danger of electric shock or fire.
-
Page 10: Never Carry Out Repairs Yourself
4.3. Never carry out repairs yourself CAUTION! Risk of electric shock! There is a risk of electric shock if repairs are not carried out by qualified personnel! ` Never try to open or repair the product yourself! ` In the event of a fault, please contact the Service Centre or an approved repair specialist. -
Page 11: Environmental Requirements
4.6. Environmental Requirements • The notebook is most reliably operated at an ambient temperature between 5 °C (+41 °F) and 30 °C (+86 °F) and at a relative humidity between 20% and 80% (without condensation). • When powered off, the notebook can be stored at temperatures between 0 °C and 60 °C (+32 °F and 140 °F). -
Page 12: Cabling
• The only devices which may be connected to the device are those that meet the requirements set out in the EN60950 standard “Information Technology Equipment – Safety” or devices that meet the EN60065 standard “Audio, video and similar electronic apparatus – Safety requirements”. PLEASE NOTE! Risk of damage! Unsuitable mains adapters may cause damage to the... -
Page 13: Notes On The Battery
• In addition, when connecting your peripherals only use the connecting cables supplied with those devices. • Ensure that all connection cables are connected to their corresponding peripheral device to avoid any interference radiation. • Disconnect any cables that are not required. 4.9. -
Page 14: Information About The Touchpad
• Ensure the notebook is switched off before replacing the battery. • If the battery is integrated into the device it cannot be readily replaced by the user themselves. In this case the battery must be replaced by a service technician. 4.10. -
Page 15: Ergonomics
` If the screen breaks, there is a danger of injury. If this happens, pick up the shattered pieces wearing protective gloves and send them to your service centre for professional disposal. Finally, wash your hands with soap, as the pieces may have been contaminated with chemicals. -
Page 16: Included With Your Notebook
6. Included with your Notebook Please check that the contents are complete and notify us within 7 days of purchase if any of the following components are missing: • notebook • Battery • AC adapter DANGER! Risk of suffocation! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation! ` Keep packaging material such as plastic film or plastic bags away from children. -
Page 17: Views
7. Views... - Page 18 15 16...
- Page 19 Webcam Indicator Webcam Microphone Display Stereo Speakers Power ON/OFF Keyboard Touchpad Device Indicators Power Socket HDMI Port Mini Display Port USB 3.1 Port / Thunderbolt (type C) USB 3.1 Ports (type A) Audio Out* / Digital Audio Out (S/P-DIF, optical) Microphone* Headphone Connector Multimedia Card Reader...
-
Page 20: Operating And Status Leds
8. Operating and Status LEDs The system displays power supply status and operating modes via LEDs. The operating lights also light up during notebook activity: GPU indicator Lights up green when the dedicated graphics card is activated. Scroll function This indicator lights up when the scroll function is activated. Capital Lock This LED lights when CAPS-Lock has been activated. -
Page 21: Preparation For Starting-Up
9. Preparation for Starting-Up To operate your notebook safety and ensure a long service life, you should read the “Operational Safety” chapter at the beginning of this manual. All operating software is already fully preinstalled on the notebook so there is no need for you to install any more drivers and you can get started right away. -
Page 22: Power Supply
10. Power Supply 10.1. On/Off Switch ` Open the notebook and hold the on/off switch down briefly to switch the notebook on or off. Regardless of the operating system, the notebook will switch off if the switch is held down for longer than 4 seconds continuously. PLEASE NOTE Do not switch your notebook off while the HDD/SSD is being accessed. -
Page 23: Changing The System Language
After entering a computer name you can connect your notebook to the Internet immediately on the “Wireless” page (if you already have an appropriate Internet connection set up). If you choose to skip this point, you can connect to the Internet later via the Windows ®... -
Page 24: General Handling Of Rechargeable Batteries
PLEASE NOTE! If further Download buttons are now available, click them in succession – insofar as the respective function is desired – and wait until the installation has finished. After the installation, restart your device for the changes to take effect. If there are still elements that do not appear in the target language, proceed as described in Steps 10–17. -
Page 25: Battery Mode
10.5. Battery Mode PLEASE NOTE! Batteries store electrical energy in their cells and then release it again as required. Please charge and discharge the new battery completely two or three times consecutively to ensure that it reaches its optimum performance! 10.5.1. -
Page 26: Display
Power Management (Power Options) Your notebook offers automatic and user selectable power-saving and energy functions that can be used to optimise battery life and reduce the overall operating costs. 10.5.4. Energy Saving Tips Utilize the Fn+F12 sleep mode keys to turn into power saving mode. •... -
Page 27: Connecting An External Monitor
11.2. Connecting an External Monitor The Notebook has two mini diplay ports as well as an HDMI port for an external monitor. ` Shut down your Notebook correctly. ` Plug the external monitor’s signal cable (not included) into a mini display port on the Notebook. - Page 28 Short Description Cuts Volume down Fn + F5 Decreases the playback volume. Volume up Fn + F6 Increases the playback volume. Display Fn + F7 Switches the screen display between LCD, external display and duplicate display. Brightness down Fn + F8 Reduces the brightness of the display.
-
Page 29: Touchpad
12.2. Touchpad PLEASE NOTE! Risk of damage! If unsuitable objects are used to control the device, this could permanently damage the touchpad. Do not use any sharp objects (e.g. a pen). 13. Sound System Your notebook comes with a high-definition audio system with 2 speakers (Dolby Personal settings can be configured via the Dolby menu under the loudspeaker properties. -
Page 30: Network Operation
14. Network Operation 14.1. Network Connection Connect one end of a cable with a RJ45 connection (western jack) to your Notebook’s network interface and the other to a different computer or hub/switch. You can find more details about the network in the Windows® help. 14.2. -
Page 31: Airplane Mode
• Using a Bluetooth keyboard and mouse. • Connecting to a PAN (Personal Area Network). The Bluetooth wireless technology data transfer speed can vary depending on the device or environmental factors. Data can be transferred through walls, jacket pockets and briefcases using a Bluetooth device. The transfer between Bluetooth devices occurs at the high frequency of 2.4 Gigahertz (GHz). -
Page 32: Usb Port
16. USB Port The universal serial bus is a standard for connecting input devices, scanners and other peripherals. The USB 3.0 ports are fully backwards compatible. Your Notebook has 1 USB 3.1 port / Thunderbolt (type C) and 4 USB 3.1 ports (type A). -
Page 33: Resetting The Notebook To Its Factory Settings
18. Resetting the notebook to its Factory Settings Depending on the features of your notebook, use either Cyberlink PowerRecover or the Windows system recovery options if your system fails to respond as normal and a system recovery becomes necessary. 18.1. System recovery with PowerRecover (optional) In the event of problems with the installation or other software problems which make it necessary to reinstall the software, Windows®... -
Page 34: System Restore With Windows Recovery Options
PLEASE NOTE! Always perform any type of recovery using AC power. The recovery process takes a long time when you select the option to back up user data. Only the data located in the folder C:\USERS will be backed up. All other data will be deleted. -
Page 35: Uefi Configuration
` A dialogue box will now open, select the recovery option Remove everything to completely reinstall Windows. PLEASE NOTE! Always perform any type of recovery using AC power. PLEASE NOTE! If you have forgotten the Windows password for your device, you can also restore the notebook from the login screen after rebooting the device. - Page 36 Why do I need to reinstall my USB device even though I have already done it? • If the device is not operated on the same USB port as the one it was installed in, it automatically receives a new identifier. The operating system then treats it like a new device and tries to reinstall it.
-
Page 37: Customer Service
You’ve checked through the suggestions in the previous section and you’re still having problems with your device? Then call our hotline or contact us at www.medion.com. We’ll be glad to help you. Before contacting your technology centre, however, prepare the following... -
Page 38: Driver Support
(programs, devices) which have not yet been tested. You can find current drivers on the Internet at the following address: http://www.medion.com Please use the service address for the country where the device was purchased. 21.5. Transport Please note the following information if you wish to transport the Notebook: ` Switch the notebook off. -
Page 39: Maintenance
21.6. Maintenance None of the parts inside the notebook housing require cleaning or maintenance. ` Always unplug the device, disconnect all cables and remove the battery before cleaning. ` Clean the notebook with a damp, lint-free cloth. ` Do not use solvents, corrosive or aerosol-based detergents to clean the device. PLEASE NOTE! Risk of damage! To avoid damaging the device, never allow the plug... -
Page 40: Recycling And Disposal
However, these approaches were mostly very complicated and varied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent requirements of the standard EN ISO 9241-307, Class II; which has been briefly summarised below. - Page 41 Pixel defect types: • Type 1: permanently illuminated pixel (bright, white dot) even when not activated. A white pixel occurs due to the illumination of all three sub-pixels. • Type 2: non-illuminated pixel (dark, black dot) even when activated. • Type 3: abnormal or faulty red, green or blue sub-pixel (e.g.
-
Page 42: Legal Notice
Germany The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal. -
Page 43: Index
26. Index Maintenance ..........39 Microphone Socket ........19 Battery Mode ..........25 Battery Performance ......25 Network Operation ........30 Charging the Battery ......25 Requirements ......... 30 Discharging the Battery ...... 25 Wi-Fi (Wireless Network) ....30 Battery status indicator ......20 Notes for Service Technicians ....
