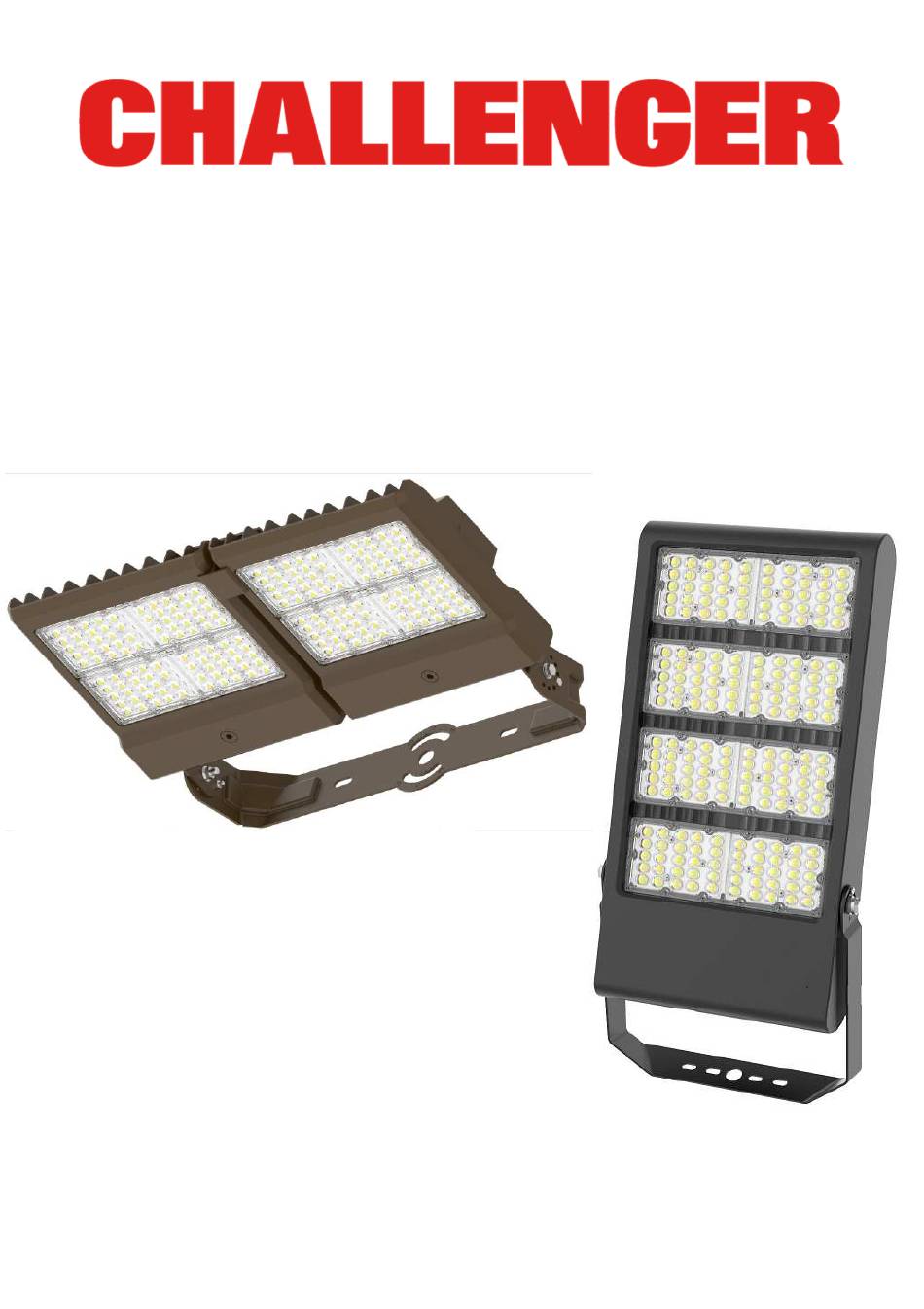

High Lumen LED Floodlights
460w, 600w
Models: SLFLO460B, SLFLO600B
SLFLO460B
SLFLO600B
Installation Manual
Advertisement
Table of Contents
Related Manuals for Challenger SLFLO460B
Summary of Contents for Challenger SLFLO460B
- Page 1 High Lumen LED Floodlights 460w, 600w Models: SLFLO460B, SLFLO600B SLFLO460B SLFLO600B Installation Manual...
- Page 2 Introduction Thank you for purchasing your Challenger high lumen led floodlight, these instructions should be read carefully and retained for further reference and maintenance. IMPORTANT • Installation must be carried out by a skilled electrician who is familiar with the appropriate standards and technical requirements of the appliance also taking in to consideration the latest building regulations.
- Page 3 • Power factor - PF≥0.9 • CRI rating - >70 • Operating temperature -40°～+40°c • 5-year warranty • Selectable wattage on the SLFLO600B Model Lumens Wattage Dimensions Input Weight (mm) Current SLFLO460B 65996 460w 340x647x115 5.6A 11.88kg SLFLO600B 81229 600w 651x323x136 15.94kg 71936...
- Page 4 Installation • Ensure the electrical AC power is switched OFF before and during installation • For the AC supply cable and connections, a cable that is rated to 90°C should be used • Ensure the luminaire is securely fixed to a surface/ceiling free from vibration •...
- Page 5 Refer to the following diagram when you install the fixture: SLFLO460B: SLFLO600B:...
- Page 6 1. Turn off the AC Supply 2. Fix the luminaire bracket to the surface. 3. Keep enough slack in cable to ensure when adjusting the angle, the movement is unhindered 4. Connections- AC-Live: Brown, AC-Neutral: Blue, GND Earth: Yellow-Green. 5. Ensure that the correct wattage output has been selected (600W model only) as this will have an impact on the lighting design to ensure the correct light levels are achieved.
- Page 7 IEE wiring regulations. If the defective product is no longer available, then Challenger may provide alternatives of similar specification and quality. The ambient temperatures and environment and voltage range...
- Page 8 Due to our policy of continuous improvement we reserve the right to change specification without prior notice. Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger for any misinterpretation of these instructions.
