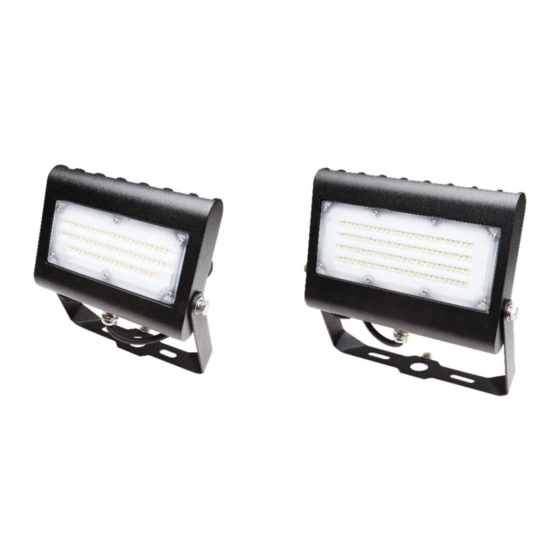

- Page 1 High Lumen LED Floodlights 15w, 30w, 50w Models: SLFLF15B, SLFLF30B, SLFLF50B SLFLF15B SLFLF30B SLFLF50B...
- Page 2 Installation Manual Introduction Thank you for purchasing your Challenger high lumen led floodlight, these instructions should be read carefully and retained for further reference and maintenance. IMPORTANT • Installation must be carried out by a skilled electrician who is familiar with the appropriate standards and technical requirements of the appliance also taking in to consideration the latest building regulations.
- Page 3 • CRI rating - >70 • Operating temperature -20°～+40°c • 5-year warranty • Selectable wattage (SLFLF30B & SLFLF50B models only) Model Lumens Wattage Dimensions Input Weight (mm) Current SLFLF15B 1950 148x128x45 0.2A 0.58Kg SLFLF30B 3900, 30w, 216x190x50 0.37A 1.18Kg 2600,...
- Page 4 Installation • Ensure the electrical AC power is switched OFF before and during installation • For the AC supply cable and connections, a cable that is rated to 90°C should be used • Ensure the luminaire is securely fixed to a surface/ceiling free from vibration •...
- Page 5 Refer to the following diagram when you install the fixture: SLFLF15B SLFLF30B SLFLF50B 1. Turn off the AC Supply 2. Fix the luminaire bracket to the surface. 3. Keep enough slack in cable to ensure when adjusting the angle, the movement is unhindered 4.
- Page 6 6. Check the circuit and connections are correct prior turning on the AC supply Adjust the wattage via dip switch (please remove the screw on cap and replace) Ensure that the correct wattage output has been selected (30w & 50w models only) as this will have an impact on the lighting design to ensure the correct light levels are achieved.
- Page 7 IEE wiring regulations. If the defective product is no longer available, then Challenger may provide alternatives of similar specification and quality. The ambient temperatures and environment and voltage range...
- Page 8 Due to our policy of continuous improvement we reserve the right to change specification without prior notice. Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger for any misinterpretation of these instructions.
