Yamaha YST-FSW100 Owner's Manual

Yamaha subwoofer owner's manual
Hide thumbs Also See for YST-FSW100:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
UCA
YST-FSW100
i

Advertisement

Table of Contents
loading

Related Manuals for Yamaha YST-FSW100

Summary of Contents for Yamaha YST-FSW100

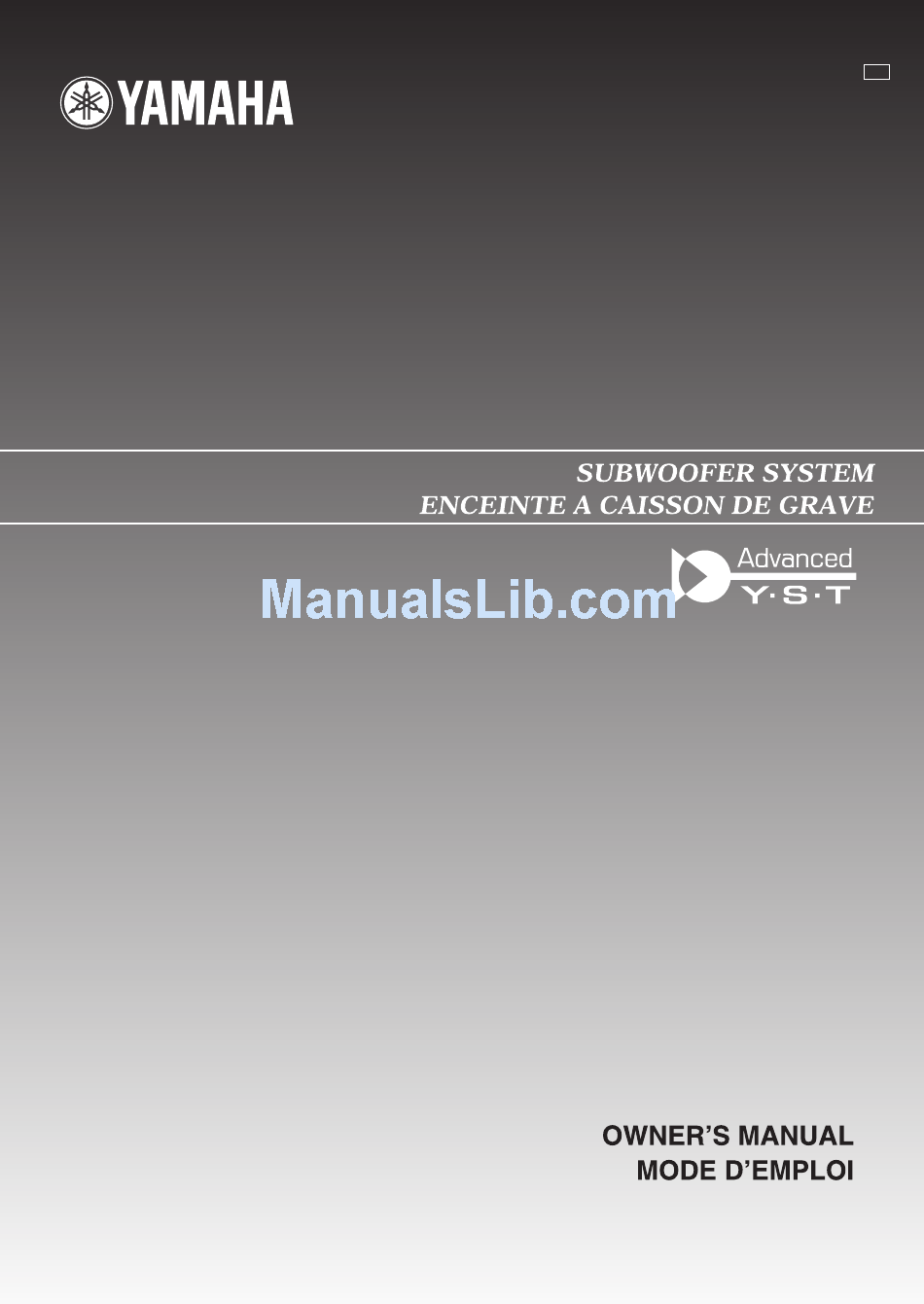

  • Page 1 YST-FSW100...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • Explanation of graphic symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert you to the presence of uninsulated “dangerous voltage”...
  • Page 3 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product, use only high quality shielded cables.

  • Page 4: Precautions: Read This Before Operating This Unit

    • Install this unit near the wall outlet and where the AC power plug can be reached easily. • Secure placement or installation is the owner’s responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of the subwoofer.

  • Page 5: Table Of Contents

    Using the subwoofer ..........5 Advanced Yamaha Active Servo Technology II ......6 Troubleshooting .

  • Page 6: Introduction Features

    Introduction Features Introduction Features • This subwoofer system employs Advanced Yamaha Active Servo Technology II which Yamaha has developed for reproducting higher quality super-bass sound. (Refer to page 6 for details on Advanced Yamaha Active Servo Technology II) This super bass sound adds a more realistic, theater-in-the-home effect to your stereo system.

  • Page 7: Connections

    Connections Caution: Plug the power cables for the subwoofer and other audio/video components into an AC outlet only after you complete all other connections. Basic connection example Connect the subwoofer cable to the output jack of your AV amplifier, receiver or TV and to the INPUT jack of the subwoofer.
  • Page 8 ( U.S and CANADA model only ) This unit has a system connection jack. Use the supplied system connector cable when connecting a YAMAHA component equipped with a system connector jack. When connected, the power mode (ON/OFF) of this unit can be controlled by the power button of the YAMAHA component.

  • Page 9: Using The Subwoofer

    Using the subwoofer VOLUME Subwoofer top panel (Australia model) SUBWOOFER SYSTEM YST-FSW100 VOLUME Subwoofer top panel (U.S and CANADA model) SUBWOOFER SYSTEM YST-FSW100 VOLUME Subwoofer rear panel INPUT INPUT INPUT (U.S and CANADA model) 1 POWER indicator Lights up GREEN when the POWER switch (2) is turned ON.

  • Page 10: Advanced Yamaha Active Servo Technology Ii

    Advanced Yamaha Active Servo Technology II In 1998, Yamaha brought to the marketplace speaker systems utilizing YST ( Yamaha Active Servo Technology ) to give powerful, high quality bass reproduction. This technique uses a direct connection between the amplifier and speaker, allowing accurate signal transmission and precise speaker control.

  • Page 11: Troubleshooting

    Refer to the chart below if the unit does not function properly. If the problem you are experiencing is not listed, or if the instructions fail to help you resolve the problem, disconnect the power cord and contact your authorized Yamaha dealer or service center. Problem Power is not supplied even though the POWER switch is set to the ON position.

  • Page 12: Specifications

    Specifications Type ...Advanced Yamaha Active Servo Technology II Driver ... 16 cm (6.5") cone woofer Magnetically shielded type Output Power ...75W (5 Ω 10 % ) Dynamic Power ... 130W, 5 Ω Input Impedance ...12 k Ω Frequency Response ... 30 Hz – 200 Hz Input Sensitivity ...
  • Page 13 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA 2005 All rights reserved.

This manual is also suitable for:

Ns-sp7800pnYst-fsw100pn - subwoofer - 130 wattYst-fsw100 - subwoofer - 75 watt
