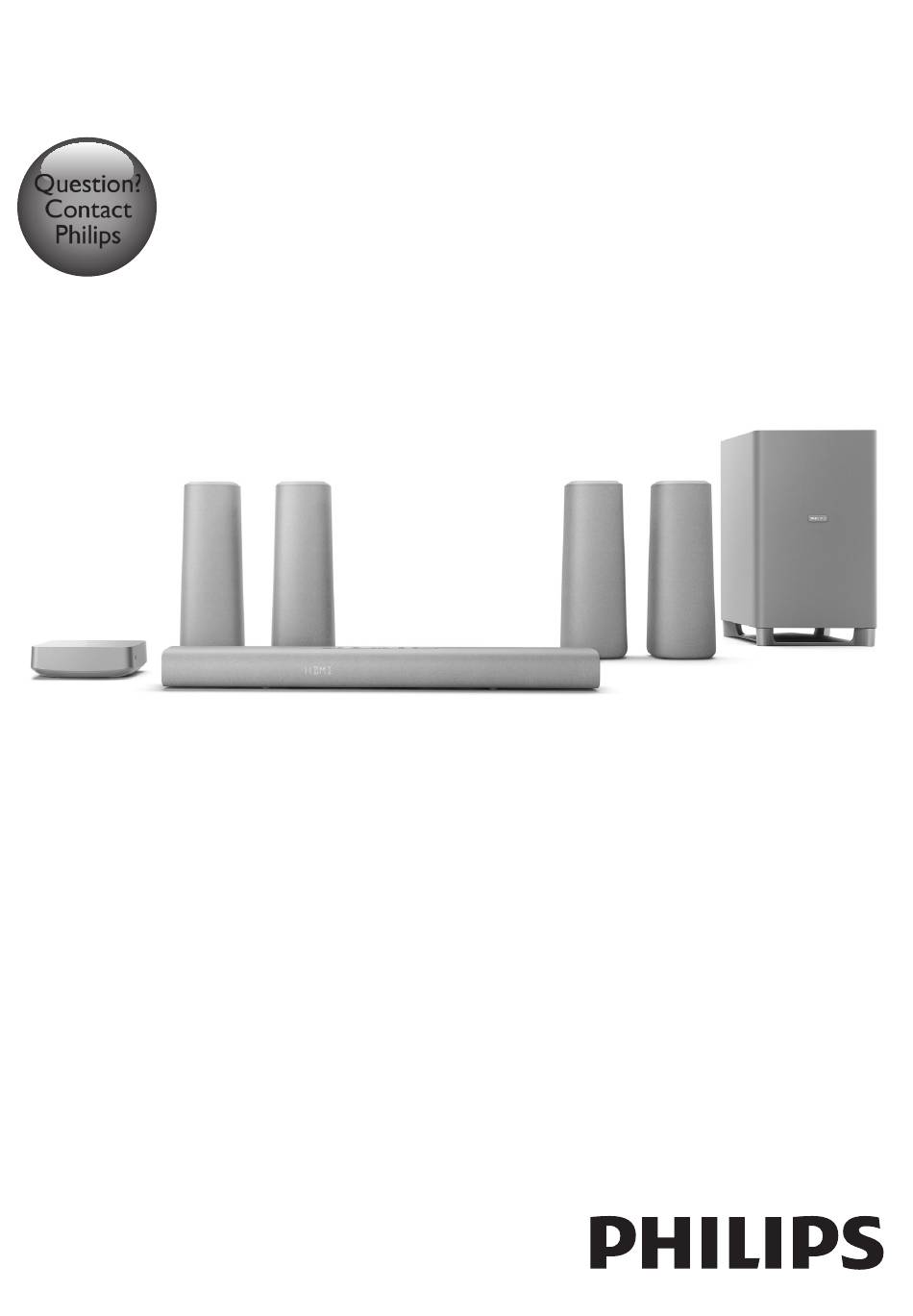

- Page 1 Always there to help you Register your product and get support at www.philips.com/support CSS5530G Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important 8 Troubleshooting Help and support Safety Care for your product Care of the environment 2 Your product Main unit Remote control Connectors Wireless subwoofer Wireless box (receiver) 3 Connect and set up Place speakers Pair up with the rear speakers Pair up with the subwoofer Connect to TV Connect digital devices through HDMI... -
Page 4: Important
• Disconnect the product from the power For extensive online support, visit outlet before lightning storms. www.philips.com/support to: • When you disconnect the power cord, • download the user manual and the quick always pull the plug, never the cable. -
Page 5: Care For Your Product
Risk of overheating! Care for your product • Never install this product in a confined space. Always leave a space of at least four Use only microfiber cloth to clean the product. inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product. -
Page 6: Your Product
Remote control This section includes an overview of the Congratulations on your purchase, and remote control. welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Main unit This section includes an overview of the main unit. -
Page 7: Connectors
: Switch to Bluetooth mode; Press and Connectors hold three seconds to break the current Bluetooth connection. This section includes an overview of the HDMI ARC: Switch your source to HDMI connectors available on this product. ARC connection. Skip to the previous or next track in Bluetooth mode (only for AVRCP- supported Bluetooth devices). -
Page 8: Wireless Subwoofer
Wireless subwoofer Wireless box (receiver) This product comes with a wireless subwoofer. This product comes with a wireless box (receiver) to make the rear speakers work with the main unit wirelessly. a AC MAINS Connect to the power supply. b PAIRING (pairing) Press to enter the pairing mode for the a PAIRING (pairing) rear speakers and the main unit. -
Page 9: Connect And Set Up
3 Connect and set WOOFER FRONT SPEAKER FRONT SPEAKER This section helps you connect this product to a TV and other devices, and then set it up. For information about the basic connections of this product and accessories, see the quick start guide. -
Page 10: Pair Up With The Rear Speakers
REAR SPEAKER L (rear left) and REAR Pair up with the subwoofer SPEAKER R (rear right) speakers: Place the rear surround speakers to the The wireless subwoofer automatically pair up left and right side of your seating position, with the main unit for wireless connection either in line with it or slightly behind it. -
Page 11: Connect Digital Devices Through Hdmi
Connect this product to TV through HDMI OUT (ARC). • If the TV is not HDMI CEC compliant, select the correct video input on your On the connected device, turn on HDMI- CEC operations. For details, see the user manual of the device. Using a High Speed HDMI cable, connect the HDMI OUT (ARC) connector on this Connect audio from TV and... -
Page 12: Set Up Speakers
Press Volume +/- to adjust distance for the Option 2: Connect audio through selected speaker. analog audio cables • To exit setup mode without save, press EXIT SETTINGS, or 3 seconds of Basic quality audio button inactivity occurs. Repeat step 2 and 3 to set up the distance AUDIO OUT for other speakers. -
Page 13: Use Your Product
4 Use your Equalizer product Change the high frequency (treble) and low frequency (bass) settings of this product. Press TREBLE +/- or BASS +/- to change the frequency. This section helps you use this product to play audio from connected devices. Synchronize video and sound Before you start If the audio and video are not synchronized,... -
Page 14: Play Music Via Bluetooth
NFC (Near Field Communication) is a On the Bluetooth device, switch on technology that enables short-range wireless Bluetooth, search for and select Philips communication between NFC-enabled devices, CSS5530 to start connection (see the user such as mobile phones. manual of the Bluetooth device on how to What you need enable Bluetooth). -
Page 15: Auto Standby
» When the factory settings restore is you might damage this product. complete, the product automatically switches off and restarts. Check the latest software version on www.philips.com/support. • Search for your model and click on "Software and drivers". Download the software into a USB flash drive. -
Page 16: Wall Mount
6 Wall mount On the remote control, within 6 seconds twice then Volume + once, and press then hold down SOUND. » Then "UPG" (upgrade) is displayed on Before you mount this product on the wall, the display panel. read all safety precautions. »... -
Page 17: Product Specifications
Main unit • 1 x AAA-R03-1.5 V • Power supply: Standby power management • Model (Philips branded AC power adapter): DYS602-210309W; • When the product remains inactive for AS650-210-AA309 15 minutes, it automatically switches to • Input: 100-240 V~, 50/60 Hz 1.5 A standby or networked standby. - Page 18 • The device is not correctly connected. If you still have a problem, get support at Connect the device correctly. www.philips.com/support. • This product is already connected with another Bluetooth device. Disconnect the Main unit connected device, then try again.
- Page 19 Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 20 Specifications are subject to change without notice 2015 © Gibson Innovations Limited. All rights reserved. This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. CSS5530G_96_UM_V1.0...
