Page 1 DKP-4016/4016W Keypanel Technical Manual up to and including version 1.2.0 includes support for Control Package Audio Package Rev. 03 04/2016 F.01U.308.248...
Page 2 For warranty and service information, refer to the appropriate web WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPER- site below: ABLE. RTS Intercoms ......www.rtsintercoms.com/warranty CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING RTS Digital OF THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED.
Page 3 DKP-4016 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Page 4 DKP-4016 Bosch Security Systems, Inc. Rev. 03 F.01U.308.248 Technical Manual...
Page 5: Table Of Contents
Table Contents INTRODUCTION ........................11 Features ..............................11 Specifications ............................12 DKP-4016/4016W Block Diagram ......................14 Reference View – DKP-4016/4016W ....................15 Connector Pinouts ..........................16 INSTALLATION ........................19 Requirements ............................19 DKP-4016 Installation ...........................20 Connecting the Keypanel to the Intercom ....................21 Power Up ..............................24 Address Setting ............................25 Connections ............................26...
Page 6 Enable Downloading New Bootloader from the Keypanel ..............155 Download Firmware Using the Bootloader ..................155 Display the FPGA Version on the Keypanel ..................159 Download and Upgrade the FPGA to the DKP-4016/4016W .............159 Download a Splash Screen ........................163 Download a Font File ..........................165 Download an Icon File .........................167...
Page 7 DKP-4016 KEYPANEL MENU QUICK REFERENCE ................255 Audio Options ............................255 Display Menu ............................262 Key Assign Menu ..........................263 Key Options Menu ..........................264 OMNEO Offers Menu .........................267 Save Config Menu ..........................267 Service Menu ............................268 Unicode Support ........................271 AZedit and Unicode Support .......................271 Wall Mounting Option ......................
Page 8 DKP-4016 Technical Manual F.01U.308.248 Bosch Security Systems, Inc. Rev. 03...
Page 9 List Figures FIGURE 1. DKP-4016/4016W Audio Flow Block Diagram ............... 14 FIGURE 2. DKP-4016/4016W Reference View ................. 15 FIGURE 3. DKP-4016 Installation ...................... 20 FIGURE 4. Footswitch Cabling and Wiring ..................29 FIGURE 5. DKP-4016 Keypad ......................36 FIGURE 6.
Page 10 DKP-4016 FIGURE 39. Display Page – Panel Display Options Group Box ............110 FIGURE 40. Display Page – CWW Options ..................111 FIGURE 41. Display Page – LCD Backlight Group Box ..............111 FIGURE 42. Display Page – Screen Saver Group Box ............... 112 FIGURE 43.
Page 11: Introduction

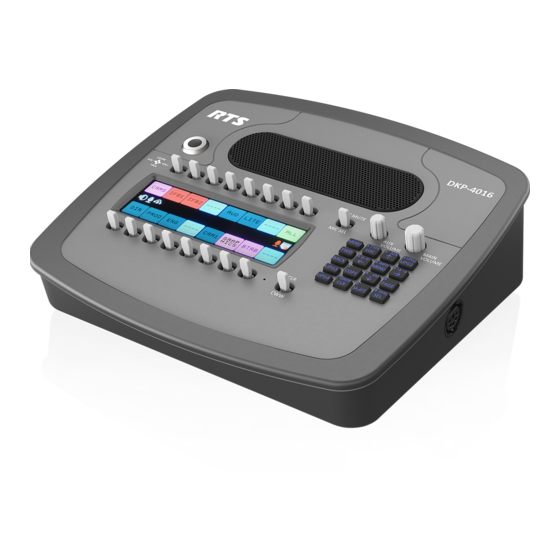

The DKP-4016/4016W series keypanels delivers superior high-quality digital audio using OMNEO technology from Bosch with Dante audio over IP via either copper or fiber. The DKP-4016/4016W series keypanels delivers audio, free of noise, delay, and other artifacts present in legacy technology. This family of keypanels includes a rich set of connectors as standard, including GPIO (General Purpose Input and Output) and RC (Rear Connector) kit.
Page 12: Specifications
12 Introduction DKP-4016 Front Panel Mic Specifications Type ................Electret LCD Display Typical Input Level............-42 dBu DKP-4016/4016W Typical Input Impedance ..........1 kΩ Active Area ....120.10 mm (wide) x 35.86 mm (high) Maximum Input Level ..........-25 dBu Dot Resolution..........576 x 172 pixels Rear Panel Mic Color Resolution ......16-bit (64K) RGB color...
Page 13 (91.5 mm H x 270.1 mm W x 237.6 mm D) CB Report • Weight • DKP-4016/4016W........3.70 lb. (1.68 kg) Temperature Operating....... 0° C to 55° C (32° F to 131° F) Storage......... -20° C to 70° C (-4° F to 158° F) Bosch Security Systems, Inc.
Page 14: Dkp-4016/4016W Block Diagram
14 Introduction DKP-4016 DKP-4016/4016W Block Diagram DKP-4016/4016W Audio Flow Block Diagram FIGURE 1. a. Additionally licensed OMNEO channels 3-8 not shown. Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 15: Reference View - Dkp-4016/4016W
DKP-4016 Introduction 15 Reference View – DKP-4016/4016W DKP-4016/4016W Reference View FIGURE 2. Multi-Directional Lever Keys FRAME Connector High Resolution, Wide-Angle LCD Display SPEAKER Connector (2-position Terminal Block) Microphone Connector GPIO Connector (12-position Terminal Block) Front Speaker OMNEO ETHERNET Connector MIC MUTE/MIC SEL Lever Key...
Page 16: Connector Pinouts
16 Introduction DKP-4016 Connector Pinouts Rear Panel Mic: J6 Rear Speaker: J2 Assignment Assignment REAR_PANEL_MIC_IN - Pin 1 Rear Speaker - Pin 2 Rear Speaker + REAR_PANEL_MIC_IN + Aux1: J3 Assignment MIC OUT/LINE OUT: J7 Pin 1 Pin 2 AUX 1 IN +...
Page 17 DKP-4016 Introduction 17 GPIO Connector: J10 Assignment Chassis GND OPTO2_CATHODE OPTO2_ANODE RELAY2_NO RELAY2_NC RELAY2_COM Chassis GND OPTO1_CATHODE OPTO1_ANODE RELAY1_NO RELAY1_NC RELAY1_COM ETHERNET: J11 Assignment Data 1 + Data 1 - Data 2 + Data 3 + Data 3 - Data 2-...
Page 18 18 Introduction DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 19: Installation
CHAPTER 2 Installation Requirements The following keypanel firmware versions are needed for the specified DKP-4016/4016W model: AZedit ....V5.2.0 or later IPedit....V3.2.3 or later MCII-e....V3.4.0 or later AIO-16....V1.7.0 or later FWUT....V4.20.3586 or later DNS-SD....V4.20.3586 or later OMI ....
Page 20: Dkp-4016 Installation
FIGURE 3. To install the DKP-4016, do the following: On the rear panel of the DKP-4016, plug the AC power cord (A) into the power connector on the back panel of the unit. Connect an RJ-12 or RJ-45 (USOC or 568B) cable (B) with RTS cabling to the J8 FRAME connector.
Page 21: Connecting The Keypanel To The Intercom
You can configure the OMI using AZedit and IPedit; however, only IPedit can used to configure the keypanel. Configure the OMI using AZedit To configure the OMI to the DKP-4016/4016W using AZedit, do the following: From the Status menu in AZedit, select I/O Cards.
Page 22 22 Installation DKP-4016 Configure the OMI using IPedit To configure the OMI using IPedit, do the following: Using the Device Configuration and Status Pane In the Device Name field, enter a device name familiar to you. Initially, OMI cards are given a default name.
Page 23 DKP-4016 Installation 23 Add the DKP-4016/4016W to the Device Catalog in IPedit To add the keypanel to IPedit, do the following: Open IPedit. From the Device menu, select Add. The Add Devices Window appears, open to the Search tab. Select the keypanel.
Page 24: Power Up
24 Installation DKP-4016 Connecting the DKP-4016/4016W through the OMNEO Offers Menu IMPORTANT: If you used IPedit to set up the keypanel connection, this step is not needed, because you have already done this in the software. To finish the configuration, you must configure the keypanel to talk with the OMI card in the frame. To do this, you must establish a connection using the OMNEO Offers menu on the keypanel.
Page 25: Address Setting
See the RVON-I/O user manual for further instruction. a. To manually address the DKP-4016/4016W, see “Service Menu, Set Address” on page 240. To see specific addressing information for: ADAM with AIO-8 cards, see the ADAM technical manual (P/N F01U216986).
Page 26: Connections
26 Installation DKP-4016 Connections Frame Connector Use the Frame connector to connect to an intercom port of the intercom system. For the frame connector location, see Figure 2 on page 15. The intercom port you connect to should agree with the address you set previously.
Page 27 DKP-4016 Installation 27 GPIO 12-Position Terminal Block Connector The GPIO 12-Position Terminal Block Connector is used to provide connections to relays (outputs) and opto-isolators (inputs). Using the table, “GPIO Connector: J10” on page 17, connect the correct wires to the 12-position connector.
Page 28 28 Installation DKP-4016 Speaker 2-Position Terminal Block Connector The Speaker 2-Position Terminal Block Connector is used to connect an external speaker to the keypanel. This may be a speaker in another room or a speaker the user likes to use.
Page 29: Footswitch Cabling
Enable the Footswitch in the keypanel menu. See “Service Menu, Footswitch” on page 226. To attach a footswitch to the DKP-4016/4016W, do the following: On the back panel of the DKP-4016/4016W, locate J10, the 12-position terminal block. Using Figure 4, cable the footswitch to OPT 1 at the K- and Chassis ground positions.
Page 30 30 Installation DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 31: Basic Operation
Intercom Keys and Displays Color Display Descriptions for Intercom Keys The DKP-4016/4016W display uses key colors to distinguish the type of key assignment assigned to the key. Use Table 2, to help you determine the available key assignment colors. Default Key Colors TABLE 2.
Page 32 Firmware Download Firmware is being downloaded to the keypanel. A progress bar displays: chunk progress overall progress chunk/overall progress NOTE: For more information, see “Download Firmware to the DKP-4016/4016W From AZedit” on page 151. Footswitch Active The footswitch is active. Footswitch Enabled The footswitch is enabled, but not active.
Page 33 DKP-4016 Basic Operation 33 Display Icon Descriptions TABLE 3. Icon Icon Name Description Right Headset The right headset is enabled. Right Headset The right headset mic is muted. Muted Rear Microphone The rear microphone is active. To activate the rear microphone, see “Audio Options Menu, Panel Mic” on page 199.
Page 34 34 Basic Operation DKP-4016 Display Icon Descriptions TABLE 3. Icon Icon Name Description Tone 500Hz Tone 500Hz is enabled on the keypanel. Enabled To enable tone 500Hz, see “Audio Options Menu, Tone Gen” on page 201. OMNEO Enabled The OMNEO matrix interface is enabled on the panel. For more information on OMNEO Offers, see“Menu System, OMNEO Offers”...
Page 35: Keypad Reference View
Basic Operation 35 Keypad Reference View With the DKP-4016/4016W there are three (3) tiers to the keypad: Primary Mode, SHIFT Mode, and Dial Mode. Primary Mode Primary Mode is used for the most common keypanel functions, such as CLR, SEL, and accessing the Main menu. There are no special keypad sequences to use these functions.
Page 36 245. When the keypanel is in DIAL mode, the keypad keys support the standard telephone DTMF keypad configuration as a third tier function. The DTMF keypad is seen in the upper-left corner of the keypad keys. DKP-4016 Keypad FIGURE 5.
Page 37 DKP-4016 Basic Operation 37 Keypad Shift Dial Description Button Function Function The MENU/INFO (5) button is used to access the top level menu structure or access MENU INFO a secondary menu of commonly used features (see, “INFO button” on page 39).
Page 38 38 Basic Operation DKP-4016 Keypad Shift Dial Description Button Function Function The PAGE button is used to access a different setup page. You can configure up to PAGE Enters 15 pages in the intercom system. The default number of pages is four (4). To...
Page 39: Info Button
Enables the Test Panel feature. For more information, see “Service Menu, Test Panel” on page 242. Version Displays the firmware version of the DKP-4016/4016W. For more information, see “Display Menu, Version” on page 207. To access the Info Menu, do the following: On the keypad, press the SHIFT button.
Page 40: Breadcrumb Menu Navigation
40 Basic Operation DKP-4016 Breadcrumb Menu Navigation Breadcrumb Navigation is a graphical aid to help users know where they are in the menu structure. The breadcrumb menu visually lays out a path of options selected up to the current menu position. It appears as a horizontal line above the menu options.
Page 41: Clr Button
DKP-4016 Basic Operation 41 CLR Button The CLR button is used either as the BACK function while in MENU mode or to exit MENU mode completely. To go back one menu level, do the following: Press the CLR button once.
Page 42 42 Basic Operation DKP-4016 To talk on the keypanel, do the following: Press down on the keypanel key you want to use. > To listen on the keypanel, do the following: Press up on the keypanel key you want to use.
Page 43: Key Gain Adjustment
Listen Source programmed for the IFB. To adjust the crosspoint gain using the keypanel key, do the following: On the DKP-4016/4016W front panel > Press the keypanel key to the right to increase the listen gain for the selected key assignment.
Page 44: Keypanel Volume Adjustments
44 Basic Operation DKP-4016 Keypanel Volume Adjustments By default, the main volume control adjusts the Output Volume for the speaker (front/rear) or headset (left/right), whichever is currently active. Output volume ranges from +10dB to -48dB and Mute. NOTE: If you gang speakers and/or headset volumes, you see a split volume bar. The front speaker or left headset is the top portion of the bar, while the bottom portion of the bar is the rear speaker or right headset volume.
Page 45 DKP-4016 Basic Operation 45 To adjust output volume level, do the following: On the DKP-4016/4016W, turn the MAIN VOLUME encoder to the right to increase the volume for the selected > output. OR Turn the MAIN VOLUME encoder to the left to decrease the volume for the selected output.
Page 46 46 Basic Operation DKP-4016 To select a different output volume control, do the following: On the DKP-4016/4016W, push the MAIN VOLUME encoder once. > The main volume focus switches to the next available output. Bosch Security Systems, Inc. Technical Manual...
Page 47: Aux Volume Adjustments
1-8, depending on licensing and whether the connection is via OMNEO or AIO. Input volume ranges from +10dB to -48dB and Mute. To adjust listen volume level, do the following: On the DKP-4016/4016W, turn the AUX VOLUME encoder to the right to increase the volume for the selected > input.
Page 48 48 Basic Operation DKP-4016 To change the focus of the volume control, do the following: On the DKP-4016/4016W, push the AUX VOLUME encoder once. > The aux volume focus switches to the next available input. Bosch Security Systems, Inc. Technical Manual...
Page 49: Priority Call Volume Control
DKP-4016 Basic Operation 49 Priority Call Volume Control Priority Call Volume Control is used to mark a keypanel as a priority caller. When a priority caller talks to another keypanel, a minimum crosspoint volume (configurable in AZedit) is enforced for the duration of the call to ensure the caller is heard, even if the target panel has set the listen volume to a lower volume.
Page 50 50 Basic Operation DKP-4016 To configure priority call volume control, do the following: On the Keypanels/Ports screen in AZedit, select the port you want to set with priority call volume control. Click the Edit button. The Keypanel/Port Configuration screen appears.
Page 51: Operation Of Intercom Keys With Auto Functions
DKP-4016 Basic Operation 51 Operation of Intercom Keys with Auto Functions NOTE: Assignment of keys with auto functions is described in the programming section that follows. Operation of keys with auto functions, is as follows: Talk+auto follow Talk and listen can be activated separately. The listen assignment listens to whatever is assigned to the talk key.
Page 52: Operation Of Intercom Keys With Options
52 Basic Operation DKP-4016 Operation of Intercom Keys with Options Group Option Keys Activating the master key in a key group activates all keys in the group according to each key’s individual key assignment. Activating a slave key does not affect any other keys in the group. For more information, see “Key Options Menu, Key Groups”...
Page 53: Operation Of Intercom Keys Assigned To Tif Ports
Send the change to the intercom system. User Quick Select Scrolling User Quick Select Scrolling is a fast and easy way to call or assign a point-to-point key on the DKP-4016/4016W. To use the User Quick Select Scroll feature to call a user, do the following: On the DKP-4016/4016W keypad, press the left and right arrow buttons to scroll through the list of point-to-point connections available.
Page 54: Graphical Call Waiting Window
Traditionally, incoming calls have been displayed on key 16 on the keypanel, flashing to indicate an incoming call. The DKP-4016/4016W Series keypanel can keep a history of the last nine (9) callers and display them in a scrollable, graphical window above keys 15 and 16. The CWW displays three (3) calls at a time (only two (2) in Kanji) with a scroll arrow appearing if there are more than three (3) calls in the list.
Page 55 Basic Operation 55 Incoming Calls When a call is received at the DKP-4016/4016W panel, the graphical CWW list appears on the keypanel display. Unlike the keypanel talley indicators in previous keypanel versions: the graphical CWW list appears on the keypanel display.
Page 56: Mute The Microphone/Speaker
Toggle or Momentary mode. For more on Mic Mute Modes, see “Audio Options Menu, Mic Mute” on page 198. For Mic Mute key location, see “Reference View – DKP-4016/4016W” on page 15. Mic Select Every mic (input) or speaker/headset (output) can be configured as Always On or Enabled, Disabled, or Switched.
Page 57 DKP-4016 Basic Operation 57 Source Configuration Matrix and Display icons TABLE 5. ALWAYS ON/ENABLED SWITCHED DISABLED ICON DISPLAYED Speaker Front and Rear Front Rear Rear Front Front Rear Rear Front Front and Rear No icons display on the keypanel. Headset...
Page 58: Setup Pages
58 Basic Operation DKP-4016 Setup Pages Setup Pages are used to allow access to more key assignments than there are physical keys on the keypanel. This is useful for sharing a keypanel because you can use setup pages to swap between the key assignments used for each person.An alternative to Setup Pages is Panel Swap (see, “Key Options Menu, Panel Swap”...
Page 59: Menu Passwords
Basic Operation 59 Menu Passwords As with other keypanels, the DKP-4016/4016W allows you to lock the entire menu structure or only the service menu. This is implemented through AZedit (System|Miscellaneous|Keypanel Menu Password. For more information, see the AZedit user manual (p/n F01U239453).
Page 60 60 Basic Operation DKP-4016 To configure how you want voice messaging to work, see “Audio Options Menu, VM Options (Audio Package Only)” on page 202 Up to seven (7) voice messages can be recorded, with each voice messages being up to 30 seconds long.
Page 61 DKP-4016 Basic Operation 61 To toggle off AFK mode, do the following: On the keypanel keypad, press SHIFT+AFK. > The keypanel deactivates AFK mode. To leave a message, do the following: On the keypanel, press the key assigned to the keypanel you want to call.
Page 62 62 Basic Operation DKP-4016 Voice Message Menu FIGURE 13. To enter the Voice Messages menu, do the following: On the keypad, press the SHIFT+VM/8 buttons. A scroll list of voice messages appear in the keypanel display window. Using the up and down arrow keys, scroll to the desired voice message.
Page 63 DKP-4016 Basic Operation 63 To rewind or fast forward a message, do the following: Press and hold the rewind (left arrow) key to rewind a message > Press and hold the fast forward (right arrow) key to fast forward the message.
Page 64: User Programmable Buttons
The UPG buttons can be cleared using Key Options|Clear from the keypanel menu. IMPORTANT: On the DKP-4016/4016W keypanel there are nine (9) UPG buttons available – UPG1 through 4 are displayed on the keypad, while UPG 5 through 9 are available as the SHIFT version of the left column buttons (MENU, FWD, BACK, UPG3, and UPG4).
Page 65 NOTE: Once a relay is programmed to the button, and the keypanel is not in menu mode, pressing the UPG button activates the assigned relay until the button is released. To activate the screen saver from a UPG button, do the following: On the DKP-4016/4016W keypad, press the MENU button. The Information menu appears. Using the arrow buttons, select Service.
Page 66: Keypanel Color Window
66 Basic Operation DKP-4016 Keypanel Color Window The Keypanel Color window, shown in Figure 15, is used to change the text and background colors assigned to function types, key assignments, and talk/listen indications. You can modify local intercom key assignments and function type colors, as well as remote intercom function type colors, giving you the flexibility to distinguish different systems through the use of color patterns.
Page 67 DKP-4016 Basic Operation 67 Function Types Page The Function Types page, shown in Figure 15, is used to change the default colors assigned to the various keypanel function types. Select Intercom Drop Down Menu The Select Intercom drop down menu is used to select the intercom system (local or remote) in which you want to change the color of the key function types.
Page 68 68 Basic Operation DKP-4016 Color Grid Color Grid FIGURE 16. Function Type Column The Function Type column displays the different function types you can make key color changes for. Available selections are: Null, Special Functions, Ports, Party Lines, IFBs, Special Lists, GPI Outputs, ISOs, UPL Resources, and IFB Special Lists.
Page 69 DKP-4016 Basic Operation 69 Key Assignment Page The Key Assignment page, shown in Figure 17, is used to change the colors assigned to the various assignment types. This means you can assign different colors to the individual function type resources. For example, you can change the display color for the party line assignment number 003.
Page 70 70 Basic Operation DKP-4016 Select Function Type Drop Down Menu The Select Function Type drop down menu is used to select the function type you want to display the function number resources for. Available selections for this field are: Ports, Party Lines, IFBs, Special Lists, GPI Outputs, ISOs, UPL Resources, and IFB Special Lists.
Page 71 DKP-4016 Basic Operation 71 Assignment Groups Page The Assignment Groups page, shown in Figure 18, is used to change the colors of the members of the different assignment groups. Assignments Groups Page FIGURE 18. Select Assignment Group Drop Down Menu The Select Assignment Group drop down menu is used to select the assignment group whose members you want to modify the key colors for.
Page 72 72 Basic Operation DKP-4016 Function Number Column The Function Number column displays the number of the assignment group you select from the Assignment Group drop down menu. For more information, see “Select Assignment Group Drop Down Menu” on page 71.
Page 73 The Miscellaneous Colors page, shown in Figure 19, is used to change the colors of the talk and listen indicators seen on the DKP-4016/4016W series keypanel when talk and/or listen is activated. For more information on Talk and Listen indicators, “Talk/Listen Indicator” on page 42.
Page 74: Enhanced Tallies
74 Basic Operation DKP-4016 Enhanced Tallies Enhanced Tallies allow you to configure, using AZedit, how tallies look on the keypanel. You are able to change how an incoming calls, PLs, IFBs, etc look on the keypanel. By default, an incoming call tally is indicated by a flashing alpha. With enhanced tallies, you can configure the text and background colors to trade-off, simulating a flashing keypanel.
Page 75 DKP-4016 Basic Operation 75 Tally # Column The Tally # column displays the tally number. This number is associated with the tally description and is used in creating UPL statements. AZedit supports 20 different tallies, however, the first 10 are predefined.
Page 76 76 Basic Operation DKP-4016 Characteristics Column The Characteristics column is used to configure the characteristics or behavior of the visual tally. Depending on what you select in the Mode column determines what is seen in this column. From the Characteristics column, you can access a configuration window for either Text or Icon selections.
Page 77 DKP-4016 Basic Operation 77 Legacy Action Column The Legacy Action column is used to select how the tally descriptions is implemented on keypanels that do not support Enhanced Tallies. Available options are: No Tally Incoming Call Tally In-Use Tally Busy Tally To select a legacy action, do the following: Click in the Legacy Action column cell desired.
Page 78: Flash Text Characteristics Window
78 Basic Operation DKP-4016 Flash Text Characteristics Window The Flash Text Characteristics window is used to configure the way a text tally behaves for the selected tally. Flash Text Characteristics Window FIGURE 20. Swap Foreground / Background Colors Check Box The Swap Foreground / Background Colors check box indicates the foreground color swaps with the background color creating a blinking effect on the keypanel display.
Page 79 DKP-4016 Basic Operation 79 Selected Color Cell and Ellipsis Button The Selected Color cell displays the currently selected color of the background. The Ellipsis button opens the Select Color window where you can assign a different color to the background.
Page 80: Show Icon Characteristics Window
80 Basic Operation DKP-4016 Duty Cycle Drop Down Menu The Duty Cycle drop down menu is used to select the rate the tally flashes. Available options for this menu are: On Solid There is no flash Slow 25% The alternate text appears for 25% of the flash period (1/4 of a second), while the normal mode...
Page 81 DKP-4016 Basic Operation 81 Duty Cycle Drop Down Menu The Duty Cycle drop down menu is used to select the rate the icon flashes. Available options for this menu are: On Solid There is no flash Slow 25% The alternate text appears for 25% of the flash period (1/4 of a second), while the normal mode...
Page 82 82 Basic Operation DKP-4016 Tally Icon Descriptions TABLE 8. Icon Icon Name Description Red Phone TIF Ringing (animation supported) - The handset vibrates in the animation. Yellow Phone TIF Offhook (animation supported) - The TIF key is active. The phone slow flashes every half second.
Page 83: Panel Tally
DKP-4016 Basic Operation 83 Panel Tally Panel Tally is used to notify a keypanel user of an event not specifically belonging to a key; for example, a blinking icon appears when a newscast is on air. Panel tallies are controlled through the use of UPL statements. Multiple UPL statements can be configured, but only one (1) icon displays at a time.
Page 84: Create And Download New Icons
84 Basic Operation DKP-4016 Create and Download New Icons IMPORTANT: AZedit V5.2.0 or later include the panel and key icon files. Key Overlay Icons An Overlay Icon is an icon that lies on top of a key in the keypanel display screen. The keypanel supports and is shipped with 32 icons.
Page 85 DKP-4016 Basic Operation 85 Panel Icons For Panel Icons, the icons are 32x32 pixels. 16 panel icons are shipped with the keypanel, as well as 4-frame animation, so the bitmap must be 512x128, producing a table of 16x4 icons (each icon 32x32 pixels), see Figure 23. Like key icons, AZedit accepts a narrower image (as long as it is a multiple of 32) and uses white space to fill in the missing pixels.
Page 86: Keypanel Mirroring (Control Package Only)
Keypanel Mirroring (Control Package Only) Keypanel Mirroring allows a licensed DKP-4016/4016W keypanel (licensed as a supervisor) to take control of a target keypanel. All KP-Series keypanels can be the target of mirroring, whereas only licensed keypanels can be the supervisor of a target keypanel.
Page 87 DKP-4016 Basic Operation 87 To disable mirroring on a keypanel, do the following: In AZedit, click the Edit button. The Keypanel/Port Configuration window appears. Click the Advanced Tab. Clear the Enable Keypanel Mirroring check box. Send the changes to the intercom.
Page 88 88 Basic Operation DKP-4016 To enable mirroring on a keypanel, do the following: In AZedit, click the Edit button. The Keypanel/Port Configuration window appears. Click the Advanced Tab. Select the Enable Keypanel Mirroring check box. Send changes to the intercom.
Page 89: Real-Time Control In Azedit (Control Package Only)
DKP-4016 Basic Operation 89 To exit Mirror mode on the keypanel, do the following: On the keypanel, starting at the Service menu, select Mirror. Press the SEL button. The alpha of the target and Exit appear in the panel display.
Page 90 90 Basic Operation DKP-4016 To enable real-time intercom volume adjustments, do the following: On the KP/Ports screen, click the Port Volumes icon. The Port Volumes window appears. Right-click in the keypanel key field and select Change Volume. The Port Volumes window appears.
Page 91 DKP-4016 Basic Operation 91 Real Time Warning Message FIGURE 24. Bosch Security Systems, Inc. F.01U.308.248 Rev. 03 Technical Manual...
Page 92 92 Basic Operation DKP-4016 To adjust the intercom volumes via the Port Volumes window, do the following: On the KP/Ports screen, click the Port Volumes icon. The Port Volumes window appears. Right-click in the keypanel key field and select Change Volume.
Page 93 DKP-4016 Basic Operation 93 Keypanel Volume Controls Keypanel Volume Controls are used to modify volumes on keypanels without physically going to the keypanel to do so. Unlike Intercom Volume Controls, Keypanel Volume Controls are always changed in real-time. However, the real-time controls are only enabled if the keypanel supports it (licensed).
Page 94 94 Basic Operation DKP-4016 From the drop down menu under Speaker, select Front or Rear. From the drop down menu under Headset, select Left or Right. From the drop down menu under Aux In, select OMNEO 1 -8 or AUX 1.
Page 95 DKP-4016 Basic Operation 95 Mic Mute Mic Mute is used to remotely enable or disable a selected keypanel (port) microphone from AZedit. This feature requires the Control Package license. IMPORTANT: When the Mic is muted, the mic mute icon flashes on the keypanel.
Page 96 96 Basic Operation DKP-4016 Headset Transfer Headset Transfer is used to switch between headset and speaker on a selected keypanel/port remotely from AZedit. This feature requires the Control Package license. To switch to headset mode on the keypanel from AZedit, do the following: From the Port/Alpha group box, select the keypanel port/alpha of the keypanel you want to switch to headset mode.
Page 97 DKP-4016 Basic Operation 97 AFK Mode AFK Mode is used to enable and disable AFK (Away From Keypanel) on a keypanel/port remotely from AZedit. This feature requires the Control Package license. For more information on AFK, see “Voice Messaging (Audio Package Only)” on page 59.
Page 98 98 Basic Operation DKP-4016 Enable Tone Enable Tone is used to enable and disable the tone generator on the selected keypanel/port from AZedit. This feature requires the Control Package license. IMPORTANT: When Tone is enabled, the mic mute icon is static on the keypanel.
Page 99: Keypanel Configuration (Control Package Only)
DKP-4016 Basic Operation 99 Keypanel Configuration (Control Package Only) The Keypanel Configuration window gives you the ability to upload a keypanel’s configuration file to AZedit, make changes to the configuration, save the configuration, and send it back to the keypanel.
Page 100 100 Basic Operation DKP-4016 Save All Button The Save All button is used to save the entire configuration file. To perform a save all, do the following Make modifications to the configuration file, as desired. Click the Save All button.
Page 101 The Download Keypanel Configuration window appears. Click Begin Download. Panel Options Page. Keypanel Configuration – Panel Options FIGURE 26. LCP Encoder Assignments Group Box The DKP-4016/4016W does not support LCP Assignments. Bosch Security Systems, Inc. F.01U.308.248 Rev. 03 Technical Manual...
Page 102 102 Basic Operation DKP-4016 Panel Swap Group Box The Panel Swap group box is used to give users the ability to quickly and easily change a group of keypanel assignments on the keypanel. This is done through the use of virtual expansion panels. Panel swap differs from changing setup pages because the keys can stay active even when they are no longer visible on the main panel.
Page 103 DKP-4016 Basic Operation 103 UPG Key Definition Group Box The UPG Key Definition group box is used to assign different inputs and outputs to the UPG keys on the keypanel remotely from AZedit. For more information on UPG Buttons, see “User Programmable Buttons” on page 64.
Page 104 104 Basic Operation DKP-4016 Quick-Assign Listen Assignments Group Box The Quick Assign Listen Assignments group box is used to assign listen assignment to point-to-point, party line, special list, and group key assignments. Note, this does not change existing keypanel assignments, it only affects assignments you make in the future using the Quick Assign function.
Page 105 DKP-4016 Basic Operation 105 To configure panel mode, do the following: From the Intercom Mode drop down menu, select the Standard or Alternate. From the Alpha Size drop down menu, select 4 character, 6 character, 8 character, or 8 character (Unicode).
Page 106 106 Basic Operation DKP-4016 GPI Inputs Assignments Group Box The GPI Inputs Assignment group box is used to configure GPI inputs on the keypanel. Inputs can be assigned to activate intercom keys (including group master keys). Further configuration can be done to allow GPI Inputs to track the state of the Output. For example, if an output is activated (and is being tracked by an input), the input is also activated.
Page 107 DKP-4016 Basic Operation 107 Footswitch Mode Group Box The Footswitch Mode group box is used to enable the footswitch and configure the behavior of keys upon release. For more information, see “Service Menu, Footswitch” on page 226. To cable for a Footswitch, see “Footswitch Cabling” on page 29.
Page 108 108 Basic Operation DKP-4016 Display Page The Display Page is used to configure the keypanel and expansion panel displays, including backlight colors, percentage of brightness, screen saver settings, key display options, and panel display options. Keypanel Configuration – Display Page FIGURE 36.
Page 109 DKP-4016 Basic Operation 109 Keypad Backlight Group Box The Keypad Backlight group box is used to select the color and brightness of the keypad backlight LEDs at various usage states and to configure the keypad mode. For more information on the keypad backlight options and descriptions, see “Service Menu, Keypad” on page 229.
Page 110 110 Basic Operation DKP-4016 Key Display Options Group Box The Key Display Options group box is used to configure the keypanel keys to show key crosspoint gains, show listen assignments, or show the matrix for each key assignment. For more information on the available options, see “Service Menu, Key View”...
Page 111 DKP-4016 Basic Operation 111 CWW Options Group Box The CWW Options group box is used to configure the CWW. There are two configuration options; how many calls can be shown in the CWW and what happens to the highlight when a new call comes in to the keypanel.
Page 112 112 Basic Operation DKP-4016 Screen Saver Group Box The Screen Saver group box is used to configure the screen saver. For more information on the available settings, see “Service Menu, Scrn Saver” on page 239. Display Page – Screen Saver Group Box FIGURE 42.
Page 113 DKP-4016 Basic Operation 113 Key Options Page The Key Options Page is used to configure many of the keypanel operation options, such as auto dial functions, chime keys and duration, exclusive keys, key group assignments, solo key configuration, latching options, button lock, and tally operation.
Page 114 114 Basic Operation DKP-4016 Solo And Exclusive Keys Group Box The Solo and Exclusive Keys group box is used to configure solo and exclusive keys. For a description of a solo key, see “Key Options Menu, Solo” on page 220. For a description of an exclusive key, see “Key Options Menu, Exclusive” on page 215.
Page 115 DKP-4016 Basic Operation 115 To configure the exclusive keys, do the following: Click the Exclusive key browse button The Key Selection window opens. Select the check boxes which correlate to the keypanel keys and pages you want to assign an exclusive key.
Page 116 116 Basic Operation DKP-4016 Latch Disable Group Box The Latch Disable group box is used to enable or disable the keypanel key to stay on when pressed. For more information, see “Key Options Menu, Latching” on page 217. NOTE: A key only latches if it is pressed and released within 0.5 seconds. Otherwise, the key always turns off when released.
Page 117 DKP-4016 Basic Operation 117 Button Lock Group Box The Button Lock group box is used to lock talk and/or listen keys in the on or off position. Each key may be independently locked on or off. Key Options Page – Button Lock Group Box FIGURE 46.
Page 118 118 Basic Operation DKP-4016 To configure button lock on or off for listen keys, do the following: From the listen keys group box, click the browse button for Locked On Click the browse button for Locked Off. The Key Selection window opens.
Page 119 DKP-4016 Basic Operation 119 Autodial Numbers Group Box The Autodial Numbers group box is used to configure up to 100 autodial numbers. Autodial stores commonly used phone numbers in the auto dial list locally on the keypanel. You can also create a centralized auto dial list which is stored on the Master Controller and maintained through AZedit. For more information, see “Centralized Auto Dials”...
Page 120 120 Basic Operation DKP-4016 One-Touch Autodials Group Box The One-Touch Autodials group box is used to assign autodial numbers to specific keypanel keys. One-Touch Auto Dials are configured using the locally stored numbers on the keypanel. Once a 1-Touch Auto Dial key is configured, pressing the configured key causes the TIF to go off-hook and auto dial the selected number.
Page 121 DKP-4016 Basic Operation 121 Key Groups Group Box The Key Groups group box is used to set up key groups. A key group allows a user to activate a group of keys by activating one (1) key (the master key). When the master key is activated, all keys in the group become active.
Page 122 122 Basic Operation DKP-4016 Chimes Group Box The Chimes group box is used to configure a chime tone to sound on incoming call announcements for selected keypanel keys. You can configure the chime tone to activate for a specified amount of time after a call is received. For more information on chimes, see “Key Options Menu, Chime”...
Page 123 DKP-4016 Basic Operation 123 Key Icons Group Box The Key Icons group box is used to determine which key states will display an icon to visually represent their assigned state. For more information, see “Key Options Menu, Icons” on page 216.
Page 124 124 Basic Operation DKP-4016 Minimum Key Volumes Table The Minimum Key Volumes table is used to adjust minimum volumes for each key on the keypanel. To adjust minimum volumes, do the following: In the Key column field, click the browse button The Key Selection window appears.
Page 125 DKP-4016 Basic Operation 125 Audio Options Page IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased, otherwise, they do not display. Keypanel Configuration – Audio Options FIGURE 54. Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 126 126 Basic Operation DKP-4016 Mic Modes Group Box The Mic Modes group box is used to configure panel mics and headset mics. Available options for this group box are: Disabled Enabled Switched When set to Switched mode, the state of the Panel Mic is controlled by the Mic Sel key.
Page 127 DKP-4016 Basic Operation 127 Aux Inputs Group Box The Aux Inputs group box is used to enable or disable the volume control for audio inputs through the front panel encoder. For more information, see “Audio Options Menu, Inputs” on page 195.
Page 128 KP-5032/4016 - Maximum number of Analog Aux = 2, OMNEO 1-2, plus Aux 1-2 • DKP-4016 - Maximum number of Analog Aux = 1, OMNEO 1-2, plus Aux 1 • KP-3016- Maximum number of Analog Aux = 0, OMNEO 1-2 •...
Page 129 DKP-4016 Basic Operation 129 Mic Options Group Box The Mic Options group box is used to choose how audio is routed to the Preamp Output connector, configure the actions of the Mic Mute key, to enable or disable mic gain on the keypanel, and to configure AEC (Acoustic Echo Cancellation) prioritization on a microphone.
Page 130 130 Basic Operation DKP-4016 Matrix Out and Sidetone Options Group Box The Matrix Out and Sidetone Options group box is used to select whether audio from the selected active mic goes out to the Matrix when a talk key is active (NORMAL mode) or audio goes out the Matrix without regard to the talk key state (HOT MIC mode) and at what output level to send it.
Page 131 DKP-4016 Basic Operation 131 Headset Configuration Group Box The Headset Configuration group box is used to define the microphone type – Auto-detect, Dynamic, or Electret. Also from this group box, you configure Auto-Transfer and Auto-Mute. For more information, see “Type” on page 193, “Auto-Transfer” on page 194, “Auto-Mute” on page 192 Audio Options Page –...
Page 132 132 Basic Operation DKP-4016 Tone Generator Group Box The Tone Generator group box is used to define the tone frequency. The tone generator is used to check the audio path from the keypanel to the matrix. Available selections for this menu are:...
Page 133 DKP-4016 Basic Operation 133 Audio Levels Page IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased, otherwise, they do not display. Keypanel Configuration – Audio Levels FIGURE 64. Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 134 134 Basic Operation DKP-4016 Input Volumes Group Box The Input Volumes group box is used to adjust the current volume, in dB, for all input sources. IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased, otherwise, they do not display.
Page 135 DKP-4016 Basic Operation 135 Output Volumes Group Box The Output Volumes group box is used to set the volume level, in dB, for outputs at the keypanel. This is the volume level available when using the Main Volume control knob, located on the front of the keypanel Audio Levels Page –...
Page 136 136 Basic Operation DKP-4016 Minimum Input Volumes Group Box The Minimum Input Volume group box is used to set the minimum volume level, in dB, for different sources on the keypanel. This is the minimum volume level available when using the Aux Volume control knob, located on the front of the keypanel.
Page 137 DKP-4016 Basic Operation 137 Minimum Output Volumes Group Box The Minimum Output Volume group box is used to set the minimum volume level, in dB, for different outputs on the keypanel. This is the minimum volume level available when using the Main Volume control knob, located on the front of the keypanel.
Page 138 138 Basic Operation DKP-4016 Chime Volumes Group Box The Chime Volumes group box is used to set the volume for each of the built-in chimes, as well as to enable or disable preview of chimes during chime selection in this menu and others that reference chimes.
Page 139 DKP-4016 Basic Operation 139 Advanced Page IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased; otherwise, they do not display. Keypanel Configuration – Advanced FIGURE 72. Bosch Security Systems, Inc. F.01U.308.248 Rev. 03 Technical Manual...
Page 140 140 Basic Operation DKP-4016 AGC Group Box The AGC (Automatic Gain Control) group box is used to set the speed at which a microphone becomes active and the speed at which a sustainable level is achieved through the use of the Attack menu and the Decay menu. You can set these levels for the front, rear, and headset microphones used with the keypanel.
Page 141 DKP-4016 Basic Operation 141 Mixing Group Box The Mixing group box allows you to route selected input audio signals to different destinations. For a complete list of destinations and more information, see “Mixing” on page 188. IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased, otherwise, they do not display.
Page 142 142 Basic Operation DKP-4016 Compression Group Box The Compression group box is used to change the audio’s gain, meaning audio above the noise gate threshold is changed according to the compression ratio selected. The compression is used to change the dynamic range of the mic input. This means loud sounds are softened;...
Page 143 DKP-4016 Basic Operation 143 Gating Group Box The Gating group box is used to minimize or eliminate background noise problems by shutting off an audio source when the audio level drops below a certain threshold. IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased, otherwise, they do not display.
Page 144 144 Basic Operation DKP-4016 Noise Gate Group Box The Noise Gate menu is used to enable, disable or adjust (if licensed) the audio level at which the mic turns on. If not licensed, noise gate can be enabled or disabled. When enabled, microphone noise gate is set to -72dBu; when the noise gate is disabled, the microphone is always on.
Page 145 DKP-4016 Basic Operation 145 Filters Page The Filters page is used to add input and output bandpass filters, frequency response (equalization) filters or notch filters to one (1) or more audio sources. IMPORTANT: OMNEO 3 through OMNEO 8 only appear when the Audio Package is purchased, otherwise, they do not display.
Page 146 146 Basic Operation DKP-4016 Input Bandpass Filters Group Box The Input Bandpass Filters group box is used to enable bandpass filters which set a low and high frequency range where frequencies within the two (2) frequency points are passed and anything outside of the range is rejected.
Page 147 DKP-4016 Basic Operation 147 Output Bandpass Filters Group Box The Output Bandpass Filters group box is used to enable bandpass filters which set a low and high frequency range where frequencies within the two (2) frequency points are passed and anything outside of the range is rejected.
Page 148 148 Basic Operation DKP-4016 Input Equalization Filters Group Box Equalization allows the user to select predefined settings that modify the frequency envelope of an audio channel. This is a 5-band equalizer. Each preset provides a different EQ to be applied to the audio.
Page 149 DKP-4016 Basic Operation 149 Output Equalization Filters Group Box Equalization allows the user to select predefined settings that modify the frequency envelope of an audio channel. This is a 5- band equalizer. Each preset provides a different EQ to be applied to the audio.
Page 150 150 Basic Operation DKP-4016 Notch Filter Mode The Notch filter allows you to add a notch to the Matrix In source - either AIO or OMNEO channel 1. This can be useful when the keypanel data port signal is being heard in the audio line due to cable routing problems.
Page 151: Firmware Download
From the Status menu, select Port. The Port Status window appears. Find the port number where the DKP-4016/4016W is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
Page 152 AIO. Use the Keypanel Version Information window to follow the progress of the download. Also, the keypanel displays Firmware Download on the panel display until the download is complete. The DKP-4016/4016W resets itself once the firmware download is complete and the flash • reprogrammed.
Page 153: Download Firmware To The Keypanel Using The Firmware Upload Tool
DKP-4016 Firmware Download 153 In the Keypanel Version Information window, verify the version upgrade. Download Firmware to the Keypanel Using the Firmware Upload Tool Required Firmware version: FWUT V4.2.0 or later To download firmware to the keypanel, do the following: Open the Firmware Upload Tool.
Page 154 154 Firmware Download DKP-4016 Click the Change button. The folder network window appears. Navigate to the folder where the firmware resides. Click OK. Click OK, again. The Firmware Upload Tool Options window closes. From the OKP Device page, select the device you want to update.
Page 155: Enable Downloading New Bootloader From The Keypanel
The instructions provided below are shown using the KP-5032 family keypanels. Run the Bootloader To run the bootloader, do the following: Power off the keypanel. Verify the DKP-4016/4016W is powered off, but still connected to the FRAME. Bosch Security Systems, Inc. Technical Manual F.01U.308.248...
Page 156 At the same time, press and hold keypanel key 15 in the listen position (up) and keypanel key 16 in the talk position (down), while you connect the power cord to the keypanel. DKP-4016 - Boot Loader Waiting for download... appears in the panel display. In AZedit, from the Status menu, select Software Versions.
Page 157 Firmware Download 157 From the Software Versions popup menu, select Keypanels. The Keypanel Version Information window appears. From the Keypanel Version Information window, find and select the specified DKP-4016/4016W. NOTE: Notice the Version column is showing DKP-4016/4016W Bootloader Version 1.2.0 is shown.
Page 158 158 Firmware Download DKP-4016 NOTE: This can take up to 15 minutes to complete if connected via AIO. Use the Keypanel Version Information window to follow the progress of the download (the number and percentage of chunks completed). Also, the firmware progression is displayed on the keypanel display until the download is complete.
Page 159: Display The Fpga Version On The Keypanel
From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the DKP-4016/4016W is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
Page 160 Click Begin Download. The download begins. A progress bar appears to show the progress of the download. Click OK. The DKP-4016/4016W firmware download to the Matrix finishes. The Download FPGA Firmware To The Keypanel begins. Technical Manual Bosch Security Systems, Inc.
Page 161 DKP-4016 Firmware Download 161 Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel. Verify the keypanel displays the FPGA Downloading icon with progression bar. Once the download is complete, the keypanel has to process the downloaded file.
Page 162 162 Firmware Download DKP-4016 Verify the Keypanel Version Information window displays Processing download on the keypanel port you chose. Verify the keypanel displays the Processing Download icon with progression bar. Once the keypanel is finished processing the download, the keypanel begins to reprogram.The keypanel flashes a Reprogramming: Do Not Turn Off icon in the display panel.
Page 163: Download A Splash Screen
From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the DKP-4016/4016W is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
Page 164 164 Firmware Download DKP-4016 Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel. Verify the keypanel displays the Splash Screen Downloading icon with progression bar. Once the download is complete, the keypanel has to process the downloaded file.
Page 165: Download A Font File
From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the DKP-4016/4016W is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
Page 166 166 Firmware Download DKP-4016 Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel. Verify the keypanel displays the FONT Downloading icon with progression bar. Once the download is complete, the keypanel has to process the downloaded file.
Page 167: Download An Icon File
DKP-4016 Firmware Download 167 Verify the keypanel displays the Processing Download icon with progression bar. Once the keypanel is finished processing the download, the keypanel begins to reprogram.The keypanel flashes a Reprogramming: Do Not Turn Off icon in the display panel. This can take several minutes.
Page 168 168 Firmware Download DKP-4016 Select Download icons..The Icon Download window appears. Navigate to the icon file (.bmp or .jpg) you want to use. Click Open. The Download Icon File window appears. Verify the correct Icon Type radio button is selected – Key Overlay or Panel Tally radio button.
Page 169: Download User Chimes (Control Package Only)
From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the DKP-4016/4016W is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
Page 170 170 Firmware Download DKP-4016 Click Begin Download. The download begins. A progress bar appears to show the progress of the download. Once the download is complete the Download Keypanel Font window closes. Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel.
Page 171: Download Screen Savers (Control Package Only)
From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the DKP-4016/4016W is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
Page 172 172 Firmware Download DKP-4016 Click Begin Download. The download begins. A progress bar appears to show the progress of the download. Once the download is complete the Download Keypanel Font window closes. Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel.
Page 173 DKP-4016 Firmware Download 173 Once the keypanel is finished downloading, the keypanel begins to reprogram.The keypanel flashes a Reprogramming: Do Not Turn Off icon in the display panel. This can take several minutes, Once the reprogramming is complete, the keypanel reboots.
Page 174 174 Firmware Download DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 175: Dkp-4016 Menu System
CHAPTER 5 DKP-4016 Menu System NOTE: A menu system quick reference chart is located at “Keypanel Menu Quick Reference” on page 255. Main Menu Access IMPORTANT: For more detailed information on Basic Key operation, see “Menu Navigation and Shaft Encoder Knobs”...
Page 176 176 DKP-4016 Menu System DKP-4016 To access the main menu structure, do the following: On the keypanel keypad, press the MENU button. The Information menu structure displays across the middle of the panel display.  Using the arrow buttons on the keypad, navigate through the menu options.
Page 177: Menu System, Audio Options
DKP-4016 DKP-4016 Menu System 177 Menu System, Audio Options Available options for this menu are: Advanced Chime Ganged Vols Headset Mic Headset Spkr Inputs Key Volumes Matrix Out Max Volume Mic Gain Mic Mute Min Volume Output Lev Panel Mic...
Page 178 178 DKP-4016 Menu System DKP-4016 Audio Options Menu, Advanced • • Compression • Filters • Gating • Metering • Mixing • Mix Mode • AEC (Acoustic Echo Cancellation) is used to prevent feedback from occurring between the microphone and the speaker. AEC is only available on one (1) microphone;...
Page 179 DKP-4016 DKP-4016 Menu System 179 The AGC (Automatic Gain Control) menu is used to set the speed at which a microphone becomes active and the speed at which a sustainable level is achieved through the use of the Attack menu and the Decay menu. You can set these levels for the front, rear, and headset microphones used with the keypanel.
Page 180 180 DKP-4016 Menu System DKP-4016 To configure the decay speed for a microphone source, do the following: Starting at the Audio Options|Advanced|AGC menu, select Decay. Press the SEL button. Front Mic, Left Hdst, Rear Mic, and Right Hdst appears in the panel display.
Page 181 DKP-4016 DKP-4016 Menu System 181 Filters Filters allow you to add a bandpass filter, a preset frequency response (equalization) filter or a notch filter to one (1) or more audio sources. Bandpass The Bandpass menu is used to enable using bandpass filters as well as set a low and high frequency range where frequencies within the two (2) frequency points are passed and anything outside of the range is rejected.
Page 182 182 DKP-4016 Menu System DKP-4016 Using the arrow buttons, select Enabled. Press the SEL button. An arrow appears next to the selected option. Press the CLR button. Frequencies and Mode appear in the panel display. Using the left and right arrow buttons, select Frequencies.
Page 183 DKP-4016 DKP-4016 Menu System 183 To configure a preset frequency response for an output, do the following: Starting at the Audio Options|Advanced|Filters menu, select Equalization. Inputs and Outputs appears in the panel display. Using the arrow buttons, select either Output.
Page 184 184 DKP-4016 Menu System DKP-4016 Press the SEL button. The Low Freq scroll box and the High Freq scroll box appear in the panel display. Using the up and down arrow buttons, select the low frequency you desire. Using the left and right arrow buttons, select the high frequency scroll box.
Page 185 DKP-4016 DKP-4016 Menu System 185 Press the SEL button. Front Spkr and Rear Spkr appear in the panel display. Using the left and right arrow buttons, select either Front Spkr or Rear Spkr.- Press the SEL button. Frequencies, Gains, Mode, and Presets appear in the panel display Using the left or right arrow buttons, select Gains.
Page 186 186 DKP-4016 Menu System DKP-4016 Nominal inputs are as follows: AUX 1 8dBu Headset Mics -50dBu Matrix In 8dBu Panel Mics -42.5dBu OMNEO 1-2 8dBu To configure gating on the keypanel, do the following: Starting at the Audio Options|Advanced menu, select Gating.
Page 187 DKP-4016 DKP-4016 Menu System 187 You can enable metering on: Aux1 Front Mic Left Hdst Matrix In None (default) OMNEO 1 OMNEO 2 Panel Mic Rear Mic Right Hdst To enable metering, do the following: Starting at the Audio Options|Advanced menu, select Metering.
Page 188 188 DKP-4016 Menu System DKP-4016 Mixing Mixing allows you to route selected audio signals to the following destinations: To Matrix Rear Speaker • • Left Headphone Rear Left Headphone • • Front Right Headphone Right Headphone • • Front Speaker •...
Page 189 DKP-4016 DKP-4016 Menu System 189 NOTE: OMNEO 1-8 appears only if the Audio Package is installed. Resources Table TABLE 9. Destination Matrix OUT Front Speaker Left Headset Left Left Headset Right Right Headset Left Right Headset Right Rear Speaker Mic OUT...
Page 190 Using the up or down arrow keys, select Disable or Enable. Noise Gate – Audio Package Only If you have purchased the Audio Package for the DKP-4016, you have the ability to adjust the noise gate, giving you more flexibility configuring the input gate levels for each device.
Page 191 DKP-4016 DKP-4016 Menu System 191 Audio Options Menu, Chime The Chime menu is used to set the volume for each of the built-in chimes, as well as to enable or disable preview of chimes during chime selection in this menu and others that reference chimes.
Page 192 192 DKP-4016 Menu System DKP-4016 Audio Options Menu, Ganged Vols Ganged Vols is used to set what happens when adjusting the volume for a ganged channel pair when the volumes are not identical and one (1) of the volumes reaches the minimum or maximum level.
Page 193 DKP-4016 DKP-4016 Menu System 193 Type Available selections for the Type menu are: Auto-Detect (default) The keypanel automatically detects the type of microphone connected. Dynamic Electret To configure the Headset Mic Auto-mute, do the following: Starting at the Audio Options menu, select Headset Mic.
Page 194 194 DKP-4016 Menu System DKP-4016 Audio Options Menu, Headset Speaker The Headset Spkr menu option is used to control the headset detection functions: auto-transfer, which is used to detect if a headset is present and mode, which determines when and where audio is heard. Also from this menu, the Main shaft encoder is defined how to control the left and right speakers.
Page 195 Audio Options Menu, Inputs The Inputs menu is used to enable or disable volume control for audio inputs through the front panel encoder. The DKP-4016 has four (4) Input connectors on the back panel of the unit. By default, all inputs are enabled. This means the inputs are visible as inputs in the Mixing menu and (if mixed somewhere) can be selected for volume control.
Page 196 196 DKP-4016 Menu System DKP-4016 Audio Options Menu, Key Volumes The Key Volumes menu is used to enable or disable the adjusting of crosspoint listen gains. If key volumes are enabled, the user can adjust the list gains for Matrix crosspoints from the keypanels. Alternatively, you can reset key gains back to their default settings.
Page 197 DKP-4016 DKP-4016 Menu System 197 Audio Options Menu, Max Volume The Max Volume menu is used to set the maximum level, in dB, of the volume the user can configure for a headset or a speaker. This feature prevents incoming audio from being too loud.
Page 198 198 DKP-4016 Menu System DKP-4016 Audio Options Menu, Mic Mute The Mic Mute menu is used to configure the actions of the Mic Mute key. Available options are: Disabled By disabling the mic mute key, users are not able to mute the microphone from the front panel.
Page 199 DKP-4016 DKP-4016 Menu System 199 Audio Options Menu, Panel Mic The Panel Mic menu option is used to configure how the panel mic operates. Available options for this field are: Disabled Enabled Switched When enabled, the state of the Panel Mic is controlled by the Mic Sel key.
Page 200 200 DKP-4016 Menu System DKP-4016 Audio Options Menu, Sidetone The Sidetone menu is used to configure the level, in dB, at which the user hears their own voice. Most people prefer some amount of sidetone to overcome the muffled sensation when talking, especially when wearing a dual-sided headset.
Page 201 DKP-4016 DKP-4016 Menu System 201 Volume Control Available selections for the Volume Control menu are: NOTE: For more information on Ganged Volume configuration, see “Audio Options Menu, Ganged Vols” on page 192. Ganged The volume controls are tied to each other, only one (1) knob is turned to adjust volume levels.
Page 202 202 DKP-4016 Menu System DKP-4016 Audio Options Menu, VM Options (Audio Package Only) The VM Options menu is used to configure voice message playback options, voice message recording options, and mailbox full actions. Playback Menu The Playback menu is used to configure how incoming audio (matrix input, aux input, etc) is handled while the user is listening to a voice message.
Page 203 DKP-4016 DKP-4016 Menu System 203 To configure how incoming audio is handled while listening to voice message, do the following: Starting at the Audio Options|VM Options menu, select Playback. Press the SEL button. Isolate and Mix appear in the panel display.
Page 204: Menu System, Display
Display Menu, Assign Type Assign Type displays the talk level 1 assignment types for all keys. To display the types of key assignments assigned to the DKP-4016, do the following: On the keypanel keypad, press MENU. The Information menu appears.
Page 205 DKP-4016 DKP-4016 Menu System 205 Display Menu, Chans On Chans On displays a scroll list of all intercom ports with crosspoints currently closed to this keypanel. Chans On is typically used to locate an open mic or other open audio source that needs to be shut off. The most likely cause is a talk key that has been left on at some keypanel.
Page 206 206 DKP-4016 Menu System DKP-4016 Display Menu, Key List Key List displays and allows users to see all the other assignments on other keypanel pages not currently showing in the keypanel display. To display the Key List information, do the following: Starting at the Display menu, select Key List.
Page 207 DKP-4016 DKP-4016 Menu System 207 Display Menu, Matrix Matrix displays the intercom system name for all talk level 1 key assignments. The local intercom is represented by a green key, while a remote intercom is represented by a red key. If a key assignment is not present on a key, an unassigned key displays.
Page 208: Menu System, Key Assign Menu
You do not need to select matrix to assign keys to destinations in your own matrix. Also, you do not need to select matrix when assigning an auto function key to a matrix. To assign a remote assignment to the DKP-4016/4016W, do the following: Starting at the KeyAssign|Matrix menu, select a remote intercom.
Page 209 DKP-4016 DKP-4016 Menu System 209 Key Assign Menu, Pt-to-Pt Pt-to-Pt assigns a key that talks or listens to another intercom port. NOTE: Some Pt-to-Pt destinations may be non-keypanel devices that cannot activate talk and listen paths. Therefore, if you want full communication, you may need to assign both talk and listen on the key. For more information, see “Key Assign Menu, Auto Func”...
Page 210 210 DKP-4016 Menu System DKP-4016 Key Assign Menu, Spcl List Spcl List assigns a key that talks and/or listens to a special list. The key is not available until members have been assigned to the special list in AZedit. NOTE: Special List members can be non-keypanel devices that cannot activate talk and listen paths.
Page 211 DKP-4016 DKP-4016 Menu System 211 Key Assign Menu, Camera ISO Camera ISO assigns an ISO (isolate) assignment type to the key. By default, all ISOs are restricted. You must select the appropriate scroll enable check box in AZedit, to see ISOs.
Page 212: Menu System, Key Options Menu
212 DKP-4016 Menu System DKP-4016 Key Assign Menu, Auto Func Auto Func assigns an auto function to the key. Available options for this menu are: Auto Follow for listen keys only. Listens to what is assigned on the Talk key.
Page 213 DKP-4016 DKP-4016 Menu System 213 Key Options Menu, Auto Dial Auto Dial stores commonly used phone numbers in the auto dial list locally on the keypanel. You can also create a centralized auto dial list which is stored on the Master Controller and maintained through AZedit. For more information, see “Centralized Auto Dials”...
Page 214 214 DKP-4016 Menu System DKP-4016 To configure a 1-touch auto dial key, do the following: Starting at the Key Options|Auto Dial menu, select 1-Touch. Press the SEL button. Tap Key appears in the panel display. Tap the key you want to put the TIF 1-Touch assignment.
Page 215 DKP-4016 DKP-4016 Menu System 215 To clear a UPG key options, do the following: Starting at the Key Options menu, select Clear. Press the SEL button. Tap Key appears in the panel display. Press or tap the UPG key you want to clear the UPG programming from.
Page 216 216 DKP-4016 Menu System DKP-4016 Key Options Menu, Icons The Icons menu option is used to enable icon overlays for various key states. There are seven (7) key states that can be indicated using an icon. By default, icons are enabled, which means they are displayed.
Page 217 DKP-4016 DKP-4016 Menu System 217 Key Options Menu, Key Groups Key Groups is used to create a key group. A key group allows the user to activate a group of keys by activating one (1) key (the master key). When the master key is activated, all keys in the group become active.
Page 218 Also, panel swap allows the user a 1-touch trigger to complete two (2) actions at once. Even though the DKP-4016 does not support physical EKPs, Panel Swap and Virtual EKPs are still available for use. IMPORTANT: The number of actual physical keys on the keypanel must be less than the numbers of keys per port supported by the intercom.
Page 219 DKP-4016 DKP-4016 Menu System 219 Navigation Mode for Panel Swap Once you have selected the control trigger, select what panel swap action is performed: Cycle To Cycle to the Next or Previous panel. Switch To Switch to a specific panel (for example, MAIN, EKP1, EKP2, etc.
Page 220 220 DKP-4016 Menu System DKP-4016 Press the SEL button. A list of actions for the keypanel action appears in the panel display (see “Panel Swap Key States” on page 219). Using the arrow buttons,select the action desired. Press the SEL button.
Page 221 NOTE: When DKP-4016/4016W keypanels are connected to legacy intercoms (for example, intercoms that do not support Enhanced Tallies, the available options for this menu are relevant. When DKP-4016/4016W keypanels are connected to intercoms that support Enhanced Tallies, the Enhanced Tallies view allows you to globally configure how the tally behaves.
Page 222: Menu System, Omneo Offers
222 DKP-4016 Menu System DKP-4016 To configure a UPG to require a confirmation before turning off keys, do the following: Starting at the Key Options|Turn Off menu, select All Keys, Talk Keys or Listen Keys. Press the SEL button. Turn Keys Off? appears in the keypanel panel display.
Page 223: Menu System, Rvon Offers (Only Available When An Rvon-Io Is Detected)
DKP-4016 DKP-4016 Menu System 223 Menu System, RVON Offers (Only available when an RVON-IO is detected) The RVON Offers menu item is used to configure the matrix connection when an RVON-I/O is attached to the AIO port on the back of the keypanel.
Page 224: Menu System, Service
224 DKP-4016 Menu System DKP-4016 Menu System, Service The information available for key assign is as follows: Alphas Aux Select Display Footswitch Intercom Mode Key View Keypad LCD Backlight Local GPIO Mirror OMNEO Setup Page Change Reset Cfg RVON Setup...
Page 225 KP-5032/4016 - Maximum number of Analog Aux = 2, OMNEO 1-2, plus Aux 1-2 • DKP-4016 - Maximum number of Analog Aux = 1, OMNEO 1-2, plus Aux 1 • KP-3016- Maximum number of Analog Aux = 0, OMNEO 1-2 •...
Page 226 226 DKP-4016 Menu System DKP-4016 Select If Idle When a new call comes into the CWW queue, it goes to the top of the queue list and the highlight is moved to it only if the user has not interacted with the CWW in the last 5 seconds.
Page 227 DKP-4016 DKP-4016 Menu System 227 footswitch. To use the footswitch again, you must re-latch the desired talk keys. For more information, “Key Options Menu, Latching” on page 217. A footswitch is a foot-triggered switch used to activate keypanel keys. By default, the Footswitch is disabled.
Page 228 228 DKP-4016 Menu System DKP-4016 Using the arrow buttons,select Retain. Press the SEL button. An arrow appears next to Retain. Service Menu, Intercom Mode The Intercom Mode menu is used to select the type of firmware you have in your intercom so the keypanel can display alphas in the correct font/language and modify the behavior of some functions to match the intercom behavior.
Page 229 DKP-4016 DKP-4016 Menu System 229 Using the left and right arrow buttons,select Enabled or Disabled. Press the SEL button. An arrow appears next the selected option. Service Menu, Keypad Keypad menu is used to configure the default function assigned to the SEL key when not in menu mode and also the keypad backlight behavior.
Page 230 230 DKP-4016 Menu System DKP-4016 To configure the keypad Setup option, do the following: Starting at the Service|Keypad menu, select Backlight. Press the SEL button. Activation and Setup appear in the panel display. Using the left and right arrow buttons, select Setup.
Page 231 DKP-4016 DKP-4016 Menu System 231 SEL Key The SEL Key menu allows the user to choose what function the SEL key performs when not in menu mode. This menu allows you to set up the SEL key functionality. Available selections for this field are:...
Page 232 232 DKP-4016 Menu System DKP-4016 Service Menu, LCD Backlight The LCD Backlight menu option allows you to set the brightness of the panel display of all keypanels, just the main panel or any expansion panel connected to the main keypanel.
Page 233 DKP-4016 DKP-4016 Menu System 233 Press the SEL button. Key Group, Not Assigned, and Talk Key appear in the panel display. Using the arrow buttons,select Key Group. Press the SEL button. Group 1, Group 2, Group 3, and Group 4 appear in the panel display.
Page 234 234 DKP-4016 Menu System DKP-4016 Service Menu, Mirror (Control Package Only) The Mirror menu provides a scroll list of keypanels which can be the target of a mirror operation. All KP-Series units can be a mirror target, a license is not required for targets.
Page 235 DKP-4016 DKP-4016 Menu System 235 To configure the OKP’s device name, do the following: Starting at the Service|OMNEO Setup menu, select OKP. Press the SEL button. Device Name, DHCP, and IP Parameters appear in the panel display. Using the arrow buttons,select Device Name.
Page 236 236 DKP-4016 Menu System DKP-4016 To configure the OKP IP parameters, do the following: Starting at the Service|OMNEO Setup menu, select OKP. Press the SEL button. Device Name, DHCP, and IP Parameters appear in the panel display. Using the arrow buttons, select DHCP.
Page 237 DKP-4016 DKP-4016 Menu System 237 To configure the Gateway Address, do the following: Using the arrow buttons, select Gateway. Press the SEL button. The Gateway Address appears with the first octet blinking in the panel display. Using the number pad, enter the first octet number in the Gateway Address.
Page 238 238 DKP-4016 Menu System DKP-4016 Once finished, press the FWD button. Save Name? appears in the panel display. Press the SEL button. To configure DNS Server, do the following: Using the arrow buttons, select DNS Server. Press the SEL button.
Page 239 DKP-4016 DKP-4016 Menu System 239 Service Menu, Reset Cfg Reset Cfg restores almost all custom settings to the defaults and erases all stored autodial numbers. Reset Cfg does not change the selected alpha size, intercom mode, poll ID, headset transfer state, or reset the IP configuration.
Page 240 Service Menu, Set Address Set Address is used to indicate the poll ID of the keypanel. See “DKP-4016/4016W Addressing” on page 25 to determine if you need to set the keypanel address. The poll ID is the number (or address) at which an AIO card or intercom attempts to communicate with the keypanel.
Page 241 DKP-4016 DKP-4016 Menu System 241 Service Menu, Snoop Tally Snoop Tally, when enabled, indicates to keypanel users somebody is listening to them. For example, snoop tallies are displayed on keypanel 1, if there is another keypanel (2) which is listening to keypanel 1 via a point-to-point or a special list, but is not talking to keypanel 1.
Page 242 242 DKP-4016 Menu System DKP-4016 Service Menu, Test Panel Test Panel allows the user to check the operation of all keys and displays on the keypanel. Test Panel Key Descriptions TABLE 10. Display Action All alpha numeric displays show a % symbol when in Test Panel mode.
Page 243 DKP-4016 DKP-4016 Menu System 243 To enable the test panel, do the following: On the keypanel keypad, press MENU. The Information menu appears in the panel display. Using the arrow buttons,select Service. Press the SEL button. The Service submenu appears in the panel display.
Page 244 244 DKP-4016 Menu System DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 245: Telephone Interface (Tif) Operation
CHAPTER 6 Telephone Interface (TIF) Operation NOTE: Telephone operation requires an optional TIF (Telephone Interface). You must assign an intercom key to talk/listen to the TIF. We recommend a talk + auto follow assignment. See the TIF User Manual (PN F01U193285) for specific TIF configuration options.
Page 246 246 Telephone Interface (TIF) Operation DKP-4016 Keypanel Hang Up NOTE: You can also hang up a TIF by pressing SHIFT+DROP, and then tapping the TIF assignment. To hang up the telephone, do the following: On the keypanel, press the TIF key down to turn it on.
Page 247: Centralized Auto Dials
Zeus II Firmware V3.4.0 or later • Zeus III Firmware V1.0.0 or later • DKP-4016 Firmware V1.1.0 or later • Centralized Auto Dial The Centralized Auto Dial can be used two (2) different ways, with TIF assignments or with keypad sequences. You can also configure locally stored auto dial numbers on the keypanel.
Page 248 248 Telephone Interface (TIF) Operation DKP-4016 To add a telephone number to the Auto Dial database, do the following: From the System menu in AZedit, select Auto Dial. The Auto Dial window appears. From the Auto Dial column, double-click an auto dial number.
Page 249 DKP-4016 Telephone Interface (TIF) Operation 249 Click Done when you are finished. Click Next to enter another Alpha Description. From the Online menu in AZedit, select Send Changes. The Send Changes window appears. Click OK. The changes are sent to the intercom and the telephone number is added to the intercom system auto dial table.
Page 250 250 Telephone Interface (TIF) Operation DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 251: Keypad Quick Reference
ID, talk level 2 assignments, etc.). Keypanel sequences are shortcuts via the keypanel keypad. As with other keypanels, the DKP-4016/4016W allows you to lock the entire menu or only the service menu. This is implemented through AZedit (System|Miscellaneous|Keypanel Menu Password). For more information, see the AZedit user manual (p/n F01U239453).
Page 252 252 Keypad Quick Reference DKP-4016 Keypad Sequences Keypad Description MENU Open the main menu Move one (1) selection forward through highlighted menu option BACK Move one (1) selection backwards through highlighted menu option Display a list of available intercoms available to scroll from...
Page 253 DKP-4016 Keypad Quick Reference 253 Keypad Sequences 7,<key> Copy the CWW to a key 0,0,0,8,1 Show panel ID 0,0,0,8,2 Show talk level 2 assignments 0,0,0,8,3 Show listen assignments 0,0,0,8,7 Enable tone 0,0,0,8,0 Enter test mode 0,0,3,1,SEL,<listen key> Program a listen key with an AL assignment 0,0,3,2,SEL,<listen key>...
Page 254 254 Keypad Quick Reference DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 255 CHAPTER 8 Keypanel Menu Quick Reference Audio Options Advanced Mic Priority Front Mic (default) Rear Mic Attack Front Mic 0.5ms Left Hdst Fast Attack Speed 1ms (default) Rear Mic Right Hdst Decay Front Mic 500ms (default) Left Hdst Decay 750ms Rear Mic 1000ms Right Hdst...
Page 256 256 Keypanel Menu Quick Reference DKP-4018 Frequencies 0 Hz (default) 15.6Hz Low Freq 31.5Hz 50Hz 22kHz (default) 16kHz High Freq 8KHz 4KHz Mode Disabled (default) Enabled Outputs Both Left Hdst Left Chan Right Hdst Right Chan Frequencies Low Freq 0 Hz (default) 15.6Hz 31.5Hz 50Hz...
Page 257 DKP-4018 Keypanel Menu Quick Reference 257 Equalization Inputs Disabled (default) Front Mic Modes Enabled Left Hdst Default (default) Matrix Hiss Reduction Presets Rear Mic Rumble Reduction Right Hdst Noise Reduction Outputs Disabled (default) Modes Enabled Default (default) Front Spkr Hiss Reduction Rear Spkr Presets Rumble Reduction...
Page 258 258 Keypanel Menu Quick Reference DKP-4018 Mixing Aux 1 Front Mic Left Hdst Both Left Hdst OMNEO 1 Left Chan Right Hdst OMNEO 2 Right Chan OMNEO 3-8 (only available with Audio Package) Rear Mic Right Hdst Aux 1 Front Mic Front Spkr Left Hdst OMNEO 1...
Page 259 DKP-4018 Keypanel Menu Quick Reference 259 Disabled Auto-Mute Enabled (default) Disabled Left Mode Enabled Switched (default) Auto-Detect (default) Type Dynamic Electret Disabled Auto-Mute Enabled (default) Disabled Mode Enabled Right Switched (default) Auto-Detect (default) Type Dynamic Electret Headset Spkr Auto- Disabled Transfer Enabled (default) Left...
Page 260 260 Keypanel Menu Quick Reference DKP-4018 OMNEO 5 Disabled Enabled (default) OMNEO 6 Disabled Enabled (default) Ganged OMNEO 7 Disabled Enabled (default) OMNEO 8 Disabled Enabled (default) Ganged Key Volumes Adjust Disabled Enabled (default) Minimum Adjust Minimum Key Volumes Reset Cancel Do Reset Volumes Reset...
Page 261 DKP-4018 Keypanel Menu Quick Reference 261 Left Headset Right Front Speaker Rear Aux 1 Min Volume: Matrix In -6dB is the default for Matrix In, while Mute is the default for all other options OMNEO 1 Mute, -48dB – 10dB OMNEO 2 OMNEO 3-8 (only available with Audio...
Page 262 262 Keypanel Menu Quick Reference DKP-4018 VM Options Playback Isolate Mix (default) Recording Auto Recording Disabled (default) Rolling Buffer When Mailbox Full Delete Oldest Reject New (default) Display Menu Assign Type Shows key’s assignment types Auto Dial Shows keys with 1-Touch Auto Dial assigned Chans On Shows scroll list of current callers Chime...
Page 263 DKP-4018 Keypanel Menu Quick Reference 263 Key Assign Menu Matrix (only displays if there are remote matrices. Selecting Matrix displays a Listen list of remote intercoms.) Talk Lvl1 Pt-to-Pt Talk Lvl2 Party Line Talk+AF <Ports/Assignments> Tap Key Talk+AL Special List Talk+AM Sys Relay Talk+AR...
Page 264 264 Keypanel Menu Quick Reference DKP-4018 Key Options Menu Auto Dial Numbers #01 – #100 1-Touch Tap Key Chime Chime <none> System #1 System #2 System #3 System #4 System #5 System #6 System #7 System #8 System #9 System #10 System #11 System #12 User #1 (only available with Audio Package)
Page 265 DKP-4018 Keypanel Menu Quick Reference 265 Key has Chime Key has Trunk Asgn Display Disabled Enabled (default) Key Groups Group 1 Group 2 Master Tap Slave Key Group 3 Group 4 Latching Global Disabled Enabled (default) Per Key Tap Key Lock Tap Key Panel Swap...
Page 266 266 Keypanel Menu Quick Reference DKP-4018 Virtual EKPS None 1 EKP through 6 EKPs for DKP-4016 Solo Tap Key Tallies Indefinite Disabled (default) Enabled Min Duration Min Duration: 5 seconds 10 seconds 15 seconds (default) Turn Off All Keys Turn Keys Off?
Page 267 DKP-4018 Keypanel Menu Quick Reference 267 OMNEO Offers Menu Keypanel <Port #> - Shows a list of all OMNEO offers AIO - If an RVON-IO or an OEI-2 is connected, it shows that device instead Disabled Enabled (default) Aux Input OMNEO 1 <Port #>...
Page 268 268 Keypanel Menu Quick Reference DKP-4018 Service Menu Alphas 4 Chars (default) 6 Chars 8 Chars 8 Chars (Unicode) Aux Select Number of Analog Inputs 0 Number of Analog Inputs 1 Number of Entries 3 through 9 On New Caller Don’t Select Select If Idle Select New Call...
Page 269 DKP-4018 Keypanel Menu Quick Reference 269 Keypad SEL Key Auto (default) Assign Groups Quick Assign Backlight Activation Activate On Keypress (swallowed) (default) On Keypress (processed) Always Never Setup Inactive Brightness: ##% (default is 30%) Color: Blue (default) White Active Brightness: ##% (default is 100%) Color: Blue (default) White...
Page 270 270 Keypanel Menu Quick Reference DKP-4018 OMNEO Setup OEI-2 (if attached) Device Name <displays device name and allows editing> DHCP Disabled (default) Enabled IP Parameters IP Address <displays IP Address and allows editing> Netmask <displays Netmask and allows editing> Gateway <displays Gateway and allows editing> DNS Server 1 <displays DNS Server and allows editing>...
Page 271 KP 12 CLD v1.1.0 • • AIO-16 v1.3.0 or later RP-1000 v2.0.0 • • Cronus v1.8.0 or later KP12/4U v1A.0.26 (Cyrillic character set only) • • Zeus III v1.3.0 DKP-4016 v1.1.1 • • Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 272 DKP-4016 To configure the keypanel for Unicode operation, do the following: On the keypanel, select Service|Alphas|8 Chars (Unicode)|Save and Restart. NOTE: If using the keypanel with Japanese firmware, you must also configure the correct Intercom Mode. See “Service Menu, Intercom Mode” on page 228.
Page 273 DKP-4016 Select the Enable Unicode Alphas check box. Click Apply. The Intercom Configuration window closes. From the Options menu, select Preferences. The Application Preferences window appears. Click the Alphas tab. The Alphas window appears. Bosch Security Systems, Inc. Technical Manual F.01U.308.248...
Page 274 DKP-4016 From the Preferred alpha size drop down menu, select 8-UNICODE characters. Click Apply. Click OK. The Application Preference window closes. To restore the system configuration, do the following: From the Online menu, select Send File. Navigate to the system configuration file (.adm) you want to restore.
Page 275 APPENDIX 10 Wall Mounting Option Wall Mount Instructions To wall mount the DKP-4016W, do the following: Using the screw-hole template and a pencil, mark the three(3) hole locations on the wall. 120 mm 10 mm scale 1:1 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev.
Page 276 DKP-4016 NOTE: It may be necessary to predrill the holes or use screw anchors, depending on the type of material the • wall is constructed. The DKP-4016W is supplied with three (3) wood screws. If you need to use different screws due to •...
Page 277 DKP-4016 Align the bottom of the unit over the screws, allowing the screw heads to slide into the largest part of the key hole opening. Keyhole Openings Wall Mount Bottom-side of DKP-4016W unit IMPORTANT: Make sure all the screws are secure in the keyholes on the bottom of the unit.
Page 278 DKP-4016 Technical Manual Bosch Security Systems, Inc. F.01U.308.248 Rev. 03...
Page 279 Audio and Control Add-On Packages The Audio and Control Add-On Packages for the DKP-4016/4016W greatly expand your keypanel and intercom system experience and capabilities. The Audio package delivers voice messaging for when a user has stepped away from a panel, additional OMNEO channels, additional equalization bands, and adjustable compression and noise gating.
Page 280 DKP-4016 Download License Files License files activate the packages you have purchased. Similar to firmware files, license files are downloaded to the to keypanel via AZedit; unlocking the intended features To download/activate license files, do the following: Open AZedit. From the Status menu, select Software Versions|Keypanels.
Page 281 DKP-4016 Click Open. The Download License File window appears. Click Begin Download. The license file is downloaded and unlocks the licensed features purchased. Once you have installed the package(s) you purchased, the following icon appears at power up for five seconds and then disappears: Only the Audio Package is installed.
Page 282 Bosch Security Systems, Inc. 12000 Portland Avenue South Burnsville, MN 55337 U.S.A. www.boschcommunications.com...
