Smoke Detector
SD-16-ZBS / SD-16SL-ZBS

Introduction

SD-16(SL)-ZBS is a ZigBee Smoke Detector. It is capable of sending wireless signals to the coordinator
in the ZigBee network upon detection of smoke particles. The Smoke Detector is designed to be
mounted on ceiling or top of stairwells when smoke would concentrate to raise alarm timely and protect
your home from fire hazards.
The Smoke Detector utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable and has low power consumption and high transmission efficiency.
Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network
and coordinated for data exchange and signal transmission
The Smoke Detector serves as an end device in the ZigBee network. It can be included in the ZigBee
network to transmit signal upon activation, but cannot permit any other ZigBee device to join the network
through the Smoke Detector.
The SD-16 Series Smoke Detector includes following models, the models differ in battery used.
SD-16ZBS
SD-16SL-ZBS

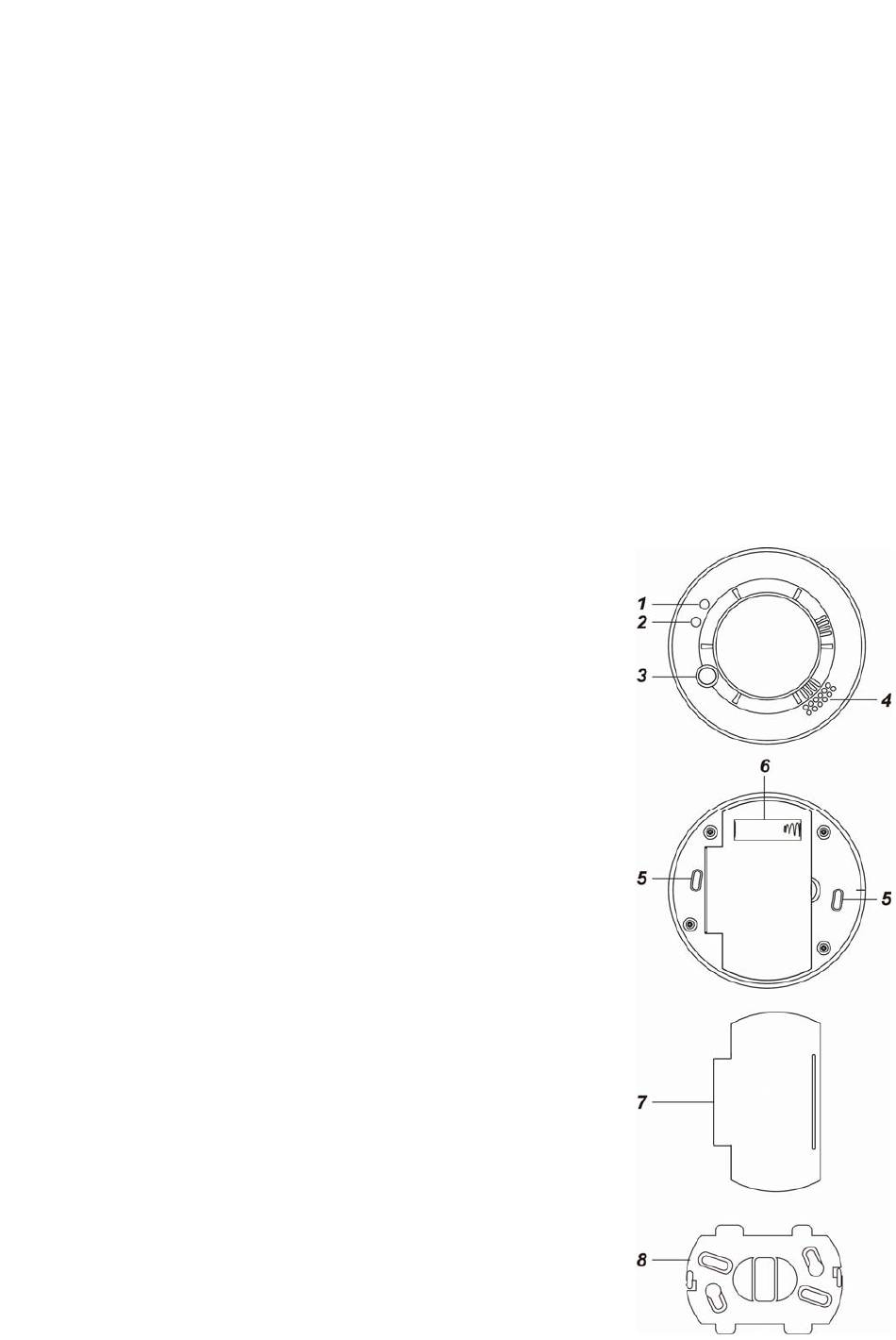

Parts Identification

1. Red LED
- Continuous quick flashes
The Smoke Detector is alarming.
- Two quick flashes
The Smoke Detector has successfully joined a ZigBee network after
- Flashes once every 20 minutes:
The Smoke Detector has lost connection to its current ZigBee
network.
- Flashes every 4 seconds:
Battery Exhausted
- Flashes every 2 seconds:
The Smoke Detector is under warm-up and self-calibration process
- Flashes every second:
The Smoke Detector is in Alarm Silence mode.
2. Amber LED
- Flashes every 4 seconds:
Battery Exhausted
- Flashes every 5 seconds:
Auto-calibration has failed.
3. Function Button
- Press the button once to send a supervision signal / test Smoke
Detector
- Press the button once during alarm to silence the alarm.
- Press and hold the button for 10 seconds then release to reset the
Smoke Detector.
- Press and hold the button for 20 seconds then release to recalibrate
the Smoke Detector.
4. Buzzer
5.
Mounting Hole
The Hook of the Mounting Bracket can hook into this Mounting Hole.
6.
Battery compartment
The battery used varies according to Smoke Detector model number.
7.
Battery Compartment Cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-16-ZBS and is the answer not in the manual?

Questions and answers

Related Manuals for Climax SD-16-ZBS

Summary of Contents for Climax SD-16-ZBS

  • Page 1 Smoke Detector SD-16-ZBS / SD-16SL-ZBS Introduction SD-16(SL)-ZBS is a ZigBee Smoke Detector. It is capable of sending wireless signals to the coordinator in the ZigBee network upon detection of smoke particles. The Smoke Detector is designed to be mounted on ceiling or top of stairwells when smoke would concentrate to raise alarm timely and protect your home from fire hazards.
  • Page 2  Battery and Low Battery Detection  The battery used varies according to Smoke Detector model number. Model Number Battery SD-16-ZBS 2 AA Alkaline 1.5V Batteries SD-16SL-ZBS 1 CR123A 3V Lithium Battery  The Smoke Detector feature Low Battery Detection function. When the battery voltage is low, the Smoke Detector will transmit Low Battery signal to the coordinator in ZigBee network.
  • Page 3  When changing batteries, after removing the old batteries, press the Function Button twice to fully discharge before inserting new batteries.  Supervision he Smoke Detector will transmit a supervision signal to report its condition regularly according to user setting. The factory default interval is 30 minutes. The user can also press the Function Button once to transmit a supervision signal manually.
  • Page 4 2. Upon reset, the Smoke Detector will clear current ZigBee network setting and transmit signal to ZigBee coordinator to remove itself from current ZigBee network. It will then actively search for available ZigBee network again and join the network automatically. ...
  • Page 5 ZigBee routers to improve signal strength. DO NOT use a ZigBee Router without backup battery. A ZigBee router without battery will be powered down during AC power failure and the Smoke Detector connected to the router will lose connection with ZigBee network. You should plan your Smoke Detector installation location using only ZigBee router with backup battery.
  • Page 6 0x0001 ApplicationVersion 0x00 –0xff 0x00 integer only Unsigned 8-bit Read 0x0003 HWVersion 0x00 –0xff integer only Character Read Climax 0x0004 ManufacturerName 0 – 32 bytes String only Technology Character Read 0x0005 0 – 32 bytes (Model Version) ModelIdentifier String only...
  • Page 7 residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:...
