Climax SD-8ZBS-EL User Manual

SD-8ZBS-EL Smoke Detector
Introduction
SD-8ZBS-EL is a ZigBee Smoke Detector. It is capable of sending wireless signals to the coordinator in
the ZigBee network upon detection of smoke particles. The Smoke Detector is designed to be mounted
on ceiling or top of stairwells when smoke would concentrate to raise alarm timely and protect your
home from fire hazards.
The Smoke Detector utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable and has low power consumption and high transmission efficiency.
Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network
and coordinated for data exchange and signal transmission
The Smoke Detector serves as an end device in the ZigBee network. It can be included in the ZigBee
network to transmit signal upon activation, but cannot permit any other ZigBee device to join the
network through the Smoke Detector.

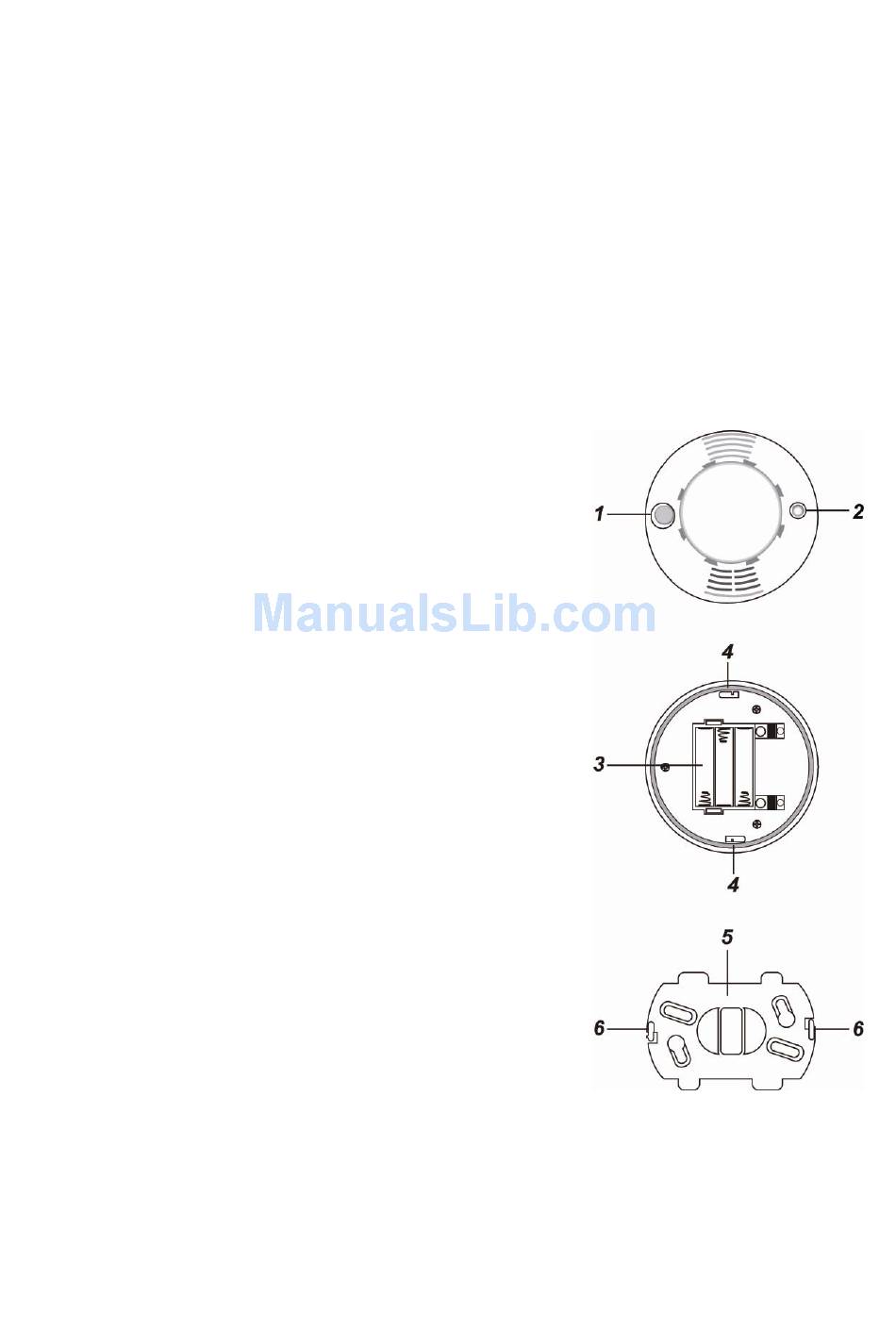

Parts Identification
1. Function Button
- Press the button once to send a supervision signal.
- Press the button once during alarm to silence the alarm.
- Press and hold the button for 10 seconds then release to reset
the Smoke Detector.
- Press and hold the button for 20 seconds then release to
recalibrate the Smoke Detector.
2. LED indicator
The LED indicator lights up in the following conditions:
- Continuous quick flashes
The Smoke Detector is alarming.
- Two quick flashes
The Smoke Detector has successfully joined a ZigBee network
after factory reset.
- Flashes once every 20 minutes:
The Smoke Detector has lost connection to its current ZigBee
network.
- Flashes every 2 seconds:
Battery Exhausted
- Flashes every second:
The Smoke Detector is performing self-calibration
or
The Smoke Detector is in Alarm Silence mode.
Function Button Usage:
- Press the button once to send a supervision signal.
- Press and hold the button for 10 seconds then release to reset
the Smoke Detector.
3. Battery Compartment
The Smoke Detector is powered by three AA Alkaline
1.5V batteries.
4. Mounting Hole
5. Mounting Bracket
6. Hooks
