C&H Technologies VX412C Specification Sheet

Specifications:

Maximum Input Voltage:
Terminal to Terminal:
250 Vdc or ac
rms
Terminal to Chassis:
250 Vdc or ac
rms
Maximum Switchable Voltage:
100 Vdc, 200 Vac
rms
Maximum Switchable Current:
(DC or AC ):
rms
Per Contact:
Per Module:
Maximum Switchable Power:
Per Channel:
Per Module: 1500W, 12500VA
Closed Channel Resistance:
Initially ≤ 0.1 Ω
(6Vdc @1A)
Insulation Resistance
(between any two points):
8
Ω
>10
C&H Technologies, Inc. • 445 Round Rock West Drive • Round Rock, TX 78681-5012
(512) 733-2621 • FAX (512) 733-2629 • www.chtech.com
Relay Life (operations):
No Load
250 Vac, 5A, Resistive 1 x 10
Relay Operative Time:
4 to 7 msec
Relay Release Time:
1 to 2 msec
5A
50A
Power Up/Down States:
Normally open contact is open.
150W, 1250VA
Power:
Ordering Information:
Description
VX412C
Locking Conn
7
1 x 10
5
+5V @ 1.0A typical
+12V @ 1.5A typical
Part Number
11026205-0001
See Accessories
VX412C
SPDT Switching
Module

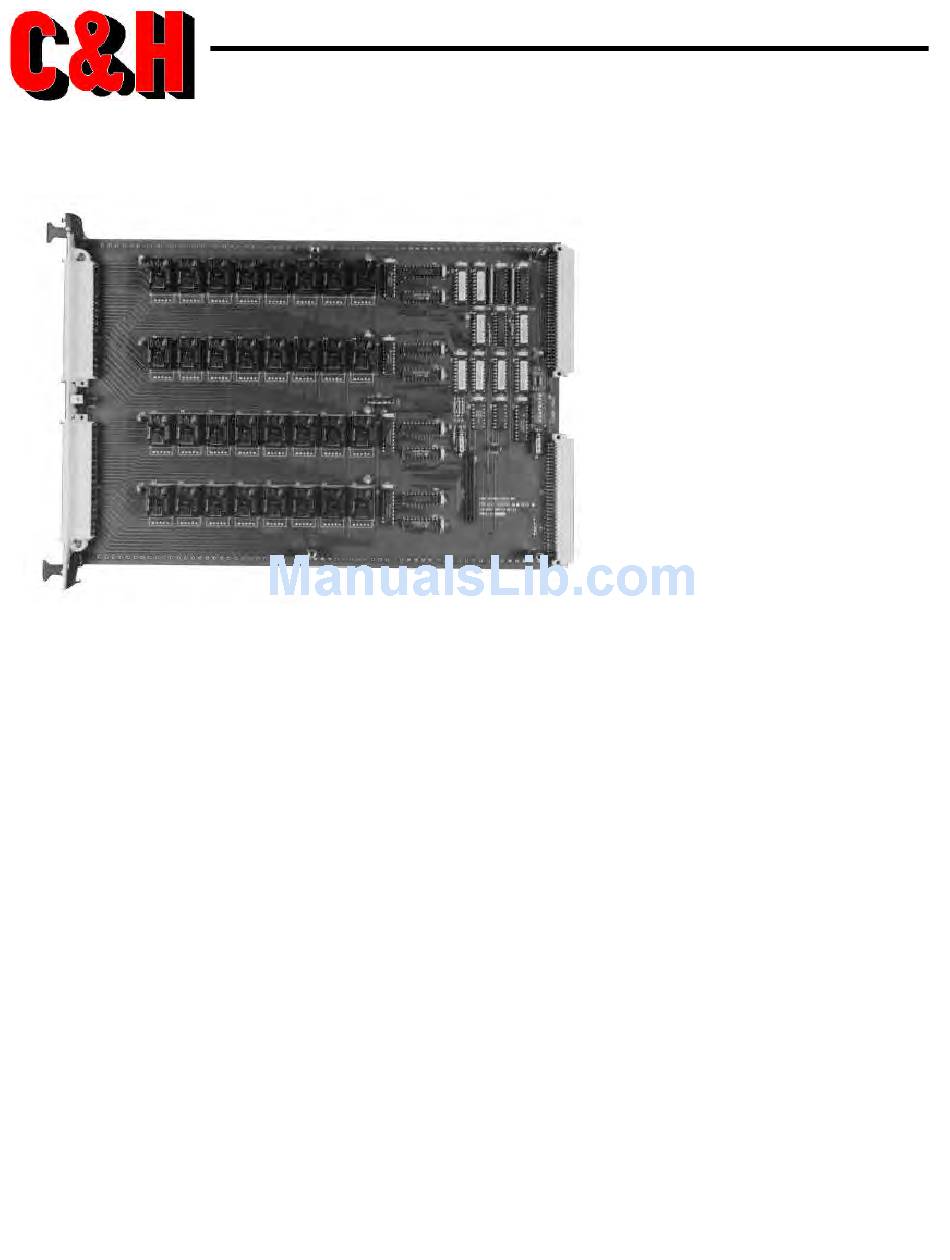

The VX412C is a C size, Register
based switching card that provides
32 channels of 5A,
switching. User connection to the
module is through two (2) DIN
41612 Type F48M connectors.
Normally closed, normally open and
common terminals are provided for
each of the non-latching relays.
MODID and Board Select indicators
are included. Module is equipped
with BIT capability and shielding.
VXIbus Compliance
Complies with ANSI/IEEE Std. 1014-
1987 and VXIbus Rev 1.4
A16:D16 DTB Slave
Register based
No Interrupts
IACKIN tied to IACKOUT
BRX tied to BGX
Form Factor: Size C
Built-in test via register feedback
Applications
• Power Switching
• Control
• LF Signal Switching
Form-C
