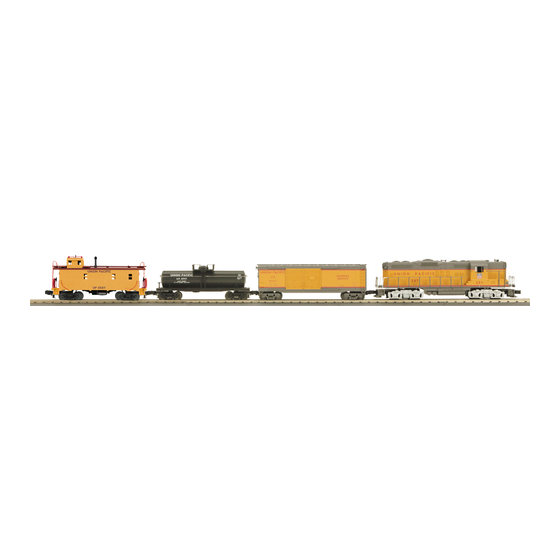

RKS GP-7 & GP-9
Diesel Engine(s)
OPERATOR'S MANUAL
Compatibility
This engine will operate on any
traditional O-31 Gauge track system,
including M.T.H. ' s RealTrax® or
ScaleTrax™ or traditional tubular
track. It is also compatible with most
standard AC transformers. (See page
16 for a complete list of compatible
transformers and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE
Advertisement
Table of Contents
Related Manuals for MTHTrains RailKing RKS GP-7 Diesel Engine
Summary of Contents for MTHTrains RailKing RKS GP-7 Diesel Engine
- Page 1 RKS GP-7 & GP-9 Diesel Engine(s) OPERATOR’S MANUAL Compatibility This engine will operate on any traditional O-31 Gauge track system, including M.T.H. ’ s RealTrax® or ScaleTrax™ or traditional tubular track. It is also compatible with most standard AC transformers. (See page 16 for a complete list of compatible transformers and wiring instructions.) PLEASE READ BEFORE USE AND SAVE...
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist......................Lubrication....................... Priming the Smoke Unit................. Basic Operation......................Activating Features................... Manual Volume Control.................. Loco Sound Operating Instructions..............Speed Control....................Locking Locomotive Into A Direction............Maintenance........................Lubricating and Greasing Instructions............Cleaning The Wheels, Tires and Track............Traction Tire Replacement Instructions............ -
Page 3: Set Up Checklist
Set Up Checklist - Lubricate the locomotive - Prime the smoke unit - Apply power to run as described in the Basic Operating Section of this manual Lubrication You should lubricate the engine to prevent it from squeaking. Use light household oil and follow the lubrication points marked “L” in DO NOT DO NOT DO NOT... -
Page 4: Priming The Smoke Unit
Priming the Smoke Unit When preparing to run this engine, add 15-20 drops of smoke fluid through the smokestack (see Figure 2). We recommend M.T.H. ProtoSmoke, Seuthe, LGB, or LVTS fluids. Do not overfill the unit or the fluid may leak out and coat the interior engine components. -
Page 5: Basic Operation
Basic Operation The Throttle knob controls how fast your train will travel. Turn the throttle knob up ½-way, until the engine and caboose lights shine bright. Put the engine into motion by pressing the Direction button on your transformer once. (hold it for approximately 1 second) If the engine does not begin to move as soon as you firmly press the Direction button, you may not have sent enough voltage to the track to make the train move. -
Page 6: Manual Volume Control
Manual Volume Control To adjust the volume of all sounds made by this engine, turn the master volume control knob located next to the fuel tank clockwise to increase the volume and counter-clockwise to decrease the volume. Volume Adjustment Knob Figure 4. -
Page 7: Loco Sound Operating Instructions
Loco-Sound Operating Instructions Speed Control M.T.H. engines equipped with Loco-Sound have speed control capabilities that allow the engine to maintain a constant speed up and down grades and around curves, much like an automobile cruise control. You can add or drop cars on the run, and the engine will maintain the speed you set. -
Page 8: Locking Locomotive Into A Direction
Direction Lock You can lock your engine into a direction (forward, neutral, or reverse) so that it will not change directions. To do this, put the engine into the direction you want or into neutral, to lock it into neutral, run it at a very slow crawl (as slowly as it will move without halting), and quickly but firmly tap the Whistle button once followed by three quick taps of the Bell button, allowing approximately ½... -
Page 9: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and pickup rollers to prevent squeaking. DO NOT DO NOT DO NOT Use light household oil, such as that found in M.T.H.'s maintenance OVER OIL OVER OIL OVER OIL... -
Page 10: Cleaning The Wheels, Tires And Track
5. After repeating the procedure for the other motor, reassemble the chassis and body, being careful that the wire harnesses are not caught between the chassis and body, and reinstall the body mount screws. Lubricate the outside truck block idler and drive gears with grease. Use the diagram shown in Figure 6 below as a guide and add grease to the points marked. -
Page 11: Traction Tire Replacement Instructions
Traction Tire Replacement Instructions Your locomotive is equipped with two neoprene rubber traction tires on each powered truck block. While these tires are extremely durable, you may need to replace them at some point. First, remove the truck sides from the truck block. To do this, turn your engine upside down. -
Page 12: Locomotive Light Bulb Replacement
Locomotive Light Bulb Replacement To replace the burned out light bulbs on this locomotive, follow these instructions. Follow the cab removal instructions in the “Lubrication and Greasing Instructions” section on pg.11 of this manual. Once the body has been removed, locate burned out light bulb(s). -
Page 13: Protosmoke Unit Operation
ProtoSmoke® Unit Operation This diesel locomotive contains a Proto-Sound 2.0 controlled smoke unit that outputs smoke through the smokestack on the roof of the engine. The smoke unit is essentially a small heating element and wick that soaks up and then heats a mineral oil-based fluid that emits smoke. - Page 14 After removing the engine from storage, add another 25 drops of fluid, letting the wick soak up the fluid for 15 minutes prior to operation. If you experience poor or no smoke output when the smoke unit is on and has fluid, check the wick to see if it has become hard, blackened, and unabsorbent around the heating element.
-
Page 15: Troubleshooting Loco-Sound Problems
™ Troubleshooting Loco-Sound Problems Although Loco-Sound has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (e-mail: service@mth-railking.com;... -
Page 16: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Note that many of the operational commands described in these instructions require a bell button, so if you are using a transformer other than the one included in this set and your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. -
Page 17: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble- shooting techniques that may correct the problem. Additional information may be found on the M.T.H. Website. Should you still require service, follow the instructions below to obtain warranty service.
