Summary of Contents for HYC Shelter Furnace SF1000
Page 1
SHELTER FURNACE WOOD BURNING INDOOR FURNACE MODEL: SF1000 Manufactured by: Shelter Furnace Contains 10950 Linpage Place Proper Burn Saint Louis, MO 63132 Pratices! 1-800-875-4788 Certified to UL391 (Sept. 2010) CSA B366.1 (2014) Revision II MADE IN USA June 2017...
Page 3
PROPER BURN PRACTICES FOR MAXIMUM EFFICIENCY AND SAFETY! • The chimney is one of the most important elements of the furnace. If the chimney is not connected properly and installed according to manufacturer’s specification and national and local codes, the unit is not safe and will not burn efficiently. Lack of proper chimney installation will cause unit to produce more smoke and less heat output.
Page 4

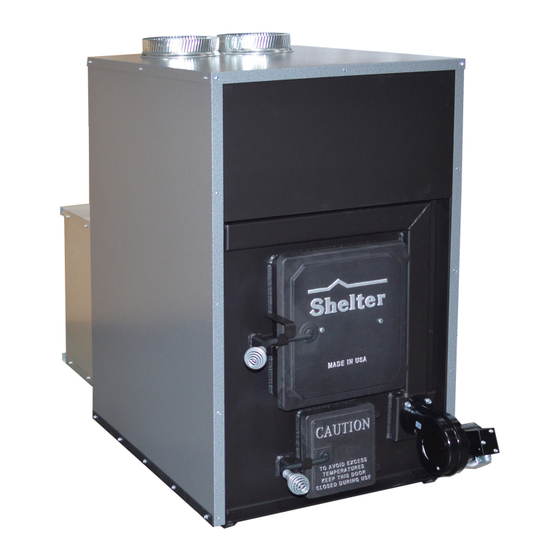

SHELTER INDOOR FURNACE MANUAL MODEL: SF1000 EPA Certified to the Warm Air Furnace NSPS requirements, for sale May 2017 through May 2020. SAVE THESE INSTRUCTIONS Congratulations! You have selected the finest quality wood burning indoor furnace, manufactured with pride in the USA. Please take a few moments to carefully read the owner’s manual.
TABLE OF CONTENTS General Information Location and Installation Assembly of Unit Blower and Housing Filter Box Chimney Types and Recommendations Duct Runs General Operation Types of Wood to Use First Fire Loading Wood Disposal of Ashes Draft Blower Creosote Formation Creosote Prevention Chimney Fire Warning Power Failure...
General Information The Shelter EPA-Approved Furnace has been engineered to accommodate the heating requirements of the average sized home, even during winter’s coldest months. It is constructed with high grade, heavy gauge steel and is continuously welded to assure the highest structural strength. In addition, the firebox is lined with insulated stainless steel panels to ensure many years of energy efficient service.
Location and Installation NOTE: Before beginning installation, consult proper local authorities regarding local codes governing all such applications and installations. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. Your furnace must be placed on a non- combustible floor.
Assembly of Unit Please review the parts list and diagrams contained on pages 16 of this manual. DOUBLE CHECK TO MAKE SURE YOU HAVE RECEIVED ALL THE REQUIRED COMPONENTS. IF YOU FIND THAT THERE IS A PART MISSING, CALL 1-800-875-4788 FOR FASTEST SERVICE, PLEASE DO NOT GO BACK TO THE STORE.
3. Assemble the following parts using 6 #8 sheet metal screws. Both “B” panels should fit inside of “A” panel flanges. Attach “A” (bottom panel) to side panels.. After the bottom and sides are assembled, attach ”A” (top panel) using 6 #8 sheet metal screws provided. Panel A #8 Sheet Metal Screw Panel C...
5. Mount the forced draft blower with 3 ¼-20 x 3/4 inch bolts (provided). Attach with 3- 1/4-20 x 3/4" Bolts (provided) 6. Attach Fan limit with 3 #8 screws in pre-drilled holes. 7. Mount the electrical control center with 4 #8 screws (provided) 8.
Page 11
The termination cap should be designed to inhibit down-drafting without restricting the For the best draw exhaust discharge. the chimney termination should be at least 2 feet above the highest point of the roof that is within a 10 foot radius of the chimney.
WARNING- RISK OF FIRE: • Do not operate with flue draft exceeding .08 water column inches (19.9 Pa). • Do not operate with fuel loading or ash removal doors open. • Do not store fuel or other combustible materials within marked installation clearances. •...
On a belt-driven system, blower and motor pulleys may be changed but the electrical current flowing through the motor cannot exceed the nameplate rating. On a direct-drive system, the motor should not be changed, however, the speed of the motor may be increased. The blower cannot be changed.
Page 14
CAUTION: • INSPECT FLUE PIPES, JOINTS AND SEALS REGULARLY TO ENSURE THAT SMOKE AND FLUE GASES ARE NOT DRAWING INTO, AND ARE NOT BEING CIRCULATED BY THE AIR-CIRCULATION SYSTEM. • CLEANING OF THE HEAT EXCHANGER, FLUE PIPE, CHIMNEY AND DRAFT INDUCER (IF USED), IS ESPECIALLY IMPORTANT AT THE END OF THE HEATING SEASON TO MINIMIZE CORROSION DURING THE SUMMER MONTHS CAUSED BY THE ACCUMULATED ASH.
BURN WOOD ONLY! First Fire: Set the wall thermostat to 90°F. Place several crumpled newspapers on the grate with some dry kindling layered on top of the papers, then ignite the newspaper. When the kindling is burning, add several small pieces of wood, allow wood to fully ignite. After about 20 minutes the fire should be established, allowing you to add more wood –...
because if the ash pan is allowed to remain inside the furnace during operation, it will become dangerously hot to touch, block the flow of air under the grates and reduce the efficiency of the furnace. Remove the ashes from your Shelter Furnace at least once a day, or as often as necessary to ensure the ashes do not accumulate to the height of the grates.
Page 17
NOTE: OVER-FIRING OR DELIBERATE ABUSE CAN EASILY BE DETERMINED UPON INSPECTION AND WILL VOID THE WARRANTY. This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. Always keep your wood covered year round.
Furnace Diagram PARTS LIST ITEM PART DESCRIPTION SF1000 PART NUMBER ASH DOOR ASSEMBLY FCE-ADA FUEL DOOR ASSEMBLY FCE-FDA FURNACE SHELL FC10SHELL SIDE PANEL ASSEMBLY FCE-10SP BLOWER ASSEMBLY FC3SPMOTOR BLOWER MOTOR FCDD037P BLOWER HOUSING FCBH FILTER BOX BOTTOM WAF-FBB FILTER BOX SIDE WAF-10FBS FILTER BOX TOP &...
Blower Motor Assembly Diagram PARTS LIST ITEM DESCRIPTION BLOWER WHEEL BLOWER HOUSING MOTOR CAPACITOR BLOWER MOTOR PARTS LIST ITEM DESCRIPTION BLOWER WHEEL BLOWER HOUSING MOTOR CAPACITOR BLOWER MOTOR...
WIRING DIAGRAM Wiring Diagram INDOOR FURNACE FAN LIMIT CONTROL ORANGE YELLOW WALL THERMOSTAT BLACK RELAY 120V AC/24V AC TRANSFORMER 120V AC POWER SUPPLY WHITE BLACK WHITE BLACK GREEN BLOWER DRAFT BLOWER MOTOR MOTOR...
Troubleshooting Problem: Circulation blower runs constantly. NOTE: Make sure the white button on fan limit control is pulled out and in the “auto” position. Remedies: Possible Causes: • “Off”setting on fan limit control is • Remove cover on fan limit control and check for the proper setting. low.
Page 22
Problem: Draft blower will not run. NOTE: Verify that the wall thermostat is in the “HEAT” position, and make sure batteries are installed. Remedies: Possible Causes: • Defective rocker switch on control • Replace rocker switch. center. • Defective wall thermostat. •...
Page 23
Problem: Draft blower runs constantly. Remedies: Possible Causes: • Defective wall thermostat. • This can be checked by turning the thermostat to a lower setting than the temperature in your home. If the draft blower continues to run, the thermostat may be defective. Replace if necessary. •...
Page 24
Problem: Down draft on chimney caused by one or more of the following. Remedies: Possible Causes: • Cast iron damper in “CLOSED” • Open damper. position. • Flue has a cold spot which • This problem may occur in factory built flues because the insulation inhibits exhaust discharge from has settled or a seam has ruptured.
Page 25
Problem: Home does not achieve comfortable temperature. Remedies: Possible Causes: • Improper ductwork connection to • Refer to information in the manual relating to the proper installation existing furnace. procedures or contact your local heating and cooling contractor. • Improperly sized ducting. •...
CERTIFICATE OF LIMITED WARRANTY: EXTENT OF COVERAGE: This warranty covers any Shelter Furnace SF1000 sold in the United States and Canada. This warranty is void if the Shelter Furnace is not installed, maintained, and operated in accordance with the instructions in the owner’s manual and local codes.
