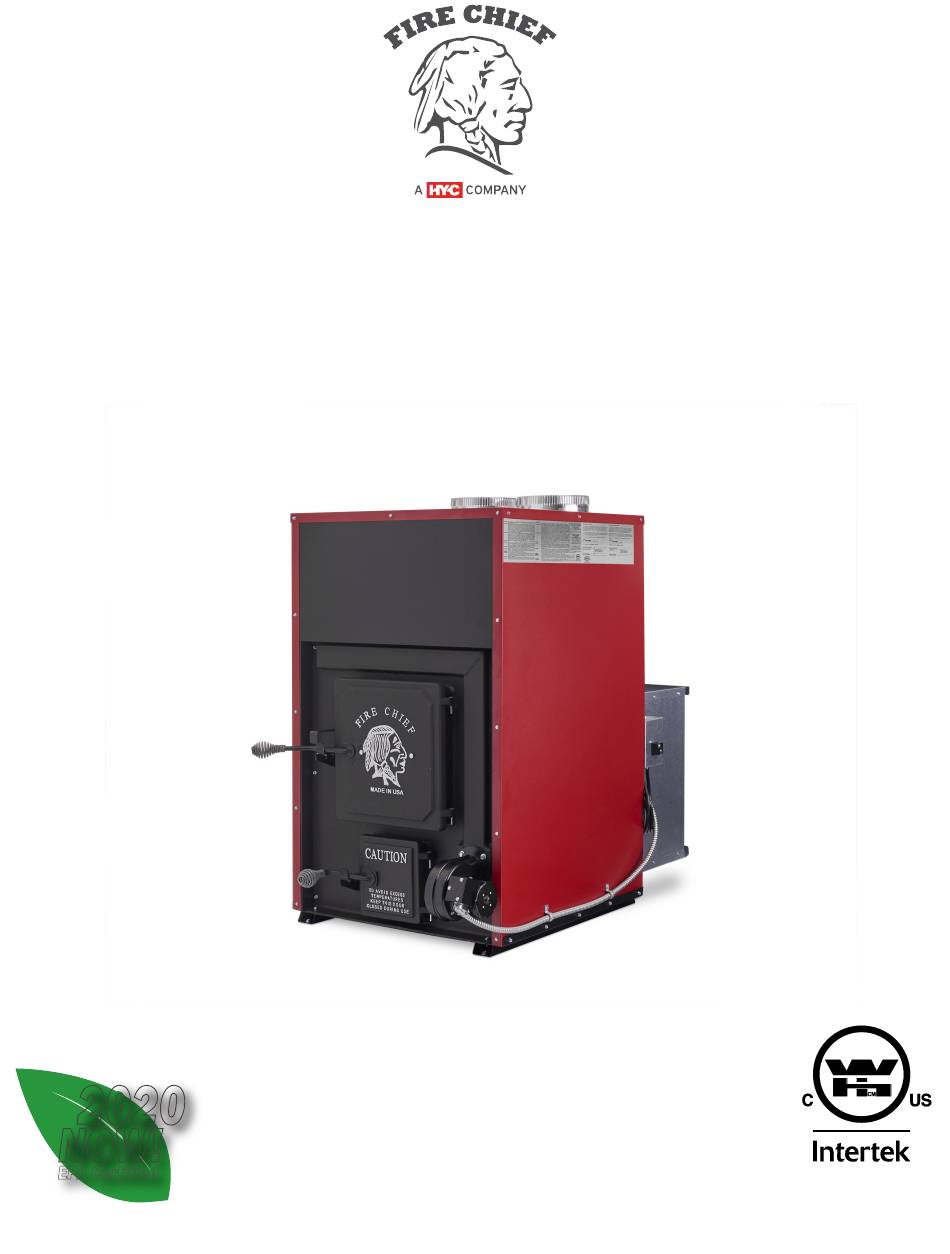

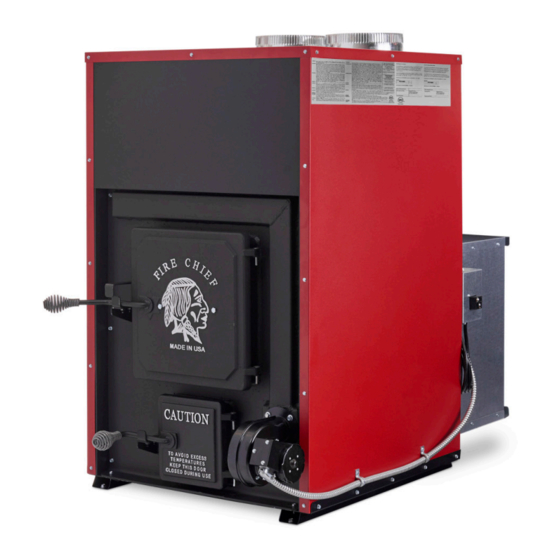

WOOD BURNING INDOOR FURNACE
MODEL: FC1000E
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with 2020 particulate emission standards.
Manufactured By:
Fire Chief Industries
10950 Linpage Place St. Louis, MO 63132
2020
1-800-875-4788 | www.hy-c.com
NOW!
EPA Certified
Certified to
MADE IN THE USA
UL391 (Sept. 2010)
November 2019
CSA B366.1 (2014)
Advertisement
Table of Contents
Related Manuals for HYC Fire Chief FC1000E
Summary of Contents for HYC Fire Chief FC1000E
- Page 1 WOOD BURNING INDOOR FURNACE MODEL: FC1000E U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2020 particulate emission standards. Manufactured By: Fire Chief Industries 10950 Linpage Place St. Louis, MO 63132 2020 1-800-875-4788 | www.hy-c.com NOW! EPA Certified Certified to MADE IN THE USA UL391 (Sept.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Proper Burn Practices Model FC1000E General Information Location and Installation Assembly of Unit Blower and Housing Filter Box Chimney Types and Recommendations Installation of Ducting General Operation Types of Wood to Use First Fire Loading Wood Disposal of Ashes Draft Blower Creosote Formation reosote Prevention... -
Page 4: Proper Burn Practices
PROPER BURN PRACTICES FOR MAXIMUM EFFICIENCY AND SAFETY! • The chimney is one of the most important elements of the furnace. If the chimney is not connected properly and installed according to manufacturer’s specification and national and local codes, the unit is not safe and will not burn efficiently. Lack of proper chimney installation will cause unit to produce more smoke and less heat output. -
Page 5: Model Fc1000E
FIRE CHIEF INDOOR FURNACE MANUAL MODEL: FC1000E U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2020 particulate emission standards. SAVE THESE INSTRUCTIONS Congratulations! You have selected the finest quality wood burning indoor furnace, manufactured with pride in the USA. Please take a few moments to carefully read the owner’s manual. By taking the time to familiarize yourself with your new Fire Chief Furnace, you will be able to look forward to years of trouble-free, dependable service. -
Page 6: General Information
General Information The Fire Chief 2020 EPA-Certified Furnace has been engineered to accommodate the heating requirements of the average sized home, even during winter’s coldest months. It is constructed with high grade, heavy gauge steel and is continuously welded to assure the highest structural strength. -
Page 7: Location And Installation
Location and Installation NOTE: Before beginning installation, consult proper local authorities regarding local codes governing all such applications and installations. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. Your furnace must be placed on a non- combustible floor. -
Page 8: Assembly Of Unit
Assembly of Unit Please review the parts list and diagrams contained on pages 16-17 of this manual. DOUBLE CHECK TO MAKE SURE YOU HAVE RECEIVED ALL OF THE REQUIRED COMPONENTS. IF YOU FIND THAT THERE IS A PART MISSING, CALL 1-800-875-4788 IMMEDIATELY. -
Page 9: Filter Box
3. Assemble the following parts using 6 #8 sheet metal screws. Both “B” and “C” panels should fit inside the bottom “A” panel flanges. Attach “B” and “C” (side panels) to “A” (bottom panel). After the bottom and sides are assembled, attach “A” (top panel) using 6 #8 sheet metal screws provided. -
Page 10: Chimney Types And Recommendations
5. Mount the forced draft blower to the front of the unit with three 1/4-20 x 3/4” bolts (provided). Attach with three (3) 1/4-20 x 3/4” bolts (provided) 6. To install the fan limit control, remove cover, attach with three (3) #8 screws in pre- drilled holes and replace cover. - Page 11 CHIMNEY HEIGHT REQUIREMENTS The chimney must extend at least three feet above the highest The termination cap should be designed to point where it passes through the roof surface and at least inhibit down-drafting without restricting two feet higher than any part of the building within a horizontal the exhaust discharge.
-
Page 12: Installation Of Ducting
Installation of Ducting • Proper ducting of the Cold Air Return and Warm Distribution Air is critical to ensure comfort throughout your home. • Consult a local HVAC contractor for assistance with the design and installation of effective ducting. • The furnace may be installed as a Dedicated System with separate cold/warm air ducting or an In-line System sharing the ducting of an existing central furnace. -
Page 13: General Operation
The add-on unit should only be installed on a furnace duct system and chimney that are in good operating condition. If exhaust fans are installed in the storage area they should not create negative pressures in the room where the solid fuel-burning appliance is located. - Page 14 CAUTION: • INSPECT FLUE PIPES, JOINTS, AND SEALS REGULARLY TO ENSURE THAT SMOKE AND FLUE GASES ARE NOT DRAWING INTO, AND ARE NOT BEING CIRCULATED BY THE AIR-CIRCULATION SYSTEM. • CLEANING OF THE HEAT EXCHANGER, FLUE PIPE, CHIMNEY, AND DRAFT INDUCER (IF USED), IS ESPECIALLY IMPORTANT AT THE END OF THE HEATING SEASON TO MINIMIZE CORROSION DURING THE SUMMER MONTHS CAUSED BY THE ACCUMULATED ASH.
-
Page 15: First Fire
NEVER operate the furnace with the fuel door or ash door open! NEVER operate the furnace with the ash pan left inside of the unit! First Fire: Set the wall thermostat to 90°F. Place several crumpled newspapers on the grate with some dry kindling layered on top of the papers, then ignite the newspaper and close the fuel door. -
Page 16: Draft Blower
because if the ash pan is allowed to remain inside the furnace during operation, it will become dangerously hot to touch, block the flow of air under the grates and reduce the efficiency of the furnace. Remove the ashes from your Fire Chief Furnace at least once a day, or as often as necessary to ensure the ashes do not accumulate to the height of the grates. - Page 17 NOTE: OVER-HEATING OR DELIBERATE ABUSE CAN EASILY BE DETERMINED UPON INSPECTION AND WILL VOID THE WARRANTY. Always burn seasoned wood. Dry wood will produce a higher BTU output and a longer burn time. Refer to the nameplate on furnace for additional information. For strategies to best store and season your wood, please visit www.link.hy-c.com/ EPABurnWise1 and www.link.hy-c.com/EPABurnWise2.
-
Page 18: Furnace Diagram With Parts List
Furnace Diagram PARTS LIST ITEM PART DESCRIPTION FC1000E PART NUMBER ASH DOOR HANDLE ASSEMBLY WAF-ADHD FUEL DOOR HANDLE ASSEMBLY WAF-FDHD FURNACE SHELL SIDE PANEL ASSEMBLY FCE-10SPA BLOWER ASSEMBLY COMPLETE (NOT PICTURED) WAF-MK BLOWER MOTOR FC3SPMK BLOWER HOUSING ASSEMBLY FCBH FILTER BOX KIT WAF-10FBK TOP PANEL FCE-10TP... -
Page 19: Blower Motor Assembly Diagram
Blower Motor Assembly Diagram PARTS LIST PART NUMBER ITEM PART DESCRIPTION FCBH BLOWER HOUSING ASSEMBLY FC3610J370 MOTOR CAPACITOR FC3SPMK BLOWER MOTOR Heat Exchange Firebrick Kit PARTS LIST PART NUMBER ITEM PART DESCRIPTION HTVB 9” x 4-1/2” x 1-1/4” FIREBRICKS HTVB2 9”... -
Page 20: Wiring Diagram
Wiring Diagram FAN LIMIT CONTROL (FCFLC) ORANGE YELLOW WALL THERMOSTAT (FCTHERM) BLACK FCTRAN-E FCRELAY-E RELAY 120V AC/24V AC TRANSFORMER 120V AC POWER SUPPLY WHITE BLACK WHITE BLACK GREEN BLOWER DRAFT BLOWER MOTOR (FCDB) MOTOR (FC3SPMOTOR) -
Page 21: Troubleshooting
Troubleshooting Problem: Circulation blower runs constantly. NOTE: Make sure the white button on the fan limit control is pulled out and in the “auto” position. Possible Causes: Remedies: • Fan limit control is in “TEST” mode: • Pull white button out into the “AUTO” position. white button is pushed in. - Page 22 Problem: Draft blower will not run. NOTE: Verify that the wall thermostat is in the “HEAT” position, and make sure batteries are installed. Possible Causes: Remedies: • Defective wall thermostat. • This can be checked by turning the thermostat to a temperature setting that is higher than the temperature in your home, If the draft blower does not operate, the thermostat may be defective.
- Page 23 Problem: Draft blower runs constantly. Possible Causes: Remedies: • Defective wall thermostat. • This can be checked by turning the thermostat to a lower temperature setting than the temperature in your home. If the draft blower continues to run, the thermostat may be defective. Replace it if necessary. •...
- Page 24 Problem: Down draft on chimney caused by one or more of the following. Possible Causes: Remedies: • Flue has a cold spot which inhibits • This problem may occur in factory built flues because the insulation has exhaust discharge from rising properly. settled or a seam has ruptured.
- Page 25 Problem: Home does not achieve comfortable temperature. Possible Causes: Remedies: • Improper ductwork connection to • Refer to information in the manual relating to the proper installation existing furnace. procedures or contact your local heating and cooling contractor. • Improperly sized ducting. •...
-
Page 27: Warranty Information
Warranty Information CERTIFICATE OF LIMITED WARRANTY: EXTENT OF COVERAGE: This warranty covers any Fire Chief Furnace FC1000E sold in the United States and Canada. This warranty is void if the Fire Chief Furnace is not installed, maintained, and operated in accordance with the instructions in the owner’s manual and local codes. - Page 28 Purchase and Service Information Please complete this information following the purchase of your product. This information is required when requesting Customer Service and/or when processing Warranty Claims. Please reference this page when requesting Customer Service. Customer Information: Purchased From: Name: Dealer/Store: Street Dealer/Store Phone #:...
