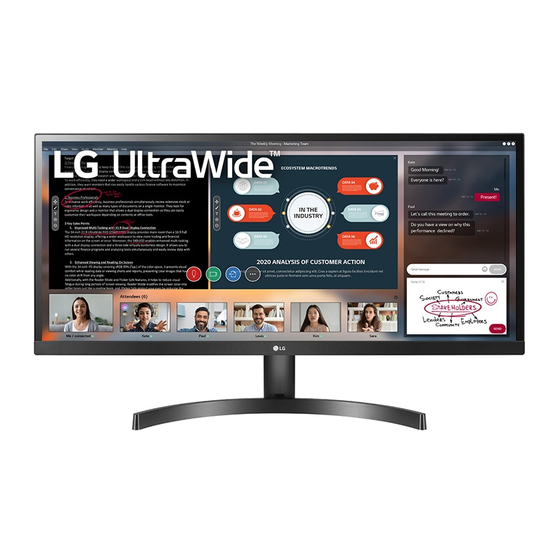

LG 34WL50S Owner's Manual
Led lcd monitor
Hide thumbs
Also See for 34WL50S:
- Owner's manual (26 pages) ,
- Quick start manual (8 pages) ,
- Owner's manual (26 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for LG 34WL50S
Summary of Contents for LG 34WL50S
- Page 1 OWnEr’S ManuaL LED LCD MOnITOr (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 29WL50S 34WL50S www.lg.com Copyright © 2019 LG Electronics Inc. all rights reserved.
-
Page 2: Table Of Contents
TabLE of CoNTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of OpEN SOurCE SOfTWArE NOTICE HDMI Licensing Administrator, Inc. -
Page 3: Open Source Software Notice
Supported Drivers and Software LG Electronics will also provide open source code to you on CD-rOM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 4 How to use the Joystick button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ down with your finger. 29WL50S 34WL50S basic functions CauTIoN Press the joystick button once with your finger •...
- Page 5 100 mm Be careful not to touch or press the screen area when adjusting the angle of the monitor. 100 mm 29WL50S 34WL50S CauTIoN • unplug the power cord before moving or installing the monitor. There is risk of electric shock.
- Page 6 using the Kensington Lock Installing the wall mount plate The connector for the Kensington security system is located at the bottom of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. for more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NoTE at http://www.kensington.com.
- Page 7 When measured from the back of the monitor, the length of each installed screw must be 8 mm or less. NOTe • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. •...
-
Page 8: Using The Monitor
uSING THE moNITor Connecting aV Devices HDmI Connection • Illustrations in this manual may differ from the actual product. Press the joystick button, go to Settings Input, and then select the input option. HDMI transmits digital video and audio signals from your aV device to the monitor. CauTIoN NoTE •... -
Page 9: User Settings
uSEr SETTINGS NoTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. activating the main menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu. - Page 10 main menu features main menu Description Input Sets input mode. Power Off power off Turns off the monitor. Settings Configures the screen settings. Settings Input Exit picture mode Sets the picture mode. Exit Exits the main menu. Picture Mode user Settings menu Settings To view the settings menu, press the joystick button at the bottom of the monitor and then enter the Settings.
- Page 11 Each option is described below. Settings > Quick Settings Description brightness adjusts the color contrast and brightness of the screen. Contrast Volume adjusts the volume level. NoTE • You can adjust mute / unmute by moving the joystick button to in the Volume menu. Color Temp Custom The user can adjust it to red, green, or blue by customization.
- Page 12 Picture Mode on SDr (non HDr) signal Settings > picture Description allows the user to adjust each element. The color mode of the main menu can be adjusted. picture mode Custom Heightens contrast, brightness and sharpness to display vivid images. Vivid Optimizes the screen for high dynamic range.
- Page 13 Picture Mode on HDr signal Settings > picture Description picture mode Custom allows the user to adjust each element. Vivid Optimized the screen for HDr vivid colors. Standard Optimized the screen for HDr standard. Cinema Optimized the screen for HDr video. This mode is optimized for fPS games.It is suitable for very dark fPS games.
- Page 14 Settings > picture Description picture adjust brightness adjusts the brightness of the screen. Contrast adjusts the contrast of the screen. Sharpness adjusts the sharpness of the screen. SupEr rESoLuTIoN+ High Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high quality video or game. middle The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing.
- Page 15 Settings > Picture Description Game Adjust Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Setting to Faster may cause image sticking.
- Page 16 Settings > Picture Description Color Adjust Gamma Mode 1, Mode 2, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes. Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Color Temp Custom The user can adjust it to red, green, or blue by customization.
- Page 17 Settings > General Description Language Sets the menu screen to the desired language. SMART ENERGY SAVING High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature. Disables the SMART ENERGY SAVING feature. Power LED The power LED turns on.
- Page 18 Settings > General Description Reset to Initial Settings Do you want to reset your settings? Returns to the default settings. Cancel the reset. Note • Saving Data depends on the Panel. These values vary by panel and vendor. If the option SMARt eNeRGY SAVING is set High or Low, then monitor luminance becomes lower or higher depending upon the source.
-
Page 19: Troubleshooting
tRoUBLeSHootING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Test the Power Plug using a lamp or other device. • Is the power LED on? Check the power cable connection and press the power button. - Page 20 Do you see an "Unrecognized monitor, Plug&Play (VeSA DDC) monitor found" message? Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the video card supports Plug&Play function.
-
Page 21: Product Specification
PRODUCT SPECIFICATION 29WL50S Color Depth 8-bit / 10-bit color is supported. Resolution Max Resolution 2560 x 1080 @ 75 Hz Recommended Resolution 2560 x 1080 @ 60 Hz Power Sources Power Rating 19 V 1.6 A Power Consumption On mode: 28 W Typ. (Outgoing condition)* (Typical) Sleep Mode (Standby Mode) ≤... - Page 22 Dimensions Monitor Size (Width x Height x Depth) With Stand (mm) 698.1 x 410.9 x 209.4 Without Stand (mm) 698.1 x 317.5 x 76.9 Weight (Without Packaging) With Stand (kg) Without Stand (kg) The specifications are subject to change without notice. The power consumption level can be different by operating condition and monitor setting.
- Page 23 PRODUCT SPECIFICATION 34WL50S Color Depth 8-bit / 10-bit color is supported. Resolution Max Resolution 2560 x 1080 @ 75 Hz Recommended Resolution 2560 x 1080 @ 60 Hz Power Sources Power Rating 19 V 2.4 A Power Consumption On mode: 42 W Typ. (Outgoing condition)* (Typical) Sleep Mode (Standby Mode) ≤...
- Page 24 Factory Support Mode (Preset Mode, PC) HDMI Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 640 x 480 37.5 800 x 600 37.879 60.317 800 x 600 46.875 75.0 1024 x 768 48.363 1024 x 768 60.123...
- Page 25 HDMI Timing (Video) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks 480P 31.5 576P 31.25 720P 37.5 720P 1080P 56.25 1080P 67.5 2160P 67.5 Power LED Mode LED Color On Mode White (For a few seconds) Sleep Mode (Standby Mode) Off Mode...
- Page 26 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
