Summary of Contents for Spectral Evolution PSR-1100f

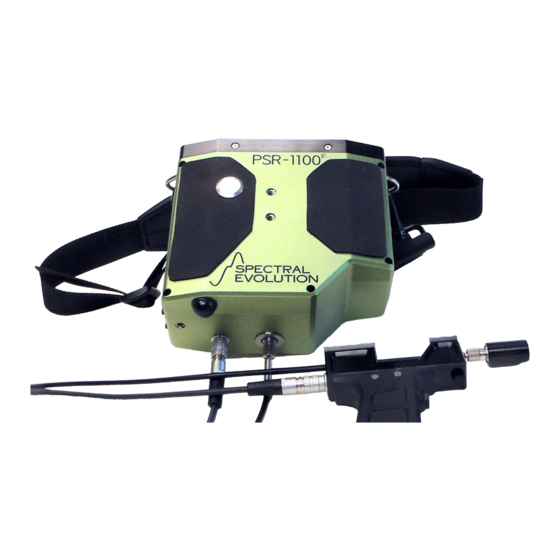

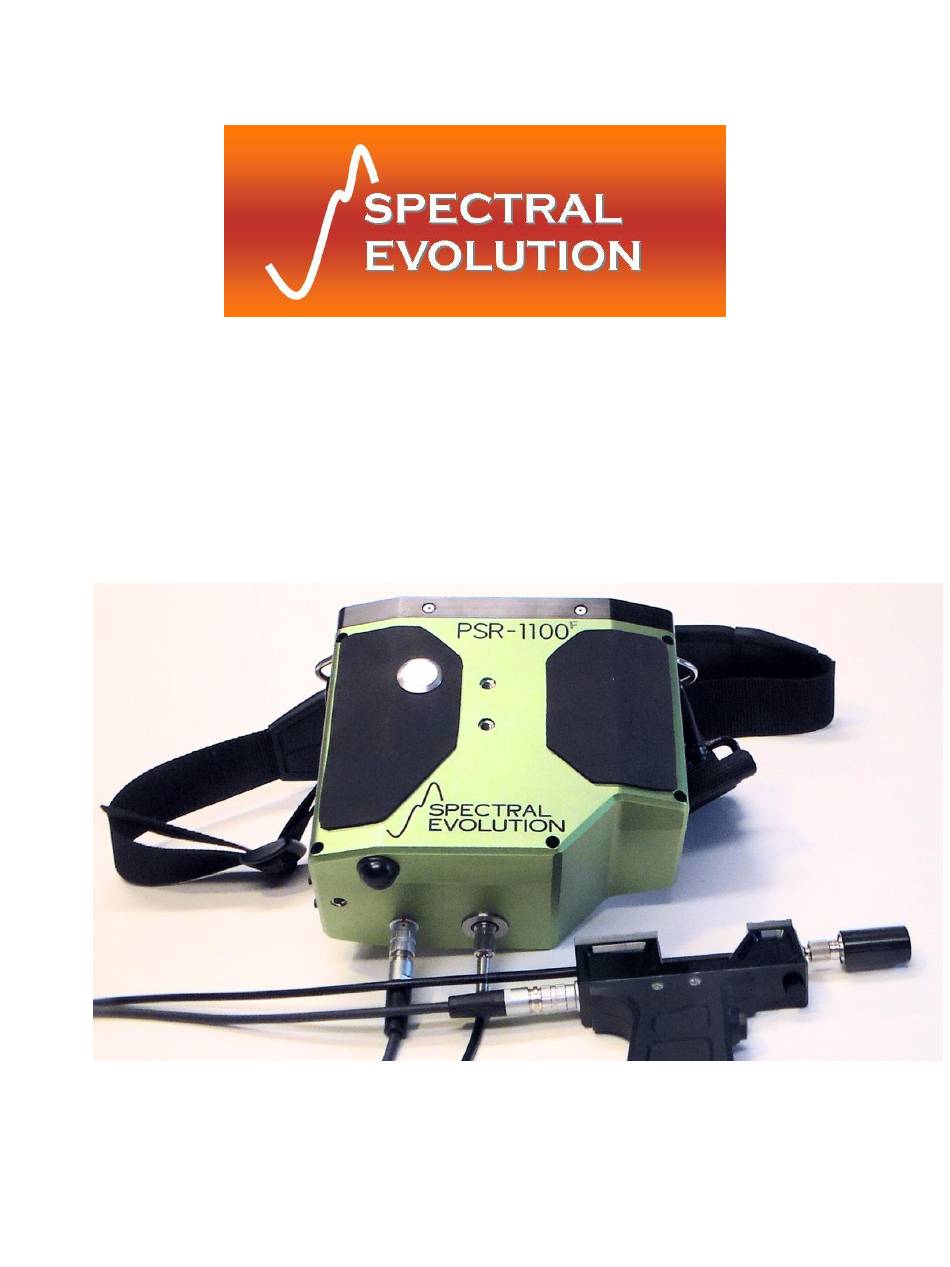

- Page 1 PSR-1100 Portable Spectroradiometer Operator’s Manual...
-
Page 2: Table Of Contents
Appendix B: PSR-1100f Specifications ................15 Appendix C: Bluetooth Information ................16 Appendix D: White Reference ..................16 Appendix E: CE Compliance Declaration ..............17 Revision History ......................17 ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 3: Introduction
PC, and provides data storage. Calibration data and spectral data (collected in standalone mode, described below) are stored in flash memory. The PSR-1100f has a built-in shutter for automatic dark measurements. The dark current data are retained in RAM and the microprocessor automatically performs mathematical functions on collected spectral scan data, including dark subtraction and automatic integration adjustment. -
Page 4: Hardware And Interface Description
2.1.2 Battery Pack The PSR-1100f uses a Li-Ion battery pack as a power source, supplied with the system. The Li-Ion battery runs at a nominal 7.4V and is designed to provide more than 3 hours operation following a full charge. -
Page 5: Front Panel
Figure 1: Front Panel view of the PSR-1100/PSR-1100F 2.1.5 Front Panel The front panel of the PSR-1100f contains the on/off switch, USB connector, battery receptacle and a control panel with membrane switches and LCD display. On either side of the front panel there are two mounting brackets for attaching a shoulder strap. See Section 3: Control Panel for more information. -
Page 6: Interface Specification
2.2 Interface Specification 2.2.1 Battery Pack Your PSR-1100f is supplied with one or more Li-Ion battery packs that fit into the recess on the front panel. Slide the spring-loaded catch to the side (away from the recess) with a finger to insert or remove the battery. -
Page 7: Usb Serial Connector
Baud Rate: 115200 bps Parity: none Data Length: 8 Stop bit: 1 Flow Control: none 2.2.4 ESD protection: +/- 15 KEV human body model, +/- 8KEV contact discharge ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 8: Control Panel
REF x.xx - Indicates that a spectral measurement will be stored as a Reference Scan; current battery voltage is x.xx volts, or “LBAT” (Low BATtery) when indicated. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 9: Status Messages
(1) LENS 4 – 4 degree FOV lens (2) FIBER1 – standard 25 degree FOV fiber optic (3) LENS14 – 14 degree FOV lens (4) RAW DN – no calibration applied ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 10: Modifying A Parameter
(2) Modify the parameter by depressing the EDIT button. The push button switches are programmed to scroll the menu of available options. (3) Depress the MENU button again to save the selected parameter setting. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 11: Operational/Functional Description
• After instrument power-up and warm-up, but before acquiring any reference/target scans. • Every 3-5 minutes thereafter; more often if time and conditions allow, or if lighting or environmental conditions are changing. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... - Page 12 4. Place a reference at the point of measurement making sure to completely fill the field of view of the instrument. This reference measurement is associated with all succeeding measurements until a new reference measurement is established. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA...
-
Page 13: Operation With A Host Pc
For detailed information on how to use DARWin SP with your PSR Series spectroradiometer, see the DARWin SP User Manual included with your instrument. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 14: Battery Charger
Also, always power the PSR Series instrument with its battery only. NEVER use the dedicated battery charger to provide power to the instrument. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 15: Appendix B: Psr-1100F Specifications
(other options available) Onboard Storage > 500 scans in stand-alone mode Environmental Specifications Operation Temperature -10–40°C Humidity 15–90% non-condensing Storage Temperature -20–70°C Humidity 15–90% non-condensing ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 16: Appendix C: Bluetooth Information
When complete, dry the surface by blowing nitrogen or clean compressed air over the surface. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA... -
Page 17: Appendix E: Ce Compliance Declaration
PSR-1100F discussion 1.05 Updated pictures and discussion for PSR-1100F 2/10/14 1.06 Updated pictures and discussion for PSR-1100f 8/28/17 ® Windows is a registered trademark of Microsoft Corporation. ©2017 Spectral Evolution Inc. 1 Canal St. Unit B-1 Lawrence, MA 01840 USA...
