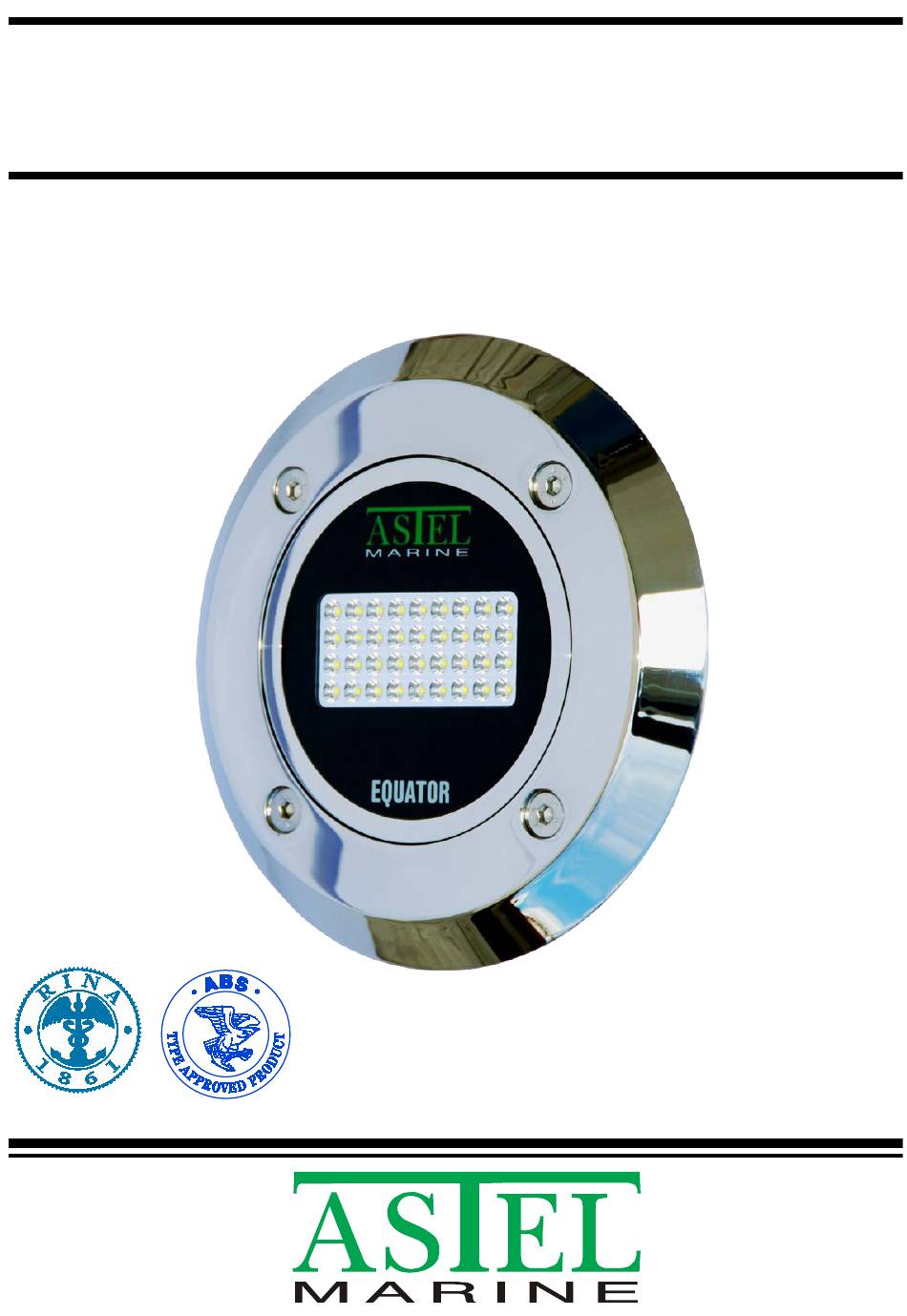

- Page 1 EQUATOR MSR36240P UNDERWATER LIGHT Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface ................................3 Features................................3 Precautions ..............................3 Components and Connectors .......................... 4 Installation ............................... 5 Controls ................................7 Appearance ..............................9 Technical Specifications ..........................9 Warranty ............................... 10 Declaration of Conformity ..........................11 ________________________________________________________________________________... -
Page 3: Preface
PREFACE PRECAUTIONS The EQUATOR MSR36240P series of a • The underwater light has to be installed and compact ultra-thin underwater light with built-in used in accordance with the instructions of driver is designed to use the latest LED lighting this manual only. -
Page 4: Components And Connectors
COMPONENTS AND CONNECTORS (1) Optical window High-grade polycarbonate glass optical window. (2) Underwater light casing Aluminium bronze or stainless steel casing with fixing holes and cable gland. (3) Cable The 4-pole multi-core cable to connect the 24Vdc power supply and optional remote control or switch. (4) Fixing screw The fixing screws to fix the underwater light on the hull. -
Page 5: Installation
INSTALLATION The underwater light kit consists of the following components: • Underwater Light EQUATOR MSR36240P • 4 x fixing screw M6x80 with nut M6 and washer • Operating Instructions with Declaration of Conformity and Warranty conditions The EQUATOR MSR36240P has to be installed on a flat surface on the stern or both sides of the hull of the vessel. - Page 6 Note: • All the stainless steel fixing screws (M6x80) it is highly recommended to be sealed in the contact with underwater light casing by optional TEF-GEL waterproof paste (not included) to prevent galvanic corrosion. Note: • To install the underwater light on the steel hull it is highly recommended to use the optional isolation board (not included) between the hull and underwater light casing to prevent galvanic corrosion.
-
Page 7: Controls
Multi-color (M) model To control the mode of lighting the simple momentary-switch (not included) has to be used and connected to the CONTROL wires by the 2-pole signal cable (not included). Optional MXU01 interface can be connected to the CONTROL wires by using a 2-pole signal cable (not included). - Page 8 Dimming When the light is turned-on press the momentary-switch until the desired illumination is achieved. By another pressing of the momentary-switch the luminosity will increase to the maximum illumination. Set default Press the momentary switch for min. 40 seconds or until the light is turned off. Synchronization When more than one multi-color underwater light is connected to the system the optional Synchronization Unit MSU08 is recommended to synchronize the colors of lighting at the Rainbow...
-
Page 9: Appearance
APPEARANCE TECHNICAL SPECIFICATIONS Power supply 24 Vdc, max. 3.4 A Lens angle 60° Optical window High-grade polycarbonate glass Luminous flux max. 8.300 lm White color temperature 6.000 - 10.000 K ASTEL protocol default address Operating temperature -10°C - +50°C Casing Stainless steel (SAE316L) Protection IP 68... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY according to IEC Guide 22 and EN 45014 Manufacturer's Name: ASTEL, Podjetje za projektiranje, proizvodnjo in trgovino, d.o.o. Manufacturer's Address: Dutovlje 138 6221 Dutovlje Slovenija declares that the products 1. Underwater Light EQUATOR MSR36240P Item, Product Name and Model Number: conform to the following Product Specifications: EMC: EN 55015:2006 + A1:2007... - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-marine.com E-mail: www.astel-marine.com Web:...
