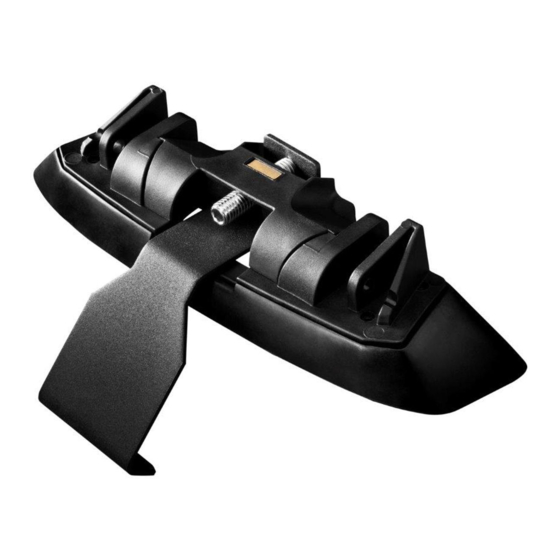

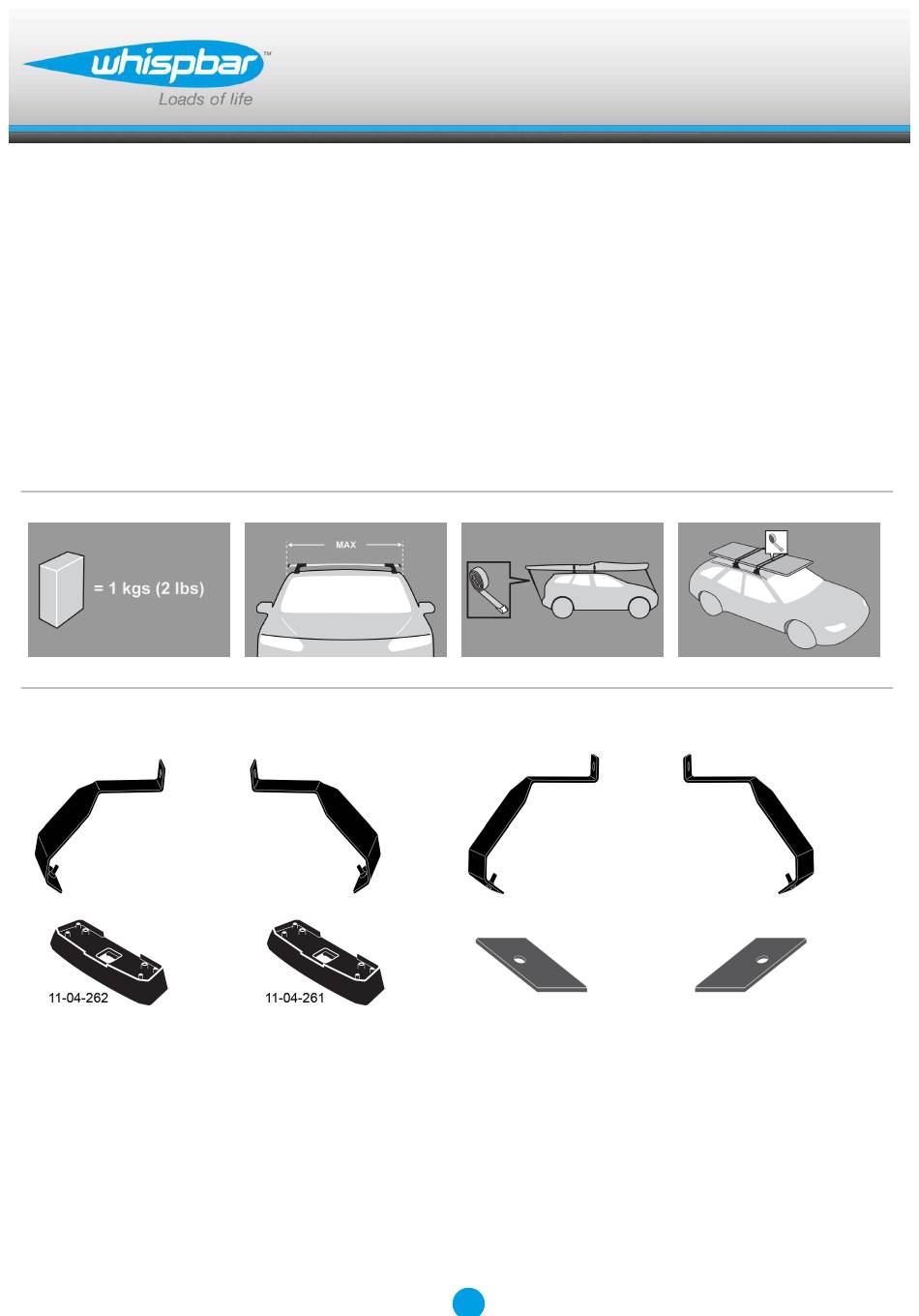

- Page 1 K776W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K776W...
- Page 3 Fitting Kit K776W MAX kgs (lbs) Peugeot 508, 4dr Sedan 11-+ 70 kgs (154 lbs) 70 kgs (154 lbs) 508, 4dr Sedan 11-+ 70 kgs (154 lbs) 70 kgs (154 lbs) 508, 4dr Sedan 11-+ 70 kgs (154 lbs) 70 kgs (154 lbs)
- Page 4 Fitting Kit K776W 508, 4dr Sedan 11-+ (EU) -310mm 400mm 903mm 875mm -12 -3/16ths" 15 3/4ths" 35 9/16ths" 34 7/16ths" 508, 4dr Sedan 11-+ (ZA) -310mm 400mm 903mm 875mm -12 -3/16ths" 15 3/4ths" 35 9/16ths" 34 7/16ths" 508, 4dr Sedan 11-+ (AU)
-
Page 5: First Time Installation
Fitting Kit K776W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K776W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 7 Fitting Kit K776W Remove locking screw. Apply protective strip as shown. Trim if required. A = Clear B = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps.
- Page 8 Fitting Kit K776W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 9 Fitting Kit K776W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 261 B = 262 Place rubber pads (supplied with fitting kit) on the vehicle roof.
- Page 10 Fitting Kit K776W Fitment Clamps directly to edge of roof under the doors Please check the front of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 11 Fitting Kit K776W Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 12 Fitting Kit K776W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K776W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K776W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 15: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 16 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
