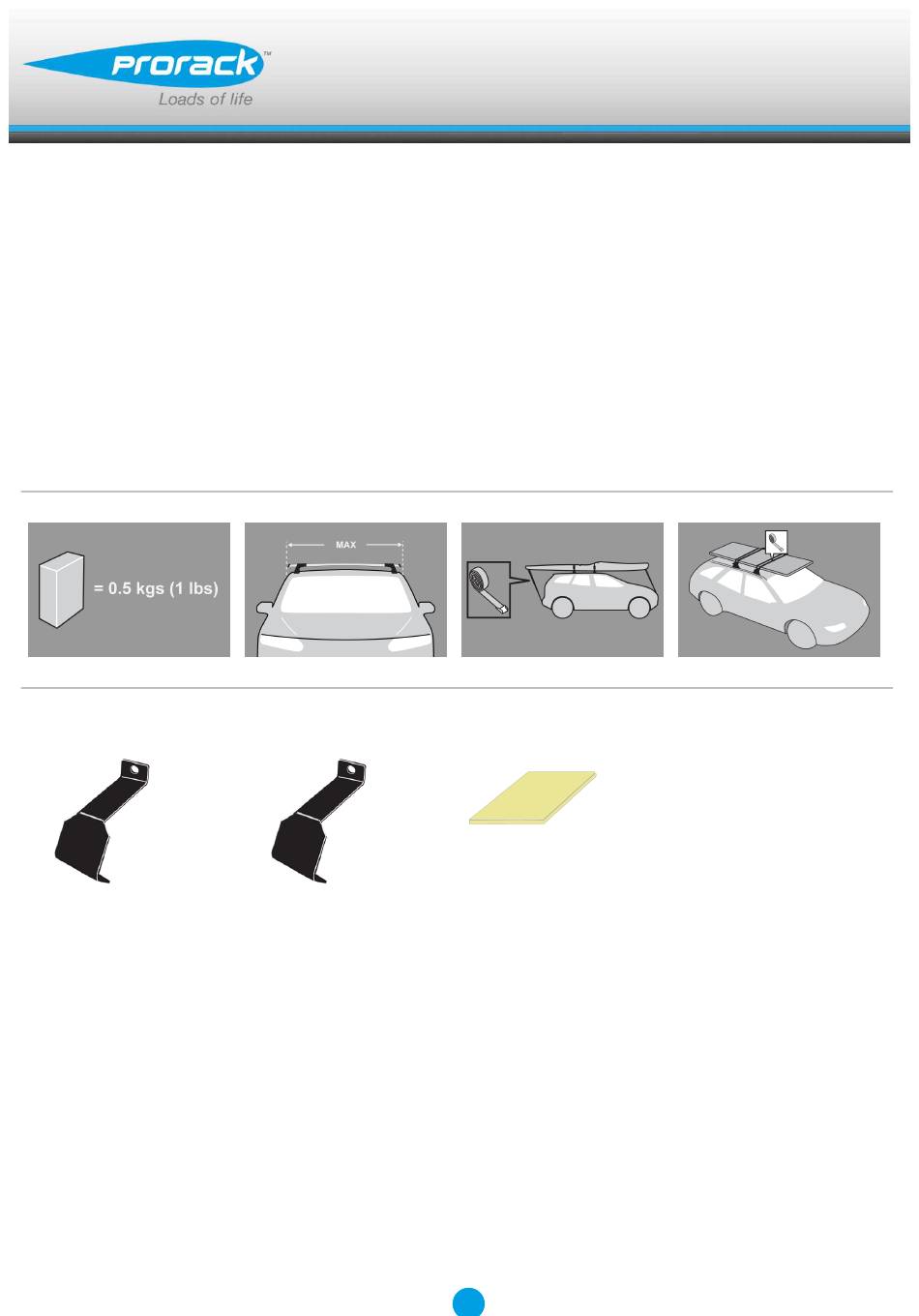

- Page 1 K319 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
- Page 2 Fitting Kit K319 MAX kgs (lbs) Toyota Corolla, 4dr Sedan 07-13 40 kgs (88 lbs) 40 kgs (88 lbs) Corolla, 4dr Sedan 07-13 40 kgs (88 lbs) 40 kgs (88 lbs) Corolla, 4dr Sedan 07-13 40 kgs (88 lbs) 40 kgs (88 lbs)
- Page 3 Fitting Kit K319 Corolla, 4dr Sedan 07-13 (ZA) -250mm 450mm 886mm 880mm -9 -13/16ths" 17 3/4ths" 34 7/8ths" 34 5/8ths" Corolla, 4dr Sedan 07-13 (EU) -250mm 450mm 886mm 880mm -9 -13/16ths" 17 3/4ths" 34 7/8ths" 34 5/8ths" Corolla, 4dr Sedan 07-13 (CN)
-
Page 4: First Time Installation
Fitting Kit K319 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K319 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K319 Remove locking screw. Apply protective strip as shown. Trim if required. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 218B B = 414A...
- Page 7 Fitting Kit K319 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 8 Fitting Kit K319 Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the...
- Page 9 Fitting Kit K319 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K319 Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K319 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K319 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Year Warranty
YakimaEU will issue to the original retail purchaser, at YakimaEUs option, either a refund equal to the purchase price paid for the product, or a credit to be used toward the purchase of new Prorack products or rack components.
