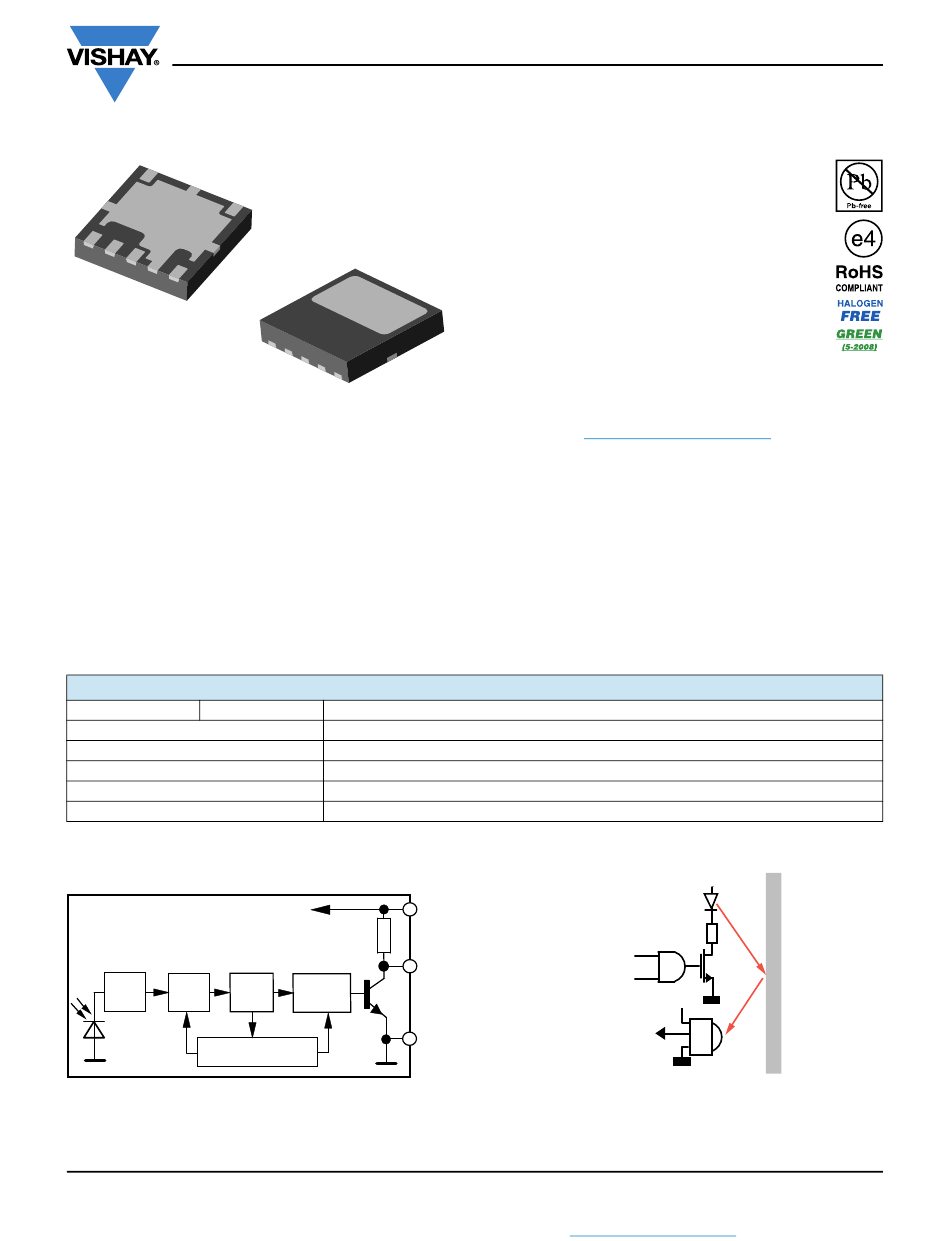

IR Detector for Mid Range Proximity Sensor
22531-1
DESCRIPTION
The TSSP57P38 is a compact infrared detector module for
proximity sensing application. It receives 38 kHz modulated
signals and has a peak sensitivity of 940 nm.
The length of the detector's output pulse varies in proportion
to the amount of light reflected from the object being
detected.
ORDERING CODE
Taping:
TSSP57P38TT1 - top view taped
TSSP57P38TT2 - top view taped
PARTS TABLE
Carrier frequency 38 kHz
Package
Pinning
Dimensions (mm)
Mounting
Application
BLOCK DIAGRAM
16833_20
Band
Input AGC
pass
PIN
Control circuit
Rev. 1.5, 29-Jul-14
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
4, 5
V
S
33 kΩ
1
OUT
Demo-
dulator
2, 3, 6,
7, 8
GND
1
Vishay Semiconductors
FEATURES
• Height of 0.8 mm
• Up to 2 m for proximity sensing
• Receives 38 kHz modulated signal
• 940 nm peak wavelength
• Photo detector and preamplifier in one package
• Low supply current
• Shielding against EMI
• Visible light is suppressed by IR filter
• Insensitive to supply voltage ripple and noise
• Supply voltage: 2.5 V to 5.5 V
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• Safety switches for garage door, elevator door, gates, and
industrial light curtains
• Reflective sensors for toilet, urinal, faucet and hand dryer,
and towel dispenser
• Navigational sensor for robotics
• Sensor for large format touch panels
• Object detection in vending machines, parking lots,
ATM's, and many others
TSSP57P38
Belobog
1 = OUT, 2, 3, 6, 7, 8 = GND, 4, 5 = V
3.95 W x 3.95 H x 0.8 D
SMD
Proximity sensors
APPLICATION CIRCUIT
IR emitter
Envelope
signal
38 kHz
+ 3 V
Out to
μC
TSSP57P38
www.vishay.com/doc?91000
TSSP57P38
S
+ 3 V
Document Number: 82480
