Vishay TSSP57P38 Manual

Ir detector for mid range proximity sensor
Hide thumbs Also See for TSSP57P38:

Advertisement

Table of Contents

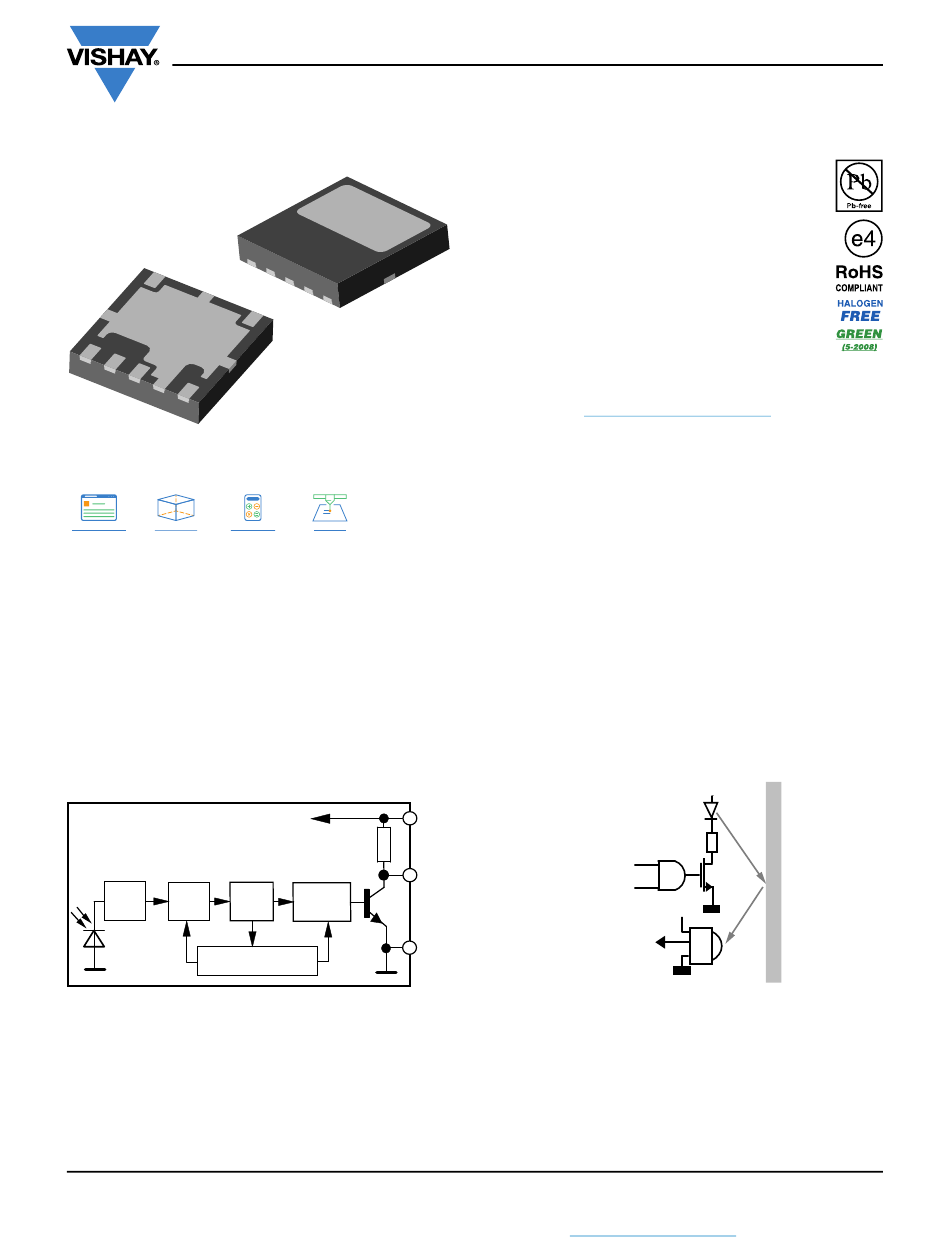

www.vishay.com
IR Detector for Mid Range Proximity Sensor
22531-1
LINKS TO ADDITIONAL RESOURCES
3 3
3
D
D D
3 D
Product Page
3D Models
Calculators
DESCRIPTION
The TSSP57P38 is a compact infrared detector module for
proximity sensing application. It receives 38 kHz modulated
signals and has a peak sensitivity of 940 nm.
The length of the detector's output pulse varies in proportion
to the amount of light reflected from the object being
detected.
BLOCK DIAGRAM
16833_20
Band
Input
AGC
pass
PIN
Control circuit
Rev. 2.2, 30-Mar-2021
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
Marking
4, 5
V
S
33 kΩ
1
OUT
Demo-
dulator
2, 3, 6,
7, 8
GND
1
Vishay Semiconductors
FEATURES
• Height of 0.8 mm
• Up to 2 m for proximity sensing
• Receives 38 kHz modulated signal
• Photo detector and preamplifier in one package
• Low supply current
• Shielding against EMI
• Visible light is suppressed by IR filter
• Insensitive to supply voltage ripple and noise
• Supply voltage: 2.5 V to 5.5 V
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
ORDERING CODE
Taping:
TSSP57P38TT1 - top view taped, 1800 pcs/reel
APPLICATIONS
• Object approach detection for activation of displays and
user consoles, signaling of alarms, etc.
• Simple gesture controls
• Differentiation of car arrival, static, car departure in
parking lots
• Reflective sensors for toilet flush
• Navigational sensor for robotics
PROXIMITY SENSING
IR emitter
Envelope
signal
38 kHz
+3 V
Out to
μC
TSSP57P38
www.vishay.com/doc?91000
TSSP57P38
+3 V
Document Number: 82480

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSSP57P38 and is the answer not in the manual?

Questions and answers

Related Manuals for Vishay TSSP57P38

Summary of Contents for Vishay TSSP57P38

  • Page 1 DESCRIPTION • Object approach detection for activation of displays and user consoles, signaling of alarms, etc. The TSSP57P38 is a compact infrared detector module for proximity sensing application. It receives 38 kHz modulated • Simple gesture controls signals and has a peak sensitivity of 940 nm.

  • Page 2: Parts Table

    TSSP57P38 www.vishay.com Vishay Semiconductors PARTS TABLE Carrier 38 kHz TSSP57P38 frequency Package Belobog Pinning 1 = OUT, 2, 3, 6, 7, 8 = GND, 4, 5 = V Dimensions (mm) 3.95 W x 3.95 H x 0.8 D Mounting Application...

  • Page 3: Typical Characteristics

    TSSP57P38 www.vishay.com Vishay Semiconductors TYPICAL CHARACTERISTICS (T = 25 °C, unless otherwise specified) Optical Test Signal (IR diode TSAL6200, I = 0.4 A, 30 pulses, f = f , t = 10 ms) Correlation with Ambient Light Sources: 10 W/m = 1.4 kLx (Std.
  • Page 4 0.25 0.20 0.15 0.10 Directivity Characteristic of a Reflective Sensor using 0.05 VSMB1940X01 and TSSP57P38 - Ambient Temperature (°C) Angle (°) Fig. 7 - Sensitivity vs. Ambient Temperature Fig. 10 - Angle Characteristic Emitter: VSMB1940X01 = 100 mA = 10 mA...
  • Page 5 Vishay Semiconductors The typical application of the TSSP57P38 is a reflective sensor with analog information contained in its output. Such a sensor is evaluating the time required by the AGC to suppress a quasi continuous signal. The time required to suppress such a signal is longer when the signal is strong than when the signal is weak, resulting in a pulse length corresponding to the distance of an object from the sensor.
  • Page 6 TSSP57P38 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters 4 x 0.75 = 3 Not indicated tolerances ± 0.1 0.475 (0.3) 0.75 ± 0.05 technical drawings according to DIN specifications Pinning from topview (8 x) 0.35 ± 0.05 Pin 1 identification...
  • Page 7 Max. ramp up 3 °C/s Max. ramp down 6 °C/s Max. 2 cycles allowed Time (s) 19800 TAPING VERSION TSSP57P38 DIMENSIONS in millimeters Tape and reel dimensions: Unreel direction Reel size “Y” TT1 Ø 180 ± 2 = 1800 pcs.
  • Page 8 The standard packing units are labeled with standard bar code labels before transported as finished goods to warehouses. The labels are on each packing unit and contain Vishay Semiconductor GmbH specific data. VISHAY SEMICONDUCTOR GmbH STANDARD BAR CODE PRODUCT LABEL (finished goods)

  • Page 9: Esd Precaution

    Aluminum bag VISHAY SEMICONDUCTORS STANDARD BAR CODE LABELS Label The Vishay Semiconductors standard bar code labels are printed at final packing areas. The labels are on each packing unit and contain Vishay Semiconductors specific data. Reel...
  • Page 10 Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
