Panasonic TX-P50UT30 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Plasma TV
  5. TX-P50UT30
  6. Service manual

Panasonic TX-P50UT30 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

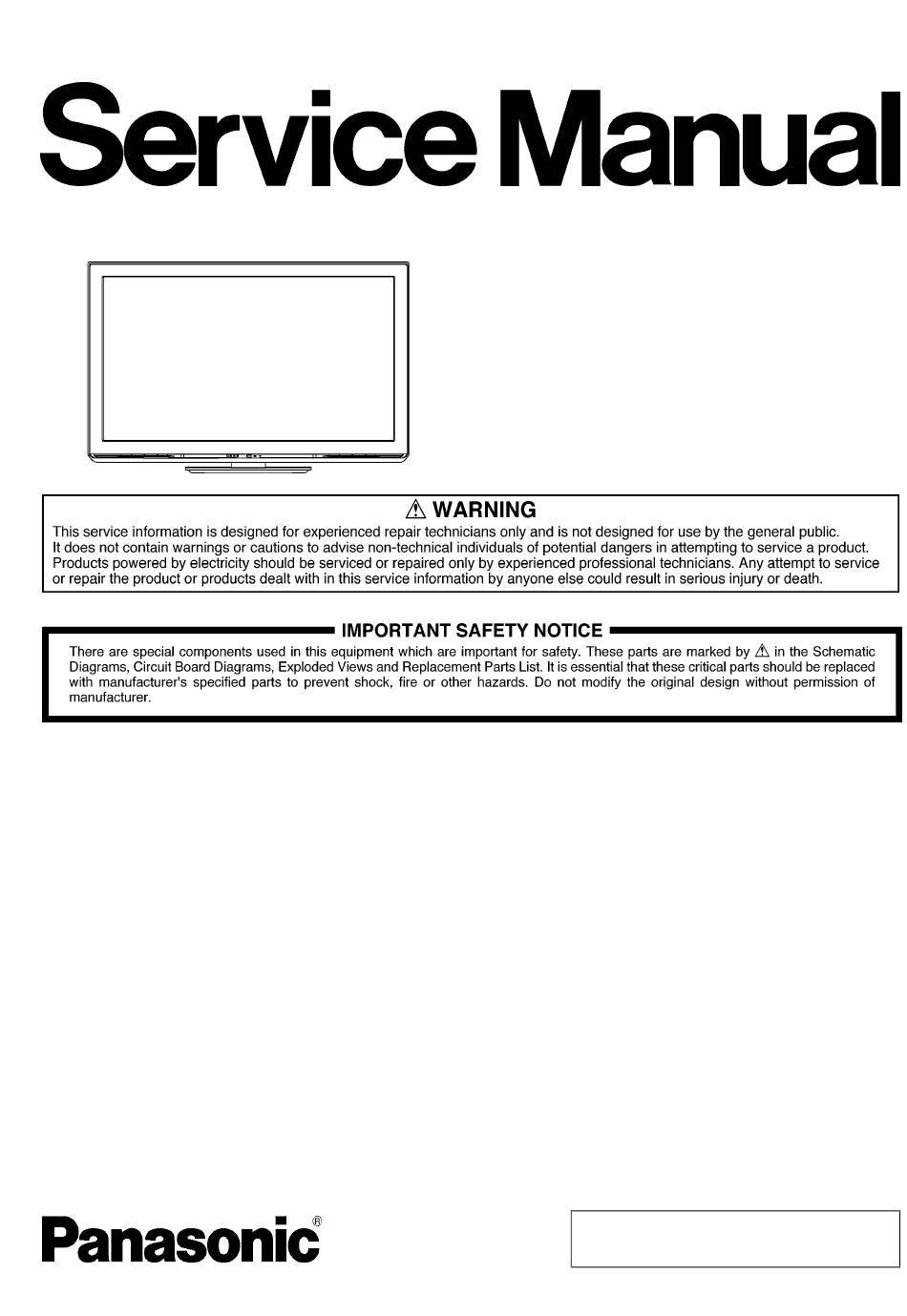

TX-P50UT30E
Model No.
TX-P50UT30J
GPF14D-E Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PCZ1107114CE
Plasma Television
