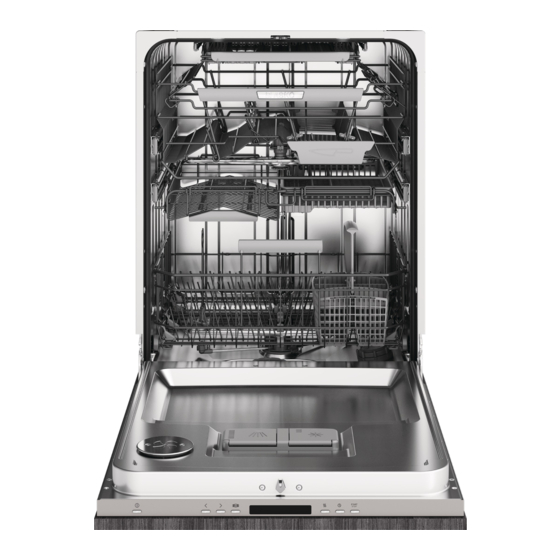

Asko DSD4342B Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS
Dishwasher DSD4342B
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSD4342B and is the answer not in the manual?

Questions and answers

Related Manuals for Asko DSD4342B

Summary of Contents for Asko DSD4342B

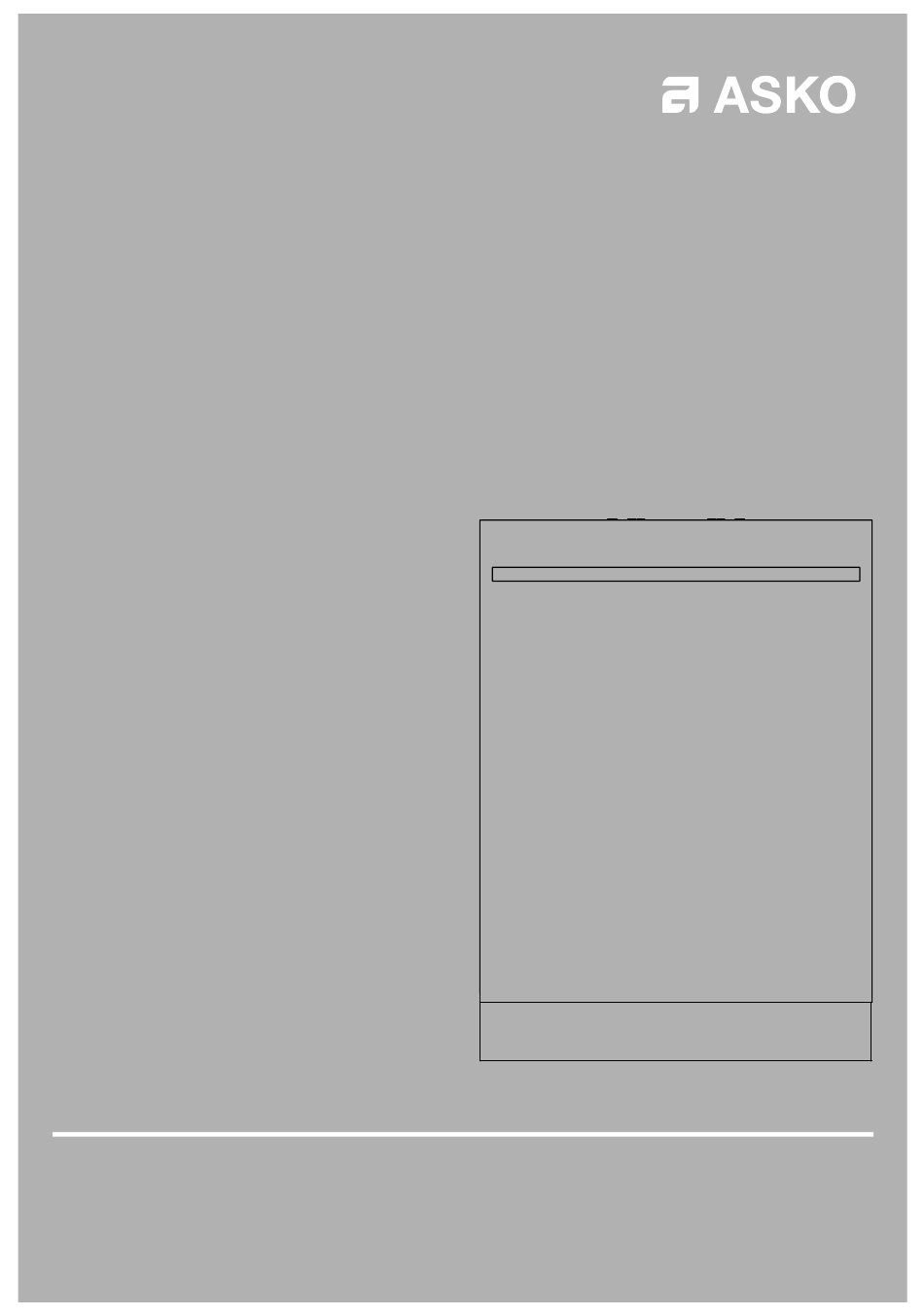

  • Page 1 OPERATING INSTRUCTIONS Dishwasher DSD4342B...

  • Page 2: Table Of Contents

    Open the door and press the main power switch. "Welcome to your ASKO. First time set-up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4.

  • Page 3: Safety Instructions

    Safety instructions Activate child lock (Kid Safe™) NOTE! You can activate the child lock (button lock) to prevent children from Read the operating instructions and keep starting the dishwasher. See the chapter Settings. them in a safe place! Installation Number of standard place settings: 13 See the chapter Installation.

  • Page 4: Before Washing For The First Time

    Open the door and press the main power switch. soft water (water with low mineral content). Hard water leaves a white "Welcome to your ASKO. First time set-up." is shown on the display. coating on dishes and the dishwasher. It is important that you choose the right settings to ensure good Water hardness is specified using the German water hardness scale dishwashing results.

  • Page 5: Loading The Dishwasher

    Loading the dishwasher Greener dishwashing Set water hardness 0/1/2/3/4/5/6/7/8/9 Do not rinse under running water Adjusting the water softener. Select a setting depending on the Simply scrape off large food particles before loading the dishwasher. hardness of the water supply. It is important that this setting is correct! Do not forget to put salt in the salt compartment after you have set Choose a green detergent the water softener to 1 - 9.
  • Page 6 Fragile dishes The dishwasher's baskets Some cookware is not dishwasher safe. This can be for several reasons. The dishwasher is equipped with an upper basket and a lower basket Some materials cannot withstand strong heat, others can be damaged with a cutlery basket. by dishwashing detergent.
  • Page 7 Cutlery basket with lid Washing large plates Move foldable tines and their mounts to widen the distance between The cutlery basket lid can be removed and used, for example, as an the tine rows to adapt the lower basket to plates with a diameter greater extra cutlery basket in the upper basket (see below).

  • Page 8: Using The Dishwasher

    Using the dishwasher Add detergent NOTE! Use only dishwasher detergent! Washing up liquid must not be used Press to open as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly.
  • Page 9 Open the door and press the main power switch. Starting the dishwasher 2:15 Select the programme Select a programme mode Select any options The main power switch Intensive Programme for very dirty dishes, such as pans, casserole dishes and Open the door and press the main power switch. Also turn on the water oven dishes.
  • Page 10 If the dishwasher is not started or the door is not closed within 2 minutes The dishwasher switches off automatically after the programme ends. of the last button press, the machine switches off. Shut off the water tap after each use. Time remaining How to get the best drying results Once you have chosen a programme, programme mode and options,...

  • Page 12: Settings

    Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector Navigation button for selecting a setting Mode selector to confirm current setting 2.
  • Page 13 Settings Options High temperature On/Off Activate the setting High temperature to improve the dishwashing results. Energy consumption is slightly increased. Activated in the following programmes: Daily Intensive Extra Dry On/Off Activate the setting Extra Dry to improve the drying results. Energy consumption is slightly increased.

  • Page 14: Care And Cleaning

    Care and cleaning Fine filter Top up rinse aid Debris that collects on the fine filter is automatically rinsed away during When the rinse aid needs topping up, the above symbol lights on the each wash. Clean the fine filter when necessary. display.
  • Page 15 3. Scoop out the water from the dishwasher tub. 4. In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain. 5. Turn the pump wheel located behind the drainage pump stop by hand.

  • Page 16: Troubleshooting

    Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
  • Page 17 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See the chapter Care and cleaning.
  • Page 18 Problem Possible causes Action Water remains in the dishwasher. The filters are blocked. Clean the coarse and fine filters. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.

  • Page 19: Technical Information

    Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 ASKO Model designation: DSD4342B Number of standard place settings: Energy efficiency class: A+++ Annual energy consumption(AE 234 kWh per year Energy consumption of the standard cleaning cycle(E 0.82 kWh...

  • Page 20: Installation

    Installation [mm] 1198 1254** 30-94 *Remove locking nuts for an installed height of 820-821 mm. Door length Cover door with slide function fitted, which means the cover door slides upwards when the dishwasher is opened. Nominal dimensions. Actual measurements may vary. It is important that you read through and follow the instructions and directions below.

  • Page 21: Service

    If you have encountered a problem that you cannot resolve, See the separate installation instructions for necessary information. please contact your nearest dealer, see www.asko.com. This dishwasher is suitable for installing in a raised recess (to attain When making contact, provide the details on the serial number plate.

  • Page 22: Information For Test Institute

    Information for test institute Request test institute information via e-mail dishwashers@appliance-development.com. The request should include the details on the serial number plate. Include the article number (1) and the serial number (2). ART. NO. SERIAL NO.

  • Page 23: Your Notes

    Your notes...

  • Page 24: Quick Guide

    Top up salt and rinse aid to achieve good washing and drying results. (See page 4.) Top up rinse aid Top up salt Select a programme, programme mode and any options (See page 9.) Press Start/Stop, close the door ASKO APPLIANCES SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
