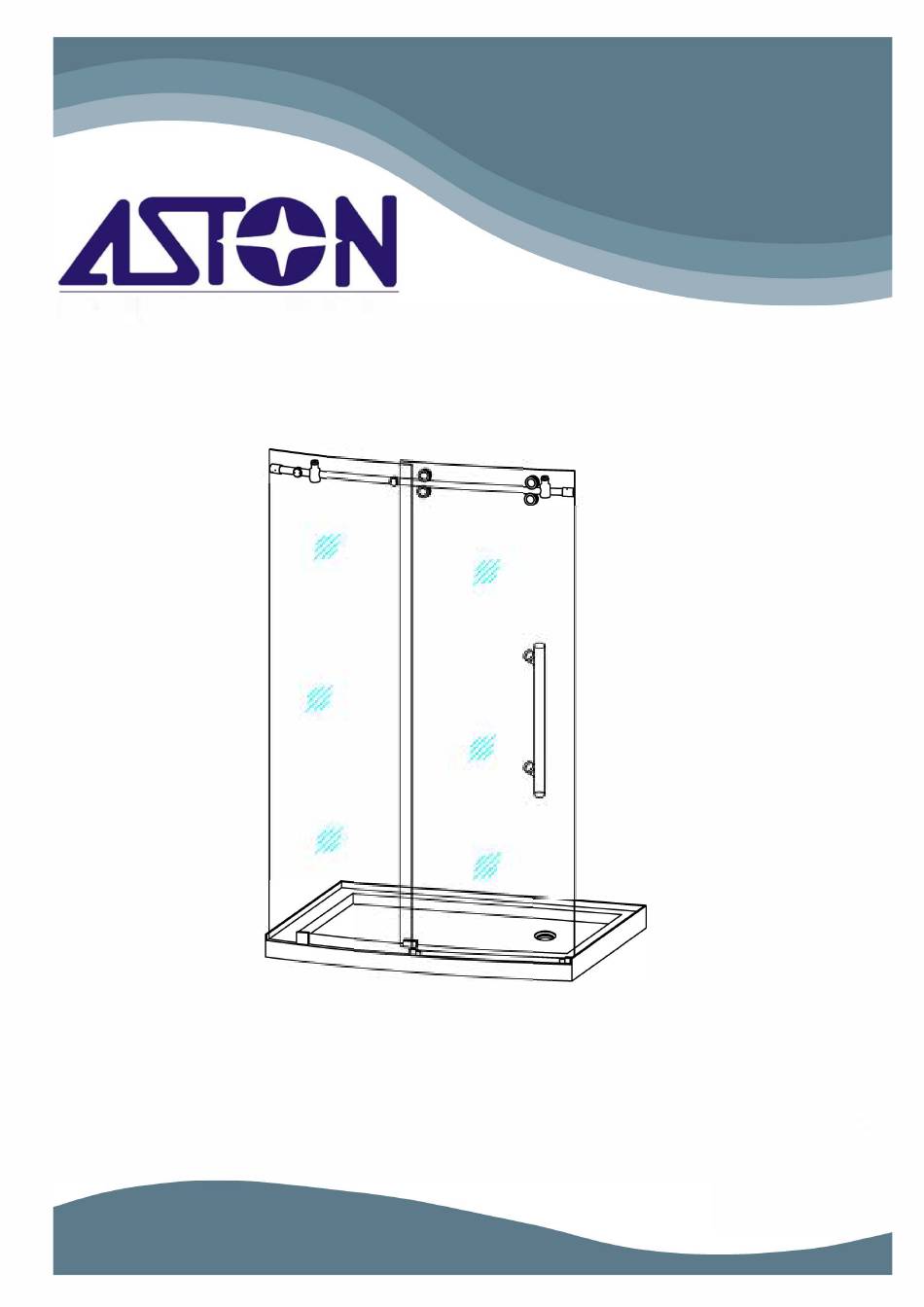

- Page 1 ESCAPE THE EVERYDAY INSTALLATION AND OWNER'S MANUAL ZENARCH (SDR981) Shower Door with Tray Model Number: SDR981.00-R Please carefully read these instructions before you begin to install the products. 06/ 1 6 Rev A P/N:SDR98 1 .00...
-
Page 2: Before You Start
Before you start Thank you for purchasing your Aston shower door. We hope that it will provide you with years of satisfying use and enjoyment. Please read this manual carefully because it contains inf o rmation and instructions about the proper installation of the unit. If you do not follow certain conditions of installation and maintenance, your warranty may be affected. - Page 3 Detailed Diagram of Shower Door Components � � � � Number Number Description Description Door Stopper Door Threshold Top Rail Door Threshold End Cap Fixed Glass Door Seal Sliding Door Door Seal Rail End Door Seal Glass Clamp Door Handle Screw Pack 1 Sliding Door Track Divider Wheel Assemnly...
-
Page 4: Supplied Hardware
SUPPLIED HARDWARE M4x40 �""""'"'"'" t,. SCREW PACK ( 1 ) Anchor � M4x40 �IIIIIIUIIIIIIIUb SCREW PACK Anchor ( 2 ) � M4x40 81111m1111111m t,. SCREW PACK ( 3 ) Anchor � SUPPLIED PARTS 60" 9" C"') T""" I'--... - Page 5 Installation Guide Please read and follow the installation instructions and guidelines in this section. Failure to follow the recommended instructions and installation techniques may lead to possible damage to the unit or the surrounding area. This can affect warranty claims. ATTENTION: This unit requires assembly.
- Page 6 Right-Handed Shower Installation Note: This shower door is not reversible. The right-handed shower requires the door to open from right to left and cannot be reversed. Note the location of the fixed glass panel, and sliding door for the right-handed shower installation.
- Page 7 Preparation of base for installation of shower tray -----T i l e or i s hed Surface --- Stud i-----+ - D ry Wall Or Wall Bo a rd <OJI ¾" WARNING: THE Aston shower door and tray are designed to be used with tile walls.
- Page 8 This can be accomplished by leveling the subfloor by use of Shims, Leveling compound or placing the shower tray into a mortar base The shower tray must be installed so that the tile lip is against the wall studs. It is recommended that the tray is attached to the studs using screws.
- Page 9 Mark the Top Rail Location ATTENTION: A minimum of two people are required for the next assembly steps. Pre-assembly the top rail onto the fixed glass to locate the mounting points on the wall relative to your desired location. Painters tape or masking tape in the general location of the of the final installation will aid in marking the wall and floor.
- Page 10 Slide door stopper (1) onto end of top rail (2) See figure 1. The bumpers on door stopper (1) should be positioned on the top of top rail for final installation. Note: One door stopper comes pre-assembled on top rail between fixed glass bolt assembly.
- Page 11 7. Position glass clamp (6) on shower tray and attach to shower tray using M4 x 40 screws from screw pack 1. The glass clamp should be positioned so the single hole is facing toward the inside of shower. See figure 6.
- Page 12 Mounting the Top Rail mounts Brackets M4x40 ' II Fixed glass ATTENTION: A minimum of two people are required for the next assembly steps. 1. Position the top rail/fixed glass assembly into your shower opening. With the rail ends (5) in place on both ends of top rail (2) (not tightened) position top rail/fixed glass assembly so that rail end (5) mounting holes align with shower wall anchors.
- Page 13 3. Insure plastic sliding door glide is in place in underside of sliding door track divider (7) and positioned to proper location for 8mm glass thickness. See figure 3. 4. Position the sliding door track divider (7) into position as seen in figure 4 and mark the 2 shower tray hole positions.
- Page 14 Install Wheel Rollers onto the Door r: • Assemble the upper roller assemblies (8) onto sliding door (4) as seen in figure 1 Note: The door handle mounting holes should be positioned to right. The upper roller assemblies (9) will be on the outside of sliding door (4 ). The sliding door should be to the inside of shower area.
- Page 15 Hanging the Door ROLLER CAM ADJUSTMENT Rotate the outer edge of roller assembly usin - g ---�� the small hex, while holding the large hex wrench -- in place. End View upper roller assembly top rail (2) � bottom roller assembly Suspend the sliding door (4) on the top rail (2).
- Page 16 Install the Door Threshold SCREW PACK y 0 ½ " � M4X40 The Door Threshold is used to prevent water from seeping out while bathing. Install the threshold according to these instructions. 1. Position the door threshold (10) to shower tray by aligning in door opening with fixed glass (3).
- Page 17 3. Add a small amount of silicone sealant to bottom of threshold bar assembly place into position. See figure 3. 4. Using the hardware from screw pack 3 install the threshold bar assembly. Install the decorative screw plug covers into threshold end caps ( 1 1 ). See figure...
- Page 18 Installing the door seals Install the door seals according to the drawing.
-
Page 19: Installing The Door Handle
Installing the door handle Install the door handle (15) using hardware provided. Follow the assembly sequence seen in drawing. - Page 20 Final sealing Using Bath & Kitchen silicone sealant, seal the fixed glass (3) along bottom edge on shower tray, and side edge along shower wall. Next seal around sliding door track divider (7).
-
Page 21: Care And Maintenance
Care and Maintenance As with any other luxury item, maintenance and care are critical to the long lasting quality and enjoyment of your shower door and tray. The proper care and maintenance outlined in this section are necessary to ensure the longevity of the unit. -
Page 22: Warranty
Product shall be replaced, or in the alternative, repaired, shall be made solely by Aston Global. If a Product is determined to be covered by the above Warranty, Aston Global will ship the replacement part(s) to Customer by either ground shipping or US postal service. -
Page 23: Legal Disclaimers
Aston Global and it representatives shall not be liable for any injury, loss, cost or other damages, whether incidental or consequential, arising out of any defect covered by this... - Page 24 Product. If this does not result in prompt service, contact Aston Global, Inc. at the address below with details in support of the warranty claim. For any questions about coverage of this Warranty, contact Aston Global at the address below.
- Page 25 Notes...
- Page 26 Notes...
- Page 27 ESCAPE THE EVERYDAY Customer Service 877 -424-9699 If further assistance is required, you have a question or need additional product information, please visit our website: www.astonbath.com...
