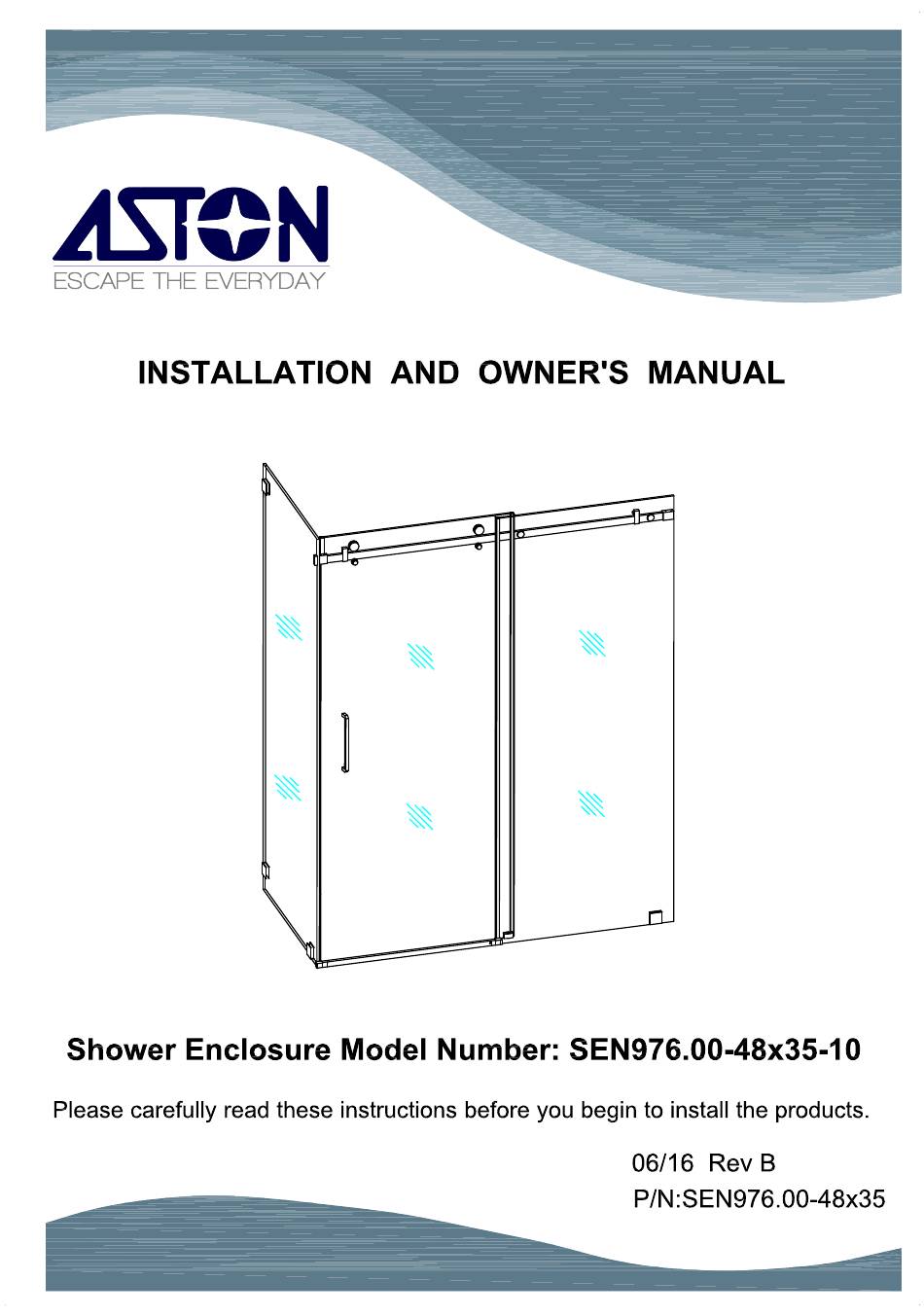

- Page 1 MOSELLE (SEN976)
-
Page 2: Before You Start
Before you start Thank you for purchasing your Aston shower enclosure. We hope that it will provide you with years of satisfying use and enjoyment. Please read this manual carefully because it contains information and instructions about the proper installation of the unit. If you do not follow certain conditions of installation and maintenance, your warranty may be affected. - Page 3 Detailed Diagram of Shower Door Components 1� rllJ � �oo � � � � � � 11,J � �tB � � Description Number Number Description Door Stopper Bottom Roller Guide Assembly Door Threshold Top Rail Fixed Glass Door Threahold End Cap Door Seal Sliding Door Door Seal...
-
Page 4: Supplied Hardware
SUPPLIED HARDWARE M4x40 SCREW PACK � Anchor [ p32Z3 M4x40 SCREW PACK � ( 2 ) Anchor Cµ2Z3 M4x40 SCREW PACK � ( 3 ) Anchor [1ps@:3 -8ann,.,_ M4x40 SCREW PACK ( 4 ) Anchor [ p32Z3 SUPPLIED PARTS � �... - Page 5 Installation Guide Please read and follow the installation instructions and guidelines in this section. Failure to follow the recommended instructions and installation techniques may lead to possible damage to the unit or the surrounding area. This can affect warranty claims. ATTENTION: This unit requires assembly.
- Page 6 Reverse Door opening This shower door can be assembled so that the sliding door opens from Left to Right, or Right to Left. The drawings below illustrate the shower door opening from Left to Right. Note the location of the fixed glass panel and return glass panel for the shower door opening from Left to Right.
- Page 7 Measure the distance Install all of the wall material or materials you intend to use before installing the glass clamps and return glass panel, this includes all moisture resistant wall board or rock board, tile, stone or other wall covering. Refer to the drawing above and measure and mark the shower wall and floor for drilling locations to attach glass clamps.
- Page 8 Install the glass clamp and glass Using the appropriate drill bit for your wall and floor surface drill each hole location with a 5/16" diameter drill bit. Install the plastic wall anchors provided into the drilled holes NOTE: If your surface is prone to cracking or chipping then it is recommended that you pilot drill first using a smaller drill bit, and then step up to the final size.
- Page 9 Shower Door Installation 1. Measure the width of the shower opening at the top between the fixed glass and the wall. Note this is dimension "X". 2. The following equation is used to determine the length to be cut from the rail in order to fit the shower opening.
- Page 10 Mark the Top Rail Location ATTENTION: A minimum of two people are required for the next assembly steps. Preassembly the top rail (2) onto the fixed glass (3) to locate the mounting points on the wall relative to your desired location. Painters tape or masking tape in the general location of the of the final installation will aid in marking the wall and floor.
- Page 11 Position the top rail (2) and fixed glass (3) as shown in figure 2 and connect fixed glass (3) to top rail (2) following the assembly sequence shown in figure 2. Note in figure 2, one door stopper (1) should be positioned between mounting holes in top rail (2) before connecting top rail to fixed glass.
-
Page 12: Installing The Top Rail
Installing the Top Rail " Note: The top and bottom set screws in rail end is facing outward. Assemble per drawing. 1. Loosen set screws in rail end (6) and remove from top rail (2). Next install wall mount (7) onto rail end (6) See figure 1 - 1. Position rail end assembly (6) onto marked location on shower wall and mark pilot hole drilling location. - Page 13 2. Using the appropriate drill bit for your wall surface drill the hole locations with a 5/16" diameter drill bit. Install the plastic anchors provided into the drilled holes. 3. Remove the wall mount (7) from the rail end (6). Using the hardware from Screw Pack 2, install the wall mount (7) on the wall.
- Page 14 Install Wheel Rollers onto the Door � Assemble the upper roller assemblies ( 1 1) onto sliding door (4) as seen in figure 1 Note: The door handle mounting holes should be positioned to left. The upper roller assemblies ( 1 1) will be on the outside of sliding door (4). The sliding door should be to the inside of shower area.
- Page 15 Hanging the Door Bottom Roller Guide UPPER ROLLER CAM Assembies ADJUSTMENT Rotate the outer edge of roller assembly usin- g ---�� the small hex, � while holding the � large hex wrench --- in place. End View upper roller assembly (11) -top rail (2) �...
- Page 16 Install the Door Threshold � · M4X40 The Door Threshold is used to prevent water from seeping out while bathing. Install the threshold according to these instructions. 1. Measure the distance between the fixed glass (3) and the shower wall. See figure 1 2.
- Page 17 NOTE: If your surface is prone to cracking or chipping then it is recommended that you pilot drill first using a smaller drill bit, and then step up to the final size. 4. Using the appropriate drill bit for your floor surface drill the hole locations with a 5/16"...
- Page 18 Installing the door seals � � � � � � Install the door seals according to the drawing.
-
Page 19: Installing The Door Handle
Installing the door handle Install the door handle (18) using hardware provided. Follow the assembly sequence seen in drawing. - Page 20 Final sealing � � � � � � Using Bath & Kitchen silicone sealant, seal the fixed glass (3) along bottom edge on shower base, and side edge along shower wall. Next seal around sliding door track divider (10).
-
Page 21: Care And Maintenance
Care and Maintenance As with any other luxury item, maintenance and care are critical to the long lasting quality and enjoyment of your shower door and tray. The proper care and maintenance outlined in this section are necessary to ensure the longevity of the unit. -
Page 22: Warranty
Product shall be replaced, or in the alternative, repaired, shall be made solely by Aston Global. If a Product is determined to be covered by the above Warranty, Aston Global will ship the replacement part(s) to Customer by either ground shipping or US postal service. -
Page 23: Legal Disclaimers
Aston Global and it representatives shall not be liable for any injury, loss, cost or other damages, whether incidental or consequential, arising out of any defect covered by this... - Page 24 For prompt service, notify the original installer who, in turn, will notify the Aston Global distributor who supplied the Product. If this does not result in prompt service, contact Aston Global, Inc. at the address below with details in support of the warranty claim. For any questions about coverage of this Warranty, contact Aston Global at the address below.
- Page 25 Notes...
- Page 26 Notes...
- Page 27 ESCAPE THE EVERYDAY Customer Service 877-424-9699 If further assistance is required, you have a question or need additional product information, please visit our website: www.astonbath.com...
