Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
16
17
9

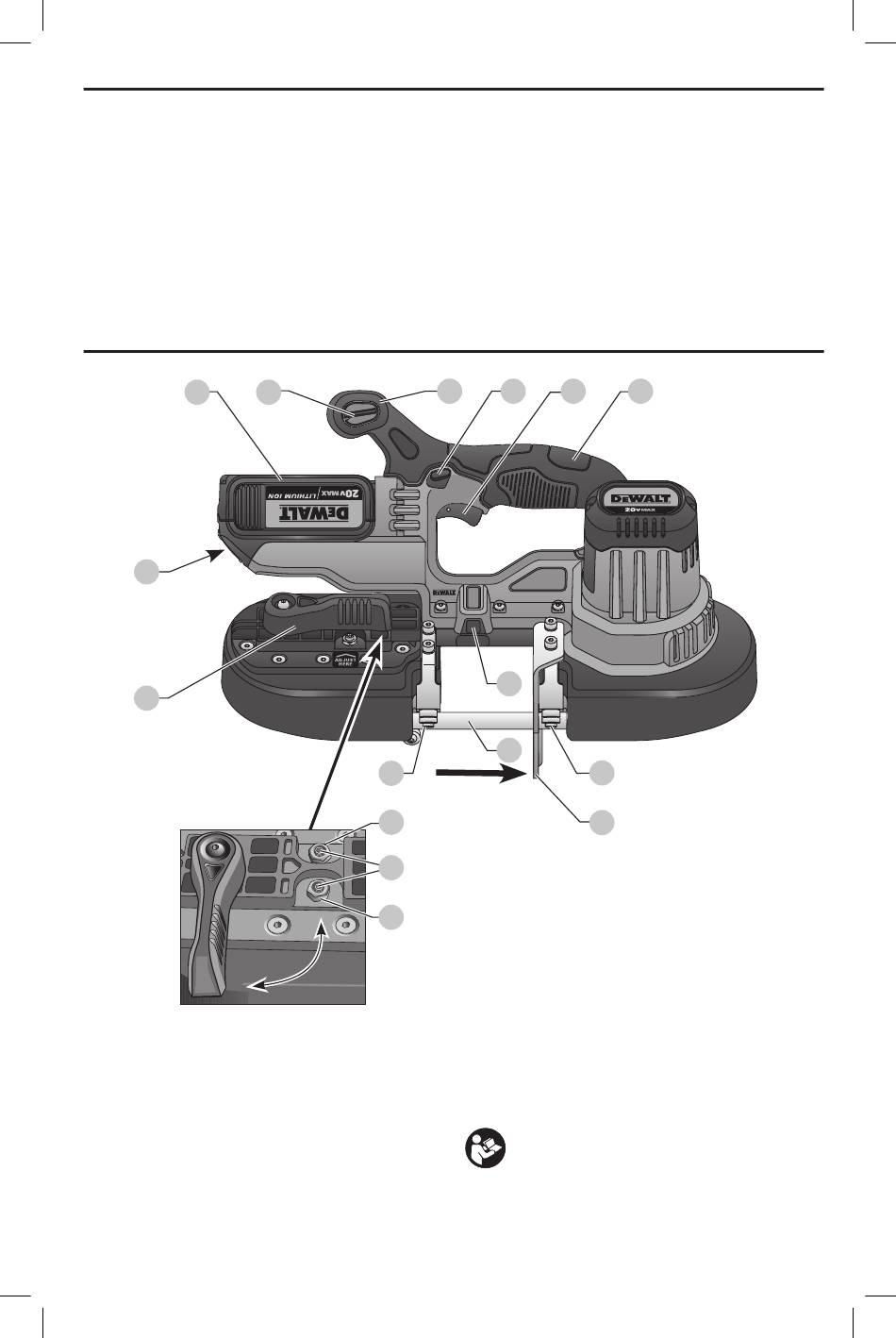

Auxiliary handle
1
Lock-off button
2
Trigger switch
3
Main handle
4
Hex wrench
5
Work stop
6
Guide rollers
7
Adjusting lock nut
8
Blade tension lever
9
Blade
10
5
7
8
15
8
Hang hook
11
Pulley
12
Blade guard
13
Rubber tires
14
Tracking screws
15
Battery pack
16
Battery release button
17
LED worklight
18
1
2
3
18
10
7
BLADE
DIRECTION
6

WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
WARNING: To reduce the risk of injury, read the
instruction manual.
if you have any questions or comments about this or
any D
WALT tool, call us toll free at:
e
1-800-4-D
WALT (1-800-433-9258).
e
English
4
1
