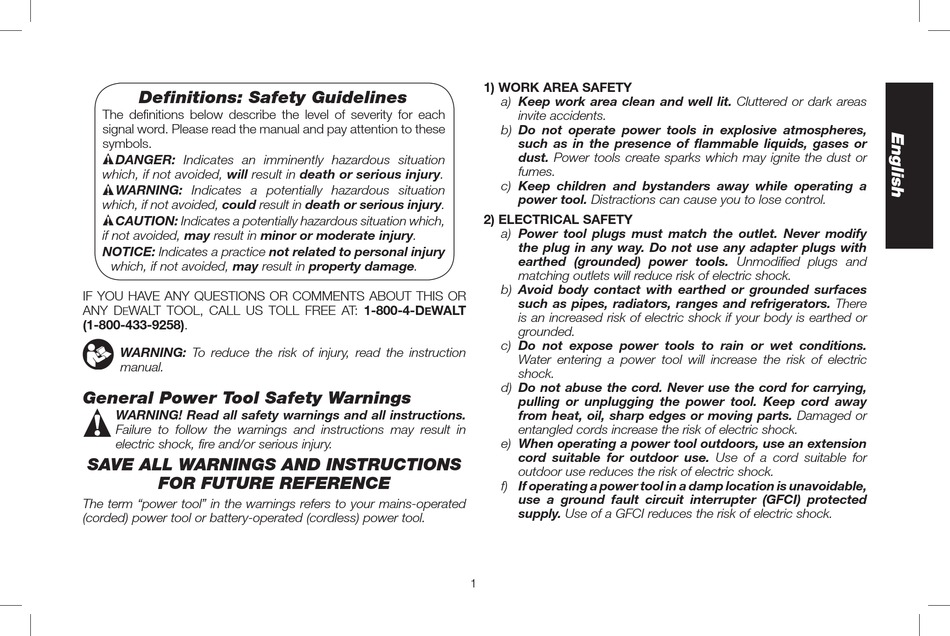

Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to these
symbols.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR
ANY D
WALT TOOL, CALL US TOLL FREE AT: 1-800-4-D
e
(1-800-433-9258).
WARNING: To reduce the risk of injury, read the instruction
manual.
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There
WALT
e
is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable,
use a ground fault circuit interrupter (GFCI) protected
supply. Use of a GFCI reduces the risk of electric shock.
1

Advertisement

Table of Contents
loading

Related Manuals for DeWalt DCS374P2

Summary of Contents for DeWalt DCS374P2

  • Page 1 1) WORK AREA SAFETY Definitions: Safety Guidelines a) Keep work area clean and well lit. Cluttered or dark areas The definitions below describe the level of severity for each invite accidents. signal word. Please read the manual and pay attention to these b) Do not operate power tools in explosive atmospheres, symbols.

  • Page 2: Personal Safety

    3) PERSONAL SAFETY b) Do not use the power tool if the switch does not turn it a) Stay alert, watch what you are doing and use common on and off. Any power tool that cannot be controlled with the sense when operating a power tool.
  • Page 3 c) When battery pack is not in use, keep it away from other • Always keep your hands out of the line of the band saw metal objects, like paper clips, coins, keys, nails, screws, blade. or other small metal objects, that can make a connection •...

  • Page 4: Important Safety Instructions For All Battery Packs

    such as those dust masks that are specially designed to filter out IPM ..impacts per minute RPM ..revolutions per microscopic particles. sfpm ..surface feet per minute ....minute • Avoid prolonged contact with dust from power sanding, SPM ..strokes per minute sawing, grinding, drilling, and other construction activities.

  • Page 5: Specific Safety Instructions For Lithium Ion (Li-Ion)

    • Contents of opened battery cells may cause respiratory WARNING: Fire hazard. Never attempt to open the battery pack for irritation. Provide fresh air. If symptoms persist, seek medical any reason. If the battery pack case is cracked or damaged, do not attention.
  • Page 6 • An extension cord must have adequate wire size (AWG or WARNING: Shock hazard. Do not allow any liquid to get inside the American Wire Gauge) for safety. The smaller the gauge number charger. Electric shock may result. of the wire, the greater the capacity of the cable, that is, 16 gauge CAUTION: Burn hazard.

  • Page 7: Charge Indicators

    Indicator Light Operation • Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an DCB101, DCB102, DCB103 authorized service center. • Do not disassemble the charger; take it to an authorized PACK CHARGING service center when service or repair is required.

  • Page 8: Wall Mounting

    HOT/COLD DELAY DCB107, DCB112, DCB113, DCB115 These chargers will not charge a faulty battery pack. The charger will DCB101, DCB102, DCB103 indicate faulty battery pack by refusing to light. These chargers have a hot/cold delay feature. When the charger NOTE: This could also mean a problem with a charger. detects a battery that is too hot or too cold, it automatically starts a delay, suspending charging.

  • Page 9: Storage Recommendations

    SAVE THESE INSTRUCTIONS b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; FOR FUTURE USE c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65 ...
  • Page 10 To unlock the trigger switch, press the FIG. 2 lock-off button as shown in Figure 3. Pull 45º STRAIGHT UP the trigger switch to turn the motor ON. Releasing the trigger switch turns the motor OFF. WARNING: This tool has no provision to lock the switch in the ON position, and should never be locked ON by any other means.

  • Page 11: Blade Selection

    There is a worklight (L) located above the blade. FIG. 4 The worklight is activated when the trigger switch is depressed, and will automatically turn off 20 seconds after the trigger switch is released. If the trigger switch remains depressed, the worklight will remain on.

  • Page 12: Blade Speed

    bound to the material, possibly resulting in overload and burn-out of TO ADJUST THE BLADE TRACKING the motor. 1. Use a 1/2" (13  mm) wrench to loosen the adjustment locking nut (G), shown in Figure 2 by turning it one or two turns BLADE DESCRIPTION counterclockwise.

  • Page 13: Removing And Installing Blades

    1-800-4-D WALT (1-800-433-9258) or visit our website The fuel gauge is an indication of approximate levels of charge www.dewalt.com. remaining in the battery pack according to the following indicators: Removing and Installing Blades WARNING: To reduce the risk of serious personal injury, 75–100% charged...
  • Page 14 4. Inspect the guide rollers (F) and remove any large chips which may FIG 8 be lodged in them. Lodged chips can prevent rotation of the guide rollers and cause flat spots on the guide rollers. 5. Rubber tires (P) are mounted on the pulleys (N). The rubber tires should be inspected for looseness or damage when changing the blade.

  • Page 15: Work Stop Adjustment

    Work Stop Adjustment This band saw is designed to cut various types of material up to 4-3/4" (120.7 mm) diameter or 5" (127 mm) x 4-3/4" (120.7 mm) rectangular To support large workpieces, the work stop should be lowered following shape at 90º.
  • Page 16 band saw blade. To obtain maximum service life of the band saw FIG. 12 RECOMMENDED CUTTING POSITIONS blade, ensure there is no sudden impact at the beginning of the cutting operation. 4. As shown in Figure 11, FIG. 11 straight cutting can be accomplished by keeping the band saw blade aligned with the side...
  • Page 17 Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call turn tool off and remove the battery pack before making any 1-800-4-D WALT (1-800-433-9258) or visit our website: www.dewalt. adjustments or removing/installing attachments or accessories. com. An accidental start-up can cause injury.

  • Page 18: Three Year Limited Warranty

    For further detail of warranty coverage and warranty repair information, become illegible or are missing, call 1-800-4-D WALT (1-800-433- visit www.dewalt.com or call 1-800-4-D WALT (1-800-433-9258). 9258) for a free replacement. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others.
