Issue 1.2
January 2006
Handbook Contents
Safety
Installation
This symbol is used to alert the user to important operating or
maintenance instructions.
The Lightning bolt triangle is used to alert the user to the risk of electric
shock.
SAFETY
1. It is important to read these instructions and follow them.
2. Keep this instruction manual for reference.
3. Do not operate this unit in a damp environment. It is not waterproof.
4. Refer installation and servicing to qualified personnel.
5. This unit is double insulated and safe to use without an earth connection. The
case does not connect to a protective earth unless provided by the screen of
the line input XLR connector (pin 1).
INSTALLATION - Please read ALL this Manual before starting
First of all, plan your installation and decide where to fit your TDS1. It needs to be
close to a telephone socket, have mains power and an audio signal feed. In
MANual mode, you will be using a telephone to call the listener, so it may be
convenient to install the unit in an ante or side room where no-one will be
disturbed by your conversations. The TDS1 generates virtually no heat and so
can be installed in any dry, convenient location.
Unpack your TDS1 and check the contents against the list above. As supplied,
your TDS1 is set to 100V line input and 3 hour timer enabled.
You will need the following to
Get your TDS1 to work:
Working telephone line
Audio signal
Mains power
Another telephone eg a mobile to
test operation.
Two small screwdrivers, a posidrive
to remove the lid and a flat blade to
adjust the volume.

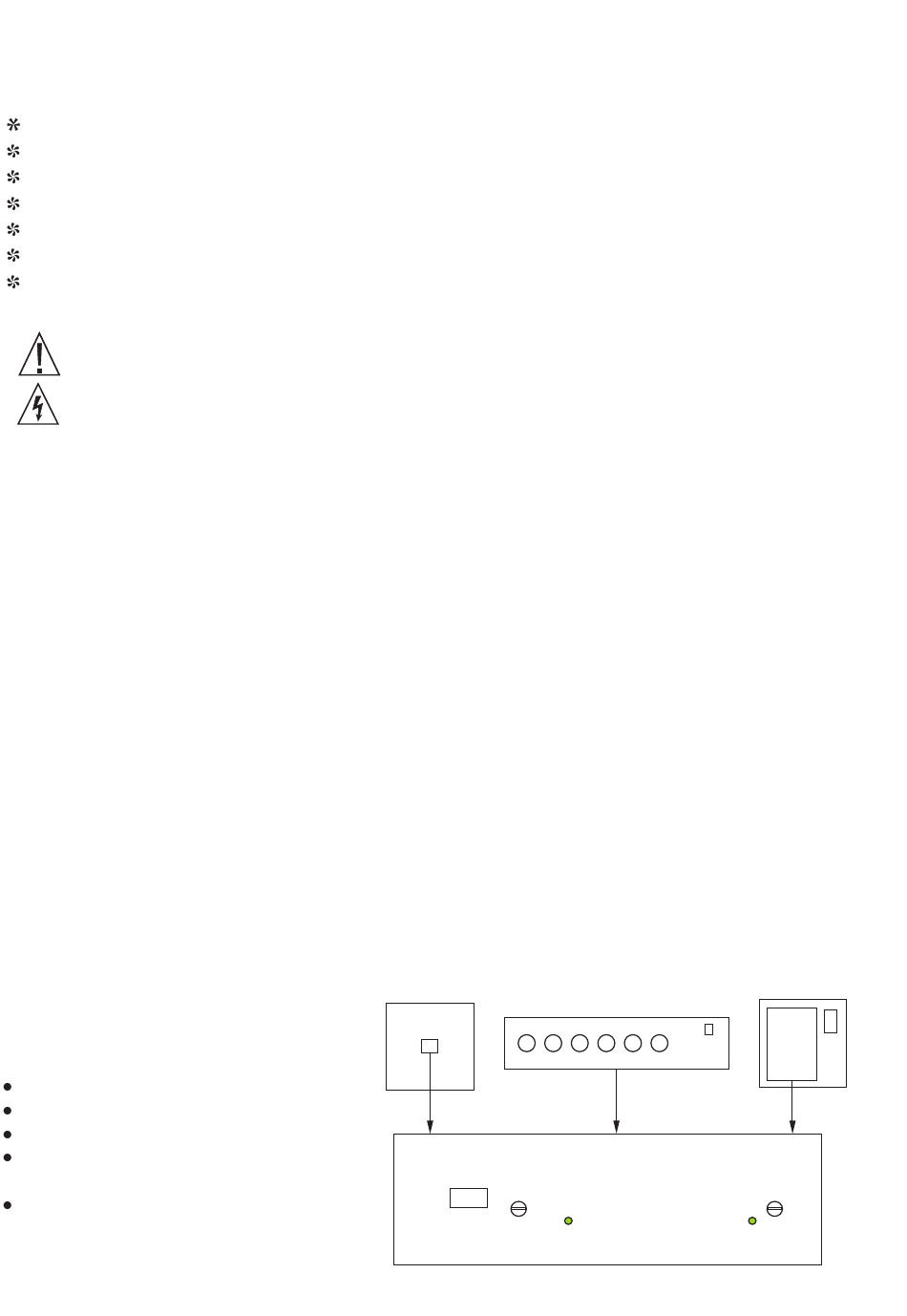

TDS1 HANDBOOK
Telephone Socket
Telephone
For latest Handbook
see www.dt4u.com
Box Contents
1 x TDS1
1 x Power Supply
1 x Telephone Lead
1 x Handbook
PA Amplifier
Audio
Telephone Dialup System
15V
ac/dc
Power
supply
Power
TDS1
Advertisement
Table of Contents
Related Manuals for DTSystems TDS1S/R
Summary of Contents for DTSystems TDS1S/R
- Page 1 For latest Handbook Issue 1.2 TDS1 HANDBOOK see www.dt4u.com January 2006 Handbook Contents Box Contents Safety 1 x TDS1 Installation 1 x Power Supply Facilities 1 x Telephone Lead Operation 1 x Handbook Troubleshooting Warranty Technical Details This symbol is used to alert the user to important operating or maintenance instructions.
- Page 2 INPUT ATTENUATOR Telephone Power XLR Audio Facilities Line In Input Socket Link Out Link In J1 J2 LED 5 Compressor Control J1 J2 NOTE: Not to scale. Drawn for clarity VR1 Adjust 100mA Send Volume PowerSupply Fuse 20mm 100V 3 Hour Timer J17 PCB Layout Enabled Link=In Drawing...
- Page 3 Start by wiring in the audio feed cable and terminate with a male 3 pin XLR plug. Wire the XLR plug according to the type of input signal as shown. Note that pin 1 of the XLR connects to the case of the TDS1 unit and should be grounded at the source end.
- Page 4 record output, move link J1 to J2 (this disables the attenuator). AUTOmatic Mode Switch the TDS1 to AUTOmatic. Dial the TDS1 telephone line from another telephone. The call should be answered immediately, the Active light should illuminate and you should hear the CD playing.
- Page 5 TDS1 Facilities Output The facilities socket is for advanced users who want to extend the capabilities of the TDS1. It enables remote AUTO / MAN switching and allows a remote Active light to be used. The remote light can be very useful to indicate the TDS1 is in use and connected.
- Page 6 TDS1 OPERATION Switch the TDS1 on. Note the green power light illuminates and the Active light flashes, one flash for automatic operation, two flashes for manual. This confirms the microprocessor is running. If a remote indicator is fitted, this flashes in sympathy with the Active light.
- Page 7 with three or four people in it. For larger venues or locations where the volume is not adequate i.e. many miles from the serving telephone exchange, use a handset with jack audio output. This allows connection from the telephone line into a line input (i.e. CD) on a hi-fi system and hence the signal can be adjusted for loudness and quality by using the volume and tone controls.
- Page 8 WARRANTY The TDS1 is guaranteed for a period of 1 year from the date of purchase provided that it has been used in accordance with all these instructions. This warranty specifically does NOT cover damage by lightning or user abuse and is on condition that the unit is returned by prior agreement, to the supplier.
