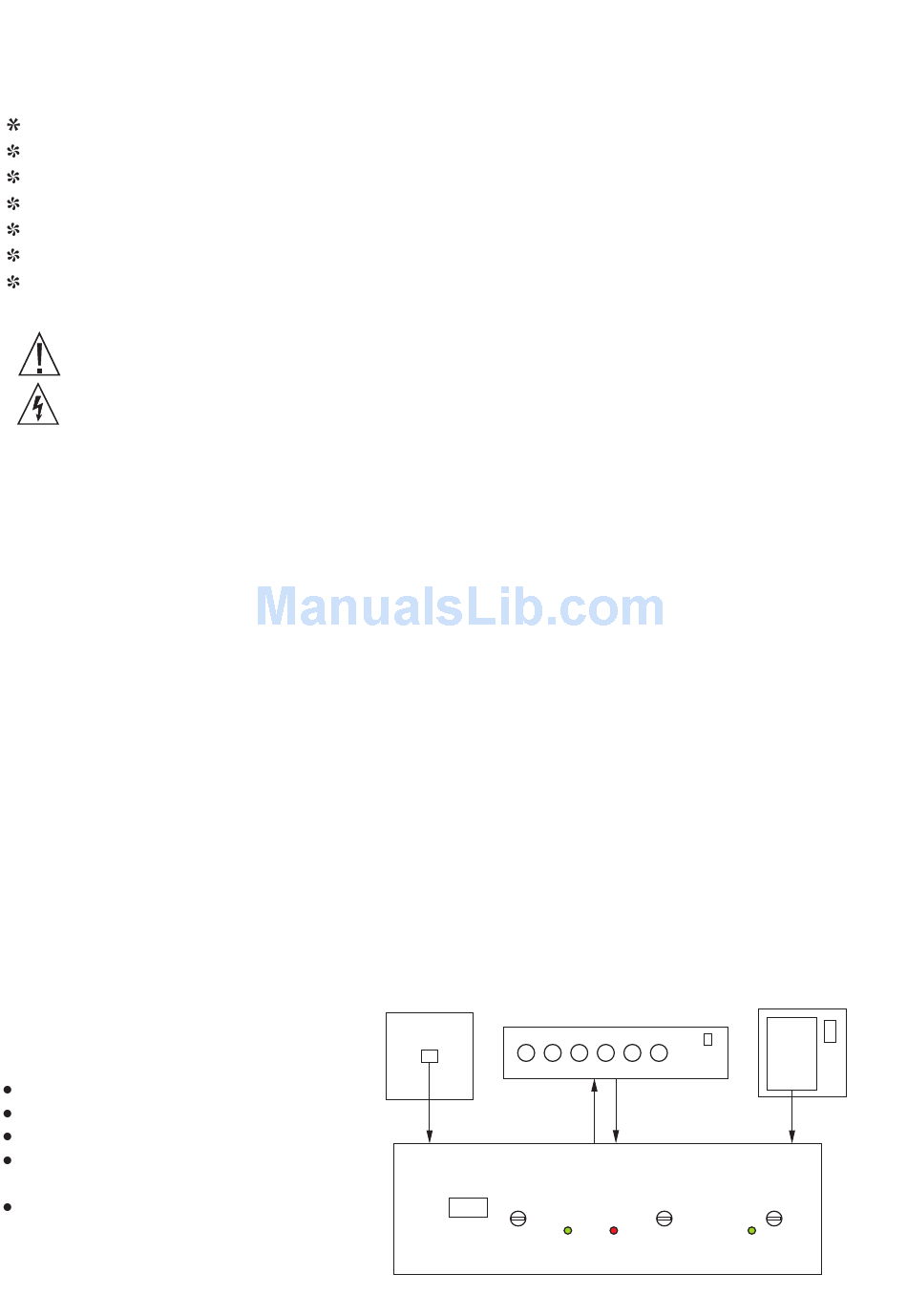

Issue 1.2
January 2006
Handbook Contents
Safety
Installation
Facilities
Operation
Troubleshooting
Warranty
Technical Details
This symbol is used to alert the user to important operating or
maintenance instructions.
The Lightning bolt triangle is used to alert the user to the risk of electric
shock.
SAFETY
1. It is important to read these instructions and follow them.
2. Keep this instruction manual for reference.
3. Do not operate this unit in a damp environment. It is not waterproof.
4. Refer installation and servicing to qualified personnel.
5. This unit is double insulated and safe to use without an earth connection. The
case does not connect to a protective earth unless provided by the screen of
the line input XLR connector (pin 1).
INSTALLATION - Please read ALL this Manual before starting
First of all, plan your installation and decide where to fit your TDS1 S/R. It needs
to be close to a telephone socket, have mains power and an audio signal feed. In
MANual mode, you will be using a telephone to call the listener, so it may be
convenient to install the unit in an ante or side room where no-one will be
disturbed by your conversations. The TDS1 S/R generates virtually no heat and
so can be installed in any dry, convenient location.
Unpack the unit and check the contents against the list above. As supplied, the
TDS1 S/R is set to 100V line working and the three hour timer enabled.
You will need the following to
S/R
get your TDS1
Working telephone line
Audio signal
Mains power
Another telephone eg a mobile to
test operation.
Two small screwdrivers, a posidrive
to remove the lid and a flat blade to
adjust the volume.
TDS1 S/R HANDBOOK
to work:
Telephone Socket
Telephone
Telephone Dialup System
For latest Handbook
see www.dt4u.com
Box Contents
1 x TDS1 S/R
1 x Power Supply
1 x Telephone Lead
1 x Handbook
PA Amplifier
Audio
TDS1 S/R
15V
ac/dc
Power
supply
Power
