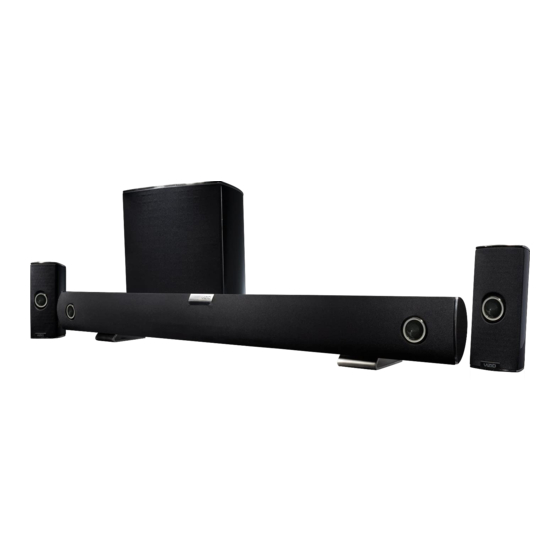

- Page 1 5.1 SURROUND SOUND HOME THEATER WITH WIRELESS SUBWOOFER VHT510 - quick sTarT guide...
-
Page 2: Package Contents
PAckAgE cONTENTS • VIZIO High Definition Soundbar • Wireless Subwoofer • Satellite Speakers with 20 foot speaker cable (2) • Power adapter for Soundbar • Power cable for subwoofer • Remote control and battery • Soundbar stands & screws (pre-installed) (2) • RCA stereo cable • User Manual • Quick Start Guide REMOvE THE PLASTIc TAB FROM THE REMOTE PAIRINg The Soundbar operates in unison with the Wireless Subwoofer and they come paired from the factory. Follow the Pairing procedure in the User Manual if pairing is needed. -
Page 3: Connect Equipment
cONNEcT EqUIPMENT DIgITAL cONNEcTION - Best Quality For best performance, use the OPTICAL jack on your Soundbar if your TV, Set-top Box, DVD Player, Home Theater System, etc. has an Optical digital audio output. 1. Turn off power to the Soundbar and the device. 2. Connect one end of the Optical (S/PDIF) cable (sold separately) to the digital audio output on the device. 3. Connect the other end of the Optical (S/PDIF) cable to the OPTICAL jack on the Soundbar. 4. Turn on power to the Soundbar and the device. 5. Select the optical input by pressing INPUT on the top of the Soundbar or pressing OPTICAL on the remote control. cONNEcT EqUIPMENT ANALOg cONNEcTION OPTICAL (S/PDIF) - Good Quality Back of TV 1. Turn off power to the Soundbar and the device. 2. Connect one end of the audio cable (white and red connectors) to the analog audio output on the device. - Page 4 cONNEcT EqUIPMENT (cONTINUED) cONNEcTINg AN IPOD DOck (NOT INcLUDED) 1. Turn off power to the Soundbar and the MP3 Player. 2. Connect one end of the audio cable to the analog audio output on the MP3 player docking unit. 3. Connect the other end of the audio cable (white and red connectors) to the IN jacks on the Soundbar. NOTES: CAUTION: Do not connect the MP3 Player headphone output directly to the Soundbar. This can result in damage to the devices. • Most MP3 players commonly use a 1/8” Stereo Mini-Jack. In this case, use a 1/8” stereo mini-jack-to- RCA (AV) cable (sold separately). • Refer to your MP3 Player user manual for more information about the audio output settings and connections of the product. cONNEcT POWER - SOUNDBAR 1. Connect one end of the AC adapter into the 24V DC jack on the back of the Soundbar. 2. Plug the other end into a wall outlet. cONNEcT POWER - SUBWOOFER 1. Connect one end of the AC adapter into the 100-240V AC 2. Plug the other end into a wall outlet.
-
Page 5: Wall Mounting The Soundbar
Sound Bar. 5. Mark and drill holes in the desired location. Use anchors (not included) if you are not drilling into studs. 6. Insert screws (not included), leaving room for your Sound Bar stands. 7. Hang your Sound Bar on the screws. WALL MOUNTINg THE SATELLITE SPEAkERS You have two options for mounting your satellite speakers to the wall: keyhole or threaded insert. Follow the instructions included with the speaker mount bracket (not included) to hang your satellite speakers on a wall. vIZIO BLU-RAY™ PLAYER Bring your movies to life! 1080p Full HD playback delivers crystal clear images with lifelike detail and High Definition Audio puts you in the center of the action. Visit www.VIZIO.com for more details. vIZIO HIgH DEFINITION Tvs VIZIO offers the latest in HDTV technologies. From 1080p to 240Hz, you are guaranteed the best picture and audio quality. Visit www.VIZIO.com for more details. UNDERSTANDINg THE REMOTE cONTROL (OPTIONAL) Power: Press to turn your Soundbar on or off. Volume: Press to turn the Figure 1 speaker system volume up or down. -
Page 6: Help Topics
Optical In such as AC3 or PCM. The sound is The right and left rear channels may be plugged in backwards. Switch the connections on the back of the reversed from the subwoofer and then try again. satellite speakers • Make sure that both ends of the audio cables are connected securely. Buzzing or • Test on an alternate device or replace the audio cable. humming • Test the device and cable on an alternate input on the Soundbar. TELEPHONE & TEcHNIcAL SUPPORT VIZIO Hours of operation: Address: Monday - Friday: 6 am to 9 pm (PST) 39 Tesla Saturday - Sunday: 8 am to 4pm (PST) Irvine, CA 92618, USA Please have your VIZIO model number, serial number, Phone: (877) 698-4946 and date of purchase available before your call. Fax: (949) 585-9563 Email: techsupport@vizio.com Web: www.vizio.com... - Page 7 TRADEMARKS SHOWN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
