CFM A125 Homeowner's Installation And Operating Manual

Cmf corp homeowner's installation and operating manual gas fireplace insert a125, a132
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING
PROPERTY DAMAGE, PER-
SONAL INJURY OR LOSS OF
LIFE.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch;
do not use any phone in your
building.
•
Immediately call your gas
supplier from your neighbor's
phone. Follow the gas suppliers
instructions.
•
If you cannot reach your gas
supplier call the fire department.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.

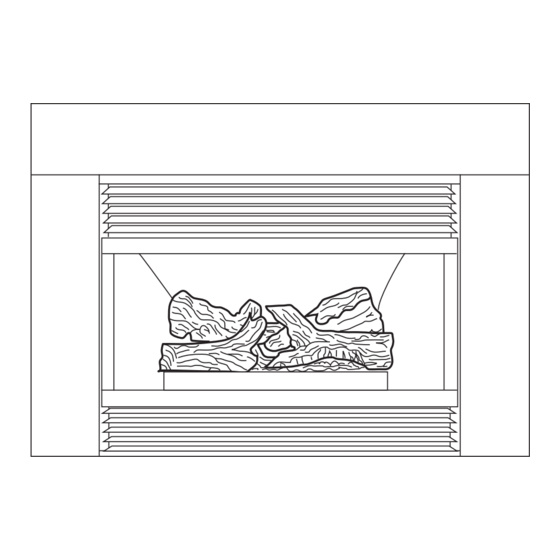

Gas Fireplace
Insert
Models: A125
Homeowner's Installation
and Operating Manual
����
�������� �����
�����
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
A132
C E RT I F I E D
10002964 2/08 Rev. 2

Advertisement

Table of Contents
loading

Related Manuals for CFM A125

Summary of Contents for CFM A125

  • Page 1 DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. Gas Fireplace Insert Models: A125 A132 Homeowner’s Installation and Operating Manual ���� �������� ����� ����� INSTALLER: Leave this manual with the appliance.

  • Page 2: Table Of Contents

    Gas Fireplace Insert PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THIS APPLIANCE. Thank you and congratulations on your purchase of a CFM Corporation fireplace insert. IMPORTANT - Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the manufacturers' warranty.

  • Page 3: Important Curing/Burning Instructions

    The size of the fireplace cavity, the design of the chimney for effective venting should be determined. The availabil- ity of the gas supply as well as electricity for the insert fan must be confirmed. Gas Fireplace Insert A125 / A132 Certified To Vented Gas Fireplace Heaters IMPORTANT: all windows.

  • Page 4: Fireplace & Trim Dimensions

    Gas Fireplace Insert Maintain 1” Clear- ance to ‘B’ Vent Air Inlet Channel Gas Inlet Knock-out A125 26³⁄₄” 38¹⁄₂” 29¹⁄₄” 43¹⁄₂” 25¹⁄₄” 17³⁄₈” 13³⁄₄” 15” 19¹⁄₄” 17¹⁄₂” 9⁷⁄₈” 26¹⁄₄” 25” 1¹⁄₄” 30” 17³⁄₄” 24¹⁄₂” 17³⁄₄” 25” 13³⁄₄” 17¹⁄₂” 14” 17³⁄₄”...

  • Page 5: Locating Your Fireplace Insert

    If the fireplace is recessed into the wall and at least 12" FP1249a (305 mm) above floor level, no hearth is required. Cross corner A 3” diameter (for A125) or 4” diameter (for A132) *Room divider Class ‘B’ vent must be used when installing the fire- Chase installation place insert along with the Zero Clearance Kit.

  • Page 6: Combustion Air

    Gas Fireplace Insert Combustion Air It is very important that an adequate air supply is available when the unit is being operated. Since most homes of today are tightly sealed and insulated, addi- tional make-up air is usually necessary. This fireplace has been designed to operate by drawing air in from the front and outer perimeters of the fire- place.

  • Page 7: Gas Supply Pressures

    When using copper or flex connector, use only approved fittings. Always provide a union when using black iron pipe so the gas line can be easily disconnected for burner or fan servicing. See gas specifications for pressure details and ratings. NOTE: If flex connector is used, it must be kept inside of the heater.

  • Page 8: Venting Instructions

    3. To assure top performance, safety and efficiency, all inserts must be installed with an approved 4" diameter flue liner, with exception of A125, which should be installed with an approved 3" liner,as per CSA-B.149 or National Fuel Code ANSI Z223/NFPA (3m) 4.

  • Page 9: Common Flue Installations

    Liner Installation Insert liner from top of chimney through the damper opening and attach to 3" flue collar (for A125); 4" flue collar (for A132). For best results use three (3) sheet metal screws and a hose clamp.

  • Page 10: Fan Kit Installation

    Gas Fireplace Insert Fan Kit Installation 115 Volt, 60 Hz. 56W The fan kit includes the following: fan, temperature sensor, speed control and a 6 ft. cord. The following explains how to start and set the fan for automatic operation. 1.

  • Page 11: Operating Instructions

    5. Place front right log (N14 or N20) onto locator notches. Ensure the log is securely in place. 6. A125: Place front left log (N13) onto locator. Ensure the log is securely in place. A132: Place front left log (N19) against the back of the left burner heat shield and the front edges of the log should be flat against the front deflector.

  • Page 12: Large Lava Rock Placement

    Gas Fireplace Insert Figure 17 Left Rear Log A125 Front Left Log Figure 18 A132 Left Rear Log Front Left Log Large Lava Rock Placement The large lava rock provided with this fireplace may be placed on the firebox base on either side of the burner assembly.

  • Page 13: Flame Characteristics

    Figure 21 and Figure 22 or 23. If any of the flames ap- pear abnormal call a service person. 3/8" - 1/2" SIT Pilot Fig. 21 Correct pilot flame appearance. Figure 23 A125 F584-703 Honeywell & PSE pilot flames Figure 23...

  • Page 14: Lighting & Operating Instructions

    Gas Fireplace Insert Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- ally.

  • Page 15: Troubleshooting Gas Control (820 Millivolt Gas Valve)

    Troubleshooting the Gas Control System NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. WARNING: Before doing any gas control service work, remove glass front. SYMPTOM 1. Spark ignitor will not light A.

  • Page 16: Troubleshooting Gas Control (Honeywell)

    Gas Fireplace Insert Troubleshooting the Gas Control System START Gas Supply On Pilot Lights With Piezo Ignitor Pilot Stays Lit Pilot Lights Main Burner System OK. Honeywell Millivolt Valve CHECK Supply Line Hooked Up Shutoff Valve Open Lockout Has Engaged. Wait 60 Seconds And Try Again.

  • Page 17: Maintenance

    Burner and Burner Compartment It is important to keep the burner and the burner compartment clean. At least once per year the logs and lava rock/ember material should be removed and the burner compartment vacuumed and wiped out. Remove and replace the logs as per the instructions in this manual.

  • Page 18: Replacement Parts

    Gas Fireplace Insert 1 A125 ��� 23a/b 22a/b CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. A125, A132 Gas Insert Ref. Description 1. Log Set Complete 1a.
  • Page 19 A125, A132 Gas Insert Ref. Description 9a. Orifice Pilot PSE - Nat. 9b. Orifice Pilot PSE - Prop. 10a. Pilot Assembly SIT Top Convertible - Nat. 10b. Pilot Assembly SIT Top Convertible - Prop. 11a. Pilot Assembly PSE - Nat.

  • Page 20: Optional Accessories

    Gas Fireplace Insert Ceramic Refractory Optional for A125 and A132 Model Description RHE25CR Ceramic Firebox Liner 1. Remove front glass (Refer to Glass Frame Removal section) 2. Remove logs from unit. Logs may be hot! 3. Remove refractory from packaging.
  • Page 21 A flat louvre kit OR a bay window kit need to be chosen to complete the installation. RHE25SSP & HE25LP Replacement Parts CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products FP1289 at any time, without notice.
  • Page 22 Gas Fireplace Insert HE25FP Replacement Parts CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. IMPORTANT: Only trim panel assemblies approved FP1293 by CFM Corporation can be used on these prod- HE25FP parts ucts.
  • Page 23 3/4/03 djt 10002964 HE25BTKP Replacement Parts FP1270 CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. IMPORTANT: Only trim panel assemblies approved by CFM Corporation can be used on these prod- ucts.
  • Page 24 Gas Fireplace Insert A4 Riser Kits For use with A125 1. Install the unit according to Homeowner’s Manual. 2. Install the trim according to Installation Instructions. 3. Remove the two (2) screws at the bottom of the trim. 4. Install the riser at the bottom of the trim. (Fig. 37) 5.
  • Page 25 4. Install the trim top deflector and fasten it (will hold the inner top piece). Use two (2) screws to assemble them. 5. Install trim channels (left and right sides). Use two (2) screws to assemble each piece. 6. Slide on the trim top channel and fasten it from the back side.
  • Page 26 Gas Fireplace Insert RHESS, RHESL, RHESSD, RHESLD, RHESXL Trim Replacement Parts CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Key Description FP1264 Trim Frame Top, Flat Black...
  • Page 27 A4 Riser Kits For use with A125 1. Install the unit according to Homeowner’s Manual. 2. Install the trim according to Installation Instructions. 3. Remove the two (2) screws at the bottom of the trim. 4. Install the riser at the bottom of the trim. (Fig. 56) 5.
  • Page 28 Gas Fireplace Insert 10002964...
  • Page 29 Gas Fireplace Insert 10002964...
  • Page 30 Gas Fireplace Insert 10002964...

  • Page 31: Warranty

    Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY CFM Corporation (hereinafter referred to collectively as the Company) warrants that your new Vermont Castings or Majestic Gas Fireplace/ Stove is free from manufacturing and material defects for a period of one year from the date of purchase, subject to the following conditions and limitations.
  • Page 32 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
