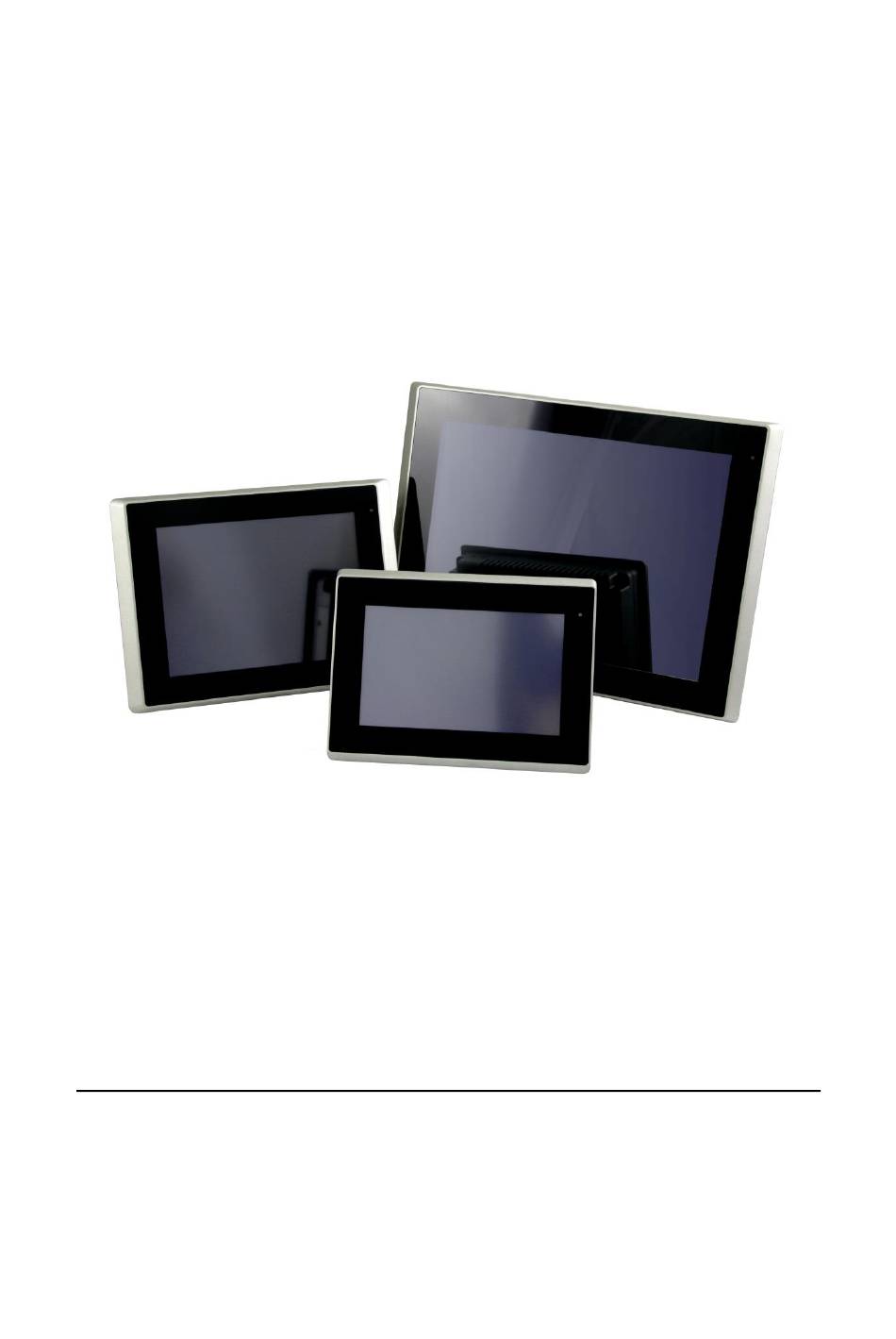

NV-HMI-8XX Series
7", 8", 10.1", 12.1", 15", 15.6", 17", 18.5", and 21.5" Intel Bay Trail E3845/N2930,
Fanless Industrial Compact Size Panel PC
User Manual
Release Date
Revision
Oct. 2015
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV-HMI-8 Series and is the answer not in the manual?

Questions and answers

Related Manuals for NemaVision-iPC NV-HMI-8 Series

Summary of Contents for NemaVision-iPC NV-HMI-8 Series

  • Page 1 NV-HMI-8XX Series 7”, 8”, 10.1”, 12.1”, 15”, 15.6”, 17”, 18.5”, and 21.5” Intel Bay Trail E3845/N2930, Fanless Industrial Compact Size Panel PC User Manual Release Date Revision Oct. 2015 V1.2...

  • Page 2: Revision History

    Revision History Reversion Date Description 2015/03/25 Official Version 2015/07/15 Modify Motherboard Description, add Mounting Description and BIOS OS Selection on P.67 2015/10/20 Add “UL” Certificate, Modify OS Support NV-HMI-8XX Series User Manual...

  • Page 3: Warning!/Avertissement

    Warning!________________________ This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

  • Page 4: Caution/Precaution

    Caution Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations. Precaution Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagée doivent être recyclées dans la mesure du possible.

  • Page 5: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) NV-HMI-8XX Series User Manual...

  • Page 6: Safety Precautions/Consignes De Sécurité

    Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use.

  • Page 7: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………………….1 Warning!/Avertissement!............…………………………….…2 Caution/Precaution……………….……..………………………………………………………………………3 Packing List…………………………………….……………………………………………………………………..4 Safety Precautions/Consignes de sécurité………………………………….…..……………………..5 Chapter 1 Getting Started 1.1 Features………………………..………………………...…………………………..8 1.2 Specifications…………………...………………………………………………….8 1.3 Dimensions………………………..…………………………………………….11 1.4 Brief Description of NV-HMI-8XX…..….………………………….……17 1.5 Installation of HDD – 7”/8”…………..…………...…………………..…..22 1.6 Installation of HDD – 10.1”/15.6”/18.5”………………………………24 1.7 Installation of HDD –...
  • Page 8 3.7 Boot Settings…..………………………………………….……………………..74 3.8 Save & Exit Settings……………………………………..…………………..75 Chapter 4 Installation of Drivers 4.1 Intel (R) AtomTM SoC Chipset ………..……...………….………………78 4.2 Intel (R) VGA Chipset……………………………………………….……..81 4.3 Intel (R) LAN Driver………..………………………………………..………...85 4.4 Realtek ALC662 HD Audio Driver Installation………………………88 4.5 USB 3.0 Driver…………………………………………………………………….90 Chapter 5 Touch Screen Installation 5.1 Windows XP/2003/Vista/WIN7 Universal Driver Installation for...

  • Page 9: Chapter 1 Getting Started

    Figure 2.1: Motherboard Dimensions………………………………………….…….31 Figure 2.2: Jumpers and Connectors Location-Board Top……………….….32 Figure 2.3: Jumpers and Connectors Location-Board Bottom…………..…32 Chapter 1 Getting Started 1.1 Features  7”/8”/10.1”/12.1”/15”/15.6”/17”/18.5”/21.5” Industrial Compact Size Panel PC  Flat front panel touch screen  Fanless design ...
  • Page 10 Option 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 (Not available for 2 x CAN bus via TB-528CAN2 NV-HMI-807 and 2 x USB 2.0 type A Via TB-528U2 NV-HMI-808) 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1 (TB-528C1U2 for NV-HMI-810) Storage Space Storage...
  • Page 11 NV-HMI-807(P) NV-HMI-808(P) NV-HMI-810(P) NV-HMI-812(P) NV-HMI-815(P) Display Display Type 7” TFT LCD 8” TFT LCD 10.1” TFT LCD 12.1” TFT LCD 15” TFT LCD Max. Resolution 800 x 480 800 x 600 1280 x 800 800 x 600 1024 x 768 262K 16.2M 16.2M...

  • Page 12: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of NV-HMI-807(P) Figure 1.2: Dimensions of NV-HMI-808(P) NV-HMI-8XX Series User Manual...

  • Page 13: Figure 1.3: Dimensions Of Nv-Hmi-810(P)

    Figure 1.3: Dimensions of NV-HMI-810(P) Figure 1.4: Dimensions of NV-HMI-812(P) NV-HMI-8XX Series User Manual...

  • Page 14: Figure 1.5: Dimensions Of Nv-Hmi-815(P)

    Figure 1.5: Dimensions of NV-HMI-815(P) Figure 1.6: Dimensions of NV-HMI-816 (Resistive Touch) NV-HMI-8XX Series User Manual...

  • Page 15: Figure 1.7: Dimensions Of Nv-Hmi-816(Projected Capacitive Touch)

    Figure 1.7: Dimensions of NV-HMI-816P (Projected Capacitive Touch) Figure 1.8: Dimensions of NV-HMI-817(P) NV-HMI-8XX Series User Manual...

  • Page 16: Figure 1.9: Dimensions Of Nv-Hmi-818(P)

    Figure 1.9: Dimensions of NV-HMI-818(P) Figure 1.10: Dimensions of NV-HMI-821 (Resistive Touch) NV-HMI-8XX Series User Manual...
  • Page 17 Figure 1.11: Dimensions of NV-HMI-821P (Projected Capacitive Touch) NV-HMI-8XX Series User Manual...

  • Page 18: Brief Description Of Nv-Hmi-8Xx

    1.4 Brief Description of NV-HMI-8XX There are 7”, 8”, 10.1”, 12.1”, 15”, 15.6”, 17”, 18.5” and 21.5” Industrial Compact Size Panel PC in NV-HMI-8XX series, which comes with flat front panel touch screen and fanless design. It is powered by Intel Bay Trail E3845(1.91GHz) or N2930(1.83GHz) CPU built-in, 2GB DDR3L 1600 MHz (4GB is for option).

  • Page 19: Figure 1.13: Rear View Of Nv-Hmi-807/808

    Figure 1.13: Rear View of NV-HMI-807/808 Figure 1.14: Rear View of NV-HMI-810 NV-HMI-8XX Series User Manual...

  • Page 20: Figure 1.15: Rear View Of Nv-Hmi-812

    Figure 1.15: Rear View of NV-HMI-812 Figure 1.16: Rear View of NV-HMI-815 NV-HMI-8XX Series User Manual...

  • Page 21: Figure 1.17: Rear View Of Nv-Hmi-816

    Figure 1.17: Rear View of NV-HMI -816 Figure 1.18: Rear View of NV-HMI-817 NV-HMI-8XX Series User Manual...

  • Page 22: Figure 1.19: Rear View Of Nv-Hmi-818

    Figure 1.19: Rear View of NV-HMI-818 Figure 1.20: Rear View of NV-HMI-821 NV-HMI-8XX Series User Manual...

  • Page 23: Installation Of Hdd - 7"/8

    1.5 Installation of HDD – 7” and 8” Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 There is a SSD card in the bracket. Gently remove the screw, then carefully pull SSD card.
  • Page 24 Step 4 You can replace SSD card by unscrewing four screws as shown in the picture. Note: four screws are packed in the packing list. Step 5 There is a SD card hole in the side of the machine. You can replace SD card from there.

  • Page 25: Installation Of Hdd - 10.1"/15.6"/18.5

    1.6 Installation of HDD – 10.1”/15.6”/18.5” Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Take the storage cover beside the HMI. Step 3 You can put or remove HDD into the machine by pulling the HDD bracket.

  • Page 26: Installation Of Hdd - 12.1"/15"/17"/21.5

    Step 4 There is a SD hole in the side of machine. You can replace SD card from there. 1.7 Installation of HDD – 12.1”/15”/17”/21.5” Step 1 There are 2 screws to deal with when enclosing or removing the chassis. Gently remove 2 screws.
  • Page 27 Step 3 You can remove HDD by unscrewing 4 screws in the HDD bracket. Note: 4 screws are packed in the packing package. Step 4 There is a SD hole in the side of machine. You can replace SD card from there NV-HMI-8XX Series User Manual...

  • Page 28: Vesa Mounting

    1.8 VESA Mounting The NV-HMI series is designed to be VESA mounted as shown in Picture. Just carefully place the unit through the hole and tighten the given screws from the rear to secure the mounting. Figure 1.21: NV-HMI Series VESA Mounting 1.9 Panel Mounting There are four holes located along the four sides of the HMI.

  • Page 29: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Motherboard Introduction SBC-7111 is a 4" industrial motherboard developed on the basis of Intel Bay trail-I/M Processors, which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 3-COM ports and one Mini PCIE configuration, one VGA port, one HDMI port, one LVDS interface.
  • Page 30 Fintek F81216AD BIOS AMI/UEFI Storage 1 x SATAII Connector (7P) 1 x SATAII Connector (7P + 15P) 1 x SD Slot Ethernet 2 x PCIe Gbe LAN by Intel 82574L 1 x USB 2.0 and 1 x USB 3.0 (type A)stack ports (USBCON1/USB0,USB1) 1 x USB 2.0 Pin header for CN1 (USB3 or Touch, option) 1 x USB 2.0 Hub(USB2) 1 x USB 2.0 Pin header for CN2 (USB Hub /USB1)
  • Page 31 Power Management Wide Range DC9V~36V input 1 x 3-pin power input connector Switches and 1 x Power on/off switch (BT1/BT2/CN2/CN3) LED Indicators 1 x Reset (CN2) 1 x Power LED status (CN1) 1 x HDD LED status (CN2) 1 x Buzzer External I/O port 2 x COM Ports (COM1/COM2) 2 x USB 2.0 Ports (stack)
  • Page 32 (units :mm) Figure 2.1: Motherboard Dimensions NV-HMI-8XX Series User Manual...

  • Page 33: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom NV-HMI-8XX Series User Manual...

  • Page 34: Jumpers Setting And Connectors

    2.4 Jumpers Setting and Connectors 1. U2: (FCBGA1170), onboard Intel Bay trail-I/M Processors. Model Processor Number Cores/Threads Remarks SBC-7111-E3845-2G E3845 1.91GHz 4 / 4 SBC-7111-E3845-4G E3845 1.91GHz 4 / 4 Option SBC-7111-N2930-2G N2930 1.83 up to 4 / 4 4.5 / Option 2.16GHz 7.5W...
  • Page 35 Pin# Signal Name VBAT Ground 6. SW1（NC）: (2.0mm Pitch 2x2 Pin Header), Reserve. 7. BAT2（NC）: (2.0mm Pitch 1x8 Wafer Pin Header), Reserve. 8. LED3/LED4（NC）: LED3: Reserve. LED4: Reserve. 9. DC_IN1: (5.08mm Pitch 1x3 Pin Connector), DC9V~36V System power input connector. Pin# Power input DC+9V~36V...
  • Page 36 11. FAN1(option): (2.54mm Pitch 1x3 Pin Header), Fan connector, cooling fans can be connected directly for use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup. Pin# Signal Name Ground Rotation detection Note: Output power of cooling fan must be limited under 5W. 12.
  • Page 37 14. JP6: (2.0mm Pitch 2x2 Pin Header), LVDS jumper setting. Function (CN1) Pin1-Pin2 (Close) Single channel LVDS Pin1-Pin2 (Open) Dual channel LVDS (Default) Pin3-Pin4 (Close) 8/24 bit (Default) Pin3-Pin4 (Open) 6/18 bit 15. U18: AT24C02-DIP8,The EEPROM IC（U18）is the set of LVDS resolution. If you need other resolution settings, please upgrade U18 data.
  • Page 38 17. CN1: (1.25mm Pitch 2x20 Connector, DF13-40P), for 18/24-bit LVDS output connector, fully supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output. Low Voltage Differential Signaling, A high speed, low power data transmission standard used for display connections to LCD panels. Function Signal Name Pin#...
  • Page 39 19. TCH1: (2.0mm Pitch 1x6 wafer Pin Header), internal Touch controller connector. Pin# Signal Name SENSE GND_EARCH 20. JP1: (2.0mm Pitch 2x3 Pin Header), COM1 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM1 port. JP1 Pin# Function Close 1-2...
  • Page 40 23. COM1: (Type DB9M), Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. COM1 port is controlled by pins No.1~6 of JP1, select output Signal RI or 5V or 12V, for details, please refer to description of JP1 and S_232 and S_422 setting.
  • Page 41 RS485 (option) Pin# Signal Name 485- 485+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-485】 24. JP2: (2.0mm Pitch 2x3 Pin Header), COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port. JP2 Pin# Function Close 1-2...
  • Page 42 26. LED1, LED2 (option) : LED1: LED STATUS. Green LED for Motherboard Standby Power Good status. LED2: LED STATUS. Green LED for Touch Power status. 27. SATA_P: (2.5mm Pitch 1x2 box Pin Header), One onboard 5V output connector are reserved to provide power for SATA devices. Pin# Signal Name +DC5V...
  • Page 43 external audio source via a Line in cable. MIC is the port for microphone input audio. Signal Name Pin# Pin# Signal Name GND_AUD LINE-OUT-L LINE-OUT-R FRONT_JD LINE1_JD LINE_IN-L LINE-IN-R MIC-IN-L MIC-IN-R GND-AUD MIC1_JD 34. LINE_OUT1: (Diameter 3.5mm Jack), HD Audio port, an onboard Realtek ALC662-VD codec is used to provide high quality audio I/O ports.
  • Page 44 38. CN2: (DF13-30P Connector) For expand output connector, It provides eight GPIO, one RS422 or RS485, one USB2.0, one Power on/off, one Reset. Function Signal Name Pin# Pin# Signal Name Function 5V_S5 5V_S5 SOC_GPIO10 GPIO_IN2 GPIO_IN1 SOC_SPIO09 SOC_GPIO26 GPIO_IN4 GPIO_IN3 SOC_GPIO17 SOC_GPIO05 GPIO_OUT2...
  • Page 45 40. CN3: (1.27mm Pitch 2X30 Female Header), for expand output connector, it provides four GPIO, two USB 2.0,one PS/2 mouse, one PS/2 keyboard, two uart, one PCIex1, one SMbus. connected to the TB-528 riser Card. Function Signal Name Pin# Pin# Signal Name Function 5V_S5_USB...
  • Page 46 41. TB-528C2ME1（option）: SBC-7111 Riser Card, TB-528C2ME1 CN3 connect to SBC-7111 CN3 pin Header. TB-528C2ME1 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0(USB2), Smbus, SIM and PCIe signal.
  • Page 47 SIM1： (SIM Socket 6 Pin), support SIM Card devices. PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA Ground...
  • Page 48 Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables. Any inconformity may cause system down and even hardware damages. JP5： (2.0mm Pitch 2x3 Pin Header), COM3 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM3 port.
  • Page 49 JP6： (2.0mm Pitch 2x3 Pin Header), COM4 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM4 port. JP6 Pin# Function Close 1-2 RI (Ring Indicator) (default) Close 3-4 COM4 Pin9=+5V (option) Close 5-6 COM4 Pin9=+12V (option) COM4：...
  • Page 50 Ground JP6 Setting: RI/5V/12V 42. TB-528C2（option）: SBC-7111 Riser Card, TB-528C2 CN3 is connected to SBC-7111 CN3 pin Header. TB-528C2 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. LED1： Mini PCIe devices LED Status. PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used.
  • Page 51 GPIO1： (2.0mm Pitch 2x5 Pin Header), General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use. Signal Name Pin# Pin# Signal Name Ground SMB_DATA_R SMB_CLK_R SOC-GPIO22 SOC-GPIO23 SOC-GPIO25 SOC-GPIO24 USB_23： (2.0mm Pitch 2x5 Pin Header), Front USB connector, it provides one USB port via a dedicated USB cable, speed up to 480Mb/s.
  • Page 52 Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP5 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) JP6：...
  • Page 53 DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP6 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) COM_6（option）： (2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are provided.
  • Page 54 M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with Smbus, SIM and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm. Signal Name Function support PCIe 1X USB2.0 (USB2) NC (option) SMBus H1/H2: MPCIE1 SCREW HOLES, H2 for mini PCIE card (30mmx30mm) assemble.
  • Page 55 Ground KBCLK MSCLK GPIO1： (2.0mm Pitch 2x5 Pin Header), General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use. Signal Name Pin# Pin# Signal Name Ground SMB_DATA_R SMB_CLK_R SOC-GPIO22 SOC-GPIO23 SOC-GPIO25 SOC-GPIO24 USB23： (Double stack USB type A), Rear USB connector, it provides up to 2 USB2.0 ports, speed up to 480Mb/s.
  • Page 56 JP5： (2.0mm Pitch 2x3 Pin Header), COM3 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM3 port. JP5 Pin# Function Close 1-2 RI (Ring Indicator) (default) Close 3-4 COM3 Pin9=+5V (option) Close 5-6 COM3 Pin9=+12V (option) COM3：...
  • Page 57 COM_6： (2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin# Signal Name Ground JP6 Setting: RI/5V/12V S1： PWR BT: POWER on/off Button, They are used to connect power switch button.
  • Page 58 CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with Smbus, USB2.0, SIM and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm Signal Name Function support...
  • Page 59 Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 NC (USB3_N) NC (USB2_N) NC (USB3_P) NC (USB2_P) Ground Ground Ground Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables. Any inconformity may cause system down and even hardware damages.
  • Page 60 Signal Name Pin# Pin# Signal Name Ground JP6 Setting: RI/5V/12V COM3： (2.0mm Pitch 2X5 Pin Header), COM3 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin# Signal Name Ground GPIO1：...
  • Page 61 Pin# Channel Signal Name Function CANL2 CAN bus Signal L Terminal resistor R-(internally connected to CANL2) CAN2 Shield cable (FG) Terminal resistor R+(internally connected to CANH2) CANH2 CAN bus Signal H CANL1 CAN bus Signal L Terminal resistor R-(internally connected to CANL1) CAN1 Shield cable (FG) Terminal resistor R+(internally connected to CANH1)

  • Page 62: Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation, press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 63: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 NV-HMI-8XX Series User Manual...

  • Page 64: Advanced Settings

    Second : 0 to 59 System Date: Set the system date, the date format is: Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled]...
  • Page 65 [Enabled] [Disabled] ACPI Sleep State: [S3 (Suspend to RAM) ] [Suspend Disabled] Lock Legacy Resources: [Disabled] [Enabled] 3.4.2 F81216SEC Super IO Configuration Super IO chip F81216SEC Serial Port 1 Configuration UART1 Mode Selection： [RS-232] [RS-485] [RS-422] Serial Port 2 Configuration Change Settings [Auto] Serial Port 3 Configuration...
  • Page 66 3.4.5 Serial Port Console Redirection COM0 Console Redirection [Disabled] [Enabled] Console Redirection Settings Legacy Console Redirection Legacy Console Redirection settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection [Disabled] [Enabled] Console Redirection Settings 3.4.6 CPU Configuration Socket 0 CPU Information Intel(R) Atom(TM) CPU E3845 @ 1.91GHz CPU Signature...
  • Page 67 Limit CPUID Maximum: [Disabled] [Enabled] Execute Disable Bit: [Enabled] [Disabled] Intel Virtualization Technology: [Enabled] [Disabled] Power Technology [Energy Efficient] [Disabled] [Custom] 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled]...
  • Page 68 SATA ODD Port [No ODD] [Porto ODD] [Port1 ODD] [Disabled] SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration...
  • Page 69 High Precision Timer [Enabled] [Disabled] Boot Timer with HPET Timer [Disabled] [Enabled] PCI Express Dynamic Clock Gating [Disabled] [Enabled] OS Selection Use the OS Selection option to select an operating system for the system. Note: Users must go to this item to select the OS mode before installing corresponding OS driver, otherwise problems will occur when installing the driver.
  • Page 70 LPSS I2C #5 Support [Enabled] LPSS I2C #6 Support [Enabled] LPSS I2C #7 Support [Enabled] [Disabled] Touch Pad [Disabled] I2C touch Device Address LPSS HSUART #1 Support [Disabled] LPSS HSUART #2 Support [Disabled] LPSS PWM #1 Support [Enabled] LPSS PWM #2 Support [Enabled] LPSS SPI Support [Enabled]...
  • Page 71 [Do not launch] Other PCI devices [UEFI] [Do not launch] [Legacy] 3.4.15 SDIO Configuration 3.4.16 USB Configuration USB Configuration USB Module Version 8.11.02 USB Devices: 1 keyboard, 1 Mouse，2 Hubs Legacy USB Support: [Enabled] [Disabled] XHCI Hand-off: [Enabled] [Disabled] EHCI Hand-off: [Disabled] [Enabled] USB Mass Storage Driver Support...

  • Page 72: Chipset Settings

    3.4.17 Platform Trust Technology 3.4.18 Security Configuration 3.5 Chipset Settings 3.5.1 Host Bridge ►Intel IGD Configuration ►IGD – LCD Control Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory...
  • Page 73 Max TOLUD [Dynamic] [2GB] [2.25GB] [2.5GB] [2.75GB] [3GB] 3.5.2 South Bridge ►Azalia HD Audio ►USB Configuration USB OTG Support [Disabled] USB VBUS [On] XHCI Mode [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0...

  • Page 74: Security Settings

    3.6 Security Settings 3.6.1 Administrator Password 3.6.2 User Password Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key.

  • Page 75: Boot Settings

    will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup. This will prevent unauthorized persons from changing your system configurations.

  • Page 76: Save & Exit Settings

    [Enabled] Fast Boot [Disabled] [Enabled] Boot Option Priorities Boot Option #1 Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save &...
  • Page 77 Discard Changes and Ext Exit Without Saving Quit without saving? [Yes] [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset Reset Without Saving Reset without saving? [Yes] [No] Save Changes Save Setup Values Save configuration? [Yes] [No] Discard Changes...

  • Page 78: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows 7. The software and drivers are included with the motherboard. The contents include Intel chipset driver, VGA driver, LAN drivers, Audio driver, USB 3.0 Driver Installation instructions are given below.

  • Page 79: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program. NV-HMI-8XX Series User Manual...
  • Page 80 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 81 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. NV-HMI-8XX Series User Manual...

  • Page 82: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. NV-HMI-8XX Series User Manual...
  • Page 83 Step 3. Read license agreement. Click Yes. Step 4. Click Next. NV-HMI-8XX Series User Manual...
  • Page 84 Step 5. Click Install. Step 6. Click Install. NV-HMI-8XX Series User Manual...
  • Page 85 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish. NV-HMI-8XX Series User Manual...

  • Page 86: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next. NV-HMI-8XX Series User Manual...
  • Page 87 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 88 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard. NV-HMI-8XX Series User Manual...

  • Page 89: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 90 Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. NV-HMI-8XX Series User Manual...

  • Page 91: Usb 3.0 Driver

    4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list Step 2. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 92 Step 3. Read the license agreement. Then click Yes to continue. Step 4. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 93 Step 5. Click Next to continue. Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. NV-HMI-8XX Series User Manual...

  • Page 94: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 5.1 Windows XP/2003/Vista/WIN7 Universal Driver Installation for PenMount 6000 Series Before installing the Windows XP/2003/Vista/WIN7 driver software, you must have the Windows XP/2003/Vista/WIN7 system installed and running on your computer.
  • Page 95 Step 2. Select Resistive Touch. Step 3. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 96 Step 4. Read the license agreement. Click I Agree to agree the license agreement. Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. NV-HMI-8XX Series User Manual...
  • Page 97 Step 6. Wait for installation. Then click Next to continue. Step 7. Click Continue Anyway. NV-HMI-8XX Series User Manual...
  • Page 98 Step 8. Click Finish to complete installation. 5.1.2 Installing Software (Projected Capacitive) Step 1. Insert the product CD, the screen below would appear. Click touch panel driver. NV-HMI-8XX Series User Manual...
  • Page 99 Step 2. Select Projected Capacitive. Step 3. Click Next to continue. NV-HMI-8XX Series User Manual...
  • Page 100 Step 4. Select I accept the terms of the license agreement. Click Next. Step 5. Click Install RS232 interface driver. NV-HMI-8XX Series User Manual...
  • Page 101 Step 6. Select None. Click Next. Step 7. Click OK. Step 8. Click Support Muti-Monitor System. Click Next. NV-HMI-8XX Series User Manual...
  • Page 102 Step 9. Go to C:\Program Files\eGalaxTouch. Click Next. Step 10. Click Next. NV-HMI-8XX Series User Manual...
  • Page 103 Step 11. Click Create a eGalaxTouch Utility shortcut on desktop. Click Next. Step 12. Wait for installation. Step 13. Click Yes to do 4 point calibration. NV-HMI-8XX Series User Manual...

  • Page 104: Software Functions

    5.2 Software Functions 5.2.1 Software Functions(Resistive Touch) Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 105 Standard Calibration Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’. Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens.
  • Page 106 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: NV-HMI-8XX Series User Manual...
  • Page 107 Step 3.Come back to “PenMount Control Panel” and select Tools then click Advanced Calibration. Step 4. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. NV-HMI-8XX Series User Manual...
  • Page 108 Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration. Turn off EEPROM The function disable for calibration data to write in storage Controller.
  • Page 109 About This panel displays information about the PenMount controller and driver version. NV-HMI-8XX Series User Manual...
  • Page 110 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows XP/2003/Vista/WIN7 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 111 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors.
  • Page 112 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares.
  • Page 113 PenMount Monitor has the following function Control Panel Open Control Panel Windows Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions.
  • Page 114 5.2.2 Software Functions(Projected Capacitive) General In this window, you can see there is USB Controller. Click OK to continue. Monitor Mapping to adjust touch panel to search for device NV-HMI-8XX Series User Manual...
  • Page 115 Setting Beep Beep On Touch Beep On Release Beep From System Beep Beep From Sound Card Linearization Style 9 points 25 points Double Click Time Shorter Longer Double Click Area Smaller Bigger Normal mode Simulate the mouse mode NV-HMI-8XX Series User Manual...
  • Page 116 Option Function Enable Constant Touch Enable Auto Right Click Enable Touch Enable Cursor Stabilization Constant Touch Area Auto Right Click Time NV-HMI-8XX Series User Manual...
  • Page 117 Tools Click OK to continue the settings. 4 Points Calibration Do 4 points alignment to match display. Clear and Calibrate Clear linearization parameter and do 4 points alignment. Linearization Do 9 points linearization for better touchscreen linearity. Draw Test Do draw test to verify the touch accuracy. NV-HMI-8XX Series User Manual...
  • Page 118 Display In this window, it shows the mode of display. Enable Multiple Monitors. Map to main display if system has only one display monitor Full Screen Lower Screen Left Screen Upper Screen Right Screen NV-HMI-8XX Series User Manual...
  • Page 119 Other Other mode of display. Quarter1~4 and Customized area. Active Area Drag active area to enable Active Area Function. NV-HMI-8XX Series User Manual...
  • Page 120 Hardware Saturn Hardware Configuration NV-HMI-8XX Series User Manual...
  • Page 121 About To display information about eGalaxTouch and its version. NV-HMI-8XX Series User Manual...
