Summary of Contents for Vision & Control TZB28-IR850-P-SL

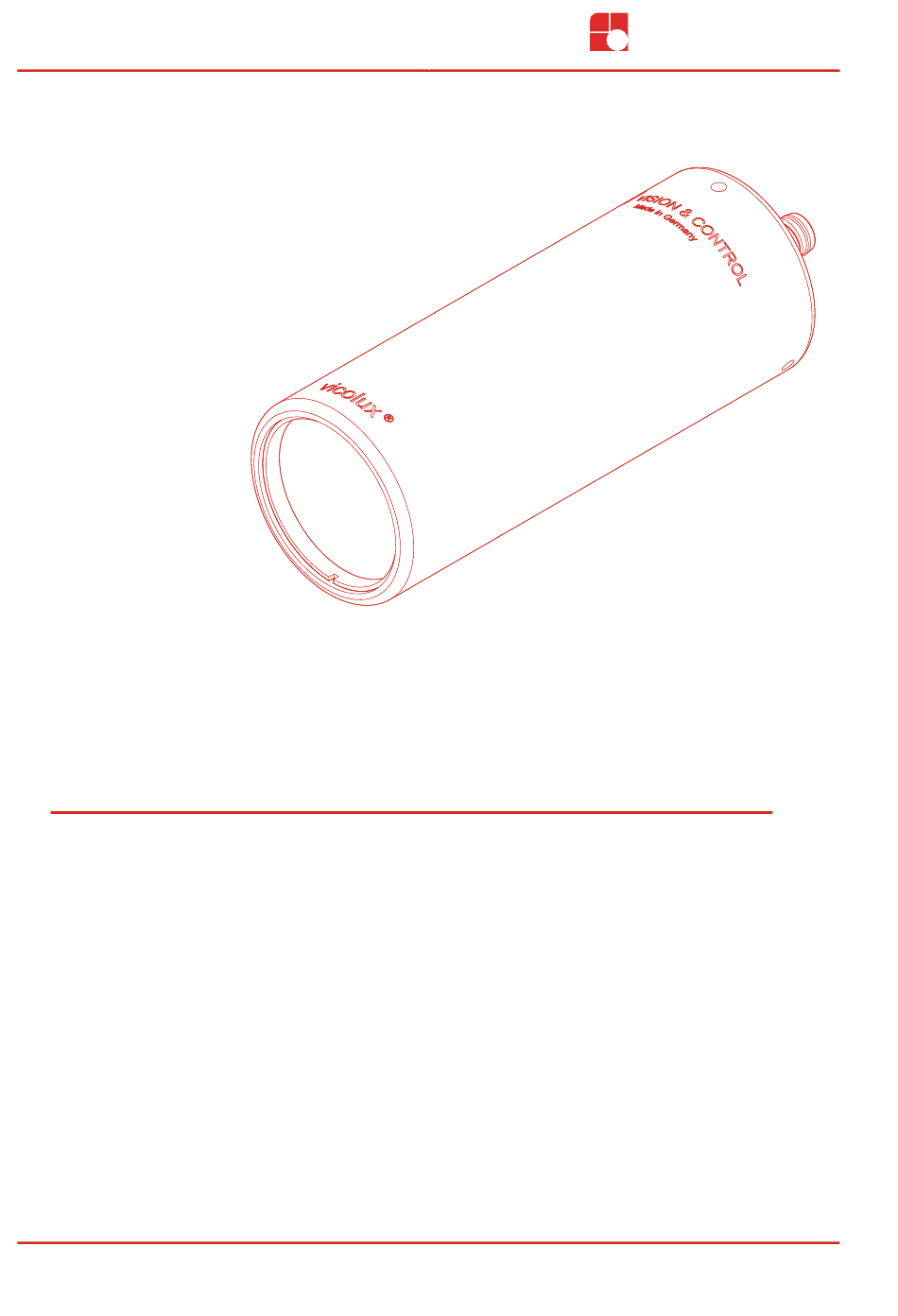

- Page 1 VISION & CONTROL Instructions for Use Instructions for Use TZB28-IR850-P-SL TZB28-IR850-P-SL Telecentric Lights, Telecentric Lights, Luminous colour: Infrared - 850 nm Luminous colour: Infrared - 850 nm 999.995.413.10-en-1.1 © Vision & Control GmbH 2021...
- Page 2 Impress Publisher / Manufacturer Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone: +49 (0) 3681 7974-0 Telefax: +49 (0) 3681 7974-33 www.vision-control.com Name of the document 999.995.413.10-en-1.1 Date of first issue 2021-04-19 Date modified 2021-10-22 Copyright © Vision & Control GmbH 2021 Copyright It is forbidden to pass this document on to third parties, reproduce and communicate its contents in as far as this has not been expressly authorized.
- Page 3 Validity These instructions for use are valid for the following device: Device Order no. TZB28-IR850-P-SL 1-33-231 Product Identification Designation Description Telecentric Lights Luminous field diameter in mm IR850 Luminous colour: Infrared - 850 nm Power LED SL vicolux smart light,...
-
Page 4: Table Of Contents
TZB28-IR850-P-SL Table of Contents TABLE OF CONTENTS 1 Information about the Instructions of Use..........5 1.1 Intended Use....................5 1.2 Improper Use....................6 1.3 Qualified Personnel..................6 1.4 Warranty and Liability...................7 2 Safety......................8 2.1 Presentation of Safety Instructions.............. 8 2.2 Safe Handling of the Device................ 9 3 Scope of Delivery and Accessories............ -
Page 5: Information About The Instructions Of Use
TZB28-IR850-P-SL Information about the Instructions of Use 1 INFORMATION ABOUT THE INSTRUCTIONS OF This document contains technical information, important instructions for correct installation, commissioning and use, as well as product information which were up-to-date at the time of going to press. -
Page 6: Improper Use
TZB28-IR850-P-SL Information about the Instructions of Use 1.2 Improper Use All unintended use and all device-related activities not described in these instructions of use is to be deemed as unauthorised misuse outside the legal limits of indemnity of the manufacturer. -
Page 7: Warranty And Liability
TZB28-IR850-P-SL Information about the Instructions of Use 1.4 Warranty and Liability The contents of this document have been checked carefully and correspond to current legislation and best practise at the time of going to press. However, the manufacturer shall not be liable for any damage arising from the use of this edition of the manual, and rejects any warranty derived therefrom. -
Page 8: Safety
TZB28-IR850-P-SL Safety 2 SAFETY 2.1 Presentation of Safety Instructions Each safety instruction is introduced by a key word and colour highlighted. The key word indicates the degree of danger. The danger and its cause are described, and then the measures to prevent conceivable consequences of the danger. -
Page 9: Safe Handling Of The Device
TZB28-IR850-P-SL Safety 2.2 Safe Handling of the Device Read the following applicable safety instructions carefully and completely. Follow the instructions for your own safety, the safety of other people, and to avoid damage to the device and the connected technical equipment. Hazards going beyond the general safety instructions are referred to separately at the relevant points in this manual. -
Page 10: Scope Of Delivery And Accessories
Because of the many possible configurations, the cables are listed in the accessories rather than included in the scope of delivery. 3.1 Scope of Delivery Designation Quantity Device TZB28-IR850-P-SL Covering cap Instructions for Use TZB28-IR850-P-SL 3.2 Accessories Lens holder Designation Description Order no. Lens Holder d35.5... - Page 11 TZB28-IR850-P-SL Scope of Delivery and Accessories Deflection mirror Designation Description Order no. Deflection mirror 90-35.5 90° deflection, attachment for 2-25-116 telecentric lenses and lightings with 35,5 mm front diameter vicolux smart light lighting controller Designation Description Order no. DLC-3005 Digital lighting controller, wall 1-30-202 mounting, continuous operation 4.8 A,...
- Page 12 TZB28-IR850-P-SL Scope of Delivery and Accessories DLC Connector-Set Designation Description Order no. DLC3005 Connector-Set 3 connectors for connecting operating 1-30-206 (included in scope of voltage, I/O port and lighting (without delivery DLC) cable) Connection cable DLC - PC Designation Description Order no.
- Page 13 TZB28-IR850-P-SL Scope of Delivery and Accessories Connection cable M8-4-pin, straight plug, 5A, 30V Designation Description Order no. Cable-M8-4p-5A- Connection cable with 4-pin M8 socket 1-11-611 straight-1m and open cable end with wire-end ferrules, 4 x 0.5 mm², 5A, 30V, PUR,...
-
Page 14: Device Description
TZB28-IR850-P-SL Device Description 4 DEVICE DESCRIPTION 4.1 Device Views Image 1: Device view Casing Light-emitting surface Identification plate Note screw-in depth Mounting surface with mounting holes Connector M8-4pin 999.995.413.10-en-1.1 © Vision & Control GmbH 2021... -
Page 15: Notices On The Device
TZB28-IR850-P-SL Device Description 4.2 Notices on the device Following instructions are provided on the device: Type plate Type: TZB28-XXXX-P-SL SN.: XXXXXXXX Image 2: Type plate Device designation Serial number Notice Screw-in depth screw-in depth max. 7mm Image 3: Notice Screw-in depth ©... -
Page 16: Technical Data
TZB28-IR850-P-SL Technical Data 5 TECHNICAL DATA 5.1 General Parameters Parameter Characteristic Housing material Aluminium, black anodised Optical material Glass Housing dimensions Length: 94.5 mm without connector Diameter max.: 35.5 mm Dimensions light-emitting Diameter: 29 mm surface Connector Male connector, M8, 4-pin... -
Page 17: Electrical Parameters
TZB28-IR850-P-SL Technical Data 5.2 Electrical Parameters NOTICE If the lighting is operated by using power sources of other manufacturers, verify that temperature, current and pulse time have to be kept inside specified limits! There is no automatic limitation of the electrical parameters. The LED overheating protection is not guaranteed. -
Page 18: Photometric Parameters
TZB28-IR850-P-SL Technical Data 5.3 Photometric Parameters Parameter Peak wavelength λ 860 nm peak Centroid Wavelength λ 850 nm centroid Spectral bandwidth Δλ 30 nm Full divergence angle 2α 0.84° Luminous field diameter 29 mm Luminous efficacy of radiation 0.110 lm/W... -
Page 19: Conditions For Operation, Storage And Transport
TZB28-IR850-P-SL Technical Data Spectral Emission Wavelength [nm] Image 4: Spectral emission 5.4 Conditions for Operation, Storage and Transport Observe the specified ambient conditions when transporting and storing the device. For accessories, connected devices and components observe the specific information in the associated instructions for use. -
Page 20: Technical Drawings
TZB28-IR850-P-SL Technical Data 5.5 Technical Drawings Image 5: Technical Drawings (dimensions in mm) 999.995.413.10-en-1.1 © Vision & Control GmbH 2021... -
Page 21: Commissioning
TZB28-IR850-P-SL Commissioning 6 COMMISSIONING NOTICE Installation and connection operations may only be performed in the off and de-energised state. 6.1 Unpacking 1. Lift the cardboard, together with the device, out of the carton. 2. Fold out the tucked in sides on the bottom of the cardboard. The film loosens and forms an insertion pocket. -
Page 22: Mounting The Accessories
TZB28-IR850-P-SL Commissioning 6.3 Mounting the accessories Mount the Lens Holder 2.) 3.) 1. Loosen the M5 hexagon nuts (a) on the lens holder. 2. Slide the lens holder to the desired location on the lighting. 3. Tighten the M5 hexagon nuts alternately hand-tight in small steps. - Page 23 TZB28-IR850-P-SL Commissioning Mount the Deflection Mirror 2.) 3.) 1. Loosen the M3 threaded pins (a) of the deflection mirror. 2. Attach the deflection mirror on the lighting. Rotate the mirror (b) to the desired position. 3. Tighten the M3 thread pins alternately hand-tight in small steps.
-
Page 24: Connecting
TZB28-IR850-P-SL Commissioning 6.4 Connecting NOTICE Cable damage • Comply with the specified minimum bending radius. • Cables must generally be mounted with a strain relief clamp. • Use cables corresponding to the specification (see data sheet). Connecting to vicolux smart light lighting controller... - Page 25 TZB28-IR850-P-SL Commissioning Pin assignment Use the M8 connector to connect the device according to the pin assignment. Pin assignment Connection diagram +ILED ® vicolux smart light -ILED Image 8: Connection diagram vicolux smart Image 7: M8 connector, 4-pin light Core colour...
-
Page 26: Operation
TZB28-IR850-P-SL Operation 7 OPERATION CAUTION Physiological effects by flashing lights • Working under flashing lights can cause effects such as headache, nausea, or epileptic seizures. • Avoid exposure to certain kinds of flashing lights or stroboscopes. • Wear protective goggles. -
Page 27: Making Operational Readiness
TZB28-IR850-P-SL Operation 7.1 Making Operational Readiness NOTICE This device is intended for use with suitable controllers only. All technical data and permissible conditions must be complied with. The lighting is switched on by turning on the LED current I The lighting is switched off by turning off the LED current I 7.2 Operation with vicolux smart light lighting controller... -
Page 28: Maintenance And Service
TZB28-IR850-P-SL Maintenance and Service 8 MAINTENANCE AND SERVICE 8.1 Maintenance The device is maintenance-free. Depending on the operating environment, it may have to be cleaned. The housing can be cleaned according to the conditions applicable to the given protection class. -
Page 29: Service
TZB28-IR850-P-SL Maintenance and Service 8.2 Service Technical Support Please contact our technical support if you have any technical questions concerning our products. We will be glad to be of service: Monday to Thursday 8:00 to 17:00, and Friday 8:00 to 15:00. -
Page 30: Disposal
TZB28-IR850-P-SL Disposal 9 DISPOSAL The device and its accessories and packaging must be sent to environmentally compatible recycling. Do not throw electrical devices or tools into the household waste! According to European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national law, unusable electric tools must be collected separately, and sent to environmentally compatible recycling. -
Page 31: Eu Declaration Of Conformity
D-98527 Suhl, Germany Representative: Dr. Jürgen Geffe, Managing director We, Vision & Control GmbH Suhl, declare that the product described below – Designation: TZB28-IR850-P-SL – Order no.: 1-33-231 has been manufactured in accordance with the following standards and normative documents: •... - Page 32 Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone +49 (0) 3681 7974-0 Telefax: +49 (0) 3681 7974-33 Vision & Control GmbH...
