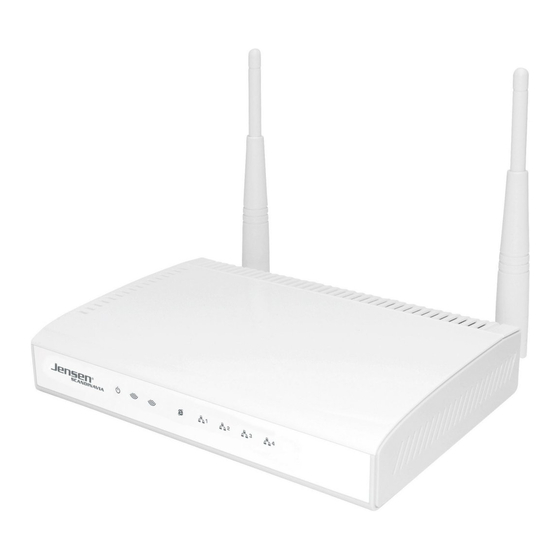

Jensen AIRLINK 1000AC Installation Manual

5G 2.4G
Power LED
5GHz LED
LED that show status 2.4GHz LED
LED that show status
for the 5GHz network.
The LED's will flash when for the 2.4GHz network.
active. The LED will flash when
active.
Installation Guide
1 2 3 4
Network ports LED
Show status for devices
that are connected to
the router by cable.
Internet LED
LED that show status
for the Internet port.
The LED will flash when active.
Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive):
Hereby, Jensen Scandinavia AS, declares that this wireless router is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
The declaration of confirmity may be consulted at www.jensenscandinavia.com/rtte/
Network ports
Ports for connecting network
devices by cable, such as computer,
TV, Media Server, Network printer,
VOIP adapter etc.
Internet port
Please connect your
broadband modem
to the internet port.
This equipment may be operated in all EU and EFTA countries: AT, BE, BG, CY, CZ, DK, EE, FI,
FR, DE, GR, HU, IS, IE, IT, LV,LI, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR, GB
PRODUCT USAGE RESTRICTIONS: This product is intended for indoor use only.
Model: AL1000AC
Power connector
Reset / WPS*
Reset: Hold for about
30 seconds to reset the
router to factory default.
WPS: Hold for about to
1-10 seconds to initiate
WPS connection.
* WPS is disabled as default
and needed to be activated in
router GUI (http://192.168.38.1)
before use.
