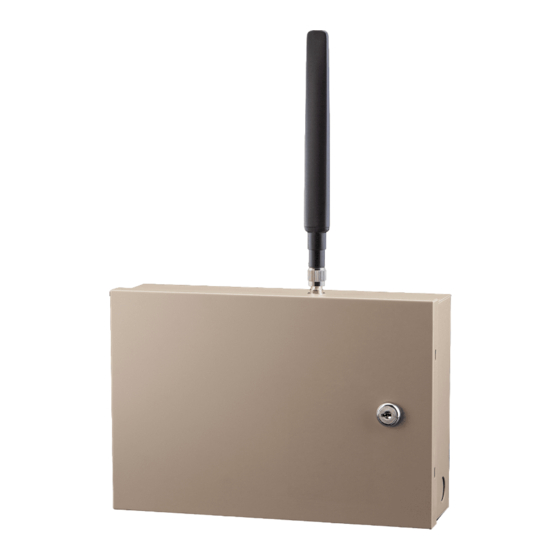

Telguard Digital TG-7 Quick Installation Manual

Telguard Digital
QUICK INSTALLATION GUIDE

Installation Summary

There are six steps in installing Telguard properly. IF YOU DO NOT
PROCEED IN THE ORDER AND MANNER PRESCRIBED, YOU MAY
NOT COMPLETE THE INSTALLATION IN THE TIME ALLOCATED.
S 1: R C
TEP EGISTER FOR ELLULAR
Complete the Activation Form online at
the form to Telular Cellular Service prior to leaving for the job site.
Telular requires this information to register and activate the unit.
S 2: L U M
TEP OCATE NIT AND
First, you will be confirming that Telguard has adequate cellular signal
strength. Put J10 across both pins, LEDS will now indicate signal strength,
minimum recommended is 2 ½ (2 on solid and the third flashing).
S 3: T C/C A
TEP RANSMIT LARMS OVER THE
Connect C/C and telco line to the Telguard. Trip a simple alarm on the C/C
and transmit over the telco line. This step is important to verify that the C/C
is programmed with valid account code and central station information
before transmitting signals through the cellular network.
S 4: P , A
TEP ROGRAM CTIVATE
C R N
THE ELLULAR ADIO ETWORK
Next, you will be programming the Telguard unless the default settings are
what you want. Then connect the C/C's digital dialer output to Telguard and
verify that alarm signals can be reliably sent over cellular to the central
station digital receiver. The incoming telco line is not connected to Telguard
during this step. A minimum of two alarm signals must be transmitted.
(NOTE:
THE FIRST ALARM WILL CONFIRM REGISTRATION AND
ACTIVATE THE UNIT WITH THE
IT WILL NOT BE TRANSMITTED TO THE
SIGNALS AFTER THE FIRST ARE SENT TO THE
S 5: C S
TEP ONNECT UPERVISORY
Next, you will wire Telguard's supervisory trip outputs to the C/C and then test.
S 6: C I
TEP OMPLETE THE NSTALLATION
Your last step will be to check the jumper setting of J10 (LED mode, open =
normal), attach earth ground, and permanently mount the unit.
TG-7 & TG-8
models
S
ERVICE
www.Telguard.com or fax
S S (RSSI)
EASURE IGNAL TRENGTH
T C
ELCO ONNECTION
& T C/C A
RANSMIT LARMS OVER
T C C
ELULAR OMMUNICATION ENTER
C .
ENTRAL STATION ALL
C S .)
ENTRAL TATION
T O
RIP UTPUTS
.
56031003
