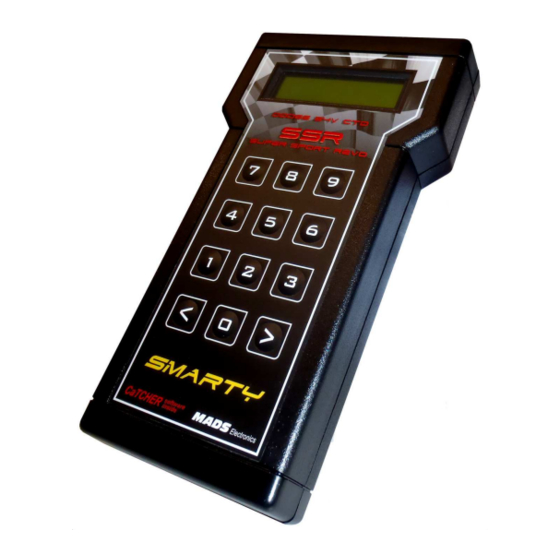

S06-SSR
Super Sport Race
Micro Tuner model
-
Common Rail Dodge Ram
5.9L, 24 Valve, Cummins Diesel Engine
Instruction Manual
PLEASE READ THIS ENTIRE INSTRUCTION MANUAL BEFORE PROCEEDING
www.madselectronics.com
Rev. 4.05A
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSR S06-SSR and is the answer not in the manual?

Questions and answers

Summary of Contents for Smarty SSR S06-SSR

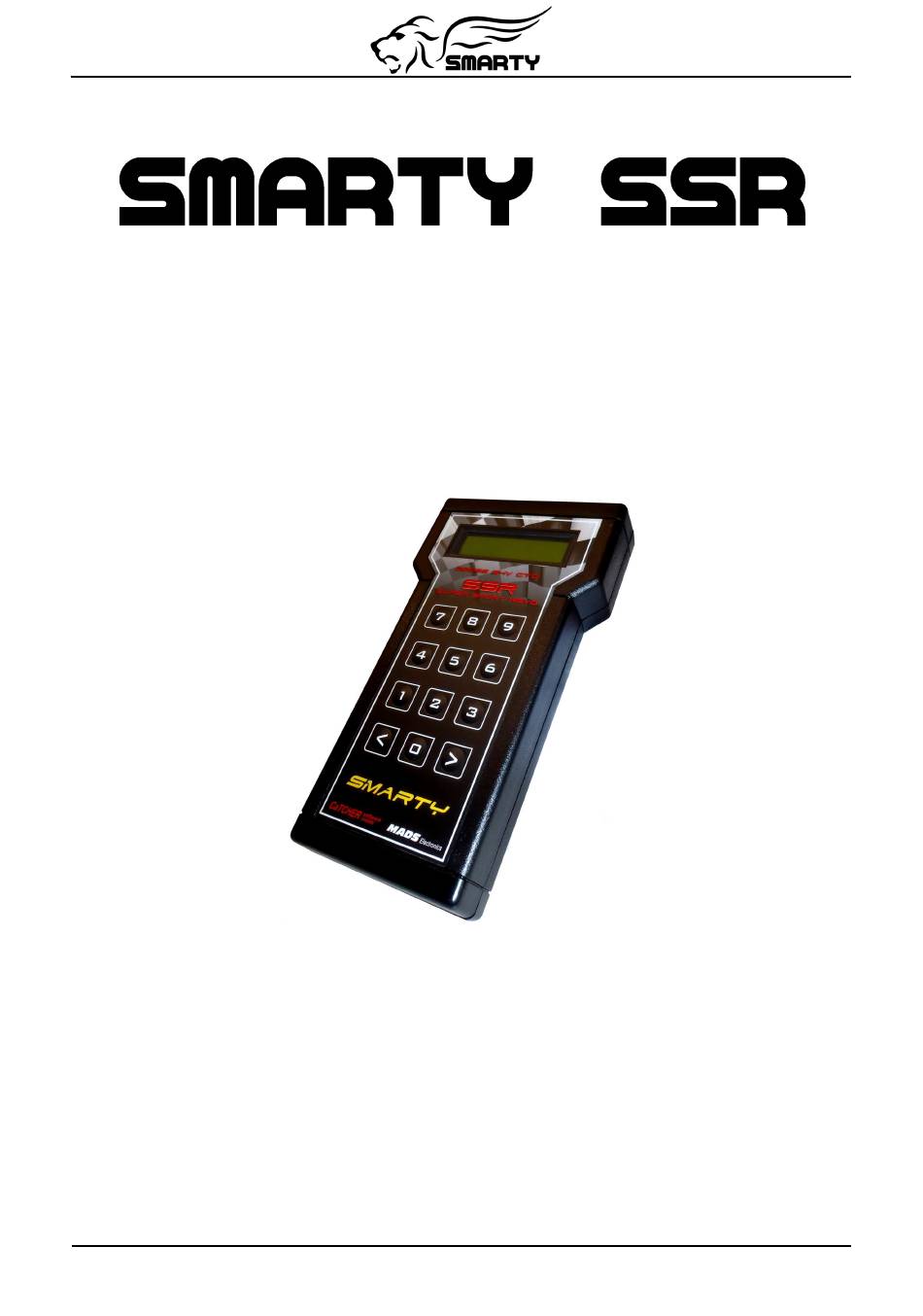

  • Page 1 S06-SSR Super Sport Race Micro Tuner model Common Rail Dodge Ram 5.9L, 24 Valve, Cummins Diesel Engine Instruction Manual PLEASE READ THIS ENTIRE INSTRUCTION MANUAL BEFORE PROCEEDING www.madselectronics.com Rev. 4.05A Page 1 of 16...
  • Page 2 THIS IS A HIGH PERFORMANCE PRODUCT USE AT YOUR OWN RISK This product is intended for OFF ROAD USE ONLY This product is not intended to be used to break the law Do not use this product until you have read the following agreement. This agreement sets forth the terms and conditions for the use of this product.
  • Page 3 In the case of ECM replacement, restore the ECM back to the STOCK software before the ECM replacement. Smarty works only with one vehicle and one ECM at a time while it is VIN Locked. Under no circumstances we will refund, repair, or warranty units that are send in and result VIN # locked.
  • Page 4: Table Of Contents

    Service Centers............................5 Locking and Unlocking Smarty........................5 Vehicle preparation...........................5 Smarty preparation...........................5 2.Smarty Overview..........................5 Keyboard operation...........................5 Connectors..............................5 3.Connecting Smarty to your vehicle....................6 4.Updating the ECM..........................6 First time update............................6 Speed limiter...............................6 RPM limiter (only in Race software).......................6 Shift limiter (only in Race software)......................7 Torque.................................7 Low-load - Injection Timing........................7...
  • Page 5: Before You Begin

    Locking and Unlocking Smarty. Once Smarty is used on a vehicle, it is VIN # LOCKED to that vehicle AND to that ECM. Smarty can be used only on that vehicle to update ECM software and ABS (speedometer) changes. In order to unlock Smarty, you must use Smarty to return the ECM to the STOCK software, otherwise, Smarty will remain locked.
  • Page 6: Connecting Smarty To Your Vehicle

    A USB cable is not included. Standard USB 1.1 or USB 2.0 cables can be used to connect Smarty to your personal computer. • 15 pin Connector: Used to connect Smarty to the vehicle through the vehicle’s diagnostic port with an OBD II cable.
  • Page 7: Shift Limiter (Only In Race Software)

    To set the RPM limiter to Stock, select a value below 3500 or simply 0. Shift limiter The Shift limiter can be programmed 'Stock' or 'Off' Shift limiter programmed "Off" allows the engine to produce full power also during gear shifts or power braking.
  • Page 8: Pre-Injection

    If the connection cannot be established, Smarty asks you to switch off the ignition key: Turn the ignition key to “OFF”. Press the ‘>’ key. Smarty will then ask you to switch the ignition key “ON” in order to retry the connection: Turn the ignition key to the “RUN”...
  • Page 9: Changing Software

    Plug Smarty’s cable into the diagnostic connector of your vehicle. Smarty will display: When the “ # “ symbols are displayed on the first line, Smarty is VIN# locked to a vehicle. The second line of the display shows the firmware version and the tuning data version.
  • Page 10: Recovery Of The Ecm

    ECM condition. Smarty asks you to switch off the ignition key: Turn the ignition key to “OFF”. Press the ‘>’ key. Smarty will then ask you then to turn ON the ignition key in order to retry the communication: Turn the ignition key to the “RUN”...
  • Page 11: Power On Demand

    Please, unplug Smarty from the diagnostic port and turn the ignition key off for 15 seconds. The job is done. The ECM has been returned to the STOCK software and Smarty is no longer VIN# Locked. You’re ready to start from the beginning again.
  • Page 12: Reading Dtc's

    If the Key was not in the on position Smarty will display this message: Pressing the ‘>’ key, Smarty asks you to turn on the ignition key to retry the connection: When the connection has been established, Smarty shows the key-on counter: Please remember that every time the key is switched off, as at the end of the programming, the key-on counter increases.
  • Page 13: Clearing Dtc Codes

    Clearing DTC codes At the end of the DTC code list, Smarty can either clear all the stored DTC codes from the ECM memory or exit: Press the ‘1’ key, to clear all the DTC codes stored in the ECM.
  • Page 14: Updating Smarty

    A typical ABS change will take only a couple of seconds. When the operation has been successfully completed, the following screen appears: The ABS unit does not always change, so Smarty will re-read the tire height from the ABS unit and display the results as shown in the following screen: If the ABS unit did not change to the new tire height, Press the ‘<’...
  • Page 15: Appendix A: Error Messages Description

    10. Appendix A: Error messages description This section contains all the possible error messages shown by Smarty: Error message Cause Solution CAN ERROR # A problem in the CAN Bus Check connection cable or contact communication MADS if the problem persists...
  • Page 16: Warranty

    If something goes wrong with your Product during the warranty period, use the following procedure to return the Product to MADS Company. 1. Restore the STOCK software to your vehicle ECM. DO NOT RETURN A VIN # LOCKED SMARTY. Download and fill out the Assistance Request Module available from MADS internet site or send an e-mail to MADS (e-mail information is available from MADS internet site) Include the following: •...
