Summary of Contents for Smarty S-67

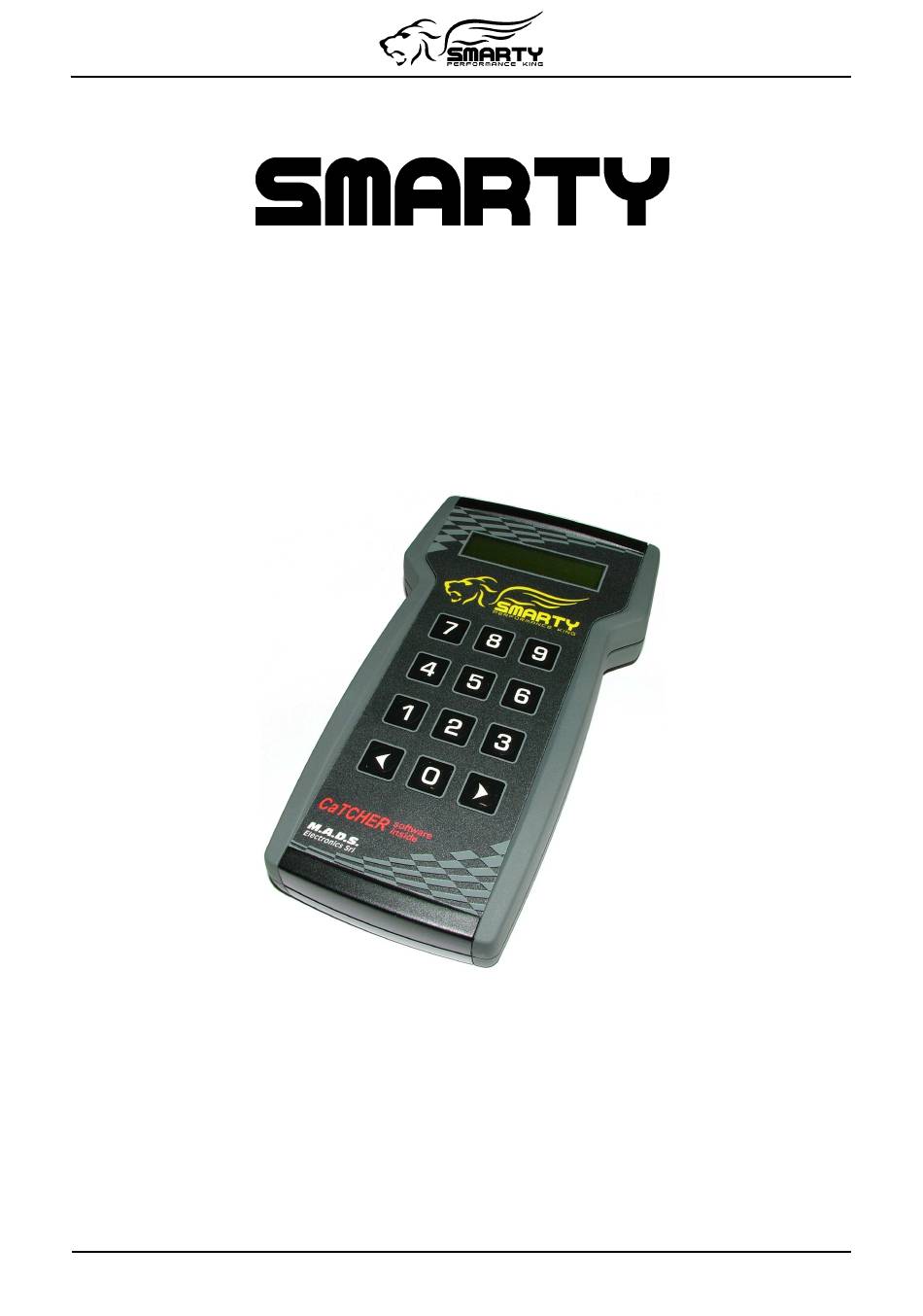

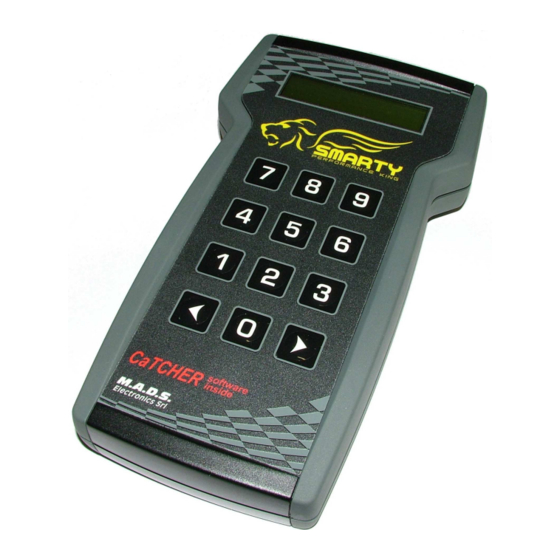

- Page 1 S-67 Micro Tuner model Common Rail Dodge Ram 6.7L, 24 Valve, Cummins Diesel Engine Instruction Manual PLEASE READ THIS ENTIRE INSTRUCTION MANUAL BEFORE PROCEEDING www.madselectronics.com Rev. 6.19C Page 1 of 16...
- Page 2 THIS IS A HIGH PERFORMANCE PRODUCT USE AT YOUR OWN RISK This product is intended for OFF ROAD USE ONLY This product is not intended to be used to break the law Do not use this product until you have read the following agreement. This agreement sets forth the terms and conditions for the use of this product.
- Page 3 In the case of ECM replacement, restore the ECM back to the STOCK software before the ECM replacement. Smarty works only with one vehicle and one ECM at a time while it is VIN Locked. Under no circumstances we will refund, repair, or warranty units that are send in and result VIN # locked.
-
Page 4: Table Of Contents
Service Centers............................5 Locking and Unlocking Smarty........................5 Vehicle preparation...........................5 Smarty preparation...........................5 2.Smarty Overview..........................5 Keyboard operation...........................5 Connectors..............................5 3.Connecting Smarty to your vehicle....................6 4.Updating the ECM..........................6 First time update............................6 Changing Software............................7 Recovery of the ECM ..........................9 5.Power on Demand..........................10 6.Adjusting optional parameters......................11 Speed limiter.............................11 Torque...............................11... -
Page 5: Before You Begin
Locking and Unlocking Smarty. Once Smarty is used on a vehicle, it is VIN # LOCKED to that vehicle AND to that ECM. Smarty can be used only on that vehicle to update ECM software and ABS (speedometer) changes. In order to unlock Smarty, you must use Smarty to return the ECM to the STOCK software, otherwise, Smarty will remain locked. -
Page 6: Connecting Smarty To Your Vehicle
• USB Connector: Used for connecting Smarty to a personal computer for updates. The update softwares can be downloaded from MADS internet site (www.madselectronics.com). A USB cable is not included. Standard USB 1.1 or USB 2.0 cables can be used to connect Smarty to your personal computer. -
Page 7: Changing Software
From this moment on, Smarty will work only with your vehicle until your vehicle is restored back to the stock settings by Smarty. Press the ‘>’ key. Smarty will ask you to select one of the CaTCHER software versions to load into the ECM: You can choose one of TEN different CaTCHER versions according to the desired performance. - Page 8 Smarty will try to communicate with the ECM. If the connection cannot be established, Smarty asks you to switch off the ignition key: Turn the ignition key to “OFF”. Press the ‘>’ key. Smarty will then ask you to turn on the ignition key in order to retry the connection: Turn the ignition key to the “RUN”...
-
Page 9: Recovery Of The Ecm
(when 100% is reached), Smarty will update the functional parameters of the ECM. The following screen will appear: During the updating session, Smarty can ask to Turn key OFF and Turn Key ON. Please follow these instructions. DO NOT DISCONNECT Smarty before the updating session is completed. -
Page 10: Power On Demand
ECM condition. Smarty asks you to switch off the ignition key: Turn the ignition key to “OFF”. Press the ‘>’ key. Smarty will then ask you then to turn ON the ignition key in order to retry the communication: Turn the ignition key to the “RUN”... -
Page 11: Adjusting Optional Parameters
To enter this function, press 2 in the Options menu: The list of optional parameter varies according to the installed software. For each parameter, the current option status is shown on the first line of the display. With Smarty numeric keyboard, the optional parameters can be adjusted. -
Page 12: Variable Geometry Turbo
If the Key was not in the on position Smarty will display this message: Pressing the ‘>’ key, Smarty asks you to turn on the ignition key to retry the connection: When the connection has been established, Smarty shows the key-on counter: Please remember that every time the key is switched off, as at the end of the programming, the key-on counter increases. -
Page 13: Clearing Dtc Codes
Clearing DTC codes At the end of the DTC code list, Smarty can either clear all the stored DTC codes from the ECM memory or exit: Press the ‘1’ key, to clear all the DTC codes stored in the ECM. -
Page 14: Updating Smarty
Press the ‘>’ key, then Smarty will prompt you to turn on the ignition key to retry the connection: When the connection has been established, Smarty shows the current tire height (Curr Tire:) in the top line of the screen: Type in the correct tire height with the numerical keys, entering a decimal point is not required. -
Page 15: Appendix A: Error Messages Description
11. Appendix A: Error messages description This section contains all the possible error messages shown by Smarty: Error message Cause Solution CAN ERROR # A problem in the CAN Bus Check connection cable or contact communication MADS if the problem persists... -
Page 16: Warranty
If something goes wrong with your Product during the warranty period, use the following procedure to return the Product to MADS Company. 1. Restore the STOCK software to your vehicle ECM. DO NOT RETURN A VIN # LOCKED SMARTY. Download and fill out the Assistance Request Module available from MADS internet site or send an e-mail to MADS (e-mail information is available from MADS internet site) Include the following: •...
