German pool PUT-35 Operating Instructions Manual

Compact air purifier

Advertisement

Quick Links

輕 便 式 空 氣 清 新 機
Compact Air Purifier
在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 , 並 妥 為 保 存 。
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
使 用 說 明 書
O P E R A T I N G I N S T R U C T I O N S
P.1
PUT-35
AUTO
(附遙控器 With Remote Control )
Z

Advertisement

loading

Summary of Contents for German pool PUT-35

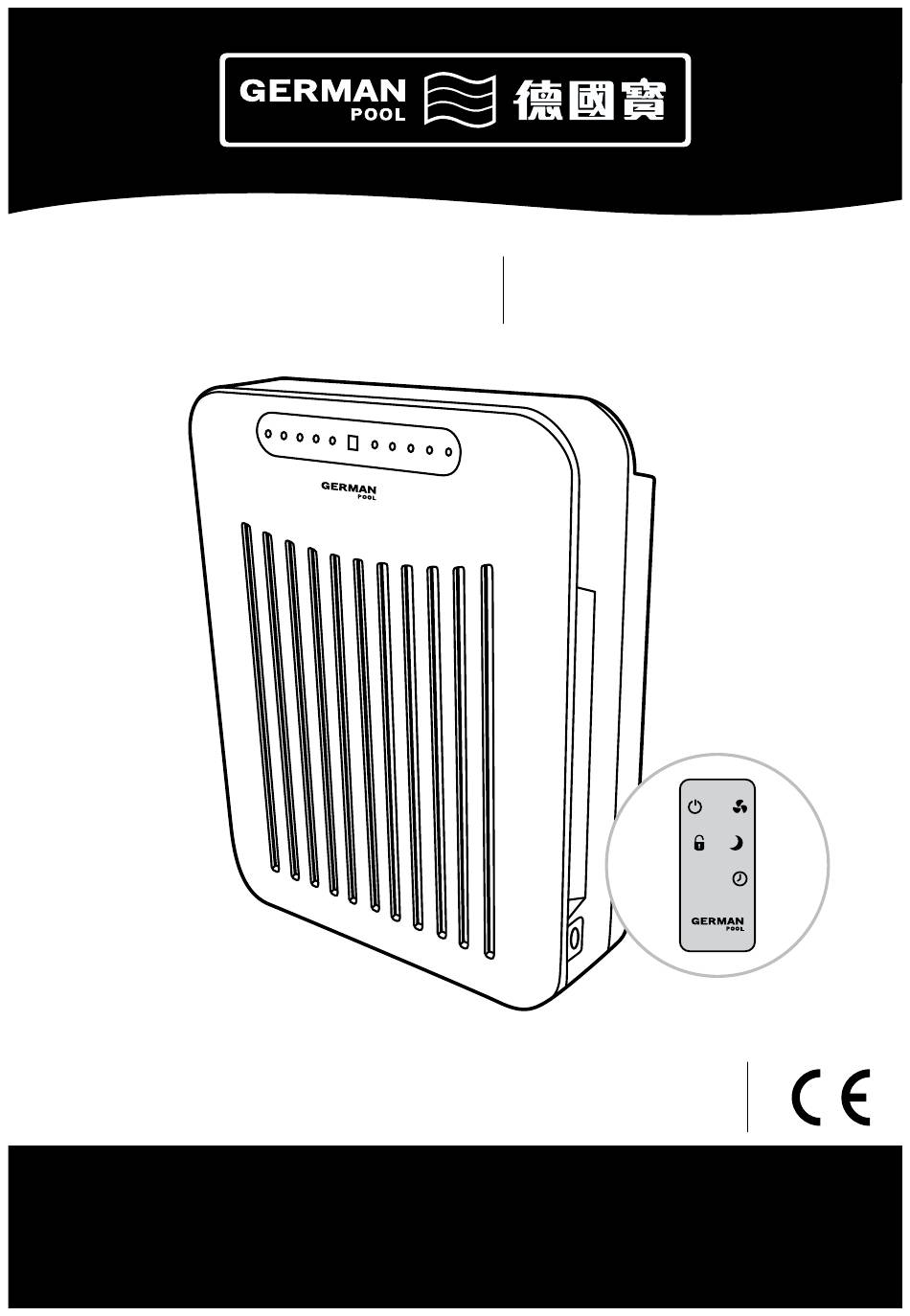

  • Page 1 PUT-35 輕 便 式 空 氣 清 新 機 Compact Air Purifier AUTO (附遙控器 With Remote Control ) 在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 , 並 妥 為 保 存 。...
  • Page 2 請即進行保用登記﹗ 有關保用條款細則,請看本說明書最後一頁。 Please register your warranty information now ! For Warranty Terms & Conditions, please refer to the last page of these operating instructions.
  • Page 3: Table Of Contents

    目錄 Table of Contents 注意事項 Notice Before Use 產品結構 Product Structure 操作說明 Operating Instructions 清潔與保養 Care & Maintenance 常見故障及處理 Troubleshooting 技術規格 Technical Specifications 保用條款 Warranty Terms & Conditions...
  • Page 4: 注意事項 Notice Before Use

    注意事項 Notice Before Use Important 重要說明 For safety purpose, you should read the instructions 為安全起見,初次使用產品前請先細閱本 carefully before using the appliance for the first time. 說明書,並保存說明書,以便作參考之用。 Save the instructions for future reference. The appliance is designed for domestic use and may 本產品只供家居使用。請必須依照本說明書...
  • Page 5: 產品結構 Product Structure

    產品結構 Product Structure 機身 Body 濾網蓋 納米光觸媒 顯示面板 操作面板 出風口 遙控器插座 Filter Cover Photocatalyst Display Panel Control Panel Outlet Grille Remote Control Mount 複合過濾網 負離子產生器 掛牆扣 Compound Filter Negative Ionizer Wall Mount...
  • Page 6 產品結構 Product Structure 操作面板 Control Panel 開關鍵 風速選擇鍵 自動模式鍵 時間設定鍵 ON/OFF Button Speed Button Auto Mode Button Timer Button AUTO 顯示面板 Display Panel AUTO CHILD LOCK 高、中、低、睡眠模式 電源/過濾網 遙控器 自動模式 安全鎖 時間設定顯示燈 Timer Indicator 風速顯示燈 更換顯示燈 訊號接收點 顯示燈 顯示燈 High, Medium, Low & Sleep Mode Power/Filter Remote Auto Mode...
  • Page 7 產品結構 Product Structure 配件 Accessories 1. 紅外線遙控器 : 1. Infra-red Remote Control : This air purifier is equipped with an infra-red 此空氣清新機配備紅外線遙控器。 remote control. 開關鍵 風速選擇鍵 ON/OFF Button Speed Button 安全鎖鍵 睡眠模式鍵 Safety Lock Button Sleep Mode Button 自動模式鍵 時間設定鍵 AUTO Auto Mode Button Timer Button 2.
  • Page 8: 操作說明 Operating Instructions

    操作說明 Operating Instructions Attention: 注意: - Check that if the electrical rating of this appliance - 查看插座電壓是否與本機相符。 corresponds with the socket. - 在正式啟動前,重複練習拆裝本機數次。 - Repeat installation steps as practice before using the appliance. - 使用本機時切勿打開任何濾蓋,否則電 - Do not open any filter cover during operation or 源會自動切斷以保障安全。...
  • Page 9 操作說明 Operating Instructions 2. Remote Control 2. 遙控器 The aforementioned 4 functions could be 上述4項功能可透過遙控器操作,而遙控器 activated with the remote control, on which there 亦另設以下2個功能按鍵。 are 2 more functions as described below. 睡眠模式鍵 Sleep Mode Button - Activate Sleep Mode by pressing this button and - 輕按此鍵即啟動睡眠模式,空氣清新機會自...
  • Page 10 操作說明 Operation Instructions Remote Control Receiver 遙控器訊號接收點 Note: 註: Keep the distance between the remote control 使用遙控器時須與此接收點保持在5米之 and the remote control receiver within 5 內,並確保兩者之間沒有障礙物。 metres and make sure there is no obstacle in between. 4. Remote Control Mount 4. 遙控器插座 - The remote control could be placed in this - 當不須使用遙控器時,可把遙控器放於此...
  • Page 11: 清潔與保養 Care & Maintenance

    清潔與保養 Care & Maintenance Caution 警告 - In order to avoid electric shock, please turn - 為免觸電,在清潔與維修前必須關掉本機, off and unplug the appliance before cleaning 並拔除電源插頭。 or repair. - 切勿將機件浸泡於任何液體中。 - Do not immerse the components in any liquid. 1. Open the filter cover only when the filter needs to 1.
  • Page 12: 常見故障及處理 Troubleshooting

    常見故障及處理 Troubleshooting 使用中如發現本機操作上有問題,請依照下表進行檢查。 When you run into any problems when operating this appliance, use the table below to troubleshoot the problems. 故障現象 Phenomenon 原因分析 Possible Cause 處理方法 Solution 機器不運轉。 電源線是否有正常連接好? 將插頭和插座連接好。 The unit does not operate. Whether the power cord has Connect the power cord to the been disconnected? outlet.
  • Page 13: 技術規格 Technical Specifications

    技術規格 Technical Specifications 型號 Model PUT-35 電壓 Voltage 230 V 頻率 Frequency 50 Hz 功率 Power 35 W 適用面積 Applicable Coverage Area 10 - 20 m² 風速設定 Speed Setting 睡眠模式、低、中、高 Sleep Mode, Low, Medium, High 時間設定 Timer Setting 連續模式、 1H 、 4H 、 8H Continuous Mode, 1H, 4H, 8H 機身尺寸 Dimensions...
  • Page 14 如欲獲取更多有關本產品最新資訊,歡迎瀏覽本公司網站 。 For additional product information, please visit our website. w w w . g e r m a n p o o l . c o m P.14...
  • Page 15: 保用條款 Warranty Terms & Conditions

    - serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, in its discretion, repair or replace any defective part. 4. 總代理有權選擇維修或更換配件或其損壞部份。 5. This warranty will be void if there is any transfer of 5.
  • Page 16 電話 Tel: +86 757 2980 8308 傳真 Fax: +86 757 2980 8318 © 版權所有。未獲德國寶授權,不得翻印、複製或使用本說明書作任何商業用途,違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. P.16...
