Professional Dual CD Player
OWNER'S MANUAL
VESTAX CORPORATION
VESTAX America
VESTAX ( Europe ) Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDX-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vestax CDX-15

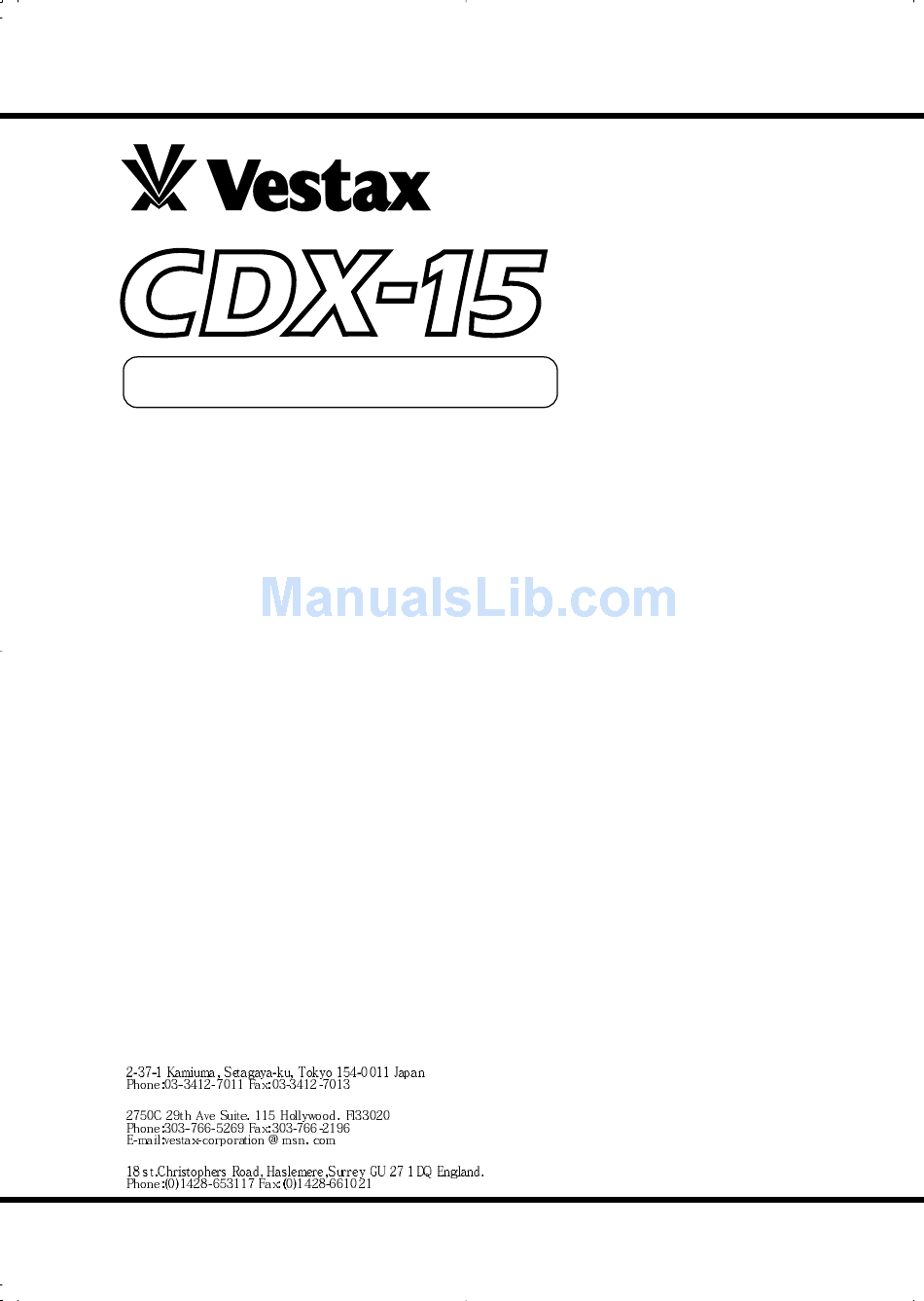

  • Page 1 Professional Dual CD Player OWNER'S MANUAL VESTAX CORPORATION VESTAX America VESTAX ( Europe ) Ltd.
  • Page 2: Table Of Contents

    CONGRATULATIONS ! Thank you for purchasing the VESTAX CDX-15, DUAL CD PLAYER. Please read this owner's manual carefully before you start to use the machine, so that you will fully understand all of the special features and enjoy the full use of the product.
  • Page 3: F C C

    N O T E This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4: Important Safeguards

    I M P O R T A N T S A F E G U A R D S READ BEFORE OPERATING EQUIPMENT T h i s p r o d u c t w a s d e s i g n e d a n d m a n u f a c t u r e d t o m e e t s t r i c t q u a l i t y a n d s a f e t y s t a n d a r d s .
  • Page 5: F E A T U R E S

    CDX-15 from skipping caused by physical and acoustic vibration. This feature enables the CDX-15 to be used in any situation, such as professional, club or mobile application. ● CD mixing can be done without an external mixer by using the built-in crossfader.
  • Page 6 B E F O R E U S E Notes on the Compact Disc (CD) The surface which is glossy like a ralnbow is the front side of the CD, and the surface where the label information is printed is the back side. Unlike conventional analog disk turntables, the CD player reads information from the disc by applying laser beam, in place of a stylus, on the front surface.
  • Page 7: C D S E C T I O N

    N O T E When the CDX-15 is set to PAUSE with monitor mode on, it generates the loop sound between the paused position and four frames...
  • Page 8 The play back speed can be increased or decreased momentary by moving the STICK CONTROLLER up or down. When the stick is set to centre position, the CDX-15 plays back at the pitch set by (4) PITCH ADJUSTMENT FADER. This unique function allows DJs to synchronise the music or adjust the tempo smoothly.
  • Page 9: Display Button

    ⑧DISPLAY BUTTON Pressing this button each time, the display changes the mode to the following figures. [1] Time Indication Mode ● CD WITH TEXT DATA When the DISPLAY BUTTON is pressed, the display mode changes from Total Remain Time to Track Time, then to Total Remain Time.
  • Page 10: Stop Button

    ⑨DISPLAY Indicates motion status, track numbers, times, frames, texts, shock-proof memory status. [1] Indications of motion status Indication on the display Status Vestax CDX-15 on initial setting Door Open TOC Reading No Disc TOC Error Read Error NO Audio Disk...
  • Page 11: Mixer Section

    . When the cross fader is set in the middle, both programs can be monitored. The cross fader of the CDX-15 is a user-replaceable fader for ease of replacement. When the cross fader is worn out, please replace it with the optional replacement fader, CF-R.
  • Page 12: Headphone Jack

    Connect to the input of a power amplifier. ⑰HEADPHONE JACK Connect the headphones to this jack. Headphones with its impedance from 8 ohm to 600 ohm can be used. MODEL NO.CDX-15 230V∼50Hz 20W CATUTION :SHOCK HAZARD, DO NOT  REMOVE SCREWS.
  • Page 13: Connection Example

    CONNECTION EXAMPLE Using the mixer equipped with CDX-15 MONITOR SPEAKER MONITOR SPEAKER POWER AMPLIFIRE [Vesatx PT-X1000A] CHANNEL CHANNEL PROTECT B.T.L POWER PEAK PEAK POWER INPUT INPUT ON / OFF MINI MINI UNBALANCED INPUT MIX OUT Using the other mixer DJ MIXER[Vestax PMC-25]...
  • Page 14: O P E R A T I O N

    STANDBY MODE In case the player is kept in PAUSE mode for over ten minutes, the CDX-15 stops spinning automatically and is set to STANDBY MODE in order to protect the CD mechanism from wearing out. STANDBY MODE is cancelled if any of the following is done.
  • Page 15: Specifications

    SPECIFICATIONS Total Power requirement Weight Dimensions (W+H+D) Accessory CD SECTION Quantization: Sampling Frequency Digital Filter Shock Proof Memory Error Correcting System Harmonic Distortion Frequency response Signal To Noise Ratio Channel Separation CD OUT Mechanism Mount: MIXER SECTION Frequency Response Cross Talk Signal To Noise Ratio Headphone Level 115V/230V AC, 20W...
  • Page 16 Vestax Corporation...
