- Page 1 AC-400-GPS AC-400 INSTALLATION AND CONFIGURATION MANUAL www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 2: Table Of Contents
What should be shipped.......................... 4 Standard Parts ............................. 4 Optional Parts ............................4 Technical Specification ..........................5 System Overview ............................. 6 AC-400-GPS ............................6 GPS Antenna ............................7 Setting up the Unit ..........................8 Connecting everything up ........................8 Antenna Location ..........................8 Connect to Network ........................ -
Page 3: Introduction

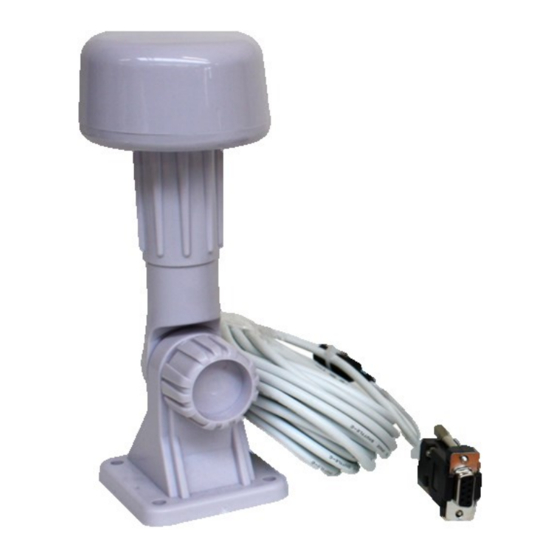

AC-400-GPS INTRODUCTION The AC-400-GPS is mains powered GPS antenna that can track up to 8 satellites. The antenna can be positioned up to 100m away from the computer (10m supplied) and connects to the computer by a serial interface. The supplied software driver synchronises the time on a single Windows Server or Workstation and can also synchronize PC's, workstations and other NT servers across the network. -
Page 4: What Should Be Shipped
AC-400-GPS WHAT SHOULD BE SHIPPED STANDARD PARTS AC-400-GPS Antenna with 10m of cable Software and Manual USB Power Lead OPTIONAL PARTS Gold and Premium Support Packages Digital Wall Clocks Antenna Cable (100 metre rolls available) ... -
Page 5: Technical Specification
AC-400-GPS TECHNICAL SPECIFICATION Type of receiver Active Antenna GPS 8 channel Power Supply 85-260V, 47-63Hz Protocols SNTP via TimeSync Software Connections RS232 Serial Interface Must be mounted externally (preferably with 180 Mounting view of the sky). Can be mounted next to a window, but visibility reduced. -
Page 6: System Overview
SYSTEM OVERVIEW AC-400-GPS The AC-400-GPS is mains powered GPS antenna that can track up to 8 satellites. The antenna can be positioned up to 100m away from the computer (10m supplied) and connects to the computer by a serial interface. The supplied software driver synchronises the time on a single Windows Server or Workstation and can also synchronize PC's, workstations and other NT servers across the network. -
Page 7: Gps Antenna
AC-400-GPS GPS ANTENNA Tracking up to 8 satellites at the same time, GPS offers an accurate signal capable of a reliable and consistent reading anywhere in the world. Used extensively for synchronising time from one location to another, GPS signals are received globally and maintain a high level of accuracy. -
Page 8: Setting Up The Unit
Also the maximum cable length should not exceed 100m. CONFIGURATION Once everything is connected up, the AC-400-GPS can then be powered up. The unit will start up and will begin to search for GPS satellites to synchronise with. -
Page 9: Troubleshooting
AC-400-GPS TROUBLESHOOTING Use this section to quickly troubleshoot minor issues or common problems. For any further support, please contact us using our Support Website, which can be found at: galleonsupport.com Q) The GPS Unit cannot see enough satellites. What can be done to improve this? A) The ideal location for the GPS Antenna is the on the roof of the building with a 180... -
Page 10: Technical Support
AC-400-GPS TECHNICAL SUPPORT SUPPORT WEBSITE Should you require any Technical Support on this product, please go to galleonsupport.com where you can find access to the Knowledgebase, for general information. For any further questions please submit a ticket detailing the problems or technical issues you are having, and a member of the Technical Support Team will be available to support you. - Page 11 AC-400-GPS The Technical Support Knowledgebase. The Technical Support Ticket System. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 12: Warranty And Maintenance
Galleon systems. This Warranty does not apply if repairs are required due to acts of nature beyond Galleon systems’ control such as, but not limited to, lightning strikes, power surges, misuse, damage, neglect, or if repairs/modifications have been made or attempted by anyone other than personnel authorised by Galleon Systems.
