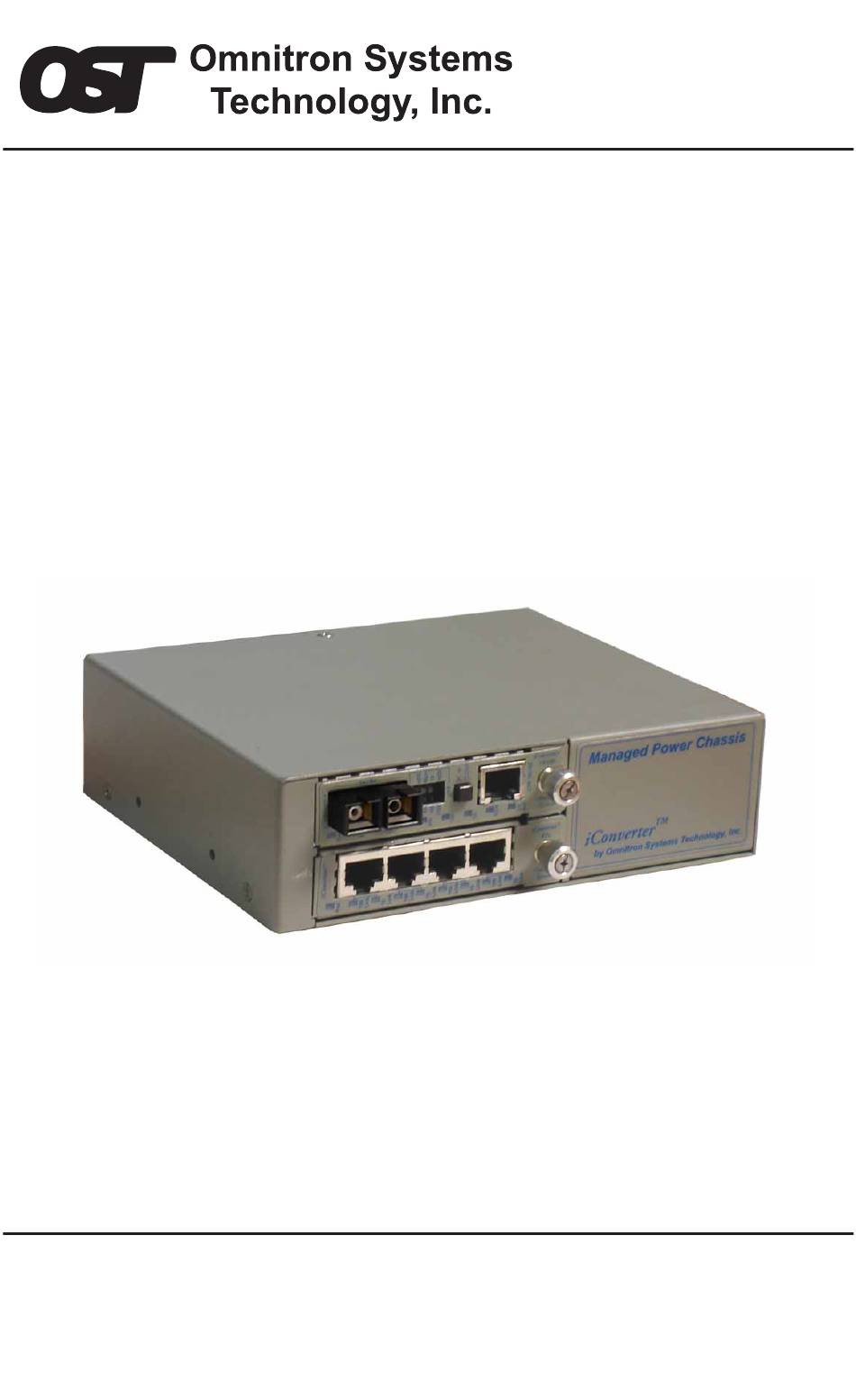

- Page 1 FlexSwitch 1Fx+4U Model 6750-FK Replacement Kit User Manual 140 Technology #500, Irvine, CA 92618 Phone: (949) 250-6510; Fax: (949) 250-6514...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ..............3 General Description ............. 3 Chassis Models ..............3 INSTALLATION ..............4 Chassis Installation .............. 4 Module Installation ............... 4 Fiber Installation..............4 UTP Installation ..............4 CONFIGURATION ..............5 DC Powered Chassis Site Preparation ....... 5 DC Powered Chassis Mounting .......... -
Page 3: Introduction
INTRODUCTION General Description The 6750-FK is the replacement for the discontinued FlexSwitch Model 600XC 1Fx + 4U. The 6750-FK replacement kit consists of one iConverter 10/100BASE-TX to 100BASE-FX Media Converter Module and one iConverter 4Tx Switch Module installed in a iConverter 2-Module Chassis. -
Page 4: Installation
INSTALLATION Chassis Installation The 6750-FK is designed to accommodate wall-mounting and tabletop installations. For wall-mounting, the 8249-0 Wall-Mount kit (sold separately) is designed to attach the chassis to a wall, backboard or other flat surfaces. For tabletop installations, place the unit on a flat level surface. Attach the rubber feet to the bottom of the chassis to prevent the unit from sliding. -
Page 5: Configuration
CONFIGURATION DC Powered Chassis Site Preparation • Power source should be available within 5 ft. of the chassis. The over current protection for connection with centralized DC shall be provided in the building installation, and shall be a UL listed circuit breaker rated 20Amps, and installed per the National Electrical Code, ANSI/NFPA-70. - Page 6 • Prepare a power cable using a three conductor insulated wire (not supplied) with a 14 AWG gauge minimum. Cut the power cable to the length required. • Strip approximately 3/8 of an inch of insulation from the power cable wires.
-
Page 7: Configuring The Dip-Switches
Configuring the DIP-switches The 6750-FK has been pre-configured with auto-negotiation enabled on all UTP ports for plug and play easy of use. However, the iConverter Modules offer additional configuration flexibility. 3.3.1 4Tx Switch Module The 4Tx Switch Module has been pre-configured for auto-negotiation. Board-mounted DIP-switches are available to manually configure Port 1 and 2. -
Page 8: Media Converter Module - Front Panel
UTP 10/100Mbps “10/100” DIP-switch (Port 1 or Port 2) When the UTP “AN/MAN” DIP-switch (described above) is in the manual “MAN” position, the “10/100” DIP-switch determines the speed of operation for the designated UTP port. Setting the “10/100” DIP-switch to “100” position (factory default) forces the UTP port to operate at 100Mbps. -
Page 9: Media Converter Module - On-Board
10/100 speed and duplex mode of a mating auto-negotiating device connected to its UTP port. When the UTP “AN/Man” DIP-switch is in the “Man” position, the converter does not auto-negotiate and operates in the mode selected by the Full/Half- Duplex “FDX/HDX” and “10/100” DIP-switches. UTP 10/100 “10 / 100”... - Page 10 A and B Backplane Enable “BPOEN” DIP-switch This DIP-switch must be in the UP position (factory default) for the module to operate correctly. The backplane must be enabled for the Media Converter Module to communicate. Link Propagate/Link Segment “LP” DIP-switch When both the Link Propagate/Link Segment “LP”...
-
Page 11: Led Indicators
LED INDICATORS 4Tx Switch Module The 4Tx Switch Module has LED indicators to provide connection information. 4Tx Switch Module LED Function Color Off State ON State Power "Pwr" Yellow No Power On: Module has Power Port 1 "100 Link" Green Not Linked at 100Mbps On: Port Linked at 100Mbps Blinking: Data Activity Port 1 "10 Link"... -
Page 12: Media Converter Module
Media Converter Module The Media Converter Module has LED indicators to provide information on how the module is communicating to its link partner. The LED indicators can also be used to troubleshoot problems with the connections. Media Converter Module LED Function Color OFF State ON State... -
Page 13: Specifications
SPECIFICATIONS Description Fast Ethernet Switch with 5 10/100 UTP Ports and 1 100BASE-FX Fiber Port Protocols 10BASE-T, 100BASE-TX, 100BASE-FX with 1535 bytes max. frame size UTP Cable Type EIA/TIA 568A/B Category 5 and higher Fiber Cable Type Multimode: 50/125, 62.5/125, 100/140um Singlemode: 9/125um UTP Connector Type RJ45... -
Page 14: Link Mode Description
LINK MODE DESCRIPTION In order to accommodate different user requirements, the 6750-FK Media Converter Module supports three different link modes. Link Segment (LS) LS mode transmits a link signal independently of any received Link at any port. Utilizing this configuration, a loss of a receive link signal will only affect the port detecting the loss of signal. - Page 15 Warning The operating description in this Instruction Manual is for use by qualified personnel only. To avoid electrical shock, do not perform any servicing of this unit other than that contained in the operating instructions, unless you are qualified and certified to do so by Omnitron Systems Technology, Inc. Caution All user-required operations can be performed without opening the unit.
- Page 16 TECHNICAL SUPPORT If you encounter problems with this product, contact Omnitron Technical Support. Phone: 800-675-8410 949-250-6510 Fax: 949-250-6514 Address: Omnitron Systems Technology, Inc. 140 Technology Dr., #500 Irvine, CA 92618 Email: support@omnitron-systems.com URL: http://www.omnitron-systems.com Form: 040-06750-FK1 B 7/08...
