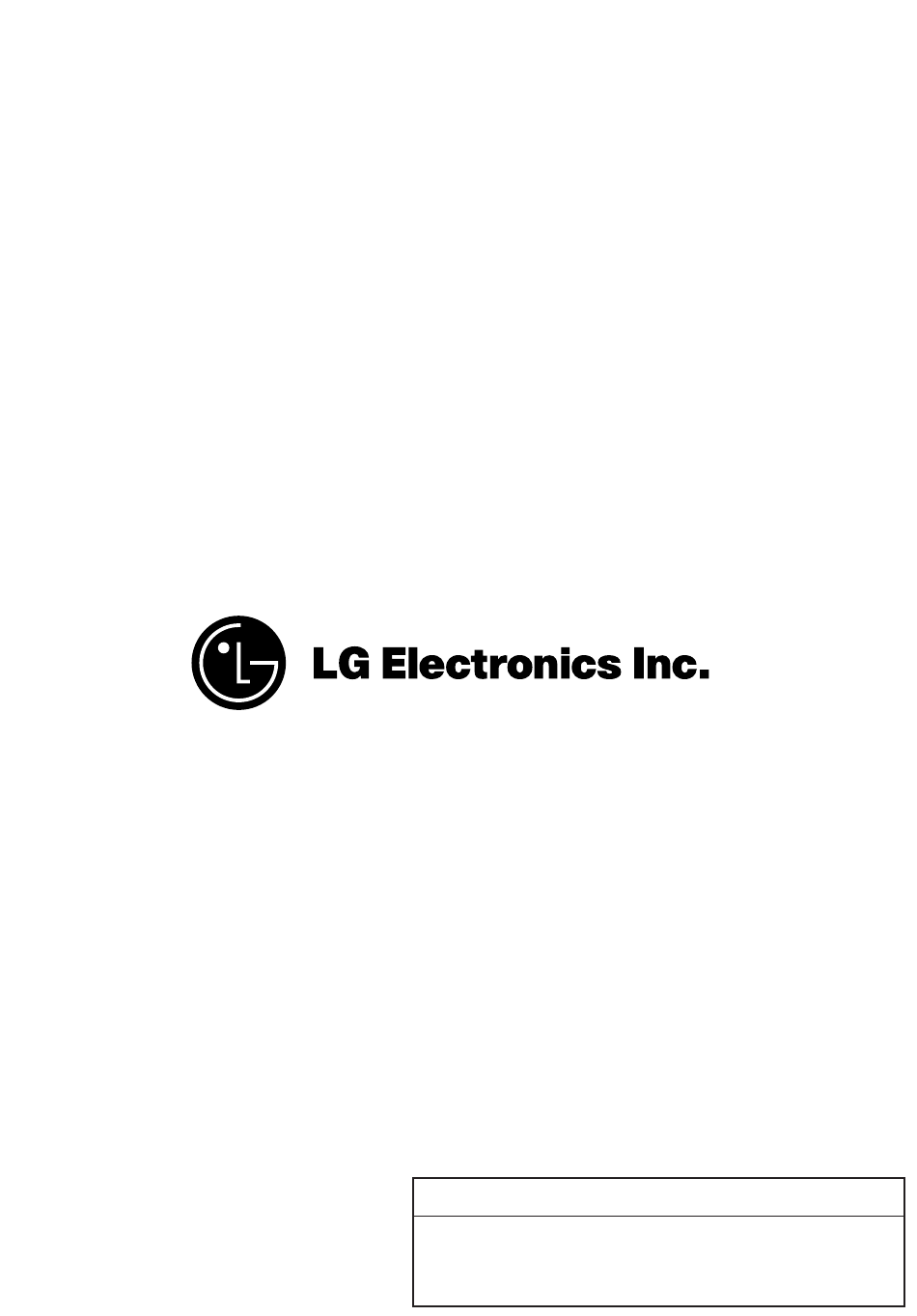

- Page 1 For U.K. Customer CUSTOMER SERVICES Tel. : 0870 - 873 - LGLG(5454) Fax. : 0870 - 872 - 7337 P/No.: 3828ER3026V LGEUK SERVICE WEB-SITE : http://uk.lge.com...
- Page 2 WD(M)-12275BD WD-12271BD WD-12276BD Thank you for buying a LG Fully Automatic Washing machine. Please read your owner's manual carefully, it provides instructions on safe installation, use and maintenance. Retain it for future reference. Record the model and serial numbers of your washing machine.
-
Page 3: Table Of Contents
roduct Feature ■ Direct Drive System The advanced Brushless DC motor directly drives the drum without belt and pulley. ■ Tilted Drum and Extra Large Door Opening Tilted drum and extra large opening make it possible to load and unload clothing more easily. ■... -
Page 4: Warnings
arnings READ ALL INSTRUCTIONS BEFORE USE For your safety, the information in this manual must be followed to minimize WARNING! the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:... -
Page 5: Specification
pecification Name : Front loading washing machine Power supply : 220 - 240V~, 50Hz Size : 686mm(W)×767mm(D)×982mm(H) Weight : 86kg Wash capacity : Refer to the Rating Label Max. Watt : 2200W Spin speed : No spin/400/800/1000/1200 Water consumption : 89ℓ Permissible water pressure : 0.3-10kgf/㎠... -
Page 6: Installation
nstallation Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. Properly ground washer to conform with all governing codes and ordinances. The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor. - Page 7 nstallation Installation place requirement Level floor : Allowable slope under entire washer is 1˚ Power outlet : Must be within 1.5 meters of either side of location of washer. Do not overload the outlet with more than one appliance. Additional Clearance : For wall, door and floor modeling is required.
- Page 8 nstallation Electrical connection 1. Do not use an extension cord or double adapter. 2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. 3.
- Page 9 nstallation Normal Tap without thread & screw type inlet hose Unscrew the fixing screw to Push the connector up till the Push the water supply hose attach the tap. rubber packing is in tight contact vertically upwards so that the with the tap.
- Page 10 nstallation This equipment is not designed for maritime use or for use mobile installations such as caravans, aircraft etc. Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity. When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside.
- Page 11 • If possible install the washer in one of the corners of the room, where the floor is more stable. ※ ※ Insert the rubber cups to reduce vibration. ※ ※ You can obtain the rubber cups (p/no.4620ER4002B) from the LG spares dept. Important! •...
-
Page 12: Care Before Washing
are before washing Before the first washing Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash without clothing. This will remove residues from the drum that may have been left during manufacturing. Caring before washing 1. -
Page 13: Adding Detergent
dding detergent Adding detergent and fabric softener 1. The Dispenser Drawer 3. Detergent dosage • The detergent should be used according to the instruction of the detergent manufacture. • If too much detergent is used more than the recommended amount, too many suds can occur and this will decrease the washing result or cause heavy load to the motor. -
Page 14: Function
unction Recommended courses according to the laundry type ❋ Energy label data based on program cotton 60˚C, tested in accordance with EN60456. Proper Time Maximum Program Fabric Type Temp. Option Load (Option) Minutes Cotton Color fast garments 60˚C (shirts, night dresses, (Cold, Rating 30˚C, 40˚C,... -
Page 15: How To Use Washer
ow to use washer 2. Manual Selecting 1. Cotton automatically selected upon power on. • Press the Power( ) button to start. • Select the conditions which you want to • Press the Power( ) button to start. use, by pressing each button. •... - Page 16 ow to use washer (1) Button : Power (5) Child lock (9) Button : Beeper (2) Dial : Program (6) Button : Rinse (10) Button : Time Save (3) Button : Start/Pause (7) Button : Spin (11) Button : Time Delay (4) Button : Option (8) Button : Temperature Power...
- Page 17 ow to use washer Start/Pause Option • By pressing the option button, only one option function be selected. 1. Start • This Start/Pause button is used to start wash cycle or pause the wash cycle. 1. Bio 2. Pause • If you want to eliminate protein stains(milk, •...
- Page 18 ow to use washer Child lock Rinse • By pressing the Rinse button, the Rinse type can be selected. • If you choose to lock the buttons on the control assembly to prevent tampering, this function may be selected. • Child lock can be set by pressing and holding the Option and Rinse button simultaneously.
- Page 19 ow to use washer Time Delay Spin • By pressing the Spin button, the spin speed can be chosen. Preparing washing before starting “Time Delay” - Turn on the water tap. - Load laundry and close the door. - Place the detergent and fabric softener in 1.
- Page 20 ow to use washer Beeper Water Temperature • By pressing the Temp. • Press the Beeper button High button, the water repeatedly to adjust the temperature can be volume of the Beeper. selected. (High/Low/Off) - Cold - 30˚C / 40˚C / 60˚C / 95˚C Beeper •...
- Page 21 ow to use washer Display 3. Completion of washing • When washing cycle is completed, “ ” is displayed on the “Multi 1. Special function display display”. • When Child lock is selected, the “ ” lamp is on. 4. Time left •...
-
Page 22: Maintenance
aintenance ❋ Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock to avoid electrical shock hazards. ❋ When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside. The water inlet filter - "... - Page 23 aintenance Dispenser drawer ❋ After a while detergents and fabric softeners leave a deposit in the drawer. • It should be cleaned from time to time with a jet of running water. • If necessary it can be removed completely from the machine by pressing the catch downward and by pulling it out.
- Page 24 aintenance The water circulation nozzle • Clean the water circulation nozzle, if clogged. Cleaning your washer 1. Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive household detergent.
-
Page 25: Troubleshooting Guide
roubleshooting guide ❋ This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not function at all, check the following points before you contact your service provider. Symptom Possible Cause Solution... - Page 26 roubleshooting guide Symptom Possible Cause Solution Washer does not start • Electrical power cord may not Make sure plug fits tightly in wall be plugged in or connection outlet. may be loose. • House fuse blown, circuit Reset circuit breaker or replace fuse. breaker tripped,or a power Do not increase fuse capacity.
- Page 27 roubleshooting guide Symptom Possible Cause Solution Check another tap in the house. • Water supply is not adequate in area Fully open tap. • Water supply taps are not completely open. Straighten hose(s). • Water inlet hose(s) are kinked. Check the filter of the inlet hose(s). •...
-
Page 28: Terms Of Warranty
erms of Warranty Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
